Shure GLX-D+ Dual Band Digital Wireless Rack System - Li-ion Battery Included

ITEM #: SH-GLXD14PZ3 MFG #: GLXD14+-Z3

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$624.00

Our Price:

$499.00

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup
  • Item restricted to the Contiguous United States ground shipment only.


GLXD14+-Z3 - Overview

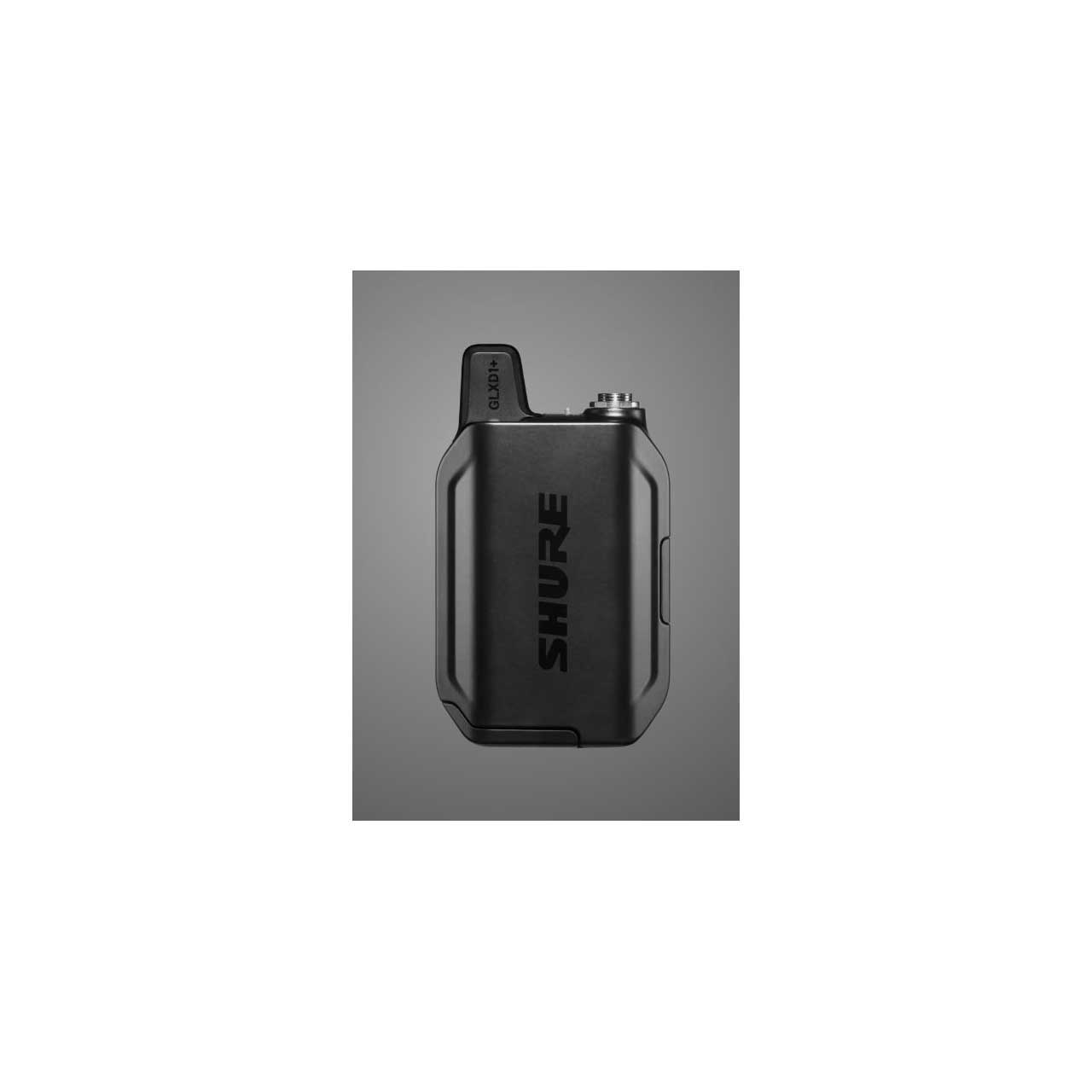

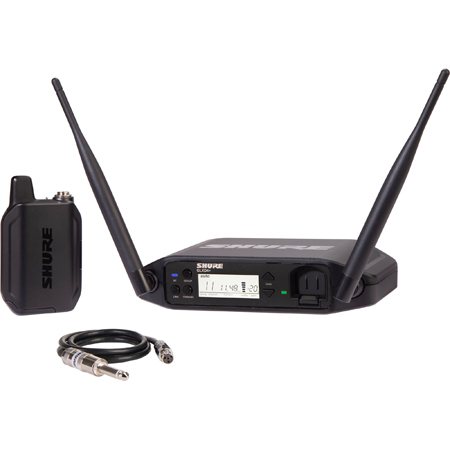

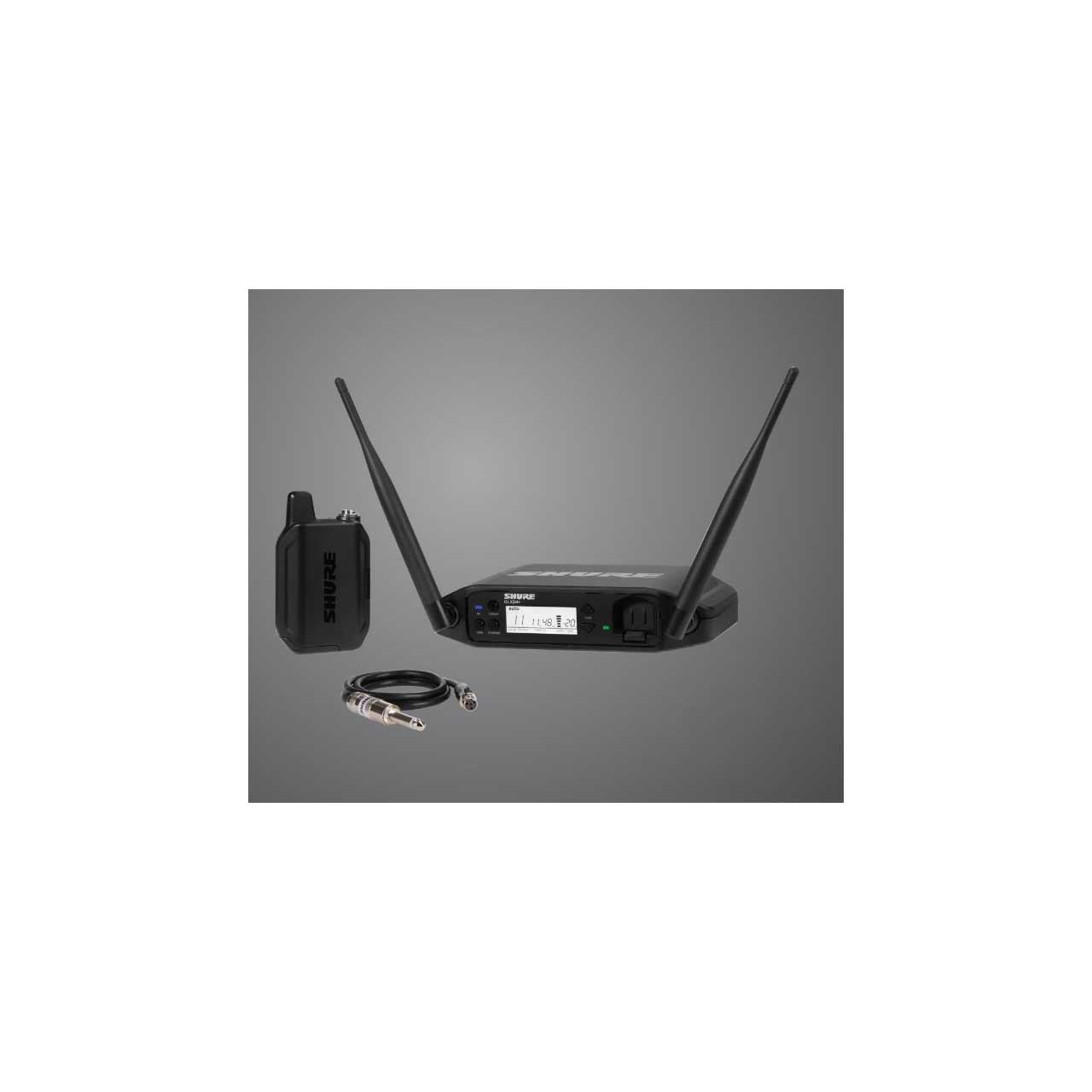

The Shure GLX-D14+ Dual Band Wireless Bodypack System features the WA302 guitar cable and the GLXD4+ tabletop receiver.

READY-TO-GO. EVERY TIME. AUTOMATICALLY.
GLX-D+ Dual Band Digital Wireless is the perfect solution for musicians and presenters who want to go wireless with confidence, and without complexity. Every aspect of its operation is managed automatically and with total reliability, allowing you to focus on your performance. with new Dual Band Wireless Technology, GLX-D+ can operate in both 2.4 and 5.8GHz, more than doubling the available bandwidth while also intelligently avoiding interference for reliable, dropout-free audio. Featuring smart rechargeability with up to 12 hours of runtime (improved from prior generation GLX-D), the included lithium-ion battery can be charged multiple ways and offers quick charge capabilities.

Available with multiple legendary microphone options (including the SM58®) in tabletop, half-rack and guitar pedal system configurations. When combined with Frequency Manager and directional antenna accessories (both sold separately), the rack-mount receiver systems are ideal for small and medium installations where a larger number of channels is needed.

Applications
Vocalists
Guitarists
Presenters

PLEASE NOTE: This product contains Lithium-Ion Batteries. Due to FAA regulation this item is restricted to ground transportation in the lower 48 contiguous states and cannot ship to Alaska, Hawaii or Puerto Rico.

  • Features:

    • Dual Band Wireless Technology provides reliable operation in 2.4GHz and 5.8GHz.
    • Automatic Frequency Management continuously monitors the spectrum and seamlessly moves to a clean channel in case any interference appears.
    • Smart Rechargeability. with up to 12 hours of runtime, lithium-ion rechargeable battery shows remaining time in hours and minutes.
    • Multiple Receiver Options including Guitar Pedal, Tabletop and Half-rack.

  • Specifications:

    • System Specifications
    • Compatibility: with Frequency Manager: Up to 11 compatible systems in typical setting, and up to 16 under ideal conditions. Without Frequency Manager: Up to 4 compatible systems in typical setting, and up to 8 under ideal conditions
    • System Operating Range: Indoors: Up to 30 m (100 ft.) typical, with a maximum of 60 m (200 ft.) under ideal conditions. Outdoors: Up to 20 m (65 ft.) typical, with a maximum of 50 m (165 ft.) under ideal conditions
    • Transmit Mode: Shure Proprietary Digital - Dual Band (2.4 GHz and 5.8GHz)
    • Audio Frequency Response: Note: Dependent on microphone type
    • Dynamic Range: 120 dB, A-weighted
    • RF Sensitivity: -88 dBm, typical
    • Total Harmonic Distortion: 0.07%, typical
    • RF Output Power: 10 mW E.I.R.P. max
    • Operating Temperature Range: 0° to 135°F
    • Storage Temperature Range: -20° to 165°F
    • Polarity: Positive pressure on microphone diaphragm (or positive voltage applied to tip of WA302 phone plug) produces positive voltage on pin 2 (with respect to pin 3 of low-impedance output) and the tip of the high impedance 6,35mm output.
    • Battery Life: Up to 12 hours

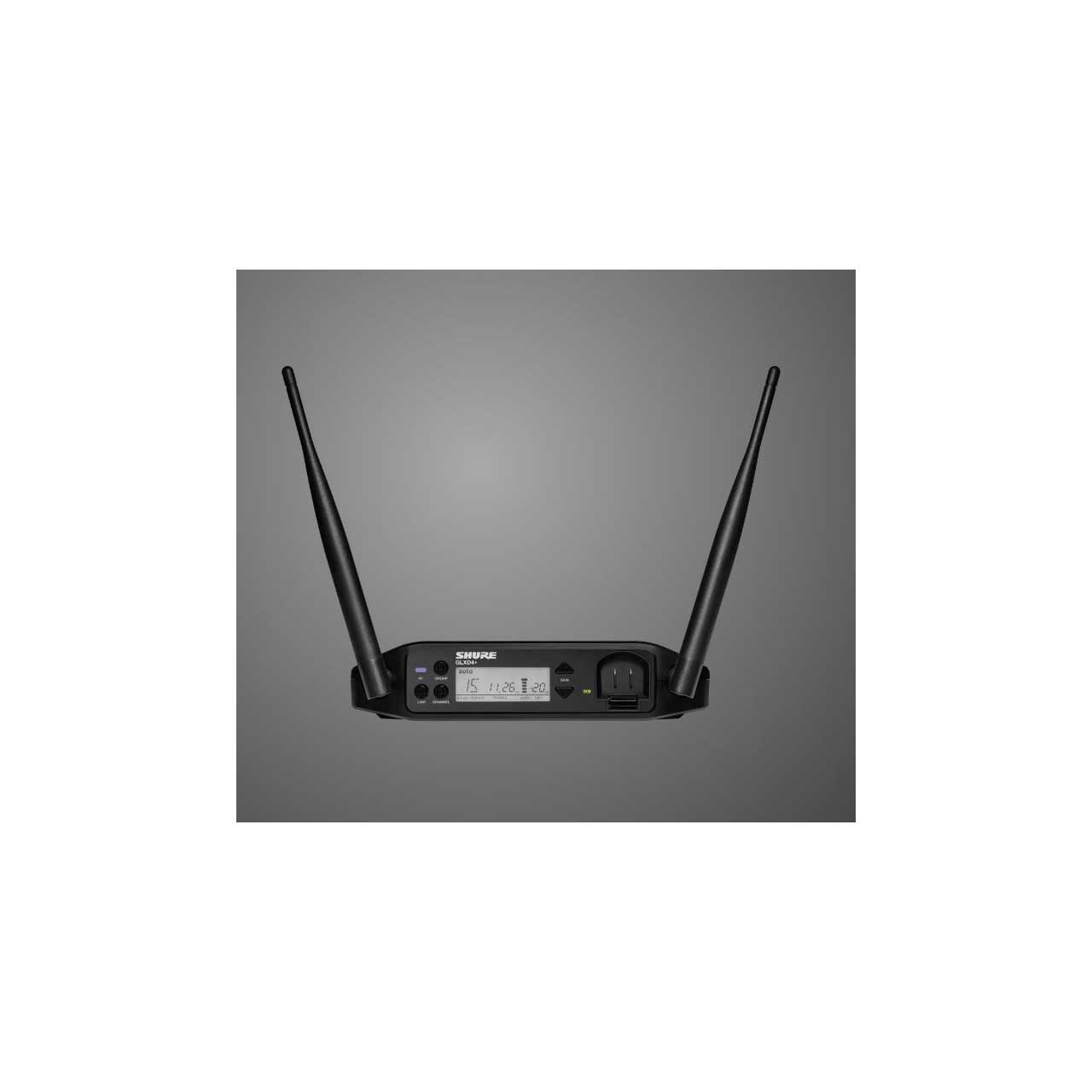

      GLXD4+ Dual Band Wireless Receiver
    • Dimensions (HxWxD) (Antennas Folded): 7.2 x 4.8 x 1.6" (182.8 x 121.97 x 40.3mm)
    • Weight: 10.9oz (310g)
    • Housing: Molded Plastic
    • Power Requirements: 14.5 V - 17 V, 600mA
    • Spurious Rejection: >35 dB, typical
    • Gain Adjustment Range: -20 to 40 dB in 1 dB steps
    • Phantom Power Protection: Yes
    • Configuration: XLR Output Impedance balanced | 6.35mm (1/4") output Impedance balanced
    • Impedance: XLR Output 100Ω | 6.35mm (1/4") output 100Ω (50Ω, Unbalanced)
    • Maximum Audio Output Level: XLR connector (into 600Ω load) 1 dBV | 6.35mm (1/4") connector (into 3 kΩ load) +8.5 dBV
    • Pin Assignments: XLR Output 1=ground, 2=hot, 3=cold | 6.35mm (1/4") connector Tip=audio, Ring/Sleeve=ground
    • Receiver Antenna Input
      Impedance: 50Ω
      Antenna Type: Dual Band 1/2 Wave Sleeve Dipole, non-removable
      Maximum Input Level: ?20 dBm

  • Item Includes:

    • 1x GLXD14+ Wireless Body Pack Guitar System
    • 1x Power Supply
    • 1x SB904 Li-Ion Battery
    • 1x Carrying Case

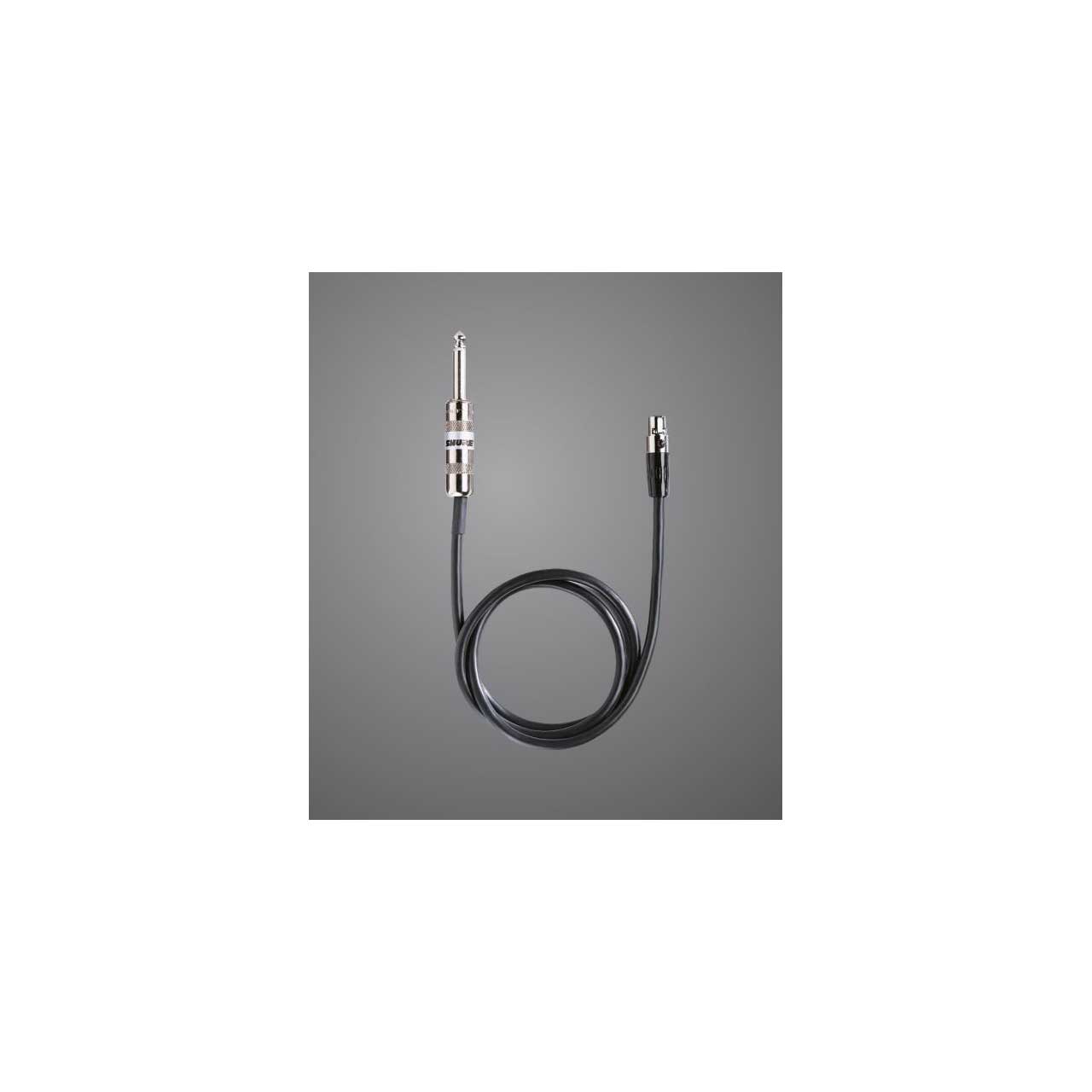

    • 1x Instrument Cable Ta4f To 1/4"

  • Warranty:

    • 2 Year

  • GTIN:

    0042406695503
