Shure IMXRK80 IntelliMix Microsoft Teams Room Kit with 3-Camera Huddly Crew System & Two MXA902 Mics for Large Rooms

ITEM #: SH-IMXRK80 MFG #: IMXRK80

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order


We are an authorized dealer for this series; however, the manufacturer does not permit online sales. Please contact a sales engineer at (800) 522-2025 to complete your purchase.

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


IMXRK80 - Overview

Shure IntelliMix™ Room Kits - Microsoft Teams Rooms Solutions

Boost collaboration with simple and secure Microsoft Teams Rooms conferencing with Shure's IntelliMix™ Room Kit 80! With zero-touch provisioning, you can effortlessly deliver high-quality audio and video experiences in your small, medium, and large meeting and collaboration spaces, up to 33 x 18 ft. The component-based systems provide everything you need - automatically. No programming or adjusting of audio and video settings is required. All kits include a powerful Windows-based Teams Rooms compute with Shure's premium audio signal processing, an intuitive touch panel, a superior all-in-one ceiling array microphone + loudspeaker, and intelligent, high-resolution video.

How It Works
Everything You Need: The kits include all the components needed for a Microsoft Teams Room - audio, video, compute, and touch panel - in simplified, ready-to-deploy packages that reduce complexity, eliminate compatibility headaches, and ensure seamless interoperability.

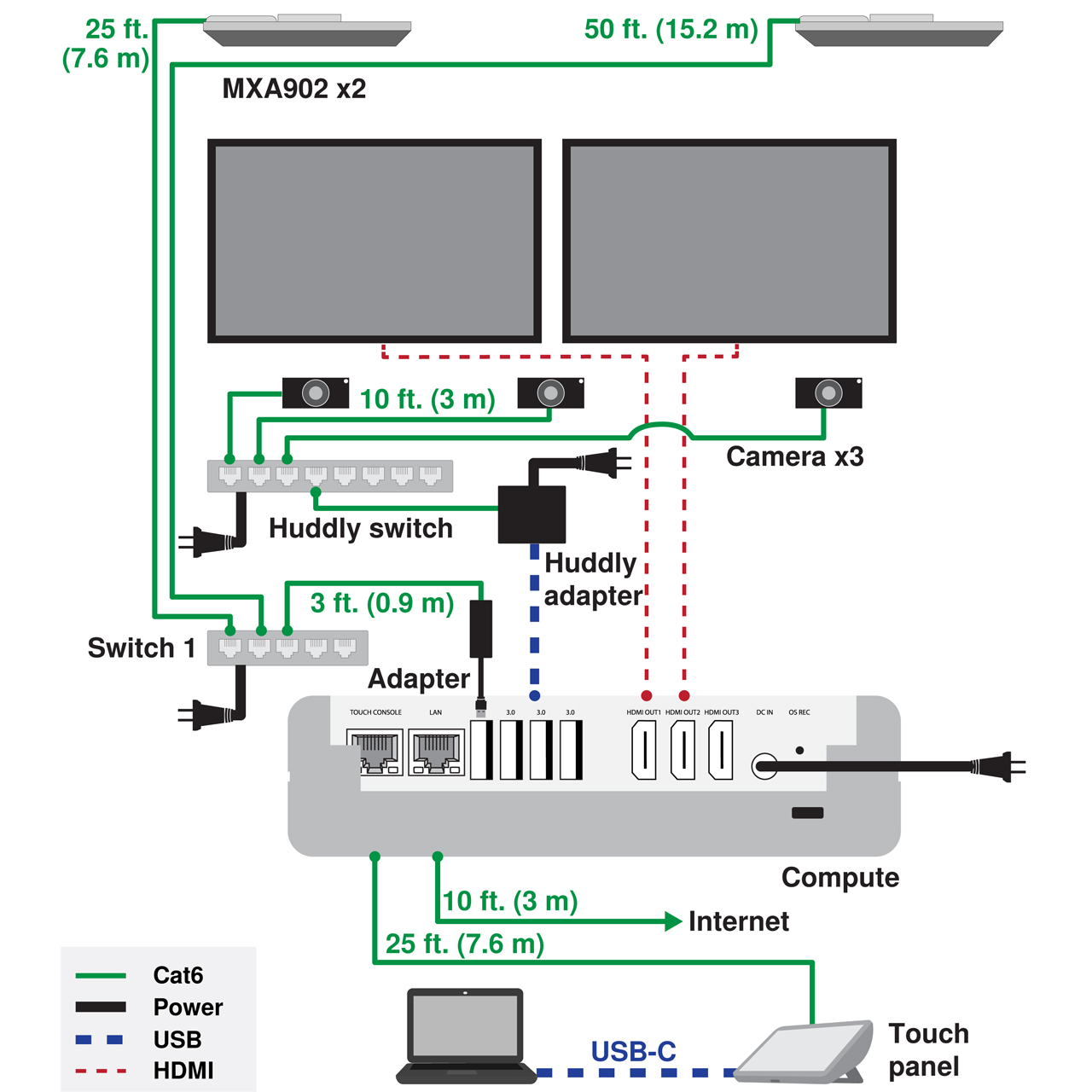

Just Connect Cables: The Teams Room compute with embedded audio DSP and video software auto-configures connected devices upon initial bootup, shortening setup time and streamlining deployment.
Sign In and Start Your Meeting: Simply use the touch panel to enter your Teams Room credentials or use Windows Autopilot with Autologin for Teams Rooms.

Quality That's in the Details
Powerful IntelliMix Room® DSP: Delivers unparalleled sound quality with AI-enhanced echo-, noise- and reverb-free meeting audio, pre-installed and pre-configured to provide frictionless connectivity.
Premium Audio: The MXA902 innovatively combines an intelligent beamforming ceiling array microphone and high output, wide dispersion loudspeaker in an efficient, single device.
Intelligent Video: Huddly video solutions feature Huddly Director and Group Framing so that meeting participants are automatically and naturally presented to the far end.

Why It's Better
Streamlined IT Operations: IntelliMix Room Kits enable real-time provisioning, monitoring, control, updates, and support from anywhere, via Windows Autopilot with Autologin for Teams Rooms, Teams Admin Center, Teams Rooms Pro Management Portal, ShureCloud, and integration with enterprise IT management platforms.
Enterprise-Level Security: The Microsoft Teams Room compute provides the robust security features for calls and collaboration in Teams.
Extended Warranty: Protect your investment, maintain financial predictability, and minimize potential downtime with an add-on 3-year warranty extension for 5 years total coverage.
Single-Vendor Support: Get a true one-stop experience and peace of mind with efficient, fast, and reliable support for all kits and components, including cameras, all from Shure.

  • Features:

    • Zero-touch provisioning including support for Windows Autopilot with Autologin for Teams Rooms
    • IntelliMix Room DSP enhances speech and removes distracting sounds ensuring every word is heard clearly and transcribed accurately with Microsoft 365 Copilot
    • MXA902 ceiling array and loudspeaker provides unmatched acoustic performance and consistent full room coverage for clear, intelligible speech capture and reproduction
    • AI-powered cameras from Huddly automatically frame participants and optimize the video experience for visually engaging meetings

  • Specifications:

      IntelliMix Foundation Compute
    • CPU: 12th Gen Intel Core i5 processor
    • Memory: 16 GB DDR4
    • Storage: 256GB
    • Graphics: Intel UHD Graphics for 12th Gen Intel processors
    • Operating System: Win 11 IoT Enterprise (x64)
    • Software: Microsoft Teams Rooms, IntelliMix Room
    • Inputs/Outputs:
      - RJ45 (LAN) 1
      - RJ45 (To Touch Panel) 1
      - HDMI Out 3
      - USB-A 3.0 4
      - Power (DC In) 1
      - Kensington Lock 1
    • Power Supply: FSP120-ABBN3
    • Power Consumption: 120W max
    • Weight: 2.4lbs
    • Operating Temp: 32°F - 104°F
    • Storage Temp: -4°F - 140°F
    • ESA Mounting Bracket Set: 1
    • Power Adapter: 1
    • Power Cord: 3 or 4 x 6ft
    • HDMI Cable: 2x 10ft
    • Ethernet Cables:
      - 1x 3ft
      - 1x 10ft
      - 2x 25ft
      - 1x 50ft

      IntelliMix Touch Panel
    • Resolution: 1920x1080
    • Freq. Refresh: Rate 60Hz
    • Type: Capacitive touch
    • Surface Treatment: Anti-fingerprint, anti-glare
    • Motion Sensor: PIR sensor for automatic wake-up
    • Inputs/Outputs:
      - RJ45 (Compute) 1
      - USB-C (Content Sharing) 1
      - USB-A 2.0 1
      - Audio Out (3.5 mm) 1
    • Input Power: 52V DC by DisplayLink over Cat6
    • Power Consumption: 13W max
    • Cable Requirements for Compute to Touch Panel: Cat6 (shielded cable recommended)
    • Max. Cable Length for Compute to Touch Panel Shielded Cable: 200ft
    • Unshielded Cable: 30ft
    • Weight: 2.8lbs
    • Operating Temp: 32°F - 104°F
    • Storage Temp: -4°F - 140°F

      MXA902 Ceiling Array Microphone/Loudspeaker
    • Coverage Area Size: 20 x 20 ft
    • Coverage Type :Single-zone automatic
    • Power Requirements: PoE+, Class 4
    • Max. Power Consumption: 24W
    • Control: Software Designer
    • Cable Requirements: Cat5e or higher (shielded cable recommended)
    • Connector: RJ45
    • Microphone:
      - Freq. Response 125Hz - 20kHz
      - AES67 or Dante Digital Output
      - Channel Count: 1 output channel
      - Sampling Rate: 48kHz
      - Bit Depth: 24
      - Sensitivity at 1kHz -1.74dBFS/Pa
      - Max. SPL Relative to 0dBFS overload, 95.74dB SPL
      - Signal-to-Noise Ratio Ref. 94dB SPL at 1kHz, 75.76dB A-weighted
    • Loudspeaker:
      - AES67 or Dante Digital Input Channel Count: 2 input channels
      - Frequency Range (-10dB): 120Hz - 20kHz
      - Max. Output Level @ 1M: Pink noise: 86dB SPL, 1 kHz sine tone: 88dB SPL
    • Coverage Angle: Average of 1 octave band centered on 4kHz: 80°
    • Digital Signal :Processing Delay, compressor, signal generator, equalizer
    • Latency (Not including Dante): 6.3ms

      Huddly L1
    • Sensor: 20.30 MP 1" CMOS Sensor
    • Resolutions @30 fps: 1080p Full HD, 720p HD
    • Field of View:
      - Horizontal: 92°
      - Vertical: 65°
      - Diagonal: 103°
    • Zoom: Up to 5x digital zoom
    • Connectivity: 1x RJ45 (PoE/data)
    • Cable Requirements: Cat5e or higher
    • USB-C: USB 3.0 port via USB to PoE Adapter
    • Dimensions (WxDxH): 4.8" x 3.5" x 2"
    • Weight 1.3lbs

  • Item Includes:

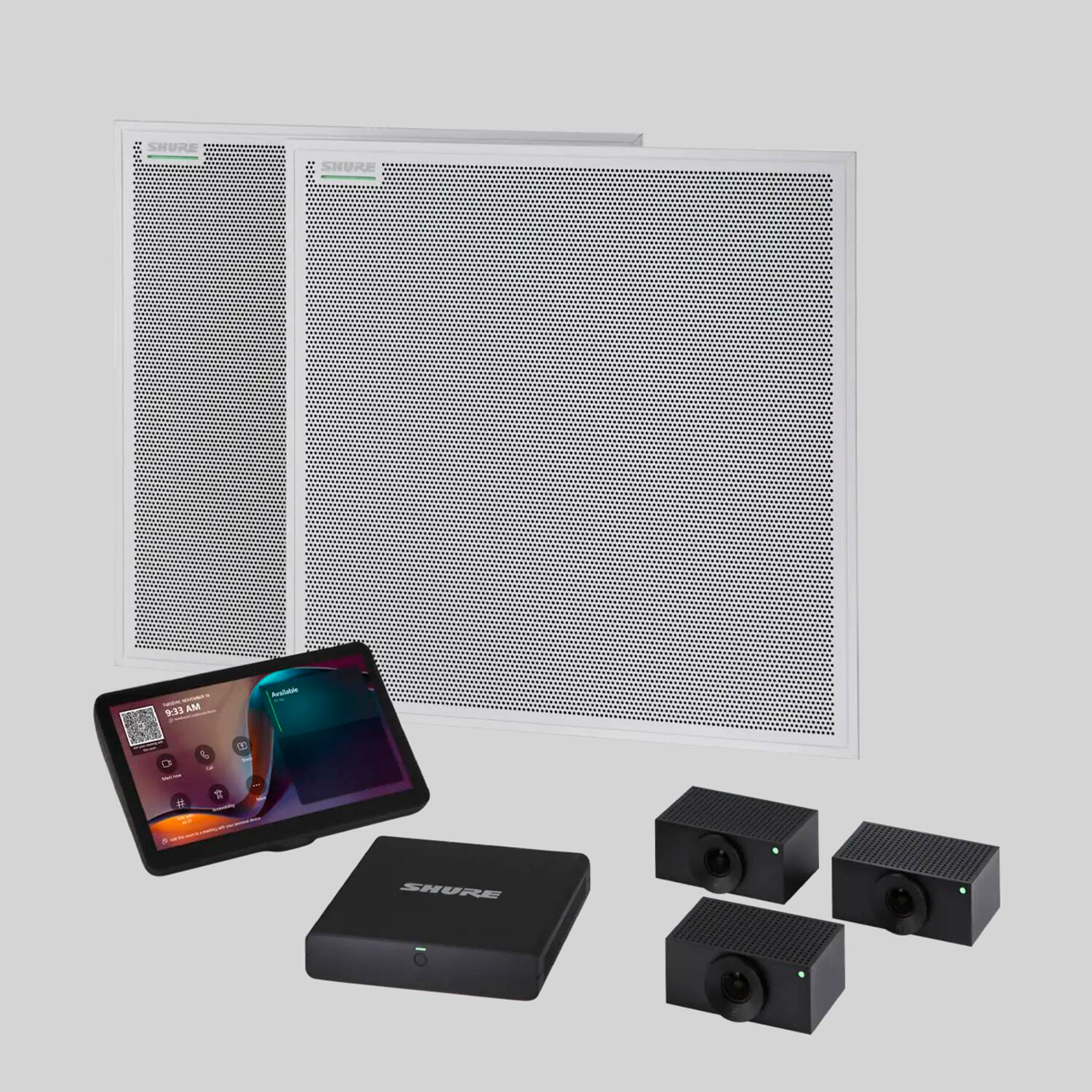

    • 1x IntelliMix Foundation System w/ IntelliMix Room DSP Software, touch panel, network switch, cables & accessories
    • 2x MXA902 Ceiling Array
    • 3x Huddly L1 Networked Cam

  • GTIN:

    0042406942584
