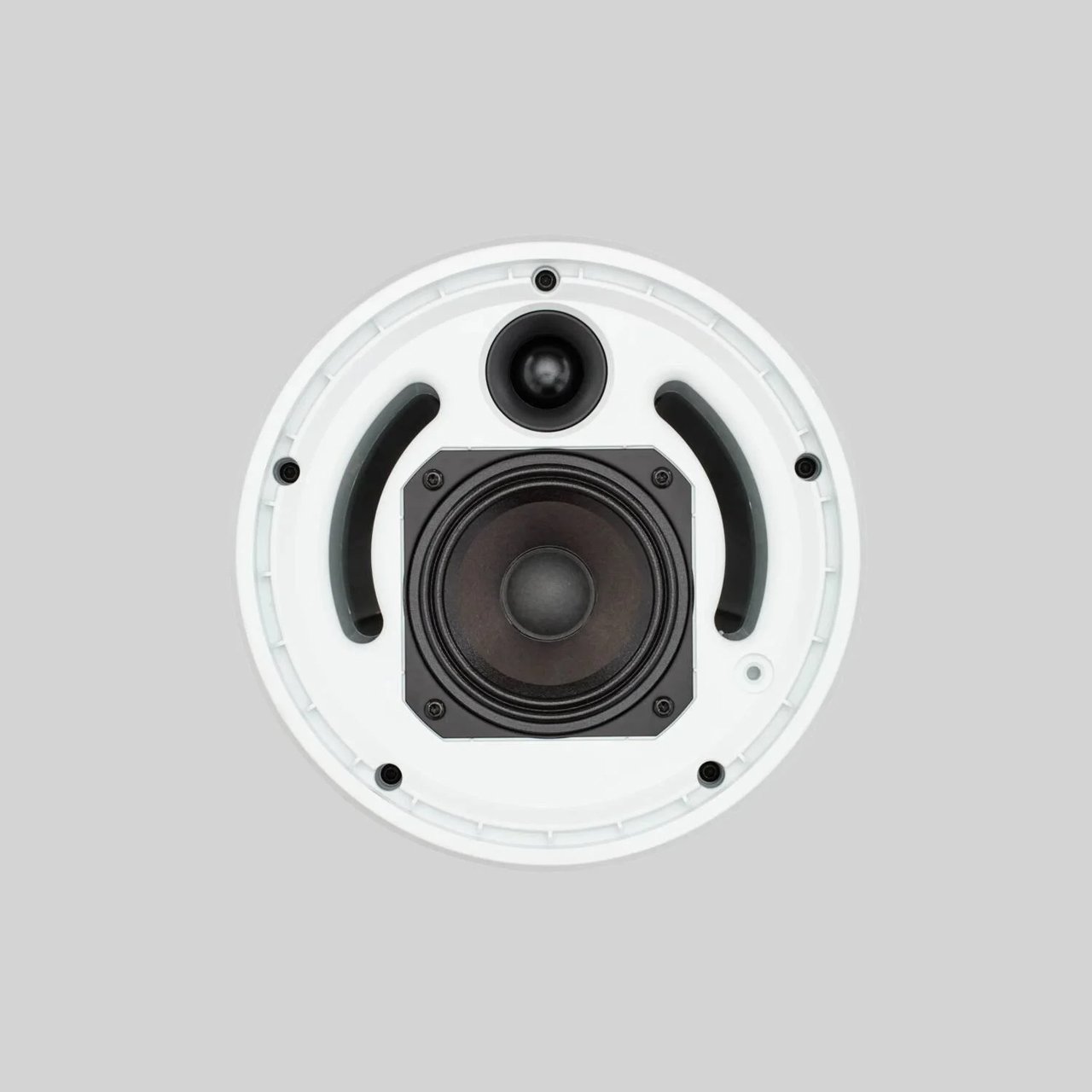

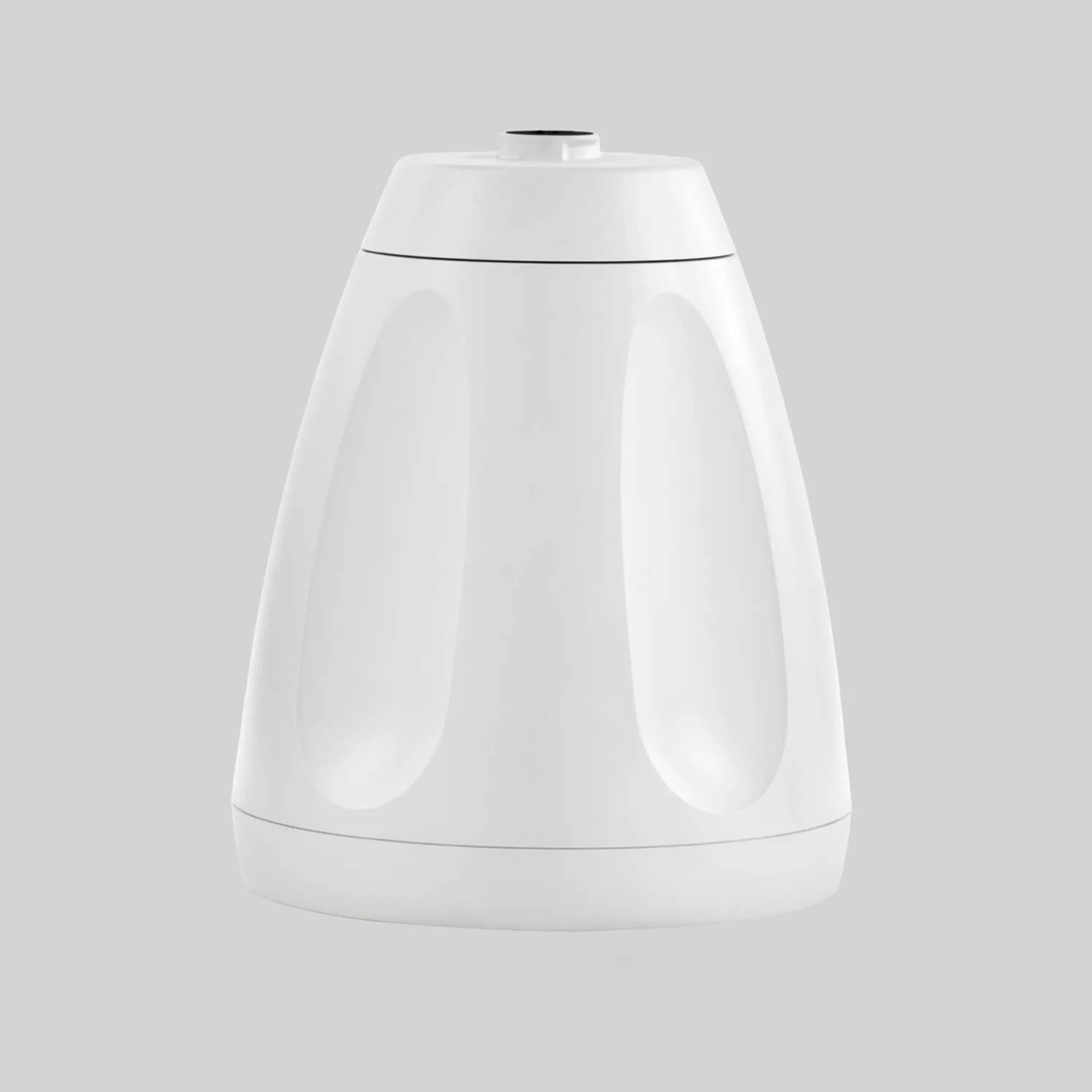

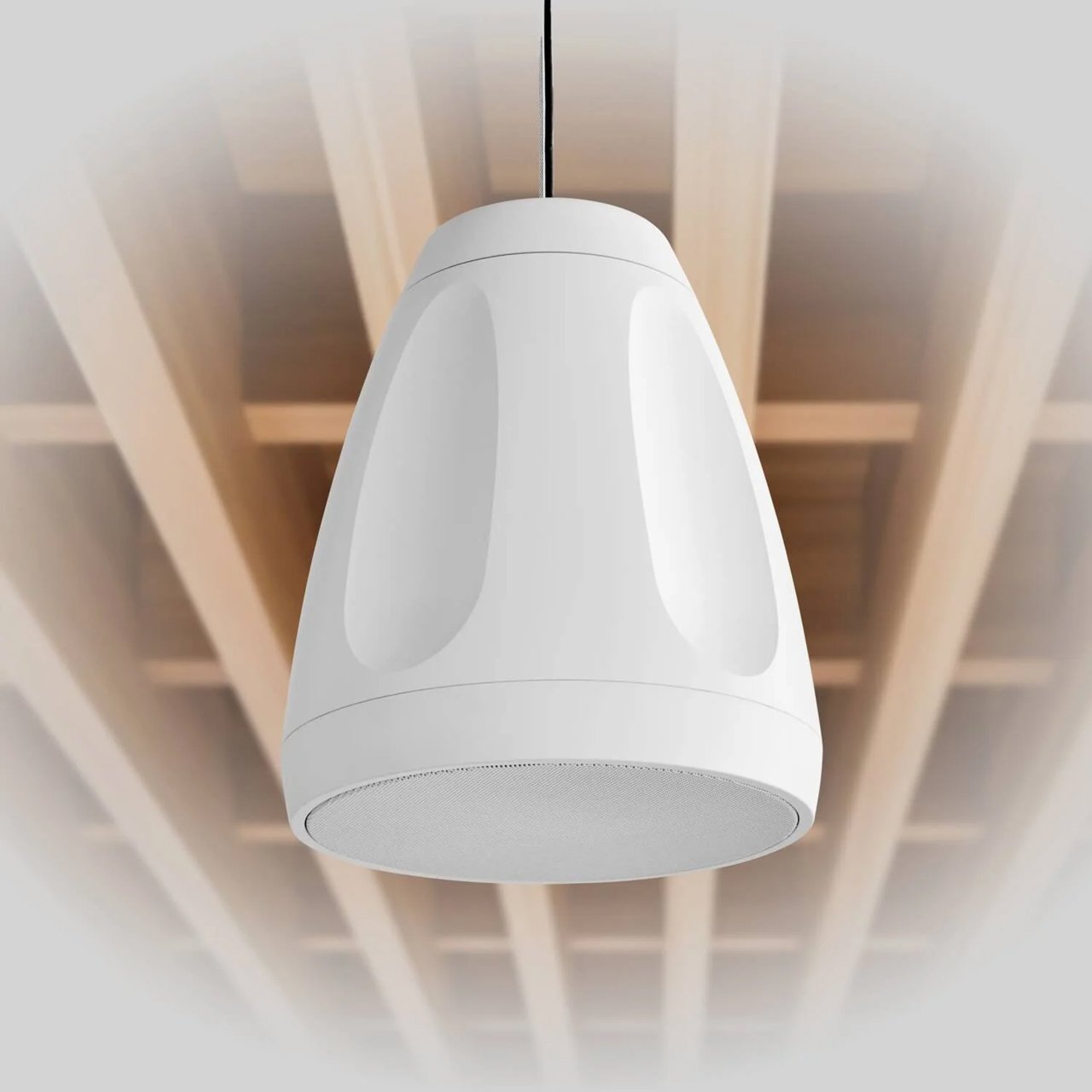

The Shure Microflex MXN-6 Networked Pendant Loudspeaker provides high-quality speech reproduction for AV conferencing applications. The PoE-powered MXN-6 is the ideal loudspeaker solution when used as part of a Shure networked conferencing audio system. Combined with Microflex Advance Array Microphones and IntelliMix® DSP solutions, the full Shure Microflex Ecosystem delivers premium audio performance with an unmatched ease of deployment.
Loudspeaker Dante Channels
The loudspeaker has 2 Dante input channels and 1 Dante output channel.
Dante Input Channels
The 2 Dante input channels are summed and sent to the loudspeaker's output. These input channels are useful if you need to send a far-end signal and program audio to the loudspeaker.
Dante Output Channel

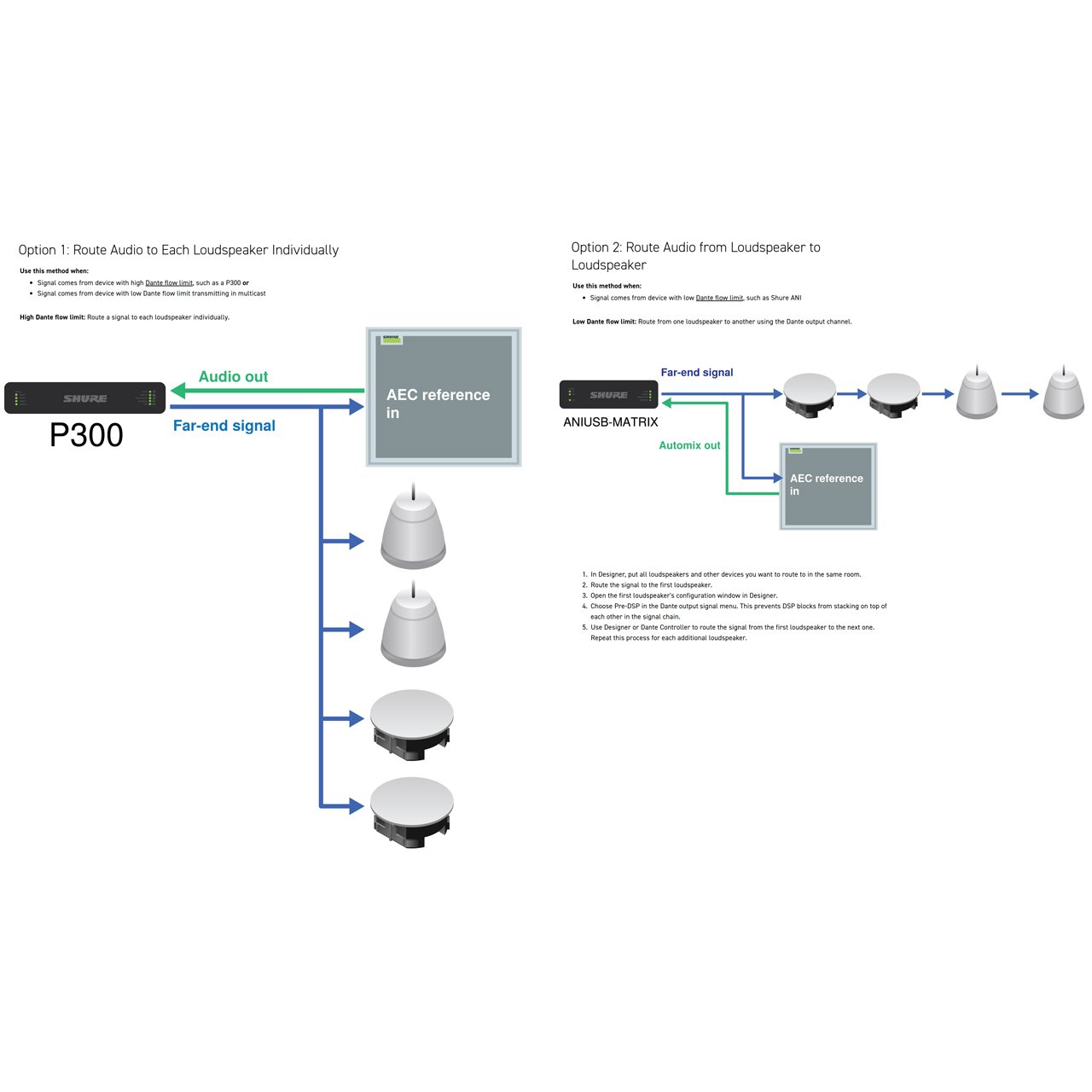

The Dante output is useful if you need to send the loudspeaker's signal to another loudspeaker or to an AEC reference channel. There are 2 processing options for the Dante output signal:
Pre-DSP: Sends a pre-DSP signal to the Dante output (DSP is still applied to loudspeaker output). Use this option to send the signal to another loudspeaker. This option prevents DSP blocks from stacking on top of each other.
Post-DSP: Sends a post-DSP signal to the Dante output. Use this option to send the loudspeaker's signal to an AEC reference channel.
