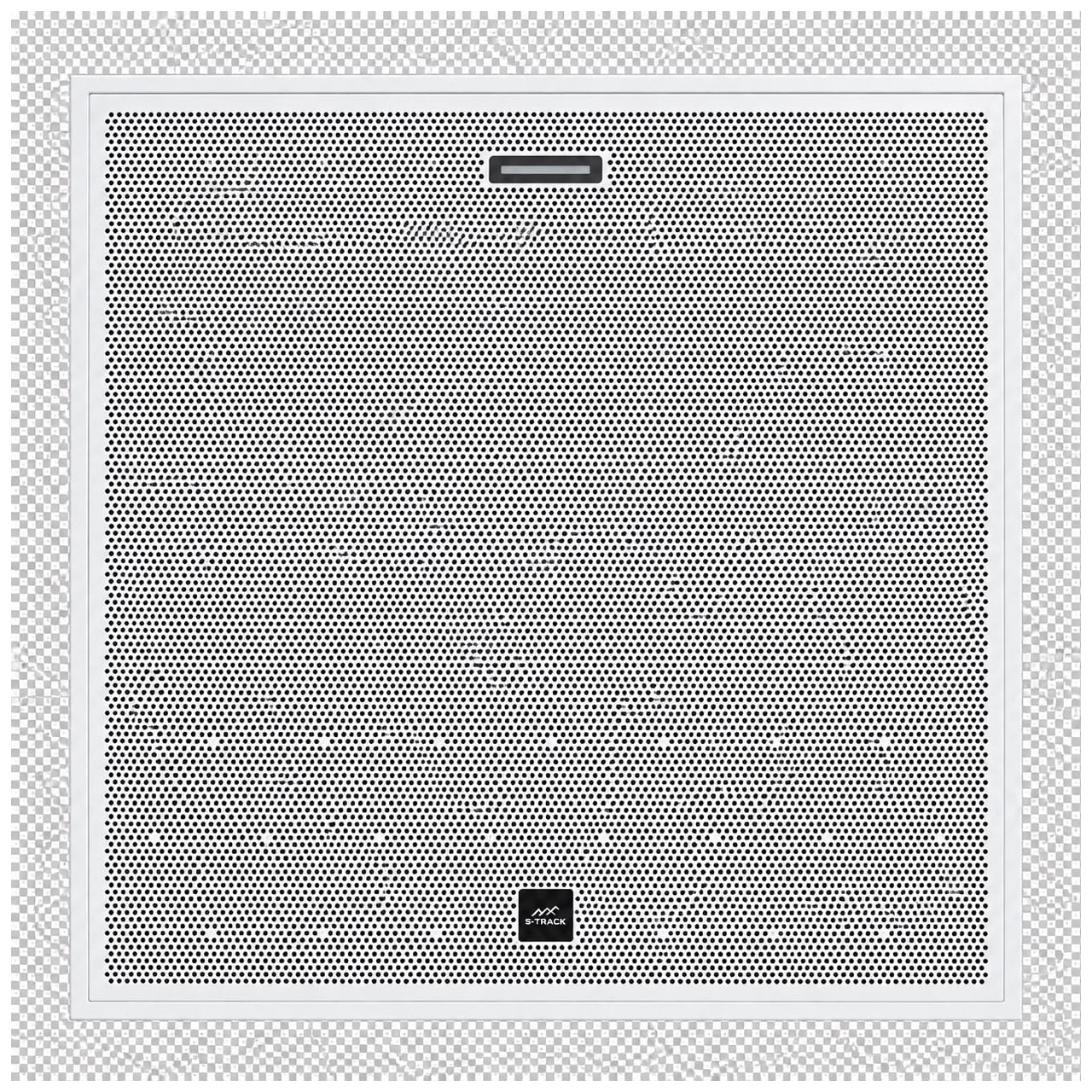

SAS S-Track CM129 Dante / AES67 Ceiling-Array Microphone with 129 Capsules and Intelligent Beamforming

CM-129 - Overview

• Features:

  • 129-capsule high-density MEMS array for precise source localization
  • 33 pickup + 33 sound-reinforcement beams for flexible room zoning
  • ClearVoice AI DSP: AEC, AGC, noise reduction, dereverberation, automatic mixing and feedback control
  • Standalone voice lift up to 18dB acoustic gain - no external DSP required
  • Simultaneous Dante, AES67 and four-channel balanced analog I/O
  • PoE++ or 12V - 48VDC power
  • Pickup coverage up to 26.2ft (8m); voice-lift coverage up to 13.1ft (4m)
  • Cascade multiple units for large and divisible spaces


• Specifications:

  Acoustic & Processing
  • Microphone Elements: 129 MEMS capsules
  • Pickup Beams: 33 adjustable zones
  • Sound-Reinforcement Beams: 33 adjustable zones
  • Pickup Distance: Up to 26.2ft (8m)
  • Voice-Lift Distance: Up to 13.1ft (4m)
  • Processing: AEC, AGC, AFC, ANS, dereverberation, auto-mixing
  • Acoustic Feedback gain: ≥ 18dB
  • Noise Reduction: ≥ 30dB
  • Echo Cancellation: ≥ 90dB; tail ≥ 1 s
  • Sound-Reinforcement Latency: 18 ms
  • Sampling Rate: 48kHz

    Connectivity & Control
  • RJ45 Ports: 3
  • Balanced Analog Inputs: 4 (Phoenix)
  • Balanced Analog Outputs: 4 (Phoenix)
  • RS-485: 1
  • USB: 1x USB-C
  • Network Audio: Dante and AES67
  • Cascading: Supported
  • Power: 12V - 48VDC or PoE++ (802.3bt)
  • Power Consumption: 25W

    Audio
  • Microphone Sensitivity: -32 ±2dB
  • Microphone SNR: 70dB
  • System Frequency Response: 20Hz - 20kHz, ±0.5dB
  • System SNR: 100dB
  • THD: ≤0.1%
  • Max Balanced Input: +4dBu
  • Max Balanced Output: +10dBu

    Mechanical & Environmental

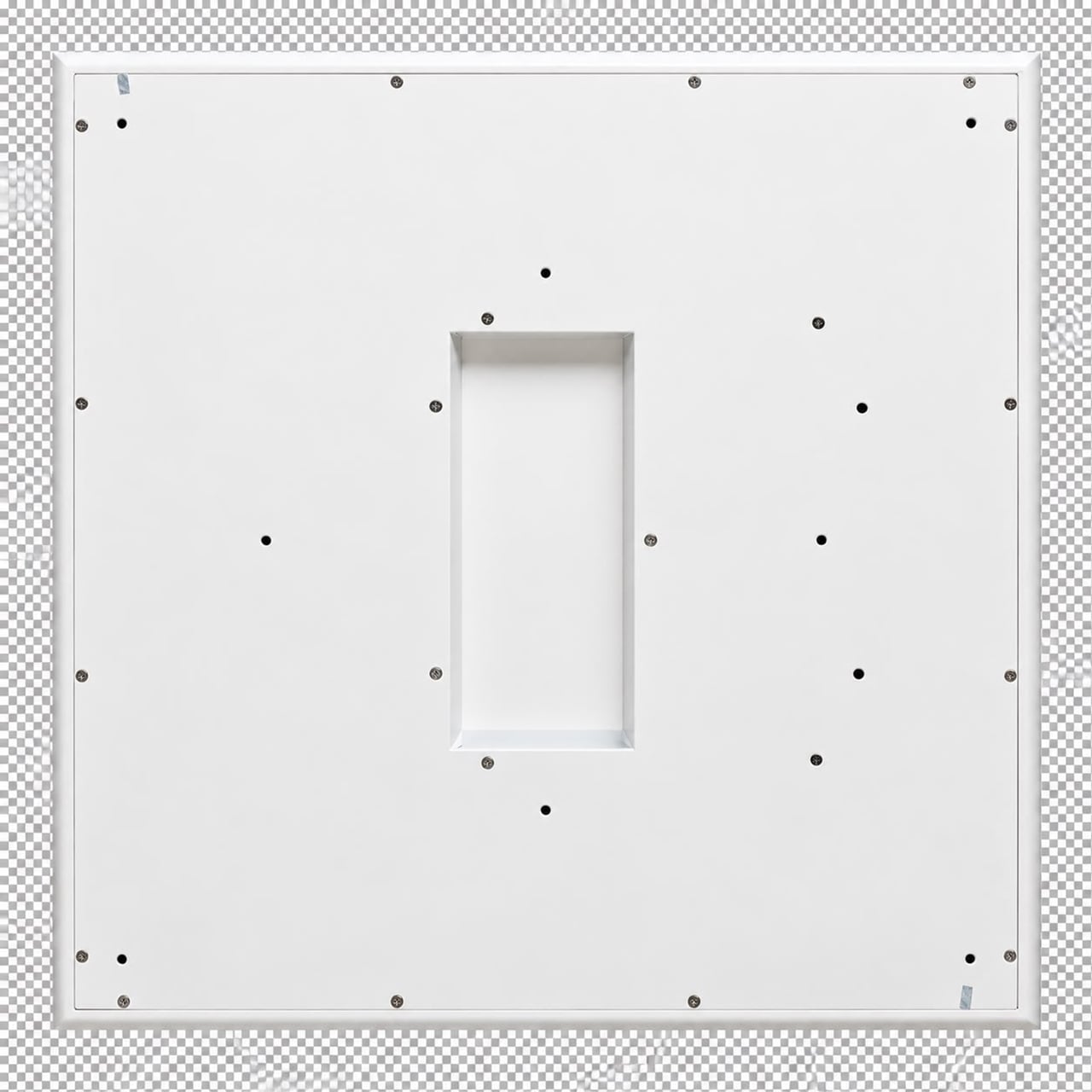

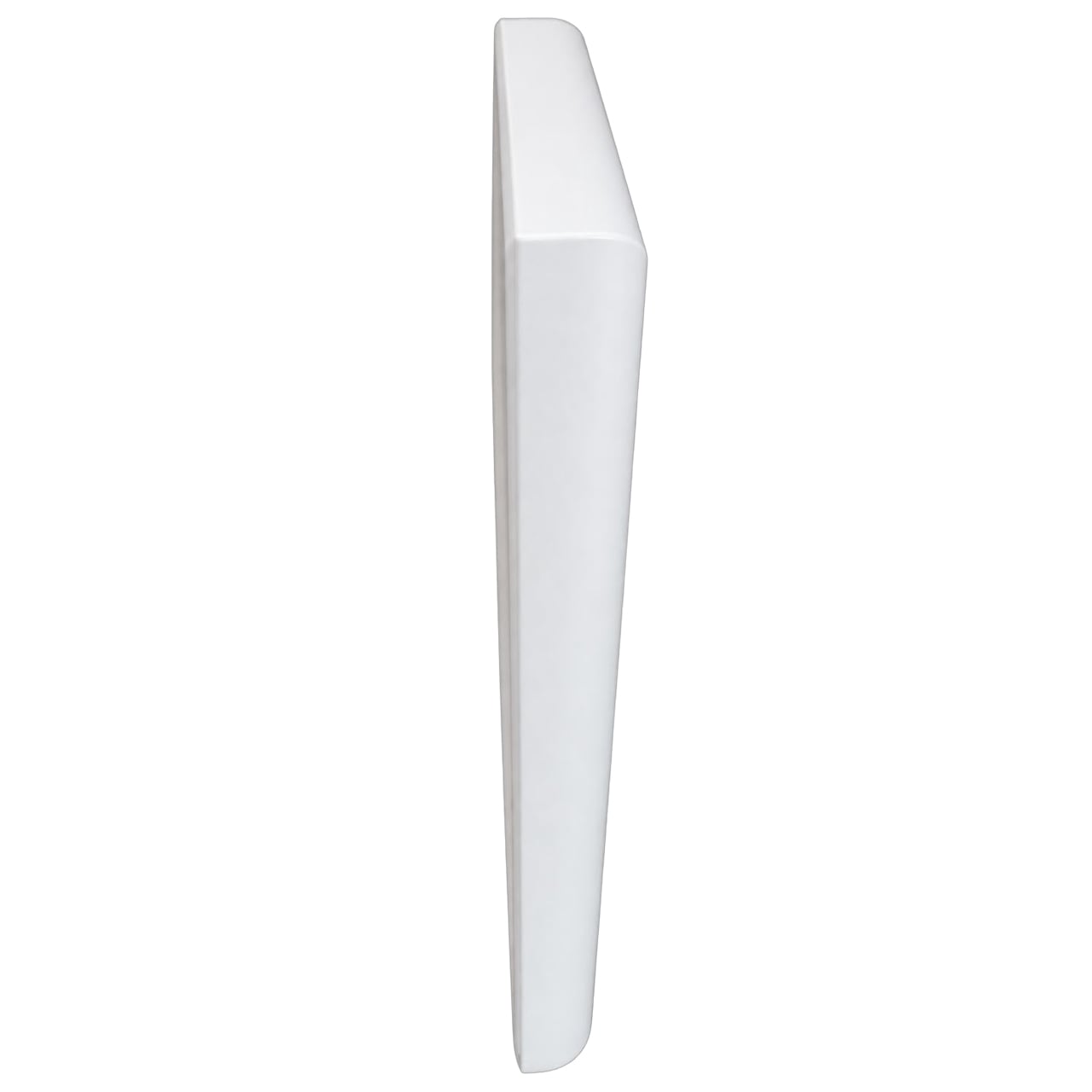

  • Dimensions: 23.6" x 23.6" x 1.69" (600mm x 600mm x 42.8mm)
  • Net weight: 13.29lbs (6.03kg)
  • Finish: Pearl white
  • Operating Temperature: 32°F - 104°F (0°C - 40°C)

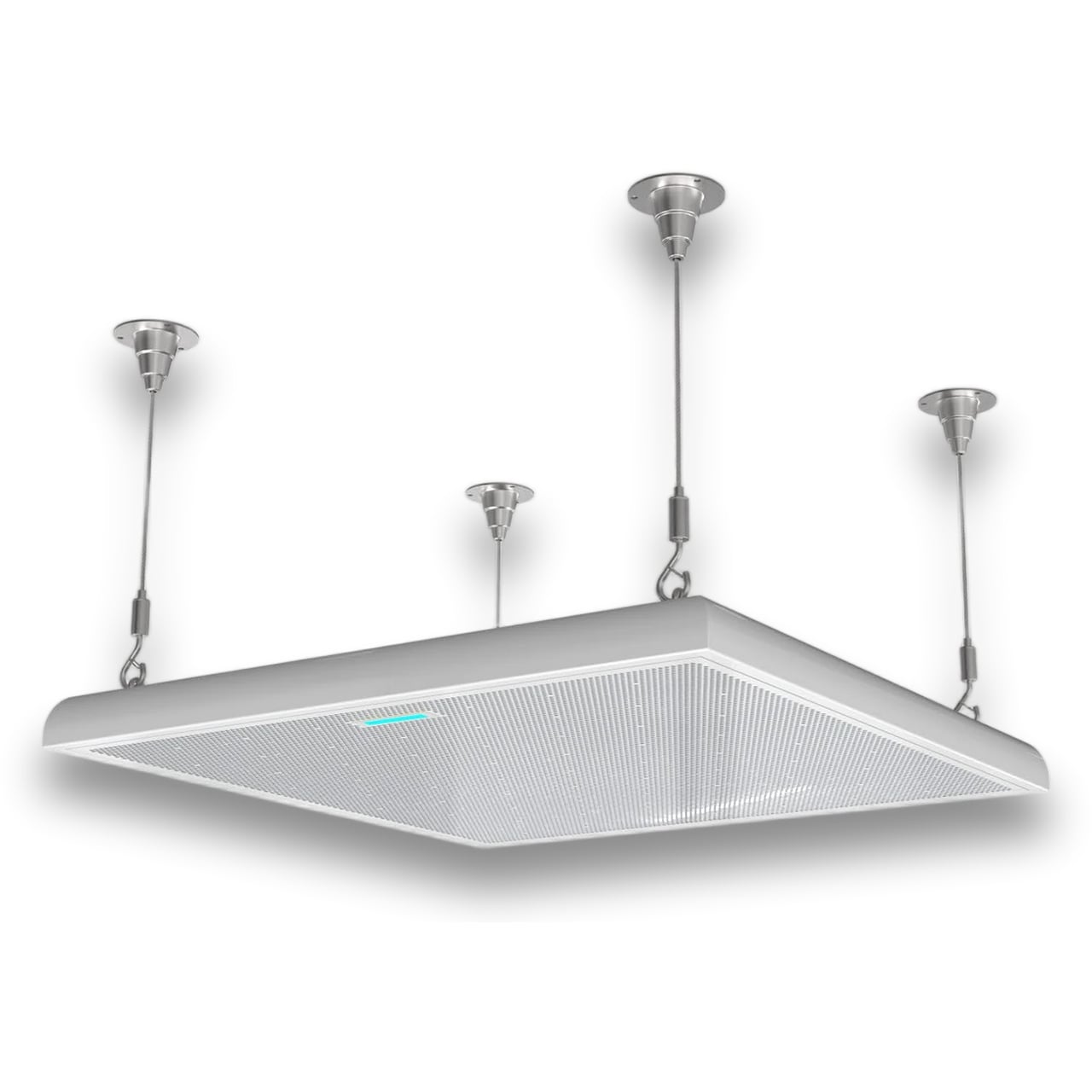

  • Mounting: Flush, surface, wire or rod suspension


• Warranty:

  • 2 Year Warranty
