Shure Microflex MXWNDX2 2 Bay Networked Charging Station - For NeXt Wireless Transmitters - Black

ITEM #: SH-MXWNDX2 MFG #: MXWNDX2

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Shure Inc
Free Shipping with $49 Minimum Order

List Price:

$759.00

Our Price:

$600.00

Add to Wish ListLeasing Options
Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
Notify when in stock
Report Lower PriceLarge Quantity Quote

MXWNDX2 - Overview

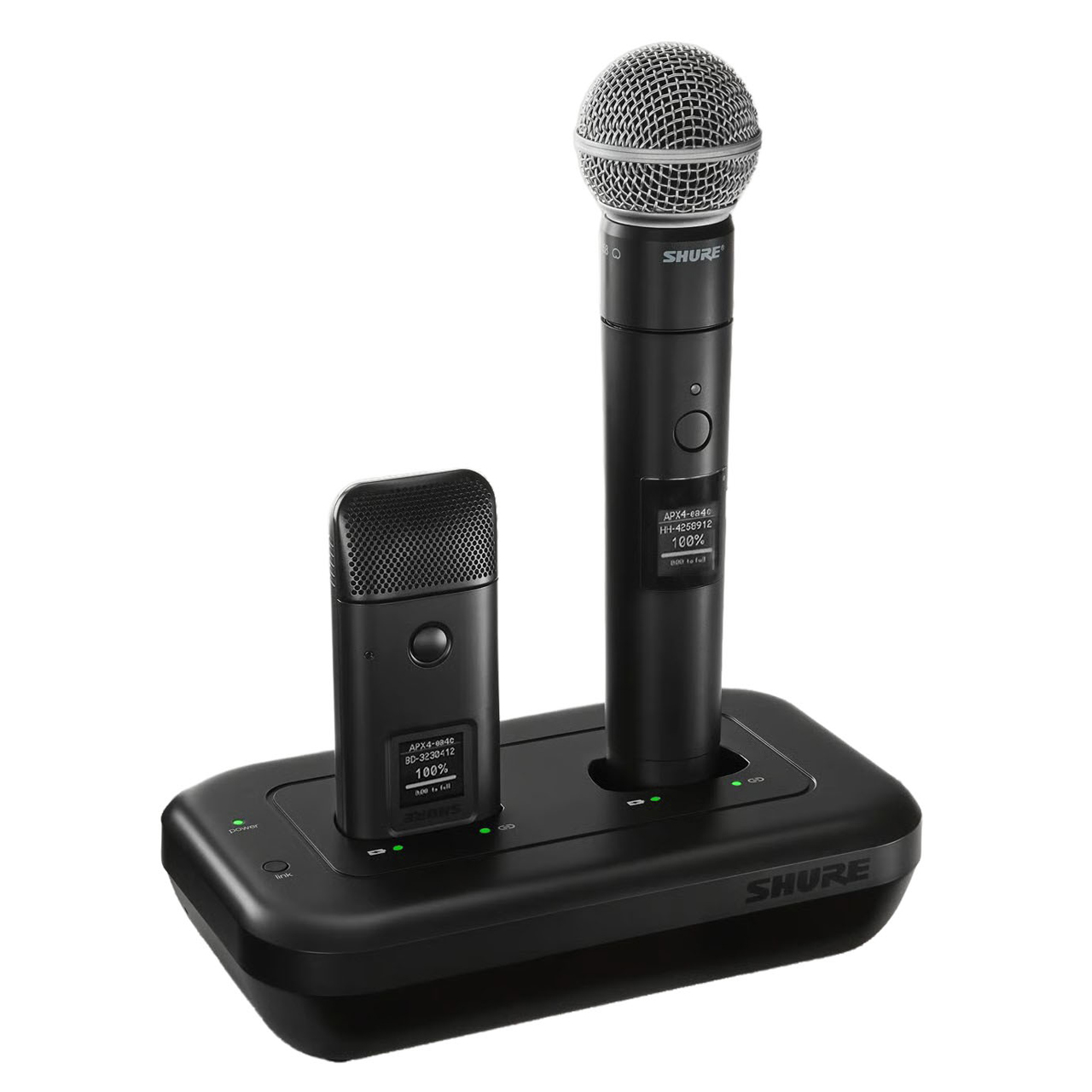

The Shure MXWNDX2 is a Networked Docking Station that can charge 2 MXW neXt transmitters without removing the battery. Compatible with MXW neXt bodypack, handheld, and boundary transmitters.

MXW neXt transmitters can be linked to an associated MXWAPX4 or MXWAPX8 Access Point Transceiver simply by pressing the Link button while the transmitter is in the charger (or via the linking workflow in the CUI). Battery statistics can be shared with networked control software.

The charging station automatically checks battery health including the number of lifetime charge/discharge cycles. Integration with additional MXW neXt hardware and Shure Designer software enables monitoring and control tailored to your specific application.

  • Features:

    • Remote charge status monitoring: Ethernet connection to the system enables remote monitoring of battery charge status in hours and minutes via the control software or third party control systems
    • Easy transmitter linking: Assign docked wireless microphones to channels on an Access Point Transceiver by simply pressing "link"
    • Rapid charge times: Reaches 50% charge in under 2 hours and fully charges transmitters in under 4 hours
    • Update firmware on docked mics via Shure Update Utility

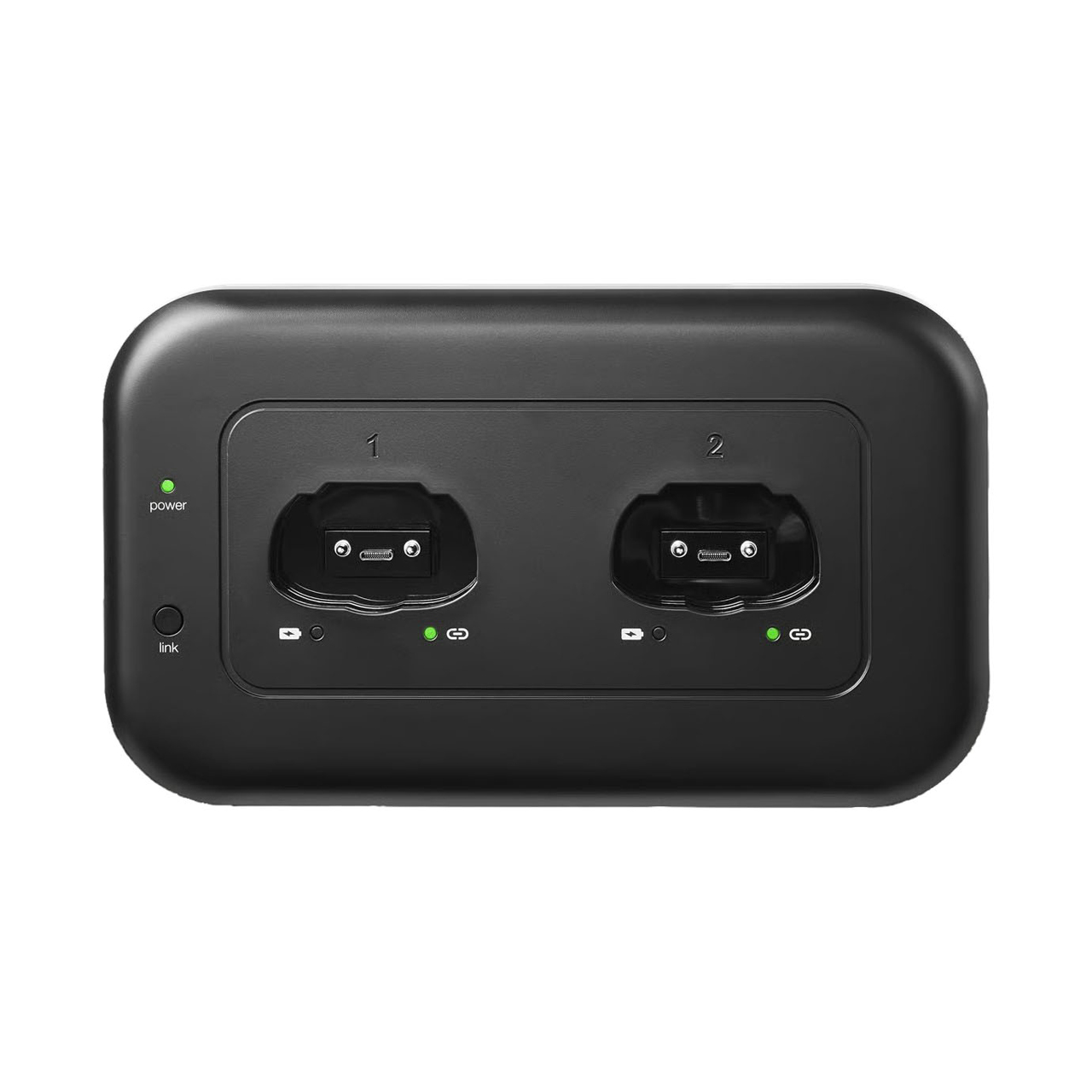

    • 2 front panel LEDs per bay report battery charge levels and link status of audio channel associated to individual bay


  • Specifications:

    • Charge Time: 3.5 hours

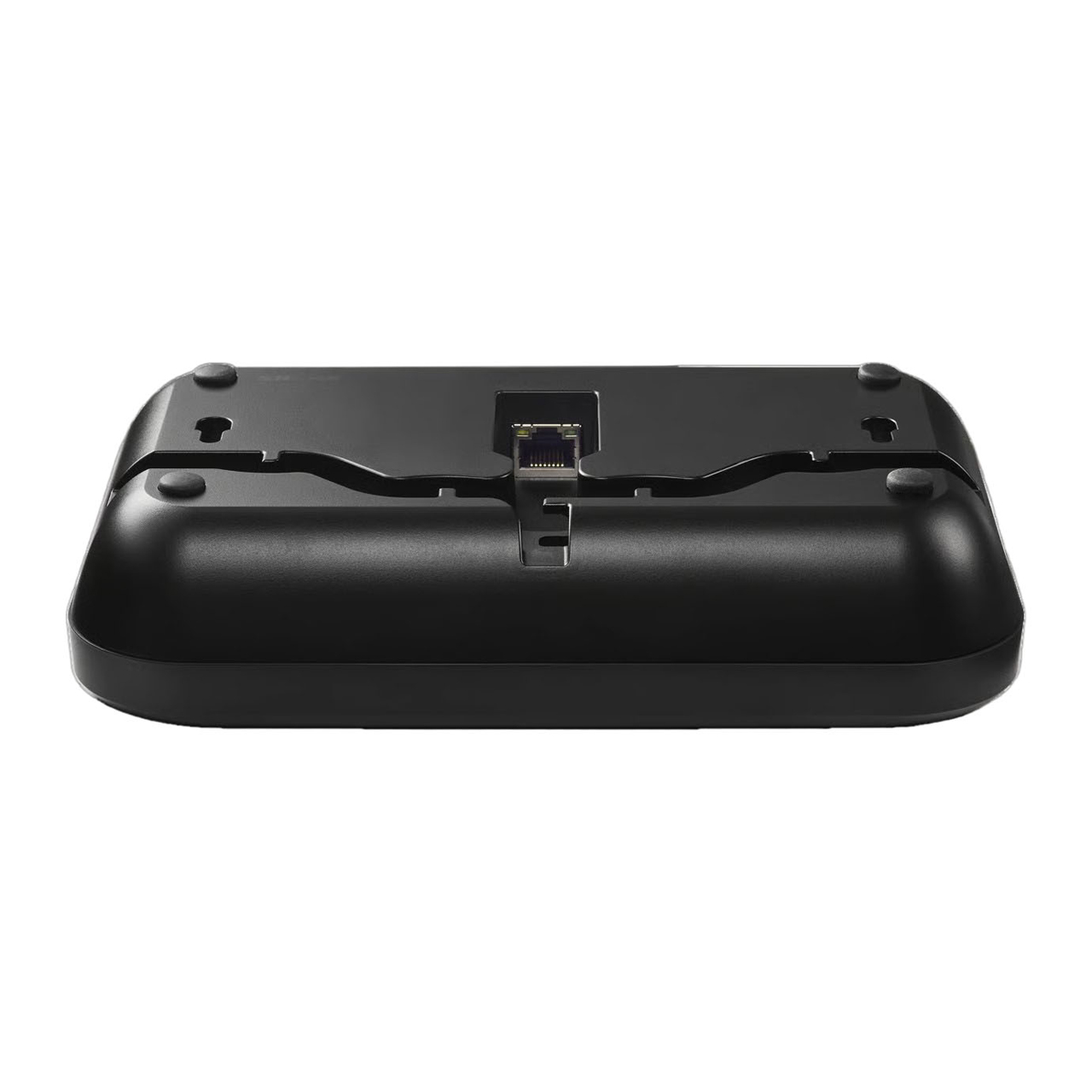

    • Network Interface: 10/100 Mbps Single Ethernet with Internal Switch
    • Power Requirements: PoE powered (no power button)
    • Housing: Molded Plastic, Cast Zinc
    • Dimensions (LxWxH): 11.02" x 5.35" x 3.19"
    • Shipping Weight: 3.12lbs


  • Item Includes:

    • 1x MXWNDX2


  • Warranty:

    • 1 Year Limited Warranty
