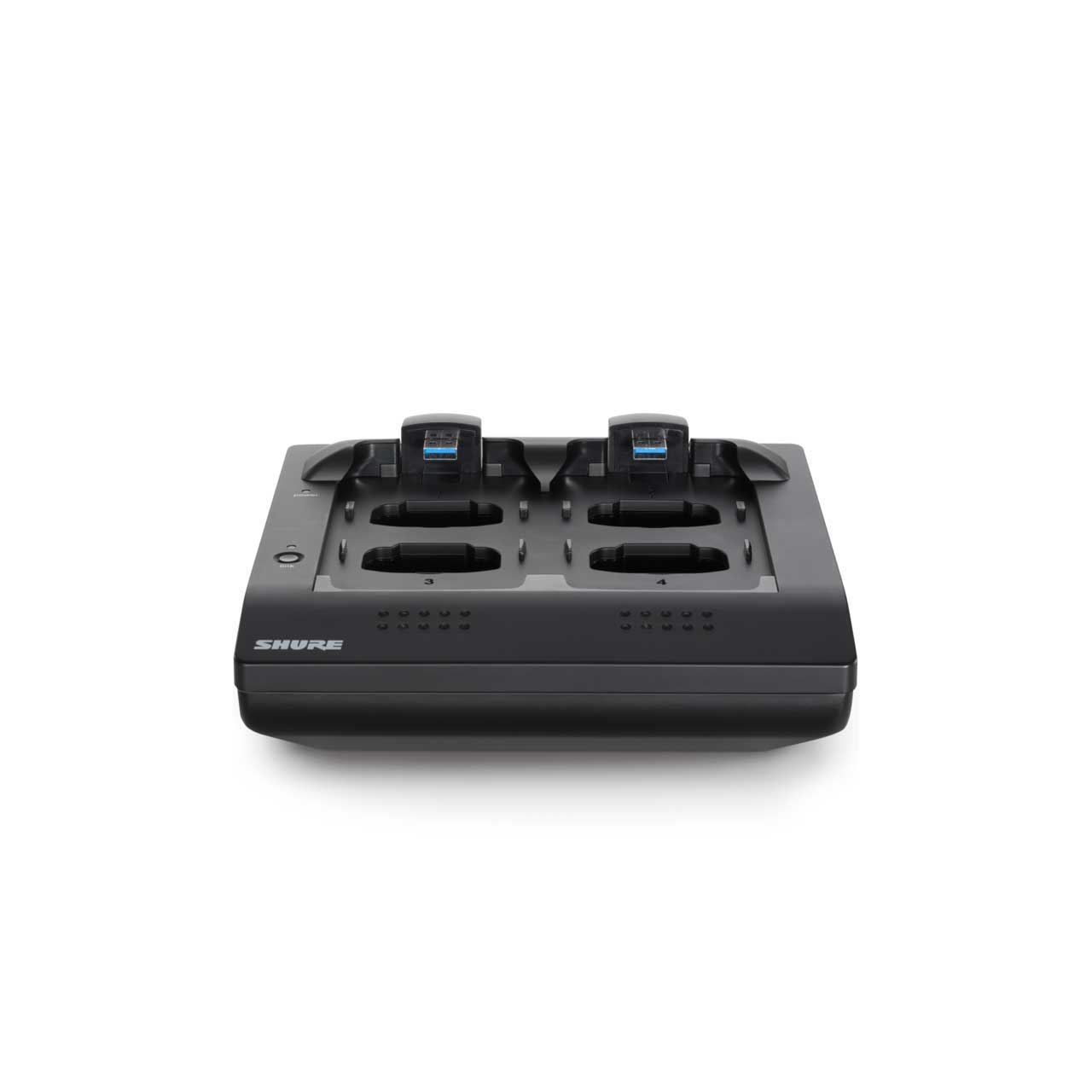

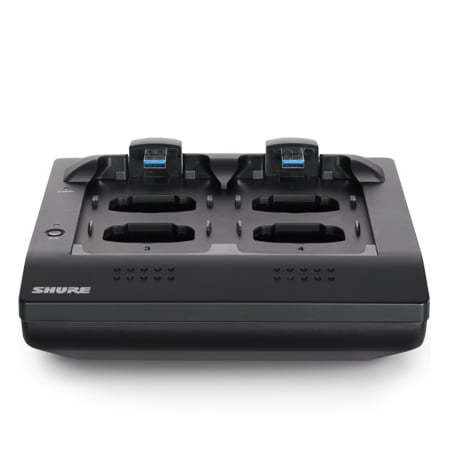

Shure MXWNCS4 4 Channel Networked MXW Wireless Microphone Charging Station


Primary Image
Free Shipping with $49 Minimum Order

List Price:


Our Price:


Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup

    MXWNCS4 - Overview

    The Shure MXWNCS4 Networked Charging Station is capable of simultaneous charging MXW microphones. It also links microphones to access point channels and networks battery statistics to the control software.

    • Features:

      • Versatile microphone docking: Each station accepts all Microflex Wireless transmitters
      • Charge status indicators: 5-segment LED's on the unit display charge status individually for every docked microphone
      • Remote charge status monitoring: Ethernet connection to the system enables remote monitoring of battery charge status in hours and minutes via the control software or third party control systems
      • Easy transmitter linking: Assign docked wireless microphones to channels on an Access Point Transceiver by simply pressing "link"
      • Rapid charge times: Reaches 50% charge in one hour and fully charges transmitters in two hours
      • Overcharge protection: Smart recharging circuitry safeguards against battery damage and extends life cycles
    • Specifications:

      • Charge Time: MXW1, MXW6, MXW8: 50%=1 hour; 100%=2 hours, MXW2: 50%=1.5 hour; 100%=3 hours
      • Network Interface: 10/100 Mbps Ethernet
      • Power Requirement: 15 V DC @ 3.3 A maximum, supplied by external power supply (tip positive)
      • Housing: Molded Plastic, Cast Zinc
      • Dimensions: 68 mm x 191 mm x 184 mm (2.7 in. x 7.5 in. x 7.25 in.), H x W x D
      • Weight: 1.7 kg (3.7 lbs)
    • Item Includes:

      • 1x Shure MXWNCS4 4 Channel Networked Charging Station
    • GTIN:


    MXWNCS4 - Required Accessories
