Shure QLXD14/85-J50A WL185 Lavalier Microphone System - (572 - 608 MHz) and (614 - 616 MHz)

ITEM #: SH-QLXD14-85J50A MFG #: QLXD14/85-J50A

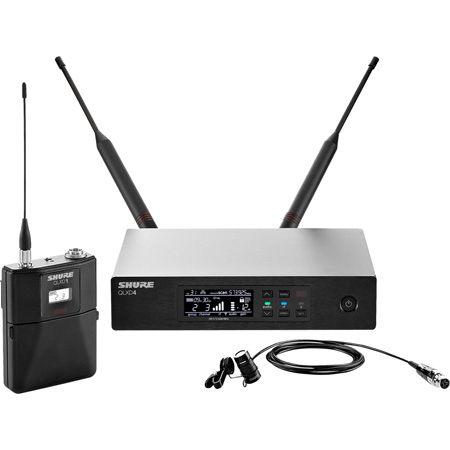

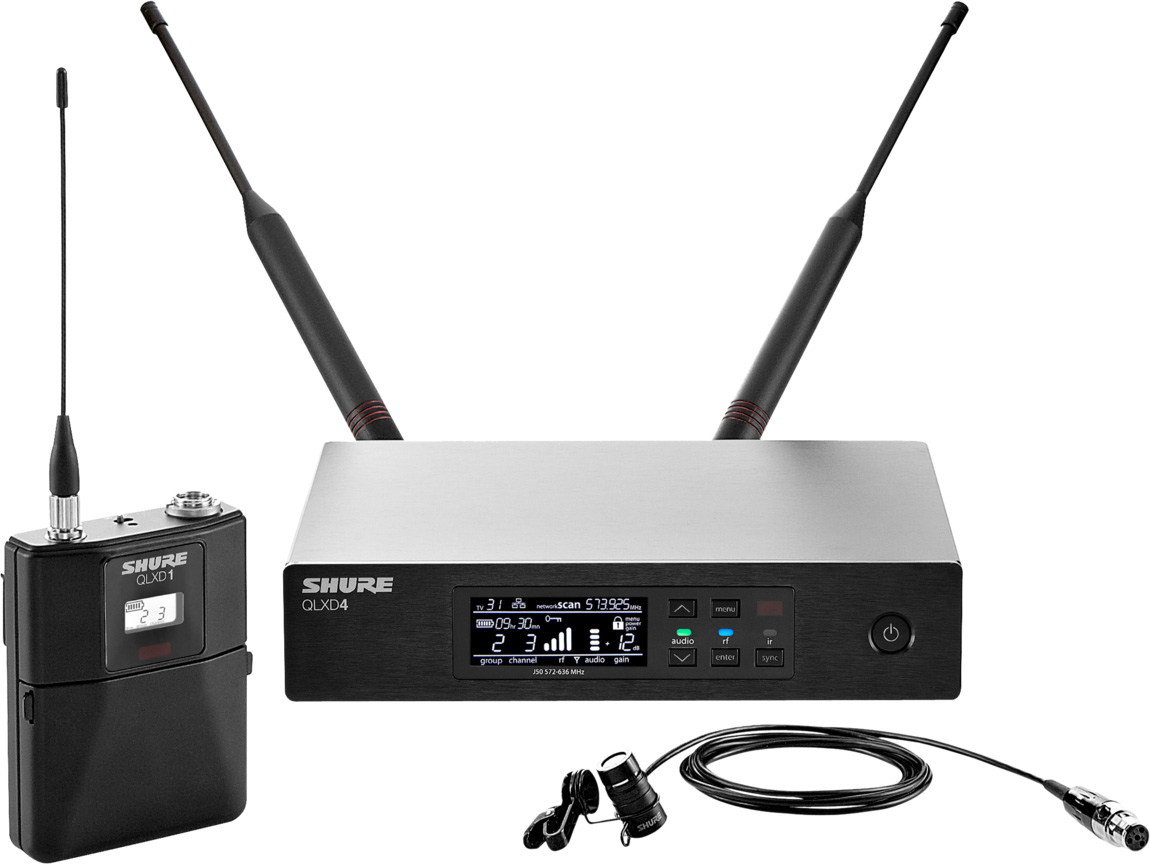

Primary Image

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the SH-QLXD14-85J50A

QLXD14/85-J50A - Overview

The Shure QLXD14/85 rackmount digital wireless lavalier microphone system provides instructors, presenters, and broadcasters with professional-quality audio, reliable RF performance, and secure AES 256-bit encryption. Rugged and easy-to-use, it is ideal for use in TV broadcast or sound-reinforcement applications in medium-sized venues and houses of worship, as well as A/V installations in conference, educational, and corporate facilities.

  • Features:

    • For Presenters and Broadcasters
    • WL185 Cardioid Lavalier Mic
    • Rugged Bodypack Transmitter
    • Switching-Diversity Rackmount Receiver

  • Specifications:

    • System
    • Wireless Transmission: Digital UHF
    • Number of RF Channels: 1760
    • Included Transmitters: 1 x Bodypack
    • Diversity: Antenna Diversity
    • RF Frequency Band J50A: 572 to 608 MHz, 614 to 616 MHz
    • RF Bandwidth: 44 MHz
    • Frequency Step Size: 25 kHz
    • Max Operating Range: 330' / 100.6 m
    • Max Systems per Setup: 60
    • Sample Rate/Resolution: 48 kHz / 24-Bit
    • Latency: <2.9 ms
    • Dynamic Range: 120 dB
    • Encryption: AES 256
    • Modulation: Proprietary

      Receiver
    • Form Factor: Rackmount
    • Mounting Options: Rackmount (with Included Hardware)
    • Rackmount Size: 1 RU (1/2 Rack)
    • Antenna: 2 x 1/2 Wave External, Detachable (Rear-Mount)
    • Number of Audio Channels: 1
    • Audio I/O: 1 x XLR 3-Pin Male Balanced Output, 1 x 1/4" TRS Female Balanced Output
    • Gain Range: -18 to +42 dB (1 dB Steps)
    • Pad: 30 dB
    • Phantom Power Protection: On 1/4", XLR Output
    • Network I/O: 1 x RJ45 (10/100 Mb/s)
    • Network Protocols: DHCP, Manual IP
    • Approximate RF Sensitivity: -97 dBm
    • Adjacent Channel Isolation: >70 dB
    • Spurious: Rejection: >80 dB
    • Power Requirements: AC/DC Power Adapter
    • AC/DC Power Adapter: 12 VDC at 0.4 A, Center-Positive (Included)
    • AC Input Power: 100 to 240 VAC, 50 / 60 Hz at 150 mA
    • Display & Indicators: 1 x Back-Lit LCD (AF Level, Channel, Group, Menu Navigation, Metering, RF Level, Transmitter Battery Status), 1 x LED (Sync), 1 x LED (Peak)
    • Housing: Metal
    • Dimensions: 7.8 x 1.6 x 5.9" / 197 x 41 x 151 mm (without Antennas)
    • Weight: 1.7 lb / 777 g (without Antenna)

      Transmitter
    • Form Factor: Bodypack
    • RF Output Power: 1 / 10 mW
    • Audio I/O: 1 x TA4/Mini XLR 4-Pin Male Unbalanced Input (Lockable)
    • Audio Input Level: 8.5 dBV / 7.5 Vpp
    • Gain Range: 0 to 21 dB (3 dB Steps)
    • Frequency Response: 20 Hz to 20 kHz
    • Sync Method: IR
    • Antenna: 1 x 1/4 Wave
    • Power Requirements: Battery
    • Battery Type: 2 x AA (Included), 1 x Shure SB900A (Not Included, Replaceable)
    • Approx. Battery Life: 9 Hours (Alkaline)
    • Display & Indicators: 1 x Back-Lit LCD (Channel, Group, RF Output Power)
    • Housing: Aluminum
    • Dimensions: 2.6 x 3.4 x 0.9" / 65 x 86 x 23 mm
    • Weight: 4.9 oz / 138 g (without Batteries)

      Microphone
    • Form Factor: Lavalier
    • Sound Field: Mono
    • Polar Pattern: Cardioid
    • Frequency Range: 50 Hz to 17 kHz
    • Maximum SPL: 130.5 dB SPL
    • Output Connectors: 1 x TA4/Mini XLR 4-Pin Female Unbalanced (Lockable)
    • Cable Length: 3.94' / 1.2 m
    • Operating Voltage: 1.5 to 10 V

      Packaging Info
    • Package Weight: 8.61 lb
    • Box Dimensions (LxWxH): 19.3 x 17.4 x 4"

  • Item Includes:

    • QLXD4-J50A Bodypack Transmitter
    • WL185 Lavaliere Microphone

  • GTIN:

    0042406540070
