Shure QLXD24/B58-J50A Beta 58 Vocal System - (572 - 608 MHz) and (614 - 616 MHz)

ITEM #: SH-QLXD24B58J50A MFG #: QLXD24/B58-J50A

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

List Price:

$1,399.00

Our Price:

$1,149.00

Availability: In Stock
iAvailability Description Popup


    QLXD24/B58-J50A - Overview

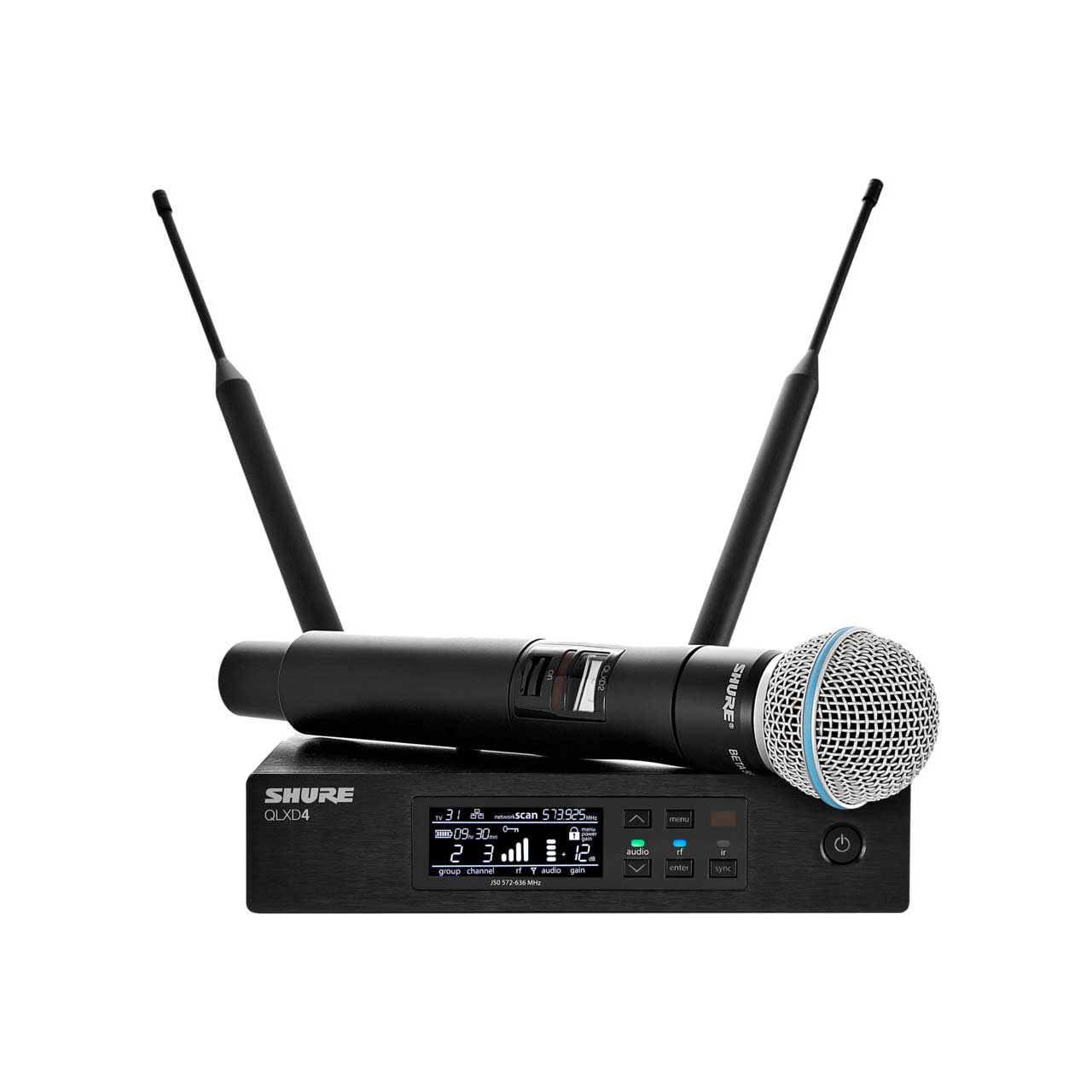

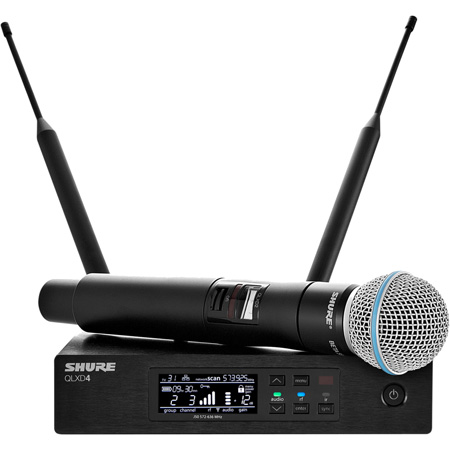

    The Shure QLXD24/B58 rackmount digital wireless handheld microphone system provides performers, presenters, and broadcasters with professional-quality audio, reliable RF performance, and secure AES 256-bit encryption. Rugged and easy-to-use, it is ideal for sound-reinforcement applications in medium-sized venues and houses of worship as well as A/V installations in conference, educational, and corporate facilities.

    • Features:

      • For Presenters and Performers
      • Beta 58A Dynamic Supercardioid Mic
      • Handheld Transmitter
      • Switching-Diversity Rackmount Receiver

    • Specifications:

      • System
      • Wireless Transmission: Analog UHF
      • Number of RF Channels: 1760
      • Included Transmitters: 1 x Handheld
      • Diversity: Antenna Diversity
      • RF Frequency Band J50A: 572 to 608 MHz, 614 to 616 MHz
      • RF Bandwidth: 44 MHz
      • Frequency Step Size: 25 kHz
      • Max Operating Range: 330' / 100.6 m
      • Max Systems per Setup: 60
      • Sample Rate/Resolution: 48 kHz / 24-Bit
      • Latency: <2.9 ms
      • Dynamic Range: 120 dB
      • Encryption: AES 256
      • Modulation: Proprietary

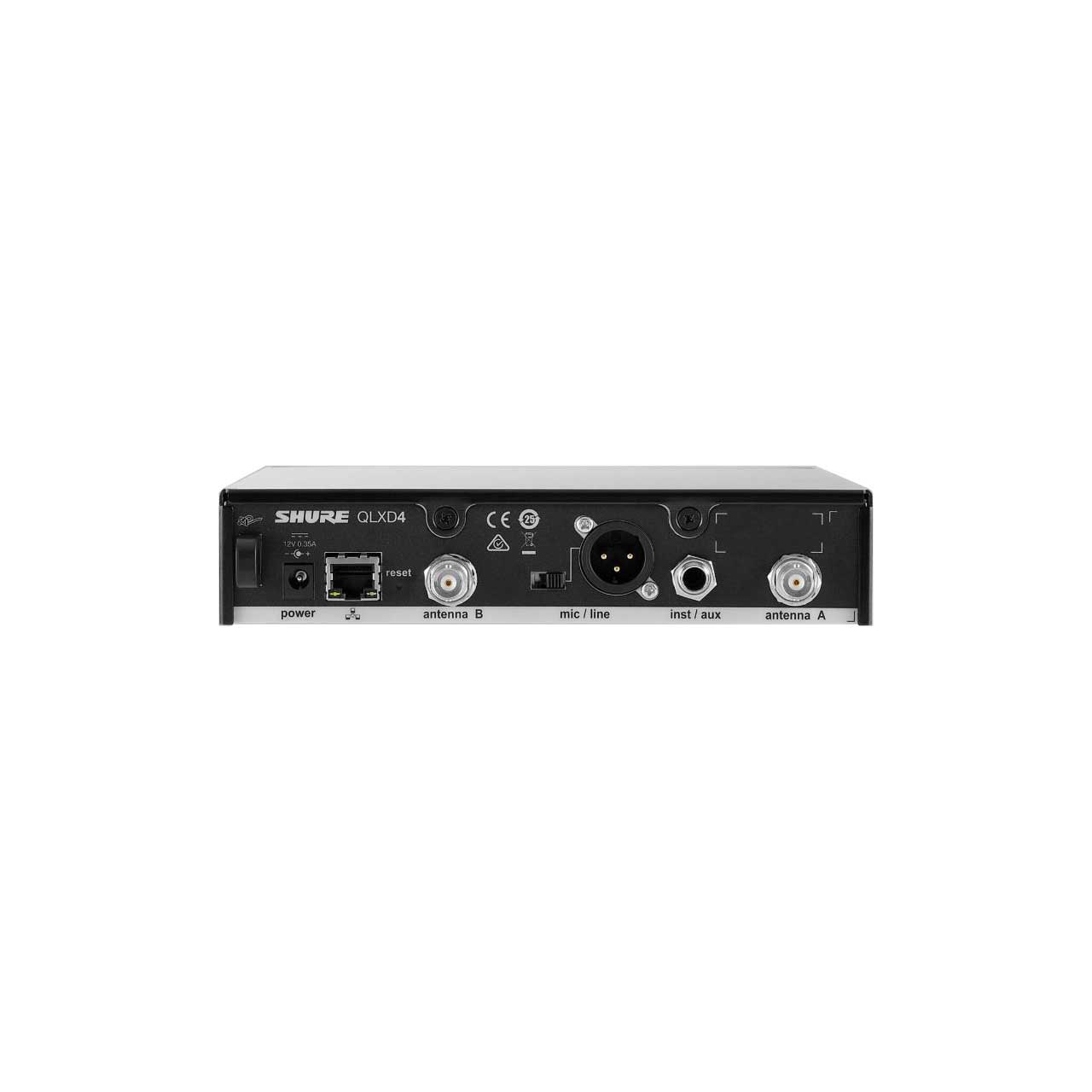

        Receiver
      • Form Factor: Rackmount
      • Mounting Options: Rackmount (with Included Hardware)
      • Rackmount Size: 1 RU (1/2 Rack)
      • Antenna: 2 x 1/2 Wave External, Detachable (Rear-Mount)
      • Number of Audio Channels: 1
      • Audio I/O: 1 x XLR 3-Pin Male Balanced Output, 1 x 1/4" TRS Female Balanced Output
      • Gain Range: -18 to +42 dB (1 dB Steps)
      • Pad: 30 dB
      • Phantom Power Protection: On 1/4", XLR Output
      • Network I/O: 1 x RJ45 (10/100 Mb/s)
      • Network Protocols: DHCP, Manual IP
      • Approximate RF Sensitivity: -97 dBm
      • Adjacent Channel Isolation: >70 dB
      • Spurious: Rejection: >80 dB
      • Power Requirements: AC/DC Power Adapter
      • AC/DC Power Adapter: 12 VDC at 0.4 A, Center-Positive (Included)
      • AC Input Power: 100 to 240 VAC, 50 / 60 Hz at 150 mA
      • Display & Indicators: 1 x Back-Lit LCD (AF Level, Channel, Group, Menu Navigation, Metering, RF Level, Transmitter Battery Status), 1 x LED (Sync), 1 x LED (Peak)
      • Housing: Metal
      • Operating Temperature: 0 to 122°F
      • Dimensions: 7.8 x 1.6 x 5.9" / 197 x 41 x 151 mm (without Antennas)
      • Weight: 1.7 lb / 777 g (without Antenna)

        Transmitter
      • Form Factor: Handheld
      • RF Output Power: 1 / 10 mW
      • Audio I/O: None
      • Gain Range: 0 to 21 dB (3 dB Steps)
      • Frequency Response: 20 Hz to 20 kHz
      • Sync Method: IR
      • Antenna: 1 x 1/4 Wave
      • Power Requirements: Battery
      • Battery Type: 2 x AA (Included), 1 x Shure SB900A (Not Included, Replaceable)
      • Approx. Battery Life: 9 Hours (Alkaline)
      • Display & Indicators: 1 x Back-Lit LCD (Channel, Group, RF Output Power)
      • Housing: Aluminum
      • Dimensions: 2 x 10.1" / 51 x 256 mm
      • Weight: 12.2 oz / 347 g (without Batteries)

        Microphone
      • Form Factor: Handheld Capsule
      • Sound Field: Mono
      • Capsule: Dynamic
      • Polar Pattern: Supercardioid
      • Frequency Range: 50 Hz to 16 kHz
      • Sensitivity: -51.5 dBV/Pa

        Packaging Info
      • Package Weight: 9.135 lb
      • Box Dimensions (LxWxH): 19.4 x 17.4 x 4inch

    • Item Includes:

      • 2x AA Batteries
      • 2x 1/2 Wave Antennas
      • 2x 2 BNC Cables
      • 1x Zipper Bag
      • 2x BNC Bulkhead Adapters
      • 1x Rackmount Kit
      • 1x User Guide
      • 1x Power Supply

    • GTIN:

      0042406540506
