Shure SLXD15+/85M Digital 1-Ch Wireless Audio System with SLXD1+ Bodypack / SLXD5+ Receiver & Lav Mic - G57 470-608MHz

ITEM #: SH-SLXD15P85MG57 MFG #: SLXD15+/85M-G57

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

List Price:

$1,129.00

Our Price:

$899.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


SLXD15+/85M-G57 - Overview

Ready for Every Stage, Theater, or House of Worship Event - Unlock a New World of Handsfree Oversight and Management with SLX-D+

Shure SLX-D+ Wireless Systems provide audio engineers with top-tier wireless engineering and streamlined, automated management that adjusts to confidently fit live performance, installation, location sound and rental provider needs.

Ready for every stage, theater, or house of worship event, with SLX-D+ unlock a new world of handsfree oversight and management - for seasoned volunteers and pro engineers alike.

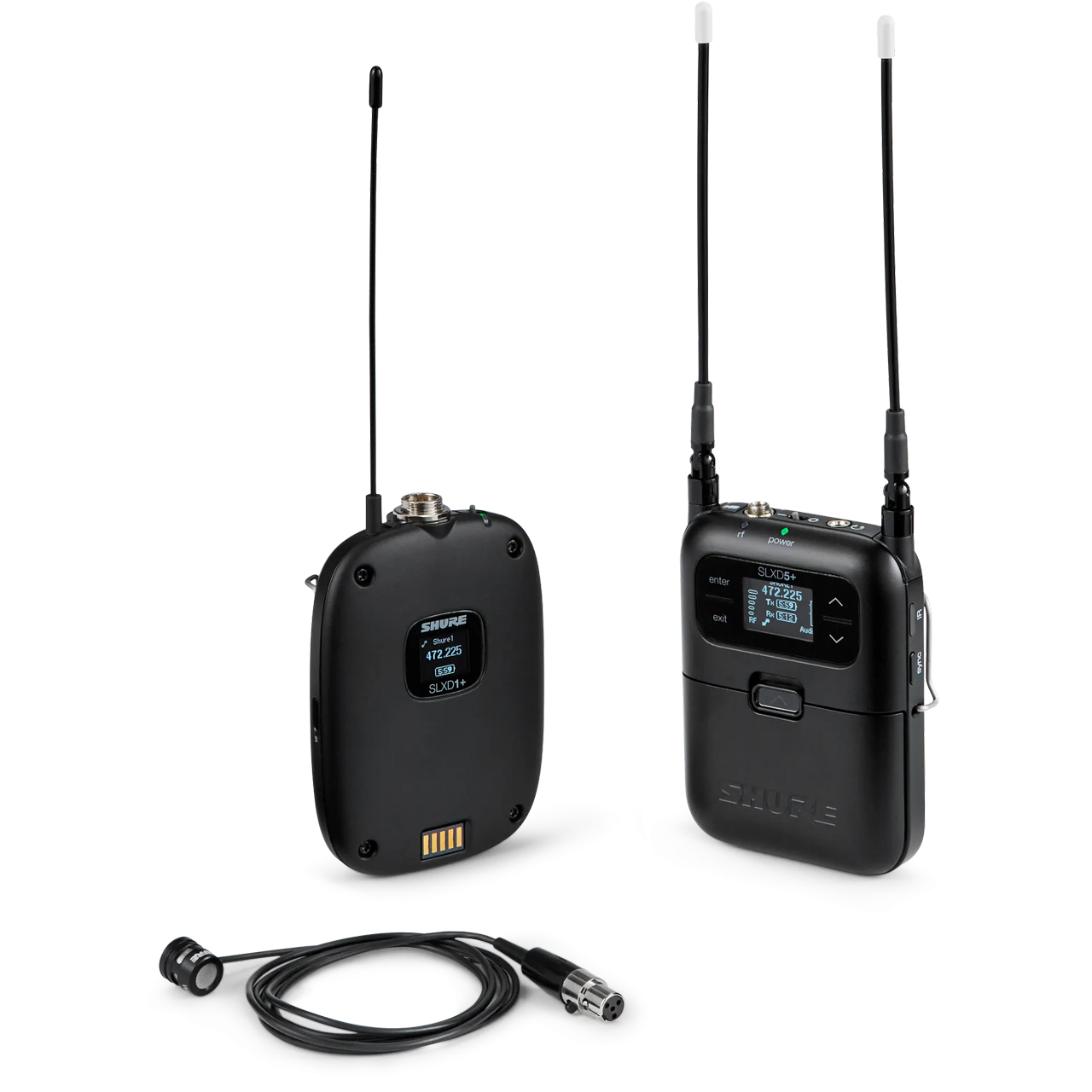

The SLXD15+ includes a SLXD5+ single channel portable wireless receiver and SLXD1+ bodypack transmitter with WL185M low-profile lavalier microphone. It provides efficient long-range UHF transmission and easy-to-use setup features to deliver wireless excellence, wherever required. Wide-tuning SLXD+ transmitters and receivers stay in sync courtesy of a dedicated ShowLink® Ease control link. Manage interference, scan for new channels and update for clear transmission automatically. Also monitor and configure via a paired mobile device.

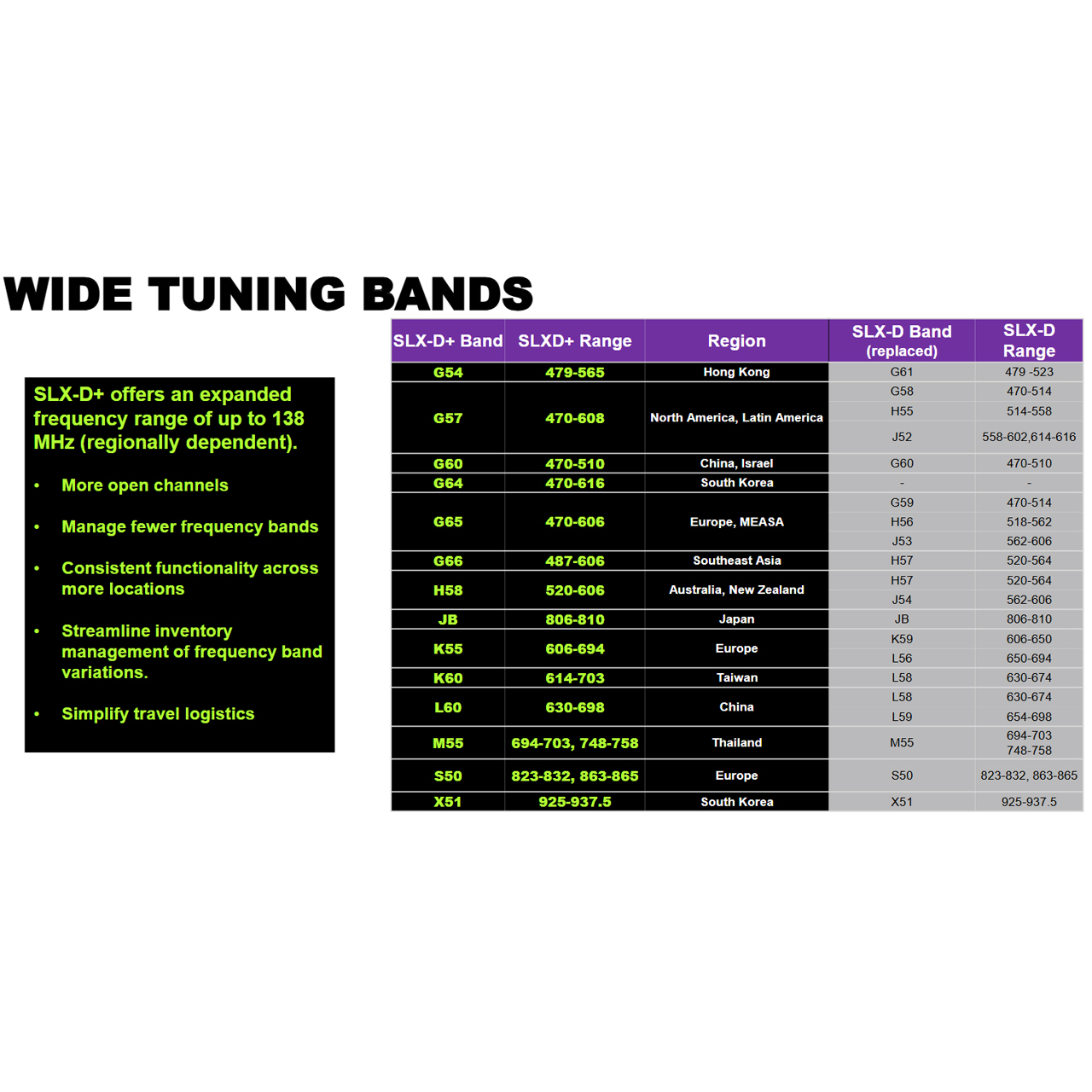

SLX-D+ Wide Tuning Bands
SLX-D+ offers an expanded frequency range of up to 138 MHz (regionally dependent).

• More open channels
• Manage fewer frequency bands
• Consistent functionality across more locations
• Streamline inventory management of frequency band variations.
• Simplify travel logistics

Digital Feedback Reducer
Digital Feedback Reducer (DFR) technology automatically detects and suppresses audio feedback using dynamic notch filters, enhancing sound clarity in live environments. Originally developed as standalone hardware, Shure's Digital Feedback Reduction (DFR) has evolved into a sophisticated software solution integrated into audio systems, offering more flexible and accessible feedback control.

Applications:
• Event, Presentation and Speech
• House of Worship
• Performance and Clubs
• Videography and Location Sound
• Electronic News Gathering (ENG) and Broadcast

  • Features:

    • 24-bit digital audio with >118 dB dynamic range
    • >118 dB dynamic range and 2.8ms latency
    • 138 MHz wide-tuning range for greater geographical coverage
    • Up to 11 compatible systems per 6MHz TV band; 14 systems per 8 MHz band
    • ShowLink® Ease for remote control and management of transmitter wireless parameters from the mix position and elsewhere
    • Patented Shure Digital Feedback Reducer software embedded in every SLX-D+ receiver
    • AES-256 Encryption included, for complete and secure peace of mind
    • Portable receiver & plug-on transmitter options
    • Single, Dual, and Quad rack receiver options; bodypack and handheld transmitter options
    • Remote control via WWB mobile app for SLXD4+, SLXD4D+, SLXD4Q+, SLXD4QDAN+, and SLXD5+
    • Up to 8 hours from 2 AA batteries or optional Shure SB903 rechargeable battery

  • Specifications:

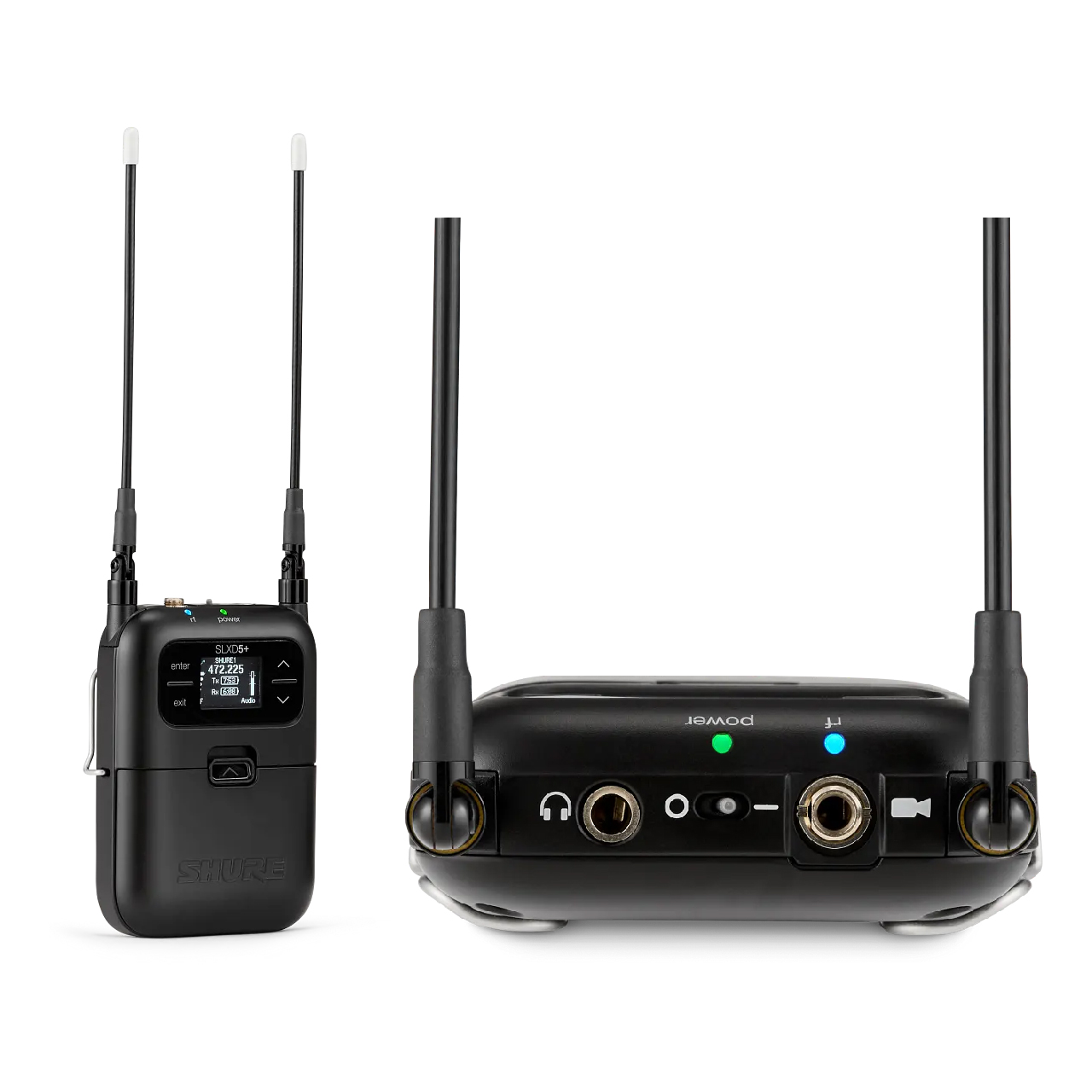

      SLXD5+ Receiver
    • Audio Output
    • Gain Adjustment Range: 20 Hz - 20 kHz (+1, -3 dB)
    • Connector Type: 1/8" (3.5 mm) x2
    • Configuration:
      - Balanced (Mono): Tip=audio +, Ring=audio -, Sleeve=ground
      - Dual Mono: Tip = left, Ring = Right, Sleeve = Ground
    • Impedance (Camera):
      - Balanced (Mono) Line: 450 Ω
      - Balanced (Mono) Mic: 240 Ω
      - Dual Mono Line: 400 Ω
      - Dual Mono Mic: 200 Ω
    • Full Scale Output:
      - Camera (Balanced Line): 15 dBV
      - Headphone: 13 mW @ 64 Ω Load

      RF Input
    • Spurious Rejection: >75 dB Typical
    • Impedance: 50 Ω
    • Phantom Power Protection: Yes
    • Antenna Type: 1/4 Wave Whip

      Physical
    • Dimensions (H x W x D): 4.21" x 2.68" x 1.0" (107 x 68 x 25.3 mm)
    • Weight 1.8 lb (182 g)
    • Housing Aluminum
    • Power Requirements Battery:
      - Rechargeable Li-Ion or 1.5 V AA batteries
      - Power Supply: SBC-DC-903 Battery
      - Eliminator, or 5 VDC via USB-C

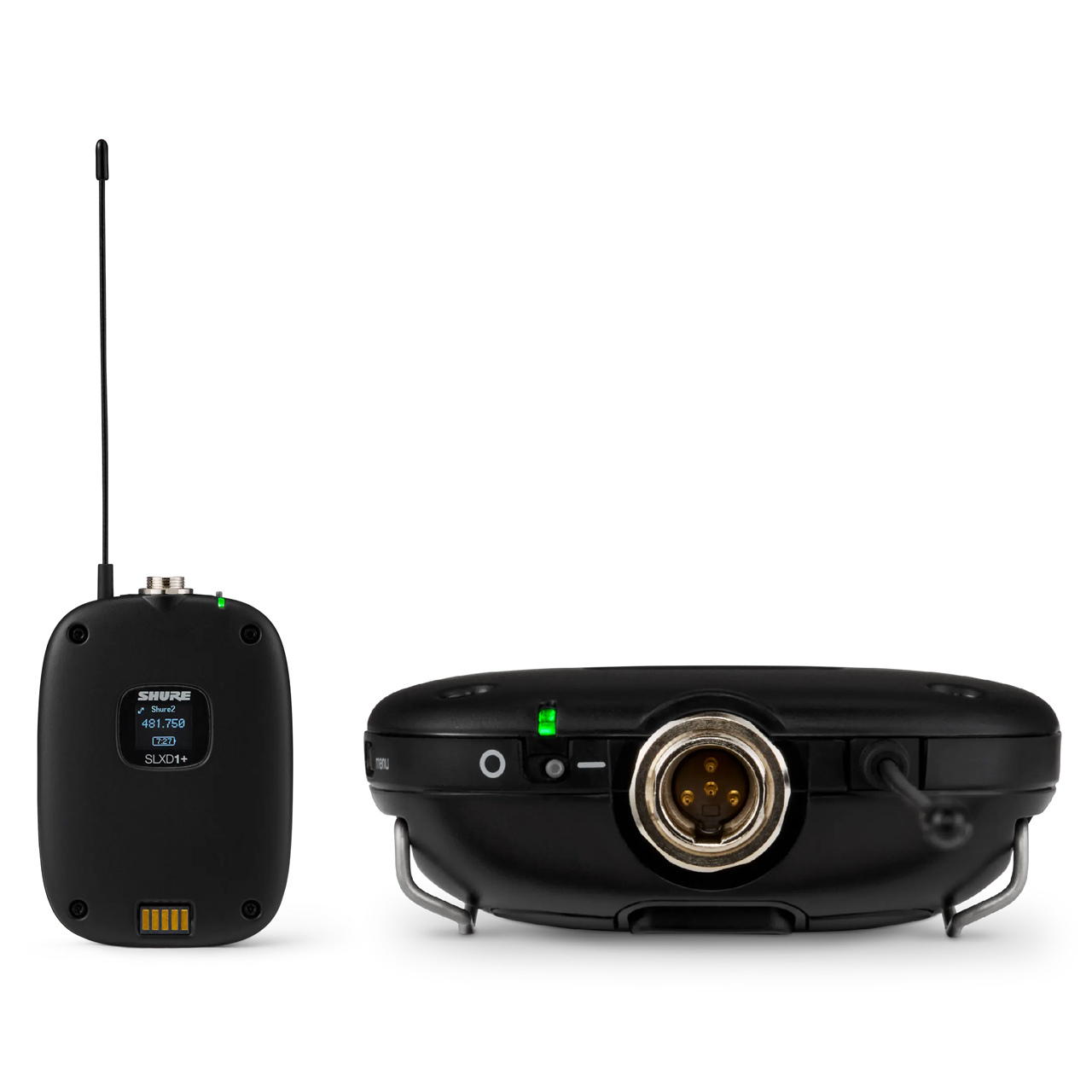

      SLXD1+ Bodypack
    • Audio Input:
    • Connector: 4-Pin male mini connector (TA4M)
    • Configuration: Unbalanced
    • Impedance: 1 MΩ
    • Maximum Input Level: 8.2 dBV (2.57 Vrms, 7.27 Vpp)
    • Preamplifier Equivalent Input Noise (EIN): -118 dBV

      RF Output
    • Antenna Type: 1/4 Wave
    • Occupied Bandwidth: <200 kHz
    • Modulation Type Shure: Propietary Digital Power 1 mW/10 mW
    • Varies by region. See Frequency Range and Output Power Table

      Physical
    • Battery Type: Rechargeable Li-Ion or 1.5 V AA batteries
    • Dimensions (H x W x D): 3.86" x 2.68" x 1.0" (98 x 68 x 25.5 mm)
    • Weight: 3.1 oz (89 g)
    • Housing: PC/ABS

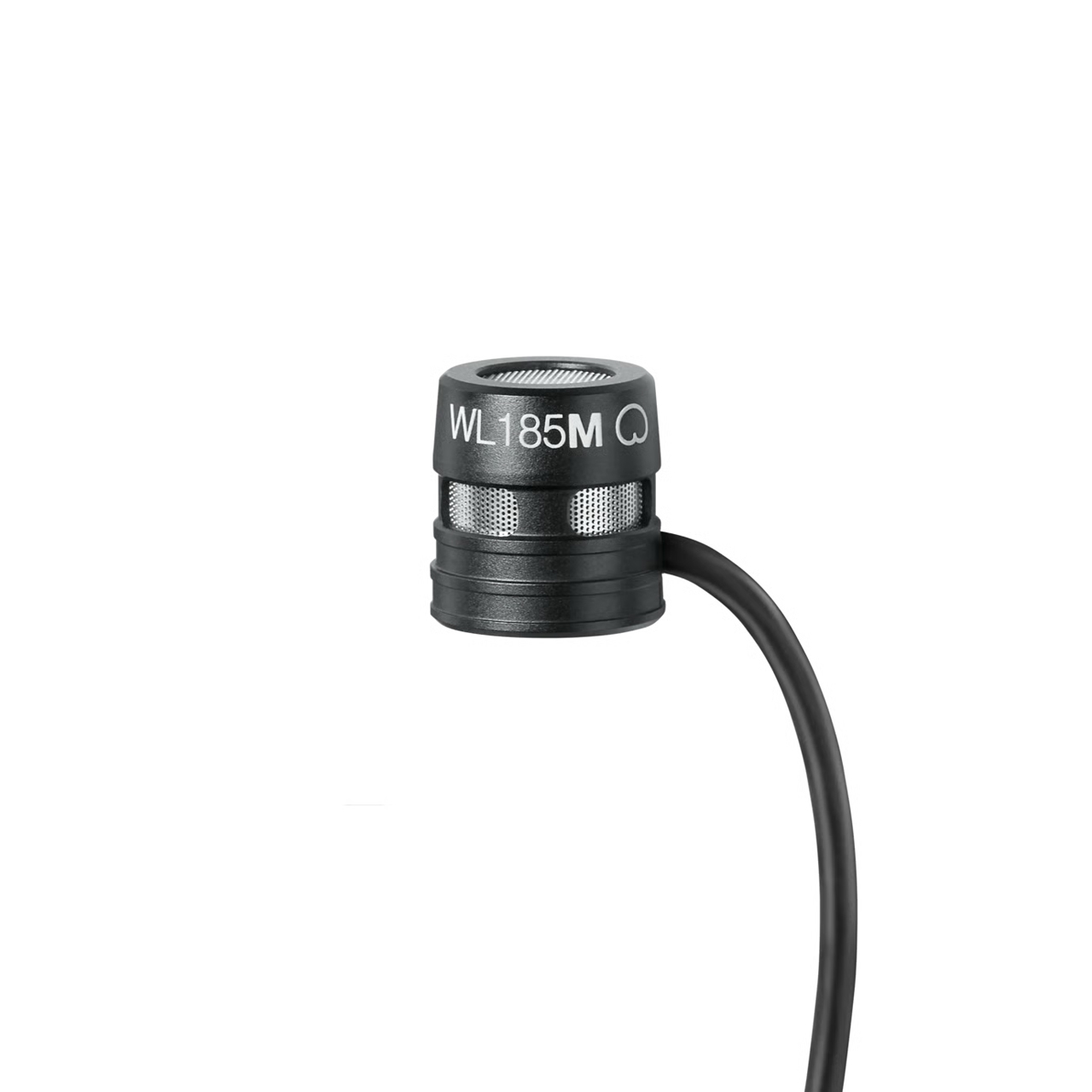

      WL185m Lav
    • Microphone Capsule: Condenser
    • Polar Pattern: Cardoid
    • Frequency Response: 70 Hz - 20 kHz
    • Sensitivity: -43.0 dBV/Pa
    • Self-Noise A-Weighted, Equivalent Acoustical: 20 dB SPL
    • Signal-to-Noise Ratio (Using RPM400 Preamp): 74.0 dB
    • Maximum SPL (1%THD): 140.5 dB SPL
    • Dynamic Range: 120.5 dB
    • Microphone Current Draw: 140-240 æA
    • Bias Boltage Recommended Operating Voltage: 5 VDC Bias
    • Polarity: Positive pressure produces positive voltage on pin 3 with respect to pin 1
    • Housing: Aluminum Alloy
    • Cable Diameter: 2.2mm
    • Cable Length: 48.5" (1.23m)
    • Net Weight w/ Cable: 20.0g (0.71 oz)
    • Capsule Dimensions (Length x Diameter): 13.55mm x 12.74mm

  • Item Includes:

    • 1x SLXD5+ Portable Receiver
    • 1x SLXD1+ Bodypack Transmitter with WL185M Low-profile Lav Mic (cardioid)
    • 2x Carrying bags, 1 WA311 Non-Conductive Cold Shoe Mount Adapter
    • 4x AA alkaline batteries (optional: SB903 Rechargeable Li-Ion Battery)
    • 1x Locking 3.5mm-to-XLR cable (18")
    • 1x Locking 3.5mm audio extender cable (16"), (optional: WA301 Water-Resistant Silicone Protective Sleeve)

  • GTIN:

    0042406892025
