Shure SLXD35+ Digital 1-Ch Wireless System w/ Plug-on Wireless Mic Transmitter & SLXD5+ Receiver - G57 470-608MHz

SLXD35+-G57 - Overview

Ready for Every Stage, Theater, or House of Worship Event - Unlock a New World of Handsfree Oversight and Management with SLX-D+

• Features:

  • Convert any XLR source for use within SLX-D+ wireless systems
  • 24-bit digital audio with >118 dB dynamic range
  • >118 dB dynamic range and 2.8ms latency

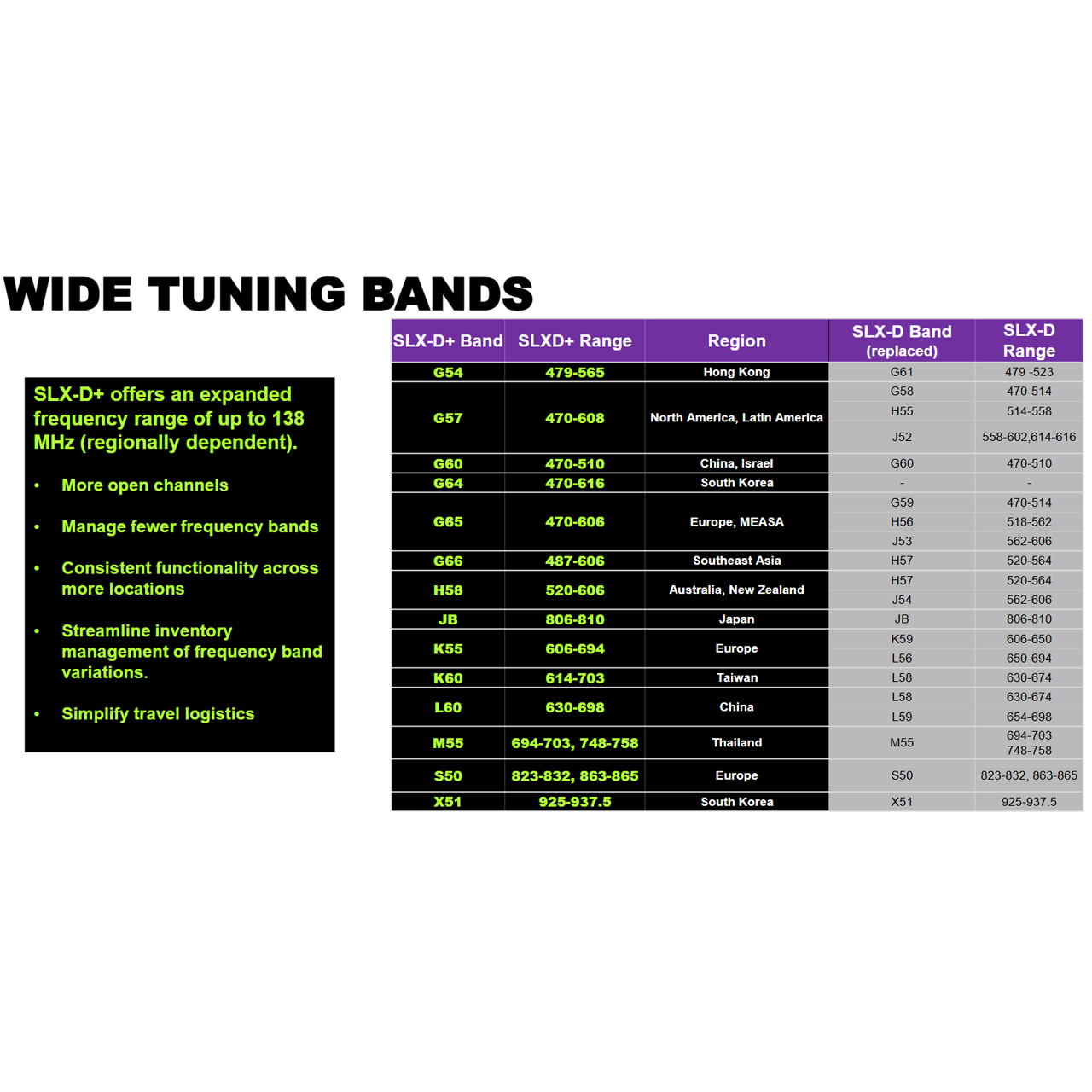

  • 138 MHz wide-tuning range for greater geographical coverage
  • Up to 11 compatible systems per 6MHz TV band; 14 systems per 8 MHz band
  • ShowLink® Ease for remote control and management of transmitter wireless parameters from the mix position and elsewhere
  • Patented Shure Digital Feedback Reducer software embedded in every SLX-D+ receiver
  • AES-256 Encryption included, for complete and secure peace of mind
  • Portable receiver & plug-on transmitter options
  • Single, Dual, and Quad rack receiver options; bodypack and handheld transmitter options
  • Remote control via WWB mobile app for SLXD4+, SLXD4D+, SLXD4Q+, SLXD4QDAN+, and SLXD5+
  • Up to 8 hours from 2 AA batteries or optional Shure SB903 rechargeable battery


• Specifications:

  SLXD3+ Bodypack
  • Audio Input
  • Configuration: XLR
  • Maximum Input Level:
    - 1 kHz @ 1% THD Pad -12 dB: 20.5 dBV
    - 0 dB: 8.5 dBV
    - Boost +12 dB: -3.5 dBV. Note: Dependent on Microphone Type.
  • Phantom Power:
    - +48 V (7 mA maximum)
    - +12 V (15 mA maximum)

    RF Output
  • Antenna Type: Dipole
  • Occupied Bandwidth: <200 kHz
  • Modulation Type: Shure Propietary Digital
  • Power: 1 mW/10 mW/30 mW Varies by region. See Frequency Range and Output Power Table.
  • Specific Absorption Rate(SAR): <0.17 W/kg

    Physical
  • Battery Type Rechargeable Li-Ion or 1.5 V AA batteries
  • Dimensions (Dia. x L): 4.9 x 1.6 x 1.6 in (126 x 41 x 41 mm)
  • Weight: 7.0 oz. (200 g)
  • Housing: Aluminum, Zinc Alloy, PC/ABS

    SLXD5+ Receiver
  • Audio Output
  • Gain Adjustment Range: 20 Hz - 20 kHz (+1, -3 dB)
  • Connector Type: 1/8" (3.5 mm) x2
  • Configuration:
    - Balanced (Mono): Tip=audio +, Ring=audio -, Sleeve=ground
    - Dual Mono: Tip = left, Ring = Right, Sleeve = Ground
  • Impedance (Camera):
    - Balanced (Mono) Line: 450 Ω
    - Balanced (Mono) Mic: 240 Ω
    - Dual Mono Line: 400 Ω
    - Dual Mono Mic: 200 Ω
  • Full Scale Output:
    - Camera (Balanced Line): 15 dBV
    - Headphone: 13 mW @ 64 Ω Load

    RF Input
  • Spurious Rejection: >75 dB Typical
  • Impedance: 50 Ω
  • Phantom Power Protection: Yes
  • Antenna Type: 1/4 Wave Whip

    Physical
  • Dimensions (H x W x D): 4.21" x 2.68" x 1.0" (107 x 68 x 25.3 mm)
  • Weight 1.8 lb (182 g)
  • Housing Aluminum
  • Power Requirements Battery:
    - Rechargeable Li-Ion or 1.5 V AA batteries
    - Power Supply: SBC-DC-903 Battery
    - Eliminator, or 5 VDC via USB-C


• Item Includes:

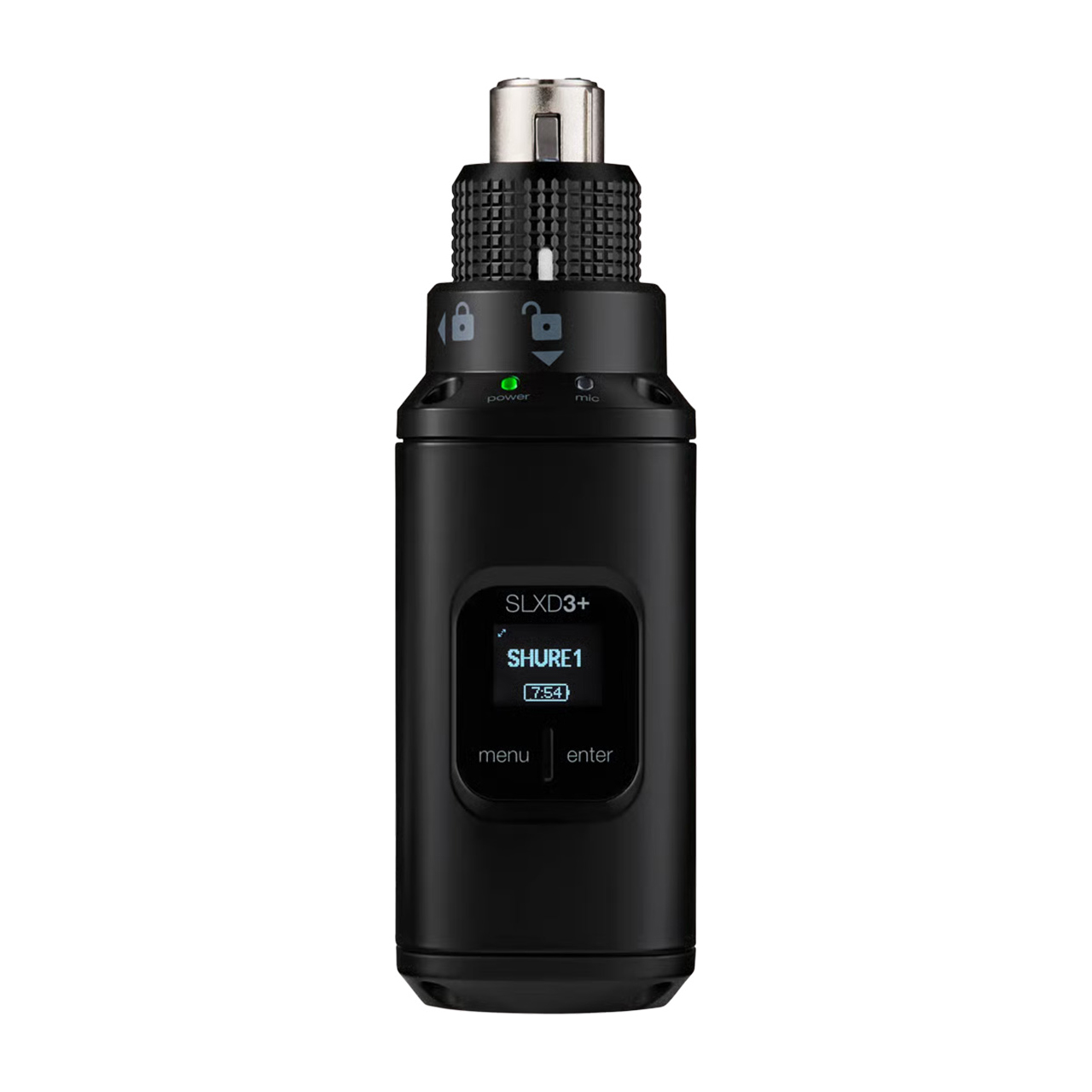

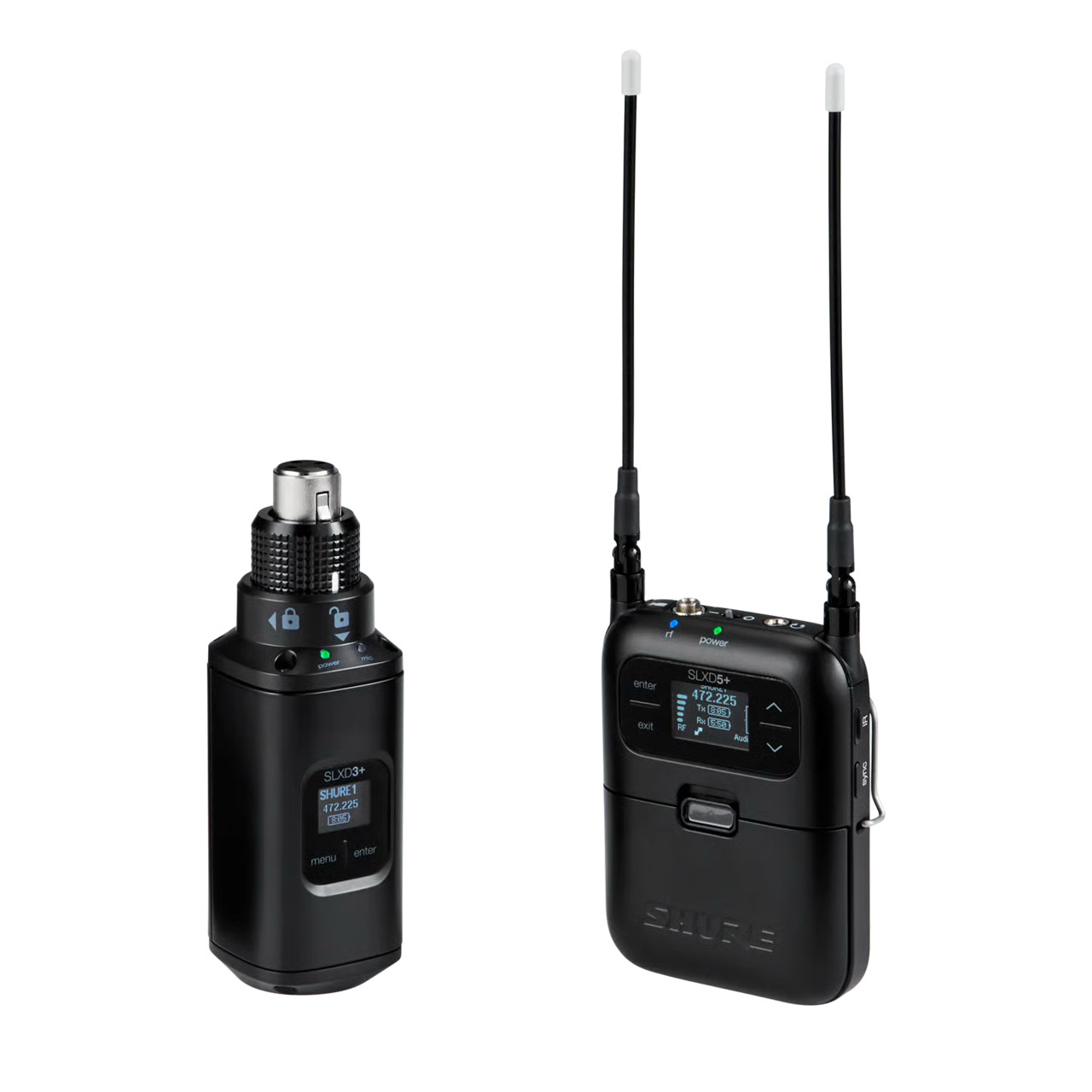

  • 1x SLXD3+ Plug-On Digital Wireless Transmitter

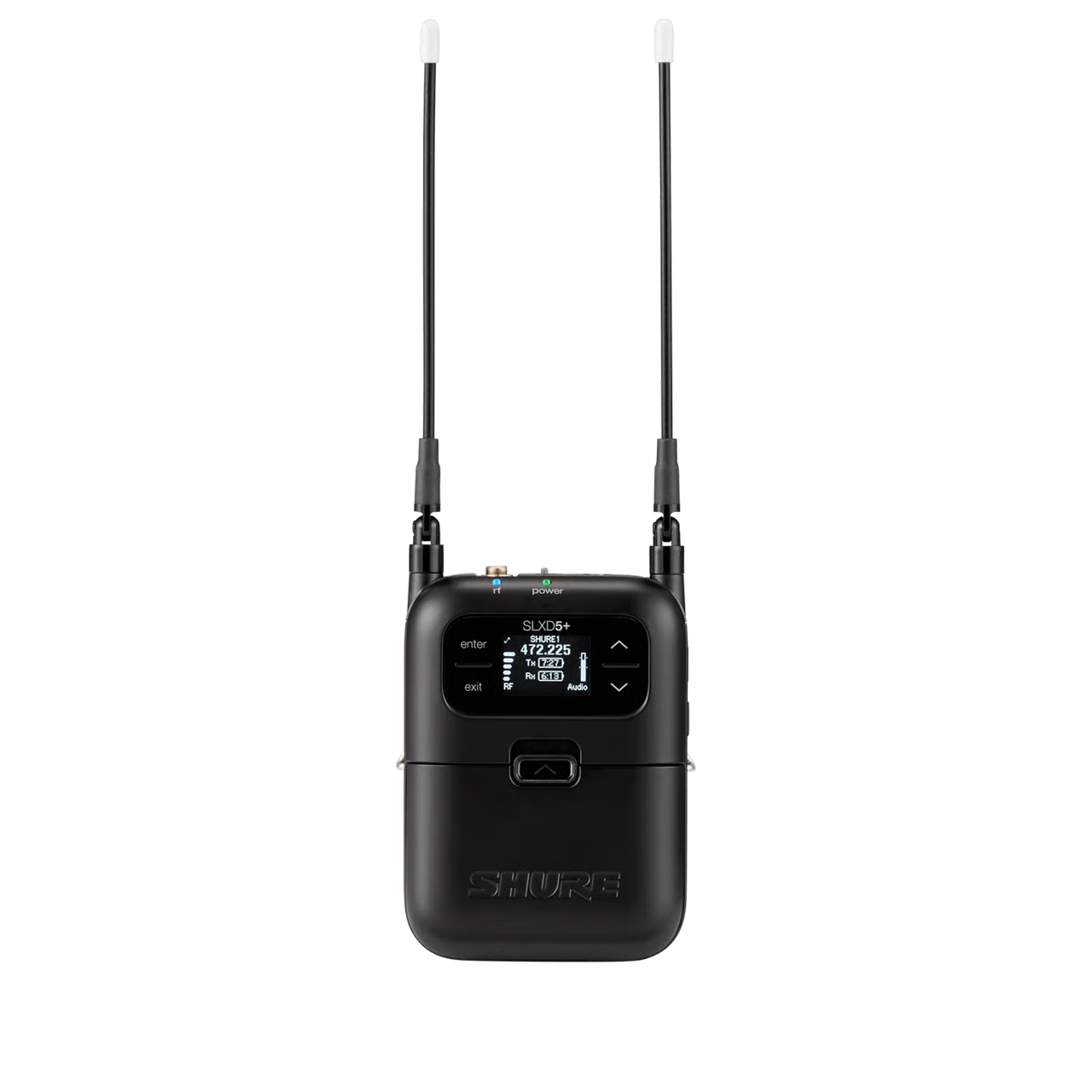

  • 1x SLXD5+ Portable Receiver
  • 2x Carrying bags
  • 1x WA311 Non-Conductive Cold Shoe Mount Adapter
  • 4x AA alkaline batteries (optional: SB903 Rechargeable Li-Ion Battery)
  • 1x Locking 3.5mm-to-XLR cable (18")
  • 1x Locking 3.5mm audio extender cable (16")
  • 1x Leather protective sleeve with integrated belt clip for SLXD3+


• GTIN:

  0042406905831
