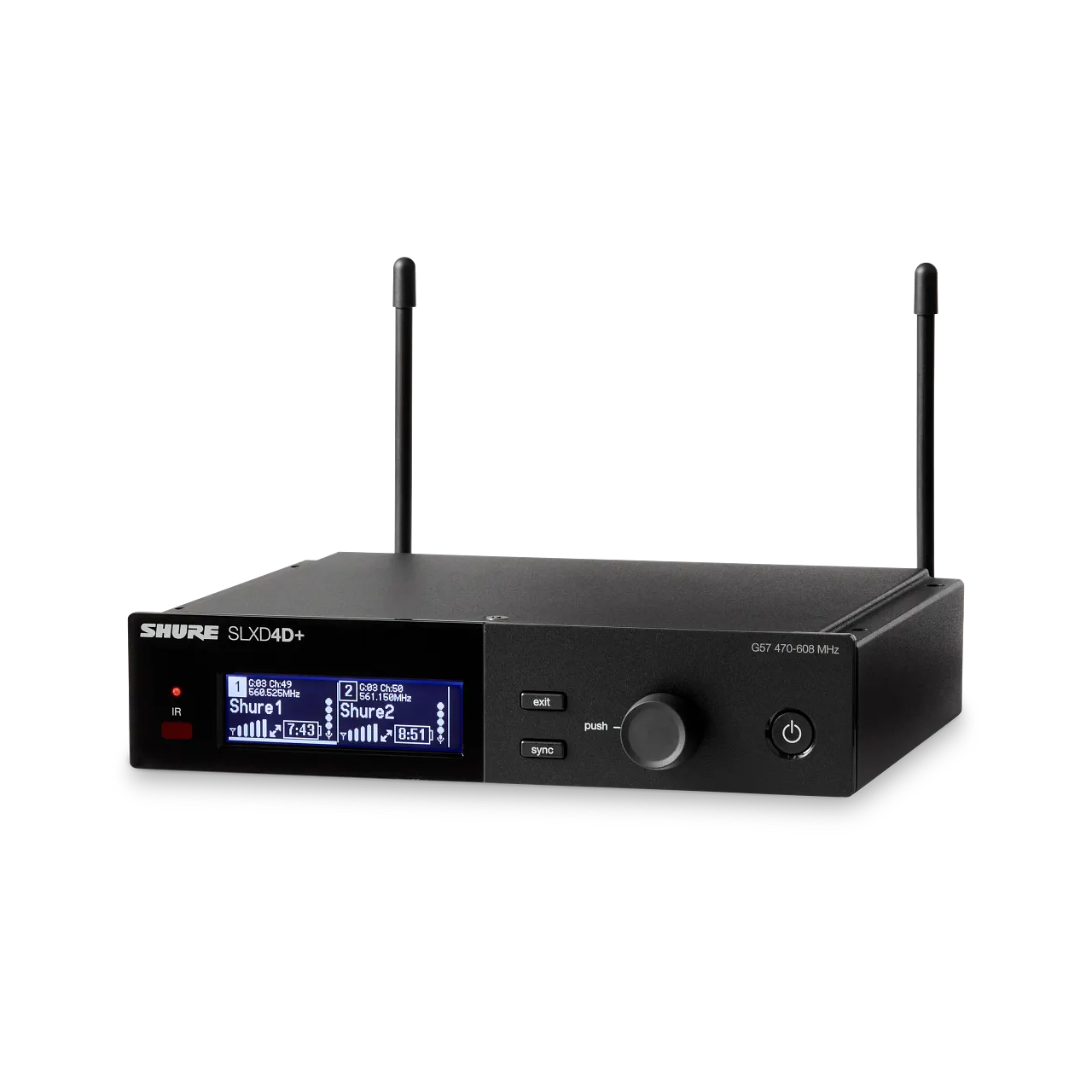

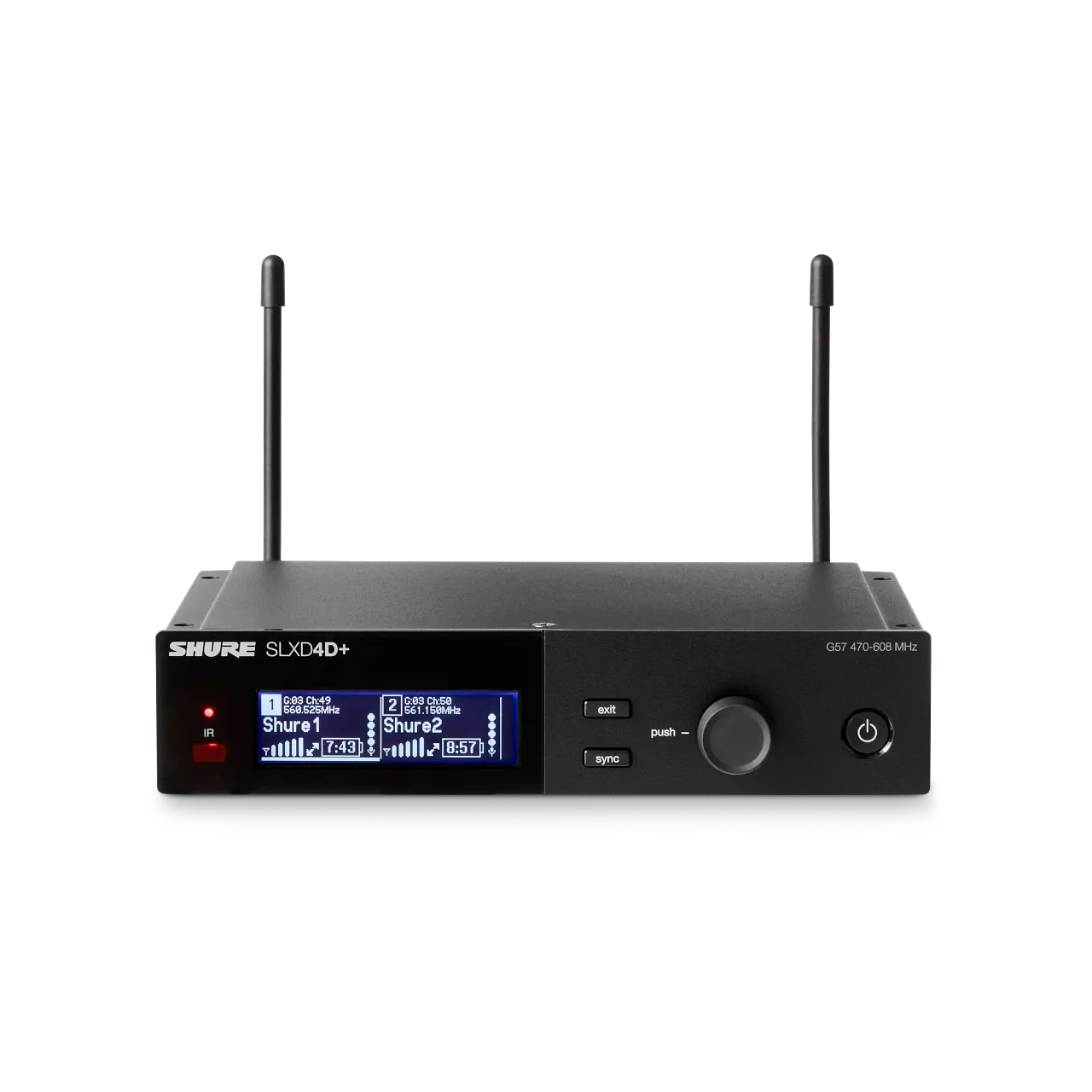

Shure SLXD4D+ Digital 2-Channel Wireless Receiver w/ Bluetooth Remote Monitoring - G57 470-608MHz

ITEM #: SH-SLXD4DP-G57 MFG #: SLXD4D+=-G57

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

List Price:

$1,349.00

Our Price:

$1,079.00

Availability: In Stock
iAvailability Description Popup


SLXD4D+=-G57 - Overview

Ready for Every Stage, Theater, or House of Worship Event - Unlock a New World of Handsfree Oversight and Management with SLX-D+

Shure SLX-D+ Wireless Systems provide audio engineers with top-tier wireless engineering and streamlined, automated management that adjusts to confidently fit live performance, installation, location sound and rental provider needs.

The SLXD4D+ dual channel half-rack receiver unlocks a new world of hands-free oversight and management for seasoned volunteers and pro engineers alike, that delivers wireless excellence, wherever required. Wide-tuning SLXD+ transmitters and receivers stay in sync courtesy of a dedicated ShowLink® Ease control link. Manage interference, scan for new channels and update for clear transmission automatically. Also monitor and configure via a paired mobile device.

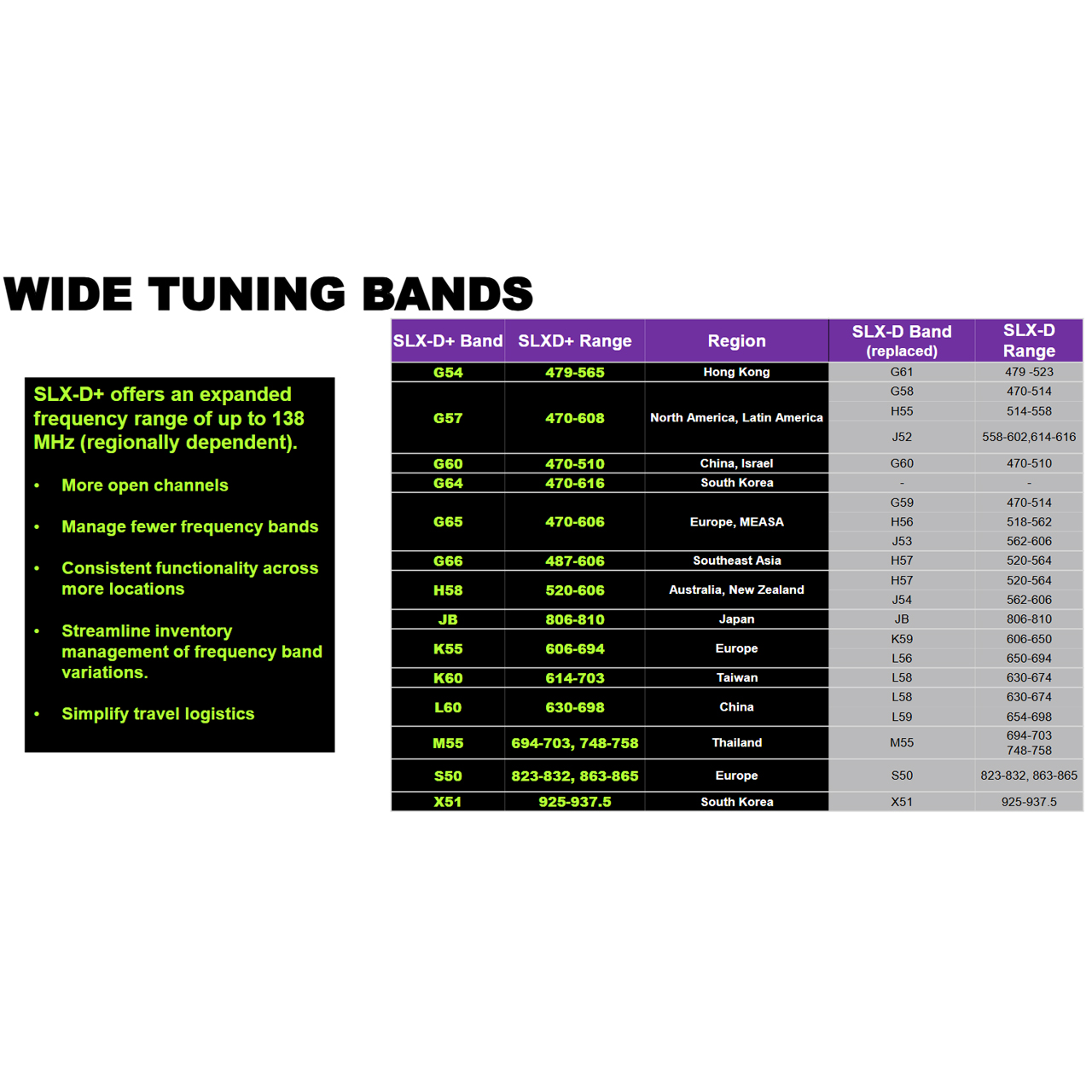

SLX-D+ Wide Tuning Bands
SLX-D+ offers an expanded frequency range of up to 138 MHz (regionally dependent).

• More open channels
• Manage fewer frequency bands
• Consistent functionality across more locations
• Streamline inventory management of frequency band variations.
• Simplify travel logistics

Digital Feedback Reducer
Digital Feedback Reducer (DFR) technology automatically detects and suppresses audio feedback using dynamic notch filters, enhancing sound clarity in live environments. Originally developed as standalone hardware, Shure's Digital Feedback Reduction (DFR) has evolved into a sophisticated software solution integrated into audio systems, offering more flexible and accessible feedback control.

Applications:
• Event, Presentation and Speech
• House of Worship
• Performance and Clubs
• Videography and Location Sound
• Electronic News Gathering (ENG) and Broadcast

  • Features:

    • 24-bit digital audio with >118 dB dynamic range
    • >118 dB dynamic range and 2.8ms latency
    • 138 MHz wide-tuning range for greater geographical coverage
    • Up to 11 compatible systems per 6MHz TV band; 14 systems per 8 MHz band
    • ShowLink® Ease for remote control and management of transmitter wireless parameters from the mix position and elsewhere
    • Patented Shure Digital Feedback Reducer software embedded in every SLX-D+ receiver
    • AES-256 Encryption included, for complete and secure peace of mind
    • Portable receiver & plug-on transmitter options
    • Single, Dual, and Quad rack receiver options; bodypack and handheld transmitter options
    • Remote control via WWB mobile app for SLXD4+, SLXD4D+, SLXD4Q+, SLXD4QDAN+, and SLXD5+
    • Up to 8 hours from 2 AA batteries or optional Shure SB903 rechargeable battery

  • Specifications:

      Audio Output
    • Gain Adjustment Range: -18 to +42 dB in 1 dB steps
    • Configuration:
      - 1/4" (6.35 mm): Balanced (Tip=audio +, Ring=audio - Sleeve=ground)
      - XLR: Balanced (1=ground, 2=audio +, 3=audio -)
    • Impedance:
      - 1/4" (6.35 mm): 1.1 kΩ (550 Ω Unbalanced)
      - XLR (line): 500 Ω (250 Ω Unbalanced)
      - XLR (mic): 150 Ω
    • Full Scale Output:
      - 1/4" (6.35 mm): +18 dBV differentially (+12 dBV single)
      - XLR (LINE setting): +18 dBV
      - XLR (MIC setting): -12 dBV
      - Mic/Line Switch 30 dB pad
    • Phantom Power Protection:
      - 1/4" (6.35 mm): Yes
      - XLR: Yes

      RF Input
    • Spurious Rejection: >75 dB Typical
    • Connector Type: BNC
    • Impedance: 50 Ω

      Networking
    • Network Interface: Single Port Ethernet 10/100 Mbps
    • Network Addressing Capability: DHCP or Manual IP address
    • Maximum Cable Length 328 ft (100 m)

      Physical
    • Dimensions (H x W x D): 1.65" x 7.76" x 5.98" (42 x 197 x 152 mm)
    • Weight: 2.1 lbs (900 g) without antennas - Housing Galvanized Steel
    • Power Requirements: 15 VDC @ 360 mA - Supplied by external power supply (tip positive)

  • Item Includes:

    • 1x SLXD4D+ Digital 2-Channel Wireless Receiver (1/2 rack)
    • 1x Rack mount kit
    • 2x 1/4 wave antennas
    • 2x Bulkhead adapters
    • 2x 22" BNC cables

  • GTIN:

    0042406907385
