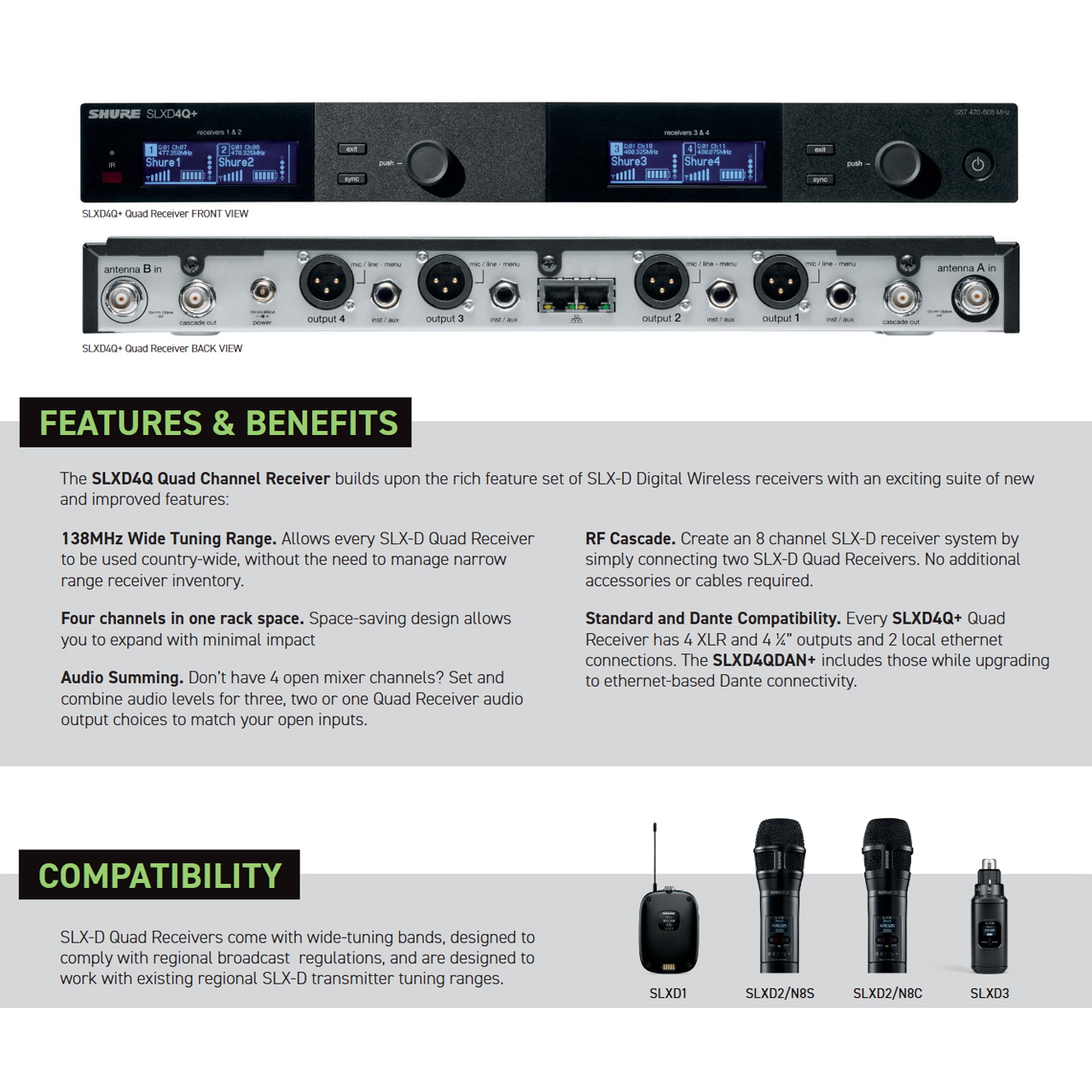

Shure SLXD4Q+ 1RU Digital Quad Wireless Mic Receiver with 19-Inch Rack Mount Kit - 470-608 MHz

SLXD4Q+=57 - Overview

• Features:

  • Four channels in one rack space
  • Wide 138 MHz tuning range
  • 32 available channels per frequency band (region dependent)
  • Transparent 24-bit digital audio
  • Extended 20 Hz to 20 kHz frequency range (microphone dependent)
  • 118 dB dynamic range
  • Audio Summing matches receiver output to available mixer channels (4, 3, 2 or 1)
  • RF Cascade creates an 8-channel system by linking two SLXD4Q+, no other accessories required
  • Bias Voltage power supply management
  • Digital predictive switching diversity
  • Easy pairing of transmitters and receivers over IR scan and sync
  • 4x XLR and 4 ¼" outputs and 2 local ethernet connections
  • Compatible with Shure Wireless Workbench® control software
  • Rugged metal construction


• Specifications:

  RF
  • RF Carrier Frequency Range: 470 - 608 MHz
  • Working Range: 328' (100m)
  • RF Tuning Step Size: 25 kHz
  • Image Rejection: >85 dB
  • RF Sensitivity: -97 dBm at 10^-5 BER

    RF Input
  • Spurious Rejection: >75 dB
  • Connector Type: BNC
  • Impedance: 50Ω
  • Bias Voltage: 15V DC, 150 mA max

    Audio
  • Latency: 3.2ms
  • Audio Frequency Response: 20 Hz - 20 kHz (+1, -2 dB)
  • Audio Dynamic Range (A-Weighted): 118 dB @1% THD
  • Total Harmonic Distortion: <0.02%
  • System Audio Polarity:
    - XLR: Positive pressure on microphone diaphragm produces positive voltage on pin 2 with respect to pin 3 of XLR output.
    - TRS: Postive pressure on microphone diaphragm produces positive voltage on the tip of the 6.35 mm (¼-inch) with respect to the ring of the 6.35 mm output.

    Audio Output
  • Audio Frequency Response: 20 Hz - 20 kHz (+1, -2 dB)
  • Gain Adjustment Range: -18 to +42 dB in 1 dB steps
  • Configuration:
    - ¼" (6.35mm): Balanced (Tip=audio +, Ring=audio -, Sleeve=ground)
    - XLR: Balanced (1=ground, 2=audio +, 3=audio -)
  • Impedance:
    - ¼" (6.35mm): 1.1kΩ (550Ω Unbalanced)
    - XLR (line): 500Ω (250Ω Unbalanced)
    - XLR (mic): 150Ω
  • Full Scale Output:
    - ¼" (6.35mm): +12 dBV Unbalanced (+18 dBV Balanced)
    - XLR (LINE setting): +18 dBV
    - XLR (MIC setting): -12 dBV
  • Mic/Line Switch: 30 dB pad
  • Phantom Power Protection:
    - ¼" (6.35mm): Yes
    - XLR: Yes

    Cascade Output
  • Connector Type: BNC
  • Configuration: Unbalanced
  • Impedance: 50Ω
  • Insertion Gain: 0-2 dB typical

    Networking
  • Network Interface: 20 Hz - 20 kHz (+1, -2 dB)
  • Network Addressing Capability: DHCP or Manual IP address
  • Meximum Cable Length: 328' (100m)

    Physical
  • Dimensions: 1.65" x 15.47" x 5.98" (42mm x 393mm x 152mm)
  • Weight: 3.85lbs (1.75kg)
  • Housing: Galvanized Steel
  • Power Requirements: 15V @ 0.9A

    Environmental
  • Operating Temperature Range: 0°F - 122°F (-18°C - 50°C)
  • Storage Temperature Range: -20°F - 165°F (-29°C - 74°C)


• Item Includes:

  • 1x SLXD4Q+ receiver
  • 1x Rack mounting hardware
  • 2x 1/4-wave antennas
  • 1x PS60 power supply


• GTIN:

  0042406869874
