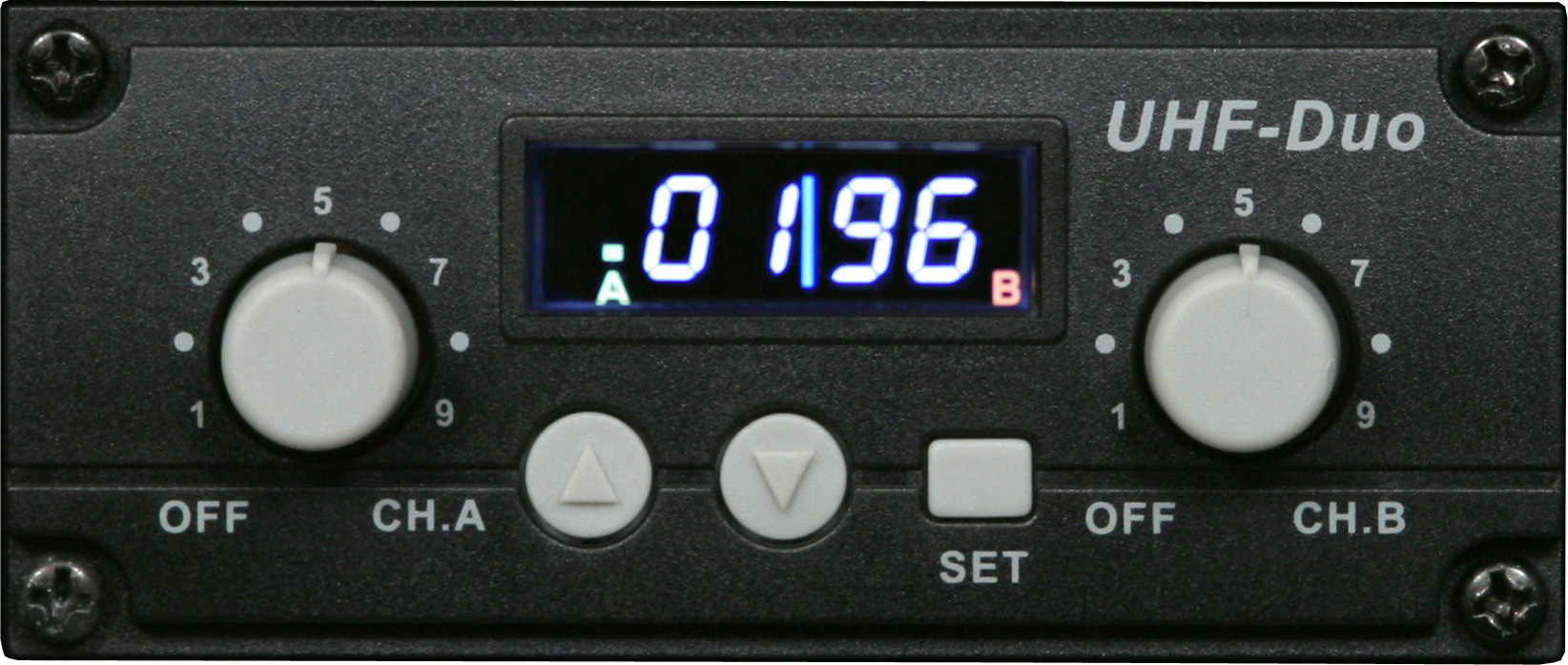

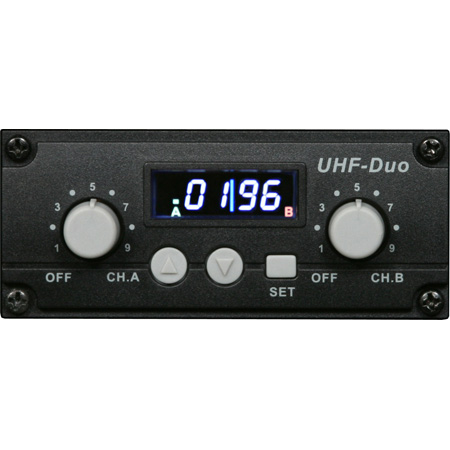

Galaxy Audio TV5-DREC Dual Receiver for Traveler Portable PA Systems - TV8/TV5i/TV5x Models

ITEM #: GXY-TV5-DREC MFG #: TV5-DREC

Primary Image
Free Shipping with $49 Minimum Order

List Price:

$239.99

Our Price:

$159.99

Special Price:

$145.00

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup


    TV5-DREC - Overview

    Galaxy Audio's TV5-DREC dual receiver for the traveler portable PA systems will allow you to use two wireless microphones with one receiver card.

    This now means, with two Dual Channel Receivers loaded into your Traveler System, you can operate up to FOUR wireless mics at one time!

    With Dual Volume controls, you can easily set the wireless microphones, and with 96 selectable frequencies each, you are sure to find that the Dual Receiver will work great for your next event.

    • Features:

      • Dual Receiver in a Single Module
      • TV-DREC Works With TV8, TV5i, & TV5X Models
      • 96 Selectable Channels
      • Channel Selector
      • RF and AF Indicator
      • Volume Control
      • LCD Display
      • Easy Aftermarket Installation

    • Specifications:

      • Oscillation Type: PLL synthesized control OSC
      • Adjustable Frequency: Pre-programmed max. 96 switchable channels
      • Switching Bandwidth: Max. 12 MHz
      • Ambient Temp: 14 to 122° (-10 to 50°C)
      • Max Deviation: 50 kHz, with level limiting
      • Dynamic Range: 110dB
      • T.H.D.: Less than 0.5%
      • Pre/De-Emphasis: 50µs
      • Squelch: Tone key and noise lock dual-squelch
      • Frequency Response: 70Hz - 16kHz (wireless)
      • Operating Range: 160-230 feet (50-70m)(open field) with built in antenna
      • Antenna Mode: single
      • Sensitivity: 4µV @ 30dB SINAD
      • Double Intermediate: 110.6Mhz/10.7MHz
      • Display Status: LCD indicator displays channel or frequency
      • Channel Select: SET, UP, DOWN keys
      • RF Spurious Rejection: 70 dB
      • Adjacent Channel Performance: 68dB @250kHz
      • IMD Rejection: 58dB
      • Carrier Frequency Range: 520-544MHz
      • Antenna: Built-in or external
      • Dimensions (LxWxH): 5.25 x 3.46 x 1.45" (133 x 88 x 37mm)
      • Weight: 0.24Lbs (110g)

    • GTIN:

      0691281004506
