SmallHD OLED 16 16-Inch 400nits Reference-Grade 4K Production Monitor - 4x 12G-SDI In & Out - 1x HMDI 2.0

Name: SmallHD OLED 16 16-Inch 400nits Reference-Grade 4K Production Monitor - 4x 12G-SDI In & Out - 1x HMDI 2.0
Brand: SmallHD
SKU: SMHD-OLED-16
Price: 5999.00 USD
Availability: PreOrder

ITEM #: SMHD-OLED-16 MFG #: 16-1601

SmallHD

Our Price:

$5,999.00

Add to Wish List Leasing Options

Availability: Preorder - Expected Availability Oct 2026.

Report Lower Price Large Quantity Quote

Required Accessories

Recommended Accessories

16-1601 - Overview

Designed for on-set and studio use, it delivers true blacks and stable color performance in a compact form factor ideal for DIT carts and video village!

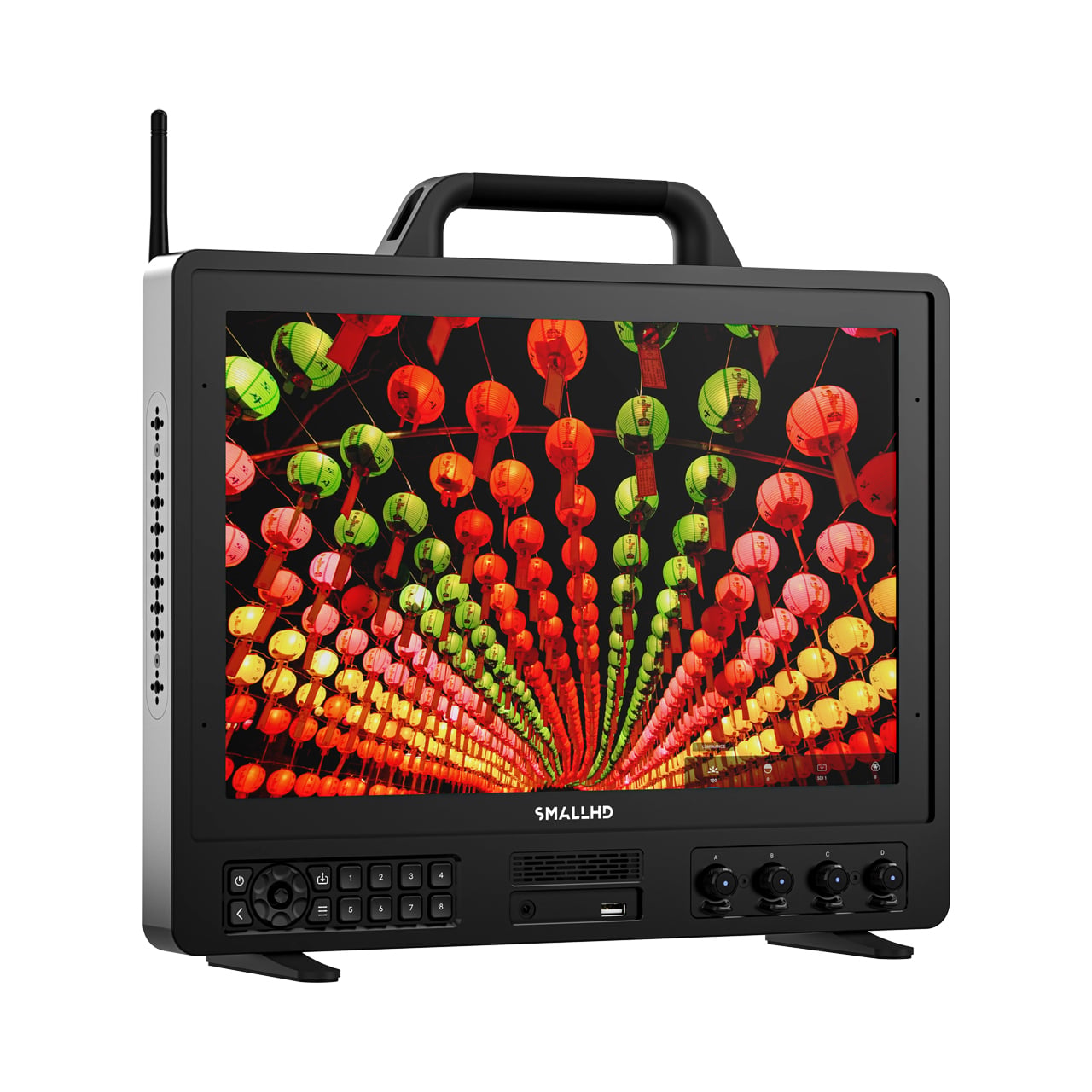

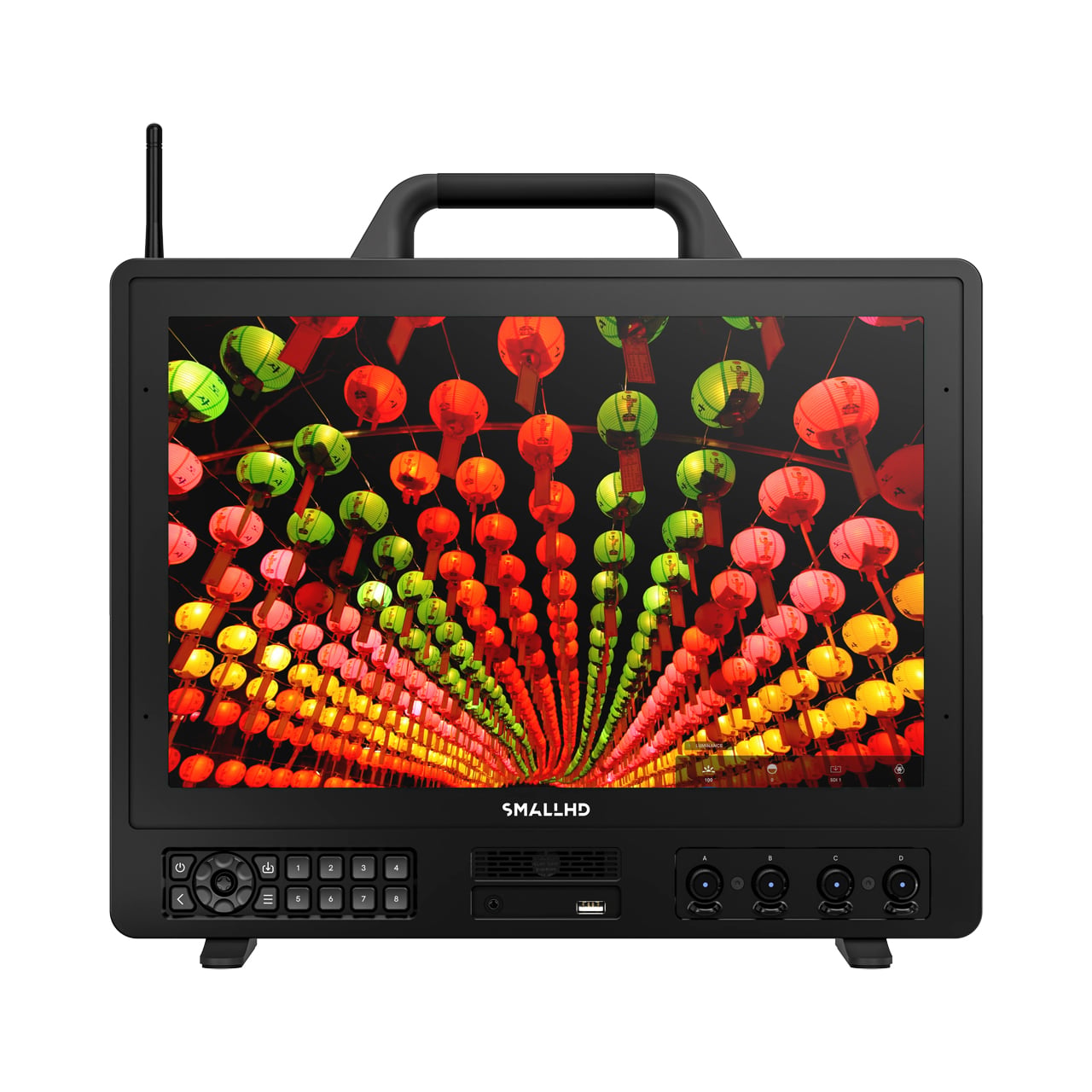

The SmallHD OLED 16 is a 16" reference-grade production monitor built for precise color evaluation and consistent image matching across multi-monitor workflows.

Featuring a 3840 x 2400 panel with 10-bit processing and a 1,000,000:1 contrast ratio, OLED 16 supports four 12G inputs and outputs. The unibody chassis provides flexible mounting and a smart rail system for fast rigging and expansion.

Running PageOS, OLED 16 integrates seamlessly into larger monitor ecosystems. With built-in WiFi and Fleet Control support, users can deploy settings, LUTs, and configurations across multiple monitors to maintain consistency on set. Four front-facing customizable dials provide fast, tactile control for critical adjustments.

Self-emissive OLED technology ensures accurate shadow detail and exposure evaluation without blooming or haloing, making OLED 16 well-suited for high-end cinematography and client-facing review environments where image consistency matters.

Features:
- 16" Rugged, Set-Ready Chassis
- 100% DCI-P3, 80% Rec.2020
- Up to 400nits
- 3840 x 2400 Resolution
- 4x 12G-SDI In/Out
- 1x HMDI 2.0

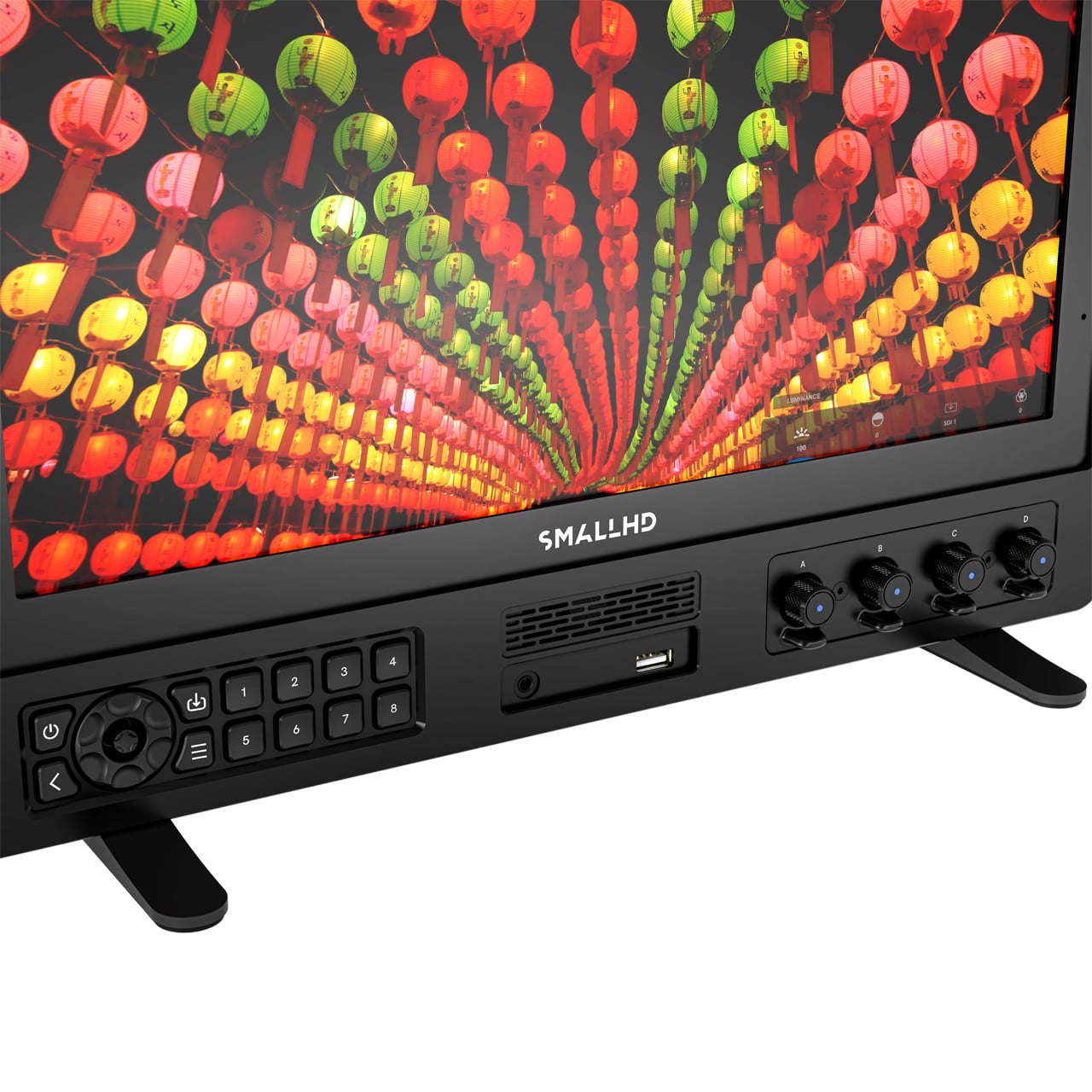

- 4x Multi-Function Dials; WiFi
Specifications:
- Panel Type: AMOLED
- Diagonal Size: 16.00"
- Resolution: 3840x2400
- Aspect Ratio: [object Object]
- Max Brightness: 400nits
- Contrast: > 1,000,000:0
- Gamut: Rec709 coverage 100% DCI-P3 coverage 100% Rec2020 coverage 80%
- Color Depth: 10-bit
- Backlight Type: AMOLED
- Refresh Rate: Fixed 60Hz
- Display Size: 16"
- Panel Resolution: 3840x2160
- Brightness: 400nits
- DCI-P3 Color: 100% DCI-P3

  Input Signal
- 3G-SDI Input:
  - YCC 4:2:2 @ 10-bits: 1080p60/59.94/50, 1080i120/119.88/100 YCC 4:4:4, YCC+A 4:4:4:4 RGB
  - RGB+A @ 10 bits: DCI-2Kp30/29.97/25/24/23.98, 1080p30/29.97/25/24/23.98 YCC 4:4:4
  - YCC+A 4:2:2:4, RGB @ 12 bits: DCI-2Kp30/29.97/25/24/23.98, 1080p30/29.97/25/24/23.98
- 6G-SDI Input:
  - YCC 4:2:2 @ 10 bits: DCI-4Kp30/29.97/25/24/23.98, 2160p30/29.97/24/23.98 YCC 4:4:4, YCC+A 4:4:4:4, RGB
  - RGB+A @ 10 bits: DCI-2Kp60/59.94/50/48/47.95, 1080p60/59.94/50/48/47.95 YCC 4:4:4
  - YCC+A 4:2:2:4, RGB @ 12 bits: DCI-2Kp60/59.94/50/48/47.95, 1080p60/59.94/50/48/47.95
- 12G-SDI Input:
  - YCC 4:2:2 @ 10 bits: DCI-4Kp60/59.94/50/48/47.95, 2160p60/59.94/48/47.95 YCC 4:4:4, YCC+A 4:4:4:4, RGB
  - RGB+A @ 10 bits: DCI-4Kp30/29.97/25/24/23.98, 2160p30/29.97/25/24/23.98 YCC 4:4:4, YCC+A 4:2:2:4
- HD-SDI Input: YCC 4:2:2 @ 10-bits: 1080p30/29.97/25/24/23.98, 1080psf30/29.97/25/24/23.98, 1080i60/59.94/50, 720p60/59.94/50/30/29.97/25/24/23.98
- SD-SDI Input: YCC 4:2:2 @ 10-bits: 480i59.94, 576i50
- HDMI Input:
  - YCC 4:2:2 @ 12 bits, RGB & YCC 4:4:4 @ 8bits: DCI-4Kp60/59.94/50/48/47.95, 2160p60/59.94/48/47.95 YCC 4:2:2: @ 12 bits
  - RGB & YCC 4:4:4 @8/10/12/16 bits: DCI-4Kp30/29.97/25/24/23.98, 2160p30/29.97/25/24/23.98, DCI-2Kp60/59.94/50/48/47.95/30/29.97/25/24/23.98

  Output Signals
- 3G-SDI Output:
  - YCC 4:2:2 @ 10-bits: 1080p60/59.94/50, 1080i120/119.88/100 YCC 4:4:4, YCC+A 4:4:4:4, RGB
  - RGB+A @ 10 bits: DCI-2Kp30/29.97/25/24/23.98, 1080p30/29.97/25/24/23.98 YCC 4:4:4
  - YCC+A 4:2:2:4, RGB @ 12 bits: DCI-2Kp30/29.97/25/24/23.98, 1080p30/29.97/25/24/23.98
- 6G-SDI Output:
  - YCC 4:2:2 @ 10 bits: DCI-4Kp30/29.97/25/24/23.98, 2160p30/29.97/24/23.98 YCC 4:4:4, YCC+A 4:4:4:4, RGB
  - RGB+A @ 10 bits: DCI-2Kp60/59.94/50/48/47.95, 1080p60/59.94/50/48/47.95 YCC 4:4:4, YCC+A 4:2:2:4, RGB @ 12 bits
- 12G-SDI Output:
  - YCC 4:2:2 @ 10 bits: DCI-4Kp60/59.94/50/48/47.95, 2160p60/59.94/48/47.95 YCC 4:4:4, YCC+A 4:4:4:4, RGB
  - RGB+A @ 10 bits: DCI-4Kp30/29.97/25/24/23.98, 2160p30/29.97/25/24/23.98 YCC 4:4:4
  - YCC+A 4:2:2:4, RGB, @ 12 bits: DCI-4Kp30/29.97/25/24/23.98, 2160p30/29.97/25/24/23.98
- HD-SDI Output:
  - YCC 4:2:2 @ 10-bits: 1080p30/29.97/25/24/23.98, 1080psf30/29.97/25/24/23.98, 1080i60/59.94/50, 720p60/59.94/50/30/29.97/25/24/23.98
- SD-SDI Output: YCC 4:2:2 @ 10-bits: 480i59.94, 576i50
- HDMI Output:
  - YCC 4:2:2 @ 12 bits, RGB & YCC 4:4:4 @ 8bits: DCI-4Kp60/59.94/50/48/47.95, 2160p60/59.94/48/47.95 YCC 4:2:2: @ 12 bits
  - RGB & YCC 4:4:4 @8/10/12/16 bits: DCI-4Kp30/29.97/25/24/23.98, 2160p30/29.97/25/24/23.98, DCI-2Kp60/59.94/50/48/47.95/30/29.97/25/24/23.98
- Audio Output Types: 1x 3.5mm

  Connector Type
- Audio: HDMI & SDI

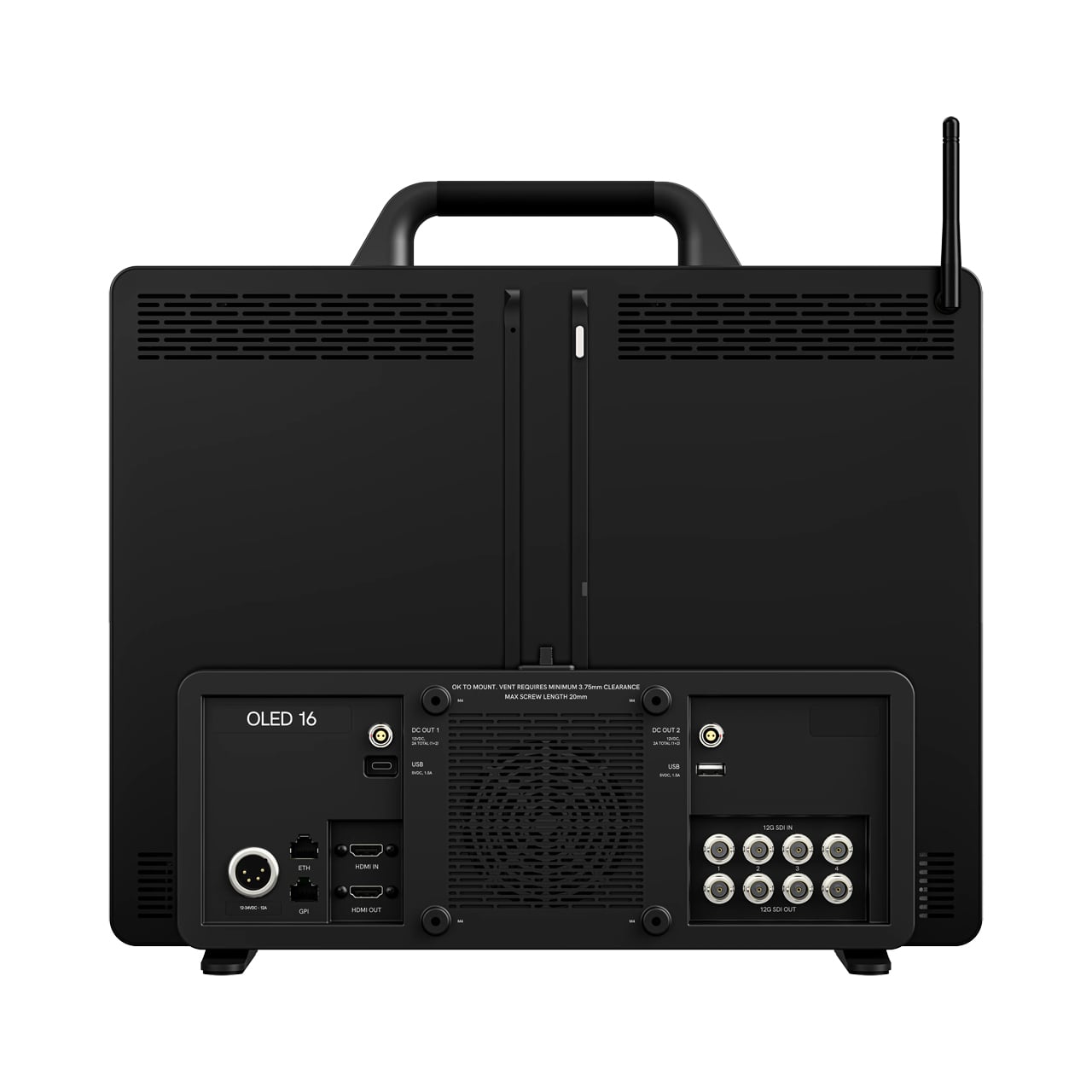

  Data I/O
- Connector Type:
  - 1x RJ45 Ethernet
  - 1x RJ45 GPI
- Monitoring I/O:
  - 1x RJ45 Ethernet
  - 1x RJ45 GPI
  - 1x USB Front
  - 2x USB Rear

  Power
- Input:
  - 1x 4-pin XLR (12V - 34V DC/143W Max)
  - 1x Dual-GM/VM Batt. Plate (14V/26V) sold separately
- Output:
  - 2x 2-pin locking
  - 1x USB (5V/2.4A)(Front)
  - 1x USB (5V/1.5A)(Rear)
  - 1x USB (5V/1.5A)(Rear)
- Battery Types: 1x Dual-GM/VM Batt.Plate (14/26V)(sold as accessory)

  Physical
- Item Weight: 10.4lbs
- Height:
  - 12.3" (w/o feet and handle)
  - 14.2" (w/ feet and handle)
- Width: 15.8"
- Length/Depth:
  - 2.73" (w/o feet and handle)
  - 4.7" (w/ feet and handle)
- Compliance: FCC, IC, CE, UKCA, RCM, ROHS
- Operating Temp: 32°F - 105°F
Item Includes:
- 1x OLED 16
- 1x 24V Power Supply
- 1x Transport screen protector
- 1x Microfiber Cleaning Cloth
