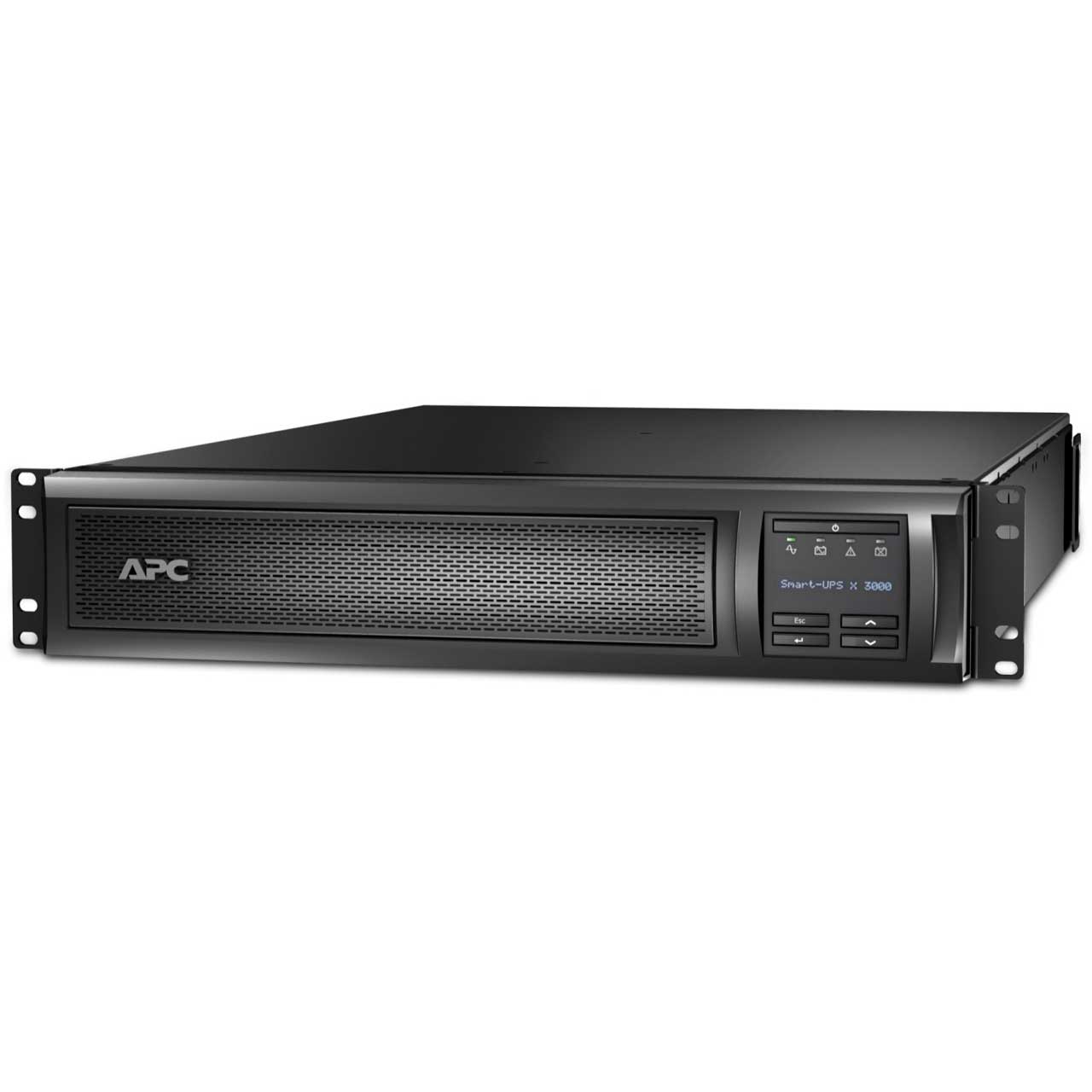

APC SMX3000RMLVUS 2U Smart-UPS X 3000VA Rack/Tower LCD 100-127V- TAA Compliant - Black

ITEM #: SMX3000RMLVUS MFG #: SMX3000RMLVUS

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Free Shipping with $49 Minimum Order

List Price:

$3,610.00

Our Price:

$2,625.00

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup


    SMX3000RMLVUS - Overview

    The APC SMX3000RMLVUS is a Rack/tower convertible, 2U Smart-UPS X that's Line Interactive, 3kVA, 100V-127V. It features a NEMA L5-30P input plus 3x 5-15R, 3x 5-20R, 1x L5-30R NEMA outputs with a SmartSlot, extended runtime and it's TAA compliant.

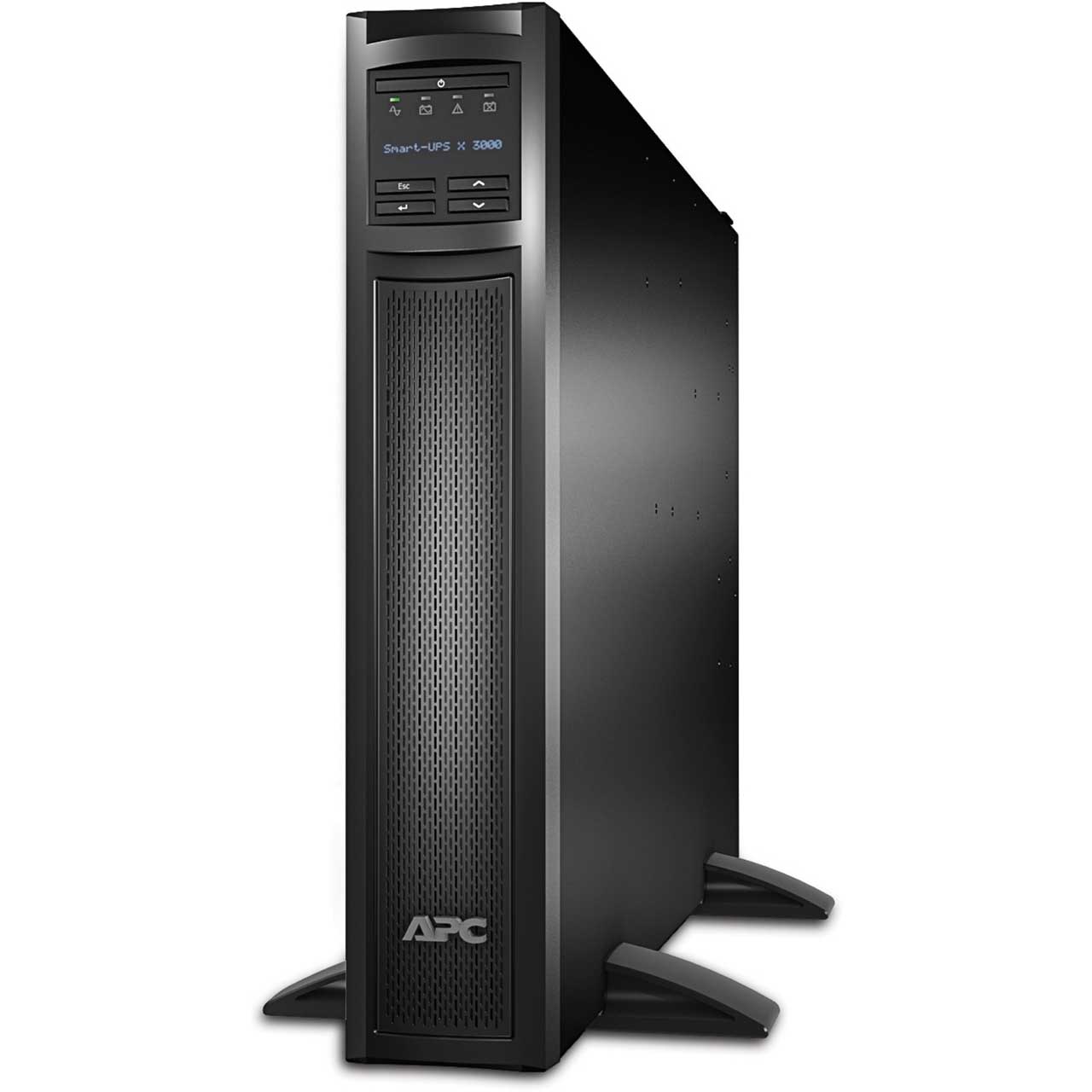

    The SMX3000RMLVUS converts from a tower or stand-alone UPS to a rack mount UPS, offering flexibility in various installations. Package contains UPS, CD with software, Documentation CD, Installation guide, Rack mounting brackets, Rack mounting hardware, Rack mounting support rails, Removable support feet, Smart UPS signalling RS-232 cable and USB cable This 3000watt ups offers an green mode to ensure you are operating at the highest level of efficiency while it's smart battery management maximizes performance. Automatic Voltage Regulation (AVR) adjusts voltages ensuring reliable power while preserving battery life. Predictive battery management provides an estimated date of when battery replacement is recommended. Batteries are user-replaceable.

    Protect servers, switches, networking devices, and point-of-sale equipment with the APC Smart-UPS X 3000VA. APC Smart-UPS provide backup battery power during power outages and continuously safeguard devices from fluctuating power conditions and surges. With premium protection and simplified management, the 3000VA UPS ensures consistent and reliable connectivity at the most critical moments. With 7 outlets with 2 switched outlet groups and a compatibility with external battery packs, this server UPS provides uninterrupted and scalable battery power to connected electronics.

    • Specifications:

      • Mechanical
      • Height: 3.35inches (85MM, 8.5CM)
      • Width: 17.01inches (432MM, 43.2CM)
      • Depth: 26.26inches (667MM, 66.7CM)
      • Weight: 84.77lbs. (38.45KG)
      • Rack Height: 2U
      • Color: Black

      • Environmental
      • Operating Environment: 32 - 104 °F (0 - 40 °C)
      • Operating Relative Humidity: 0 - 95 %
      • Operating Elevation: 0 - 10000ft (0 - 3048meters)
      • Storage Temperature: -15 - 45 °C
      • Storage Relative Humidity: 0 - 95%
      • Storage Elevation: 0-50000 feet (0-15000 meters)
      • Audible noise at 1 meter from surface of unit: 55.0dBA
      • Online Thermal Dissipation: 276.0BTU/hr

      • Output
      • Output Power Capacity: 2.7kWatts / 2.88kVA
      • Max Configurable Power: 2.88kVA
      • Nominal Output Voltage: 120V
      • Efficiency at Full Load: 98.0%
      • Output Voltage Distortion: Less than 5% at full load
      • Output Frequency (sync to mains): 50/60 Hz +/- 3 Hz Sync to mains
      • Waveform Type: Sine wave

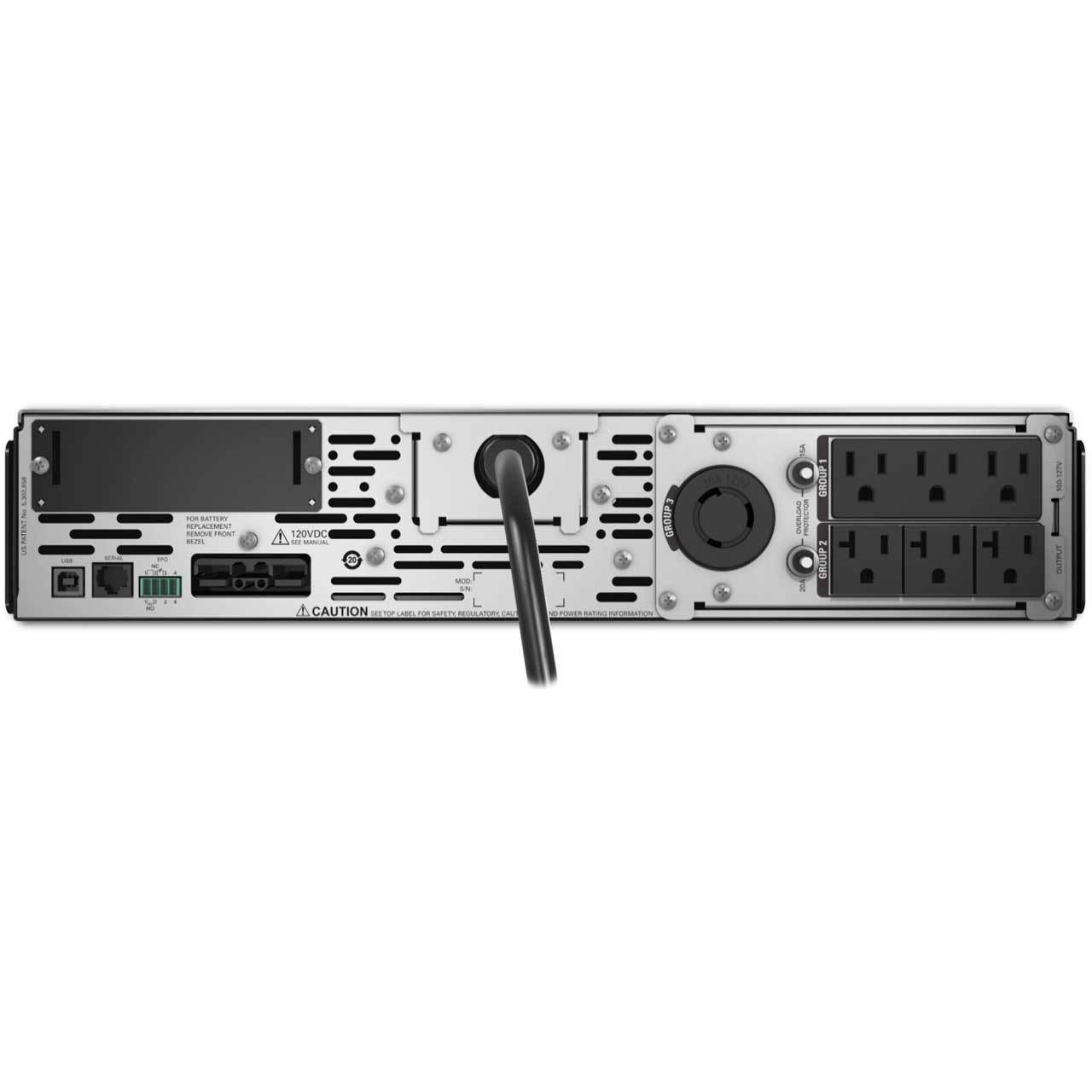

      • Output Connections
      • (3) NEMA 5-15R
      • (1) NEMA L5-30R
      • (3) NEMA 5-20R

      • Input
      • Nominal Input Voltage: 120V
      • Input Frequency: 50/60 Hz +/- 3 Hz (auto sensing)
      • Input Connections: NEMA L5-30P
      • Cord Length: 8 ft (2.44 m)
      • Input voltage range for main operations: 70 - 153V

      • Batteries & Runtime
      • Battery Type: Lead-acid battery
      • Typical recharge time: 3 hour(s)
      • RBC Quantity: 1

      • Communications & Management
      • Interface Port(s): SmartSlot, USB
      • Control panel: LED status display with on line : on battery : replace battery and overload indicators, Multifunction LCD status and control console.
      • Audible Alarm: Alarm when on battery : distinctive low battery alarm : configurable delays.

      • Surge Protection and Filtering
      • Surge energy rating: 540 Joules
      • Filtering: Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449

      • Conformance
      • Regulatory Approvals: BSMI, CSA, EN 50091-2, EN 55022 class A, FCC part 15 class A, NOM, TAA compliance , TšV, UL 1778, VCCI class A
      • Standard Warranty: 3 years repair or replace (excluding battery) and 2 years for battery, optional on-site warranties available, optional extended warranties available.
      • Equipment protection policy: Lifetime : $150000

    • Item Includes:

      • 1x APC SMX3000RMLVUS Smart-UPS X
      • 1x CD with software
      • 1x Documentation CD
      • 1x Installation guide
      • 1x Rack Mounting hardware
      • 1x Rack Mounting brackets
      • 1x Rack Mounting support rails
      • 1x Removable support feet
      • 1x Smart UPS signalling RS-232 cable
      • 1x USB cable

    • Warranty:

      • 3 years repair or replace (excluding battery) and 2 years for battery

    • GTIN:

      0731304340423


    SMX3000RMLVUS - Required Accessories
