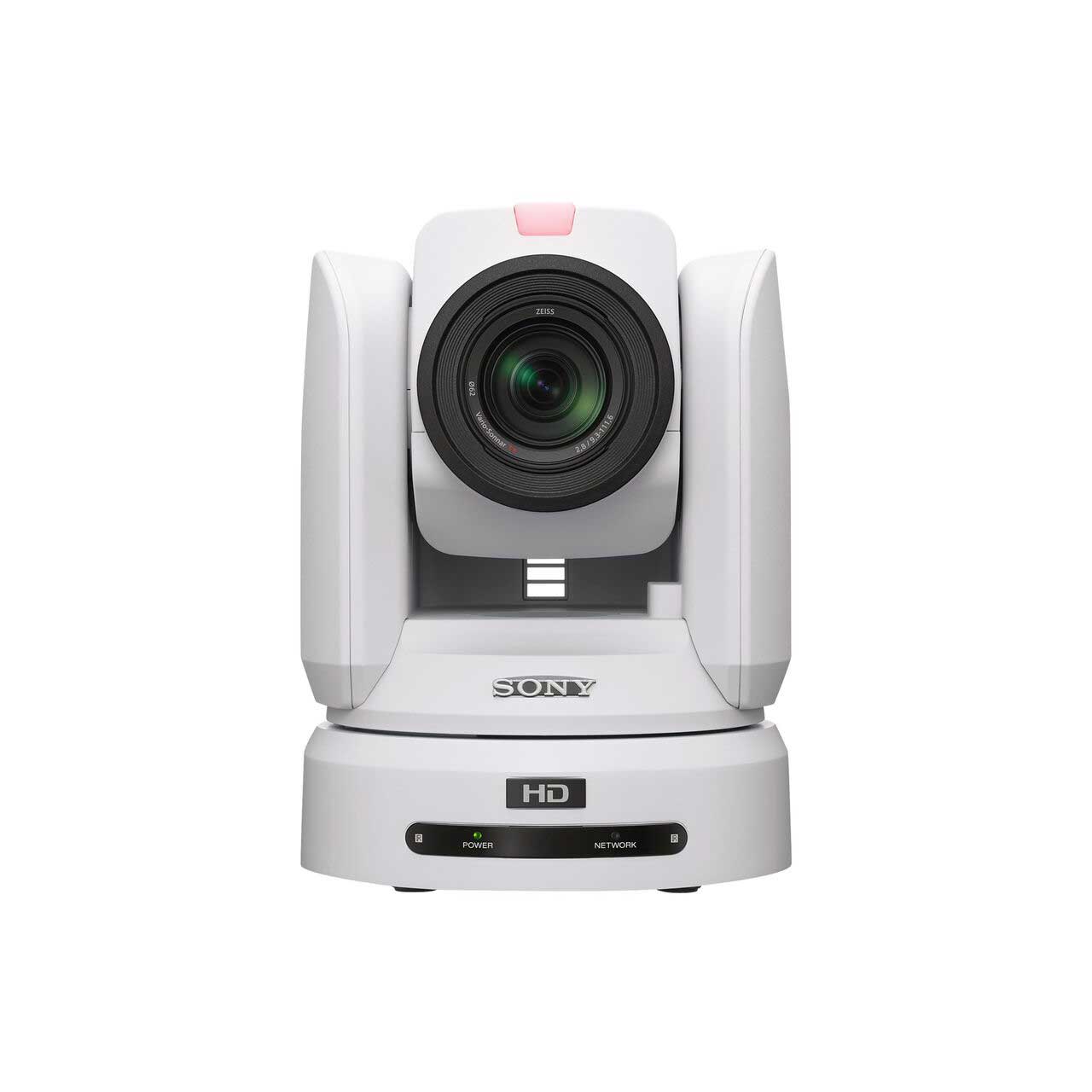

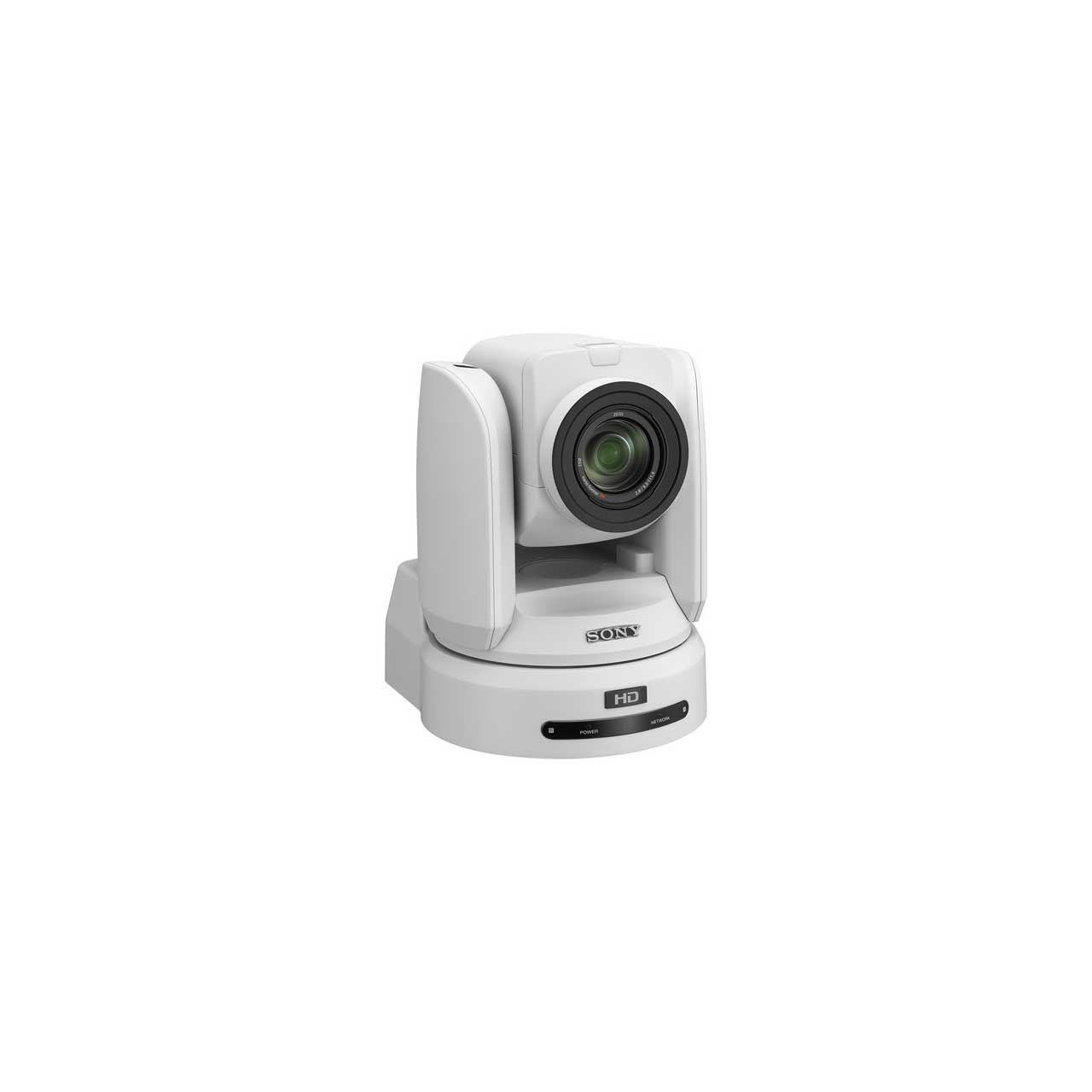

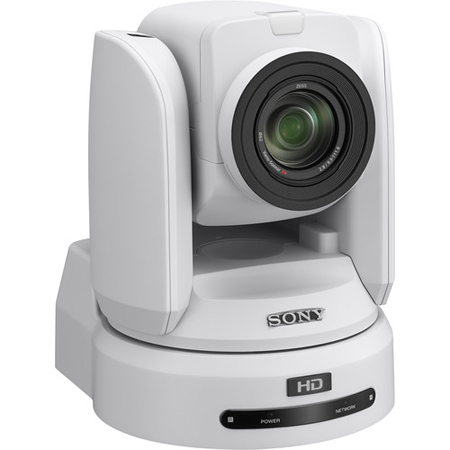

Sony BRC-H800 HD/WPW PTZ Camera with 1-Inch CMOS Sensor and PoE+ - White

ITEM #: SNY-BRCH800HDWPW MFG #: BRC-H800 HD/WPW

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

Our Price:

$7,183.00

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup


    BRC-H800 HD/WPW - Overview

    Remotely capture broadcast quality Full HD images with smooth, silent PTZ and excellent low-light sensitivity.

    The BRC-H800 remote camera combines uncompromising broadcast picture quality and smooth, silent PTZ operation with the flexibility of 3G-SDI and HDMI connections.

    Designed for unattended operation, this compact but powerful robotic camera is an ideal complement to other broadcast cameras for capturing images in hard-to-reach or unobtrusive positions. It's equally at home in TV newsrooms, remote studios and on-air suites, auditoriums, houses of faith, courtrooms, classrooms, or sports stadiums. It's also particularly suited to efficient multi-camera set-ups, under the control of a single operator.

    • Features:

      • Enhanced Pan/Tilt/Zoom (PTZ) operation
      • High quality 12x optical zoom and 24x(HD) with Clear Image Zoom
      • RCP/MSU Connectivity

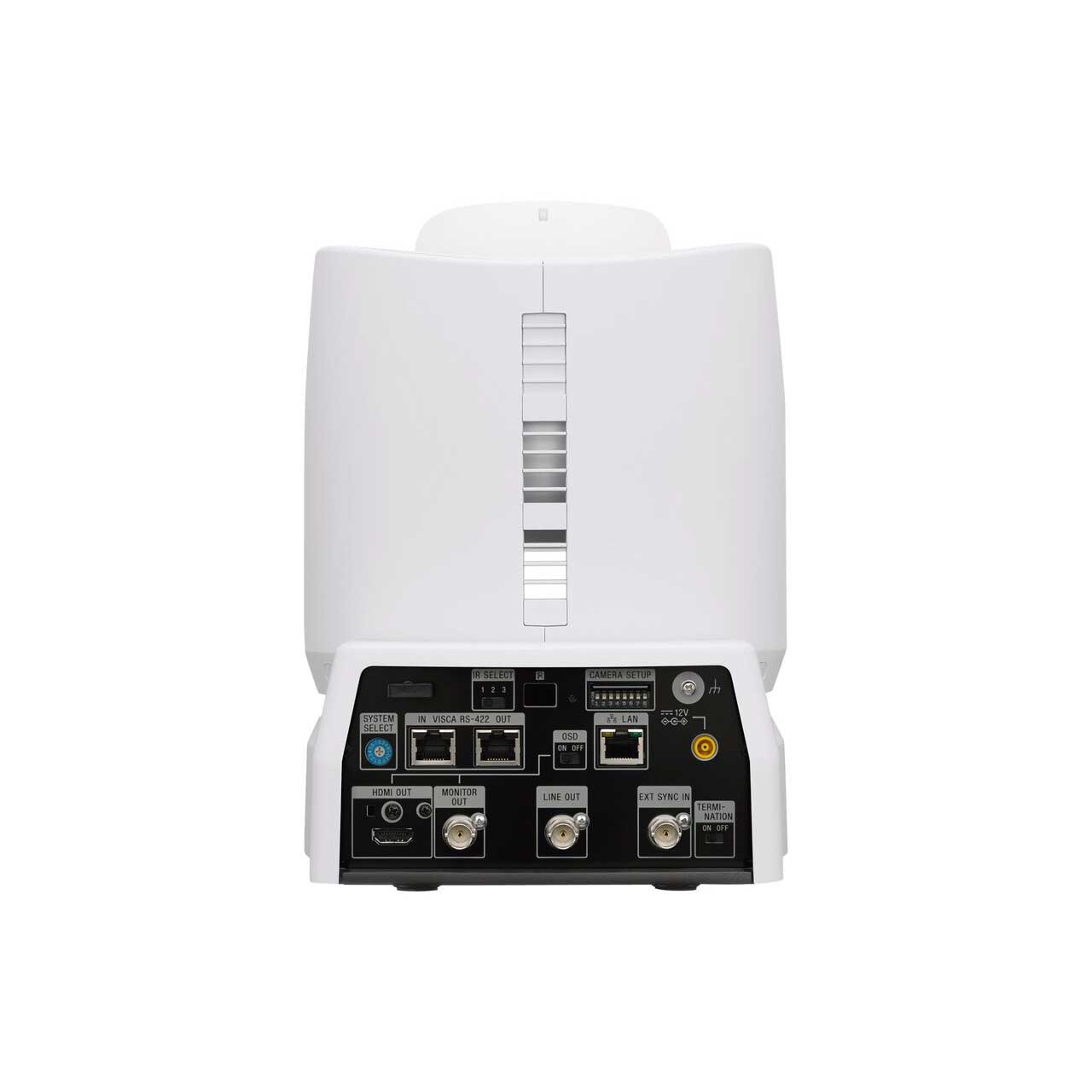

      • Versatile video outputs
      • Broadcast quality Full HD 60p images
      • Cinematic 24p pictures
      • Excellent low light sensitivity
      • Flexible installation
      • Remote operation
      • Genlock
      • Front and rear tally lamps
      • Simplified construction of VR/AR systems

    • Specifications:

      • Image Sensor: 1.0-type back-illuminated Exmor R CMOS sensor
      • Image Sensor (Number of Effective Pixels): Approx. 14.2 Megapixels
      • Image Sensor (Total Number of Pixels): Approx. 20.4Megapixels
      • Signal System: 1080/59.94p,1080/59.94i,720/59,94p, 1080/50p,1080/50i, 720/50p, 1080/23.98p
      • Minimum Illumination (50IRE): 1.7 lux(50IRE, F2.8, 1/30s, Max.Gain)
      • Horizontal Resolution: 850 TV line(in 3G-SDI output) (center))
      • Gain: Auto/Manual (-3dB to +33dB)
      • Shutter Speed: 1/10000s to 1/8 (59.94/29.97) 1/10000s to 1/6 (50/25/23.98)
      • Exposure Control: Auto, Manual, Priority mode (shutter priority, iris priority, gain priority), Back light, Spot light
      • White Balance: Auto1/Auto2/One Push/Indoor/Outdoor/Manual
      • Optical Zoom: 12x
      • Clear Image Zoom: 2x
      • Digital Zoom: No
      • Tele Convert Mode: Off, 2x *1920x1080 only
      • Focusing System: Auto/Manual
      • Horizontal Viewing Angle: Typ. 64.6° (Wide-end)
      • Focal Length: f=9.3 to 111.6mm F2.8(Wide) ,F4.5(Tele)
      • Minimum Object Distance: 1000mm(Tele) 80mm (Wide)
      • Pan/Tilt Angle: Pan: ±170° Tilt: +90°/-30°
      • Pan/Tilt Slow Mode: Yes
      • Pan/Tilt Operation Noise: NC30 or less
      • Preset Position: 100
      • PTZ Trace Memory: 16
      • PTZ Motion Sync: Yes
      • Camera tracking data output: Yes (Requires firmware V2.10)

    • Item Includes:

      • 1x Sony BRC-H800 HD/WPW PTZ Camera with 1" CMOS Sensor and PoE+ (White)
      • 1x IR Remote Commander Unit
      • 2x Ceiling bracket
      • 1x Wire rope
      • 7x Screws(M3 x 8)
      • 1x Screws(M4 x 8)
      • 1x HDMI cable fixing plate

    • Warranty:

      • Limited 1-Year Manufacturer Warranty

    • GTIN:

      0027242299900
