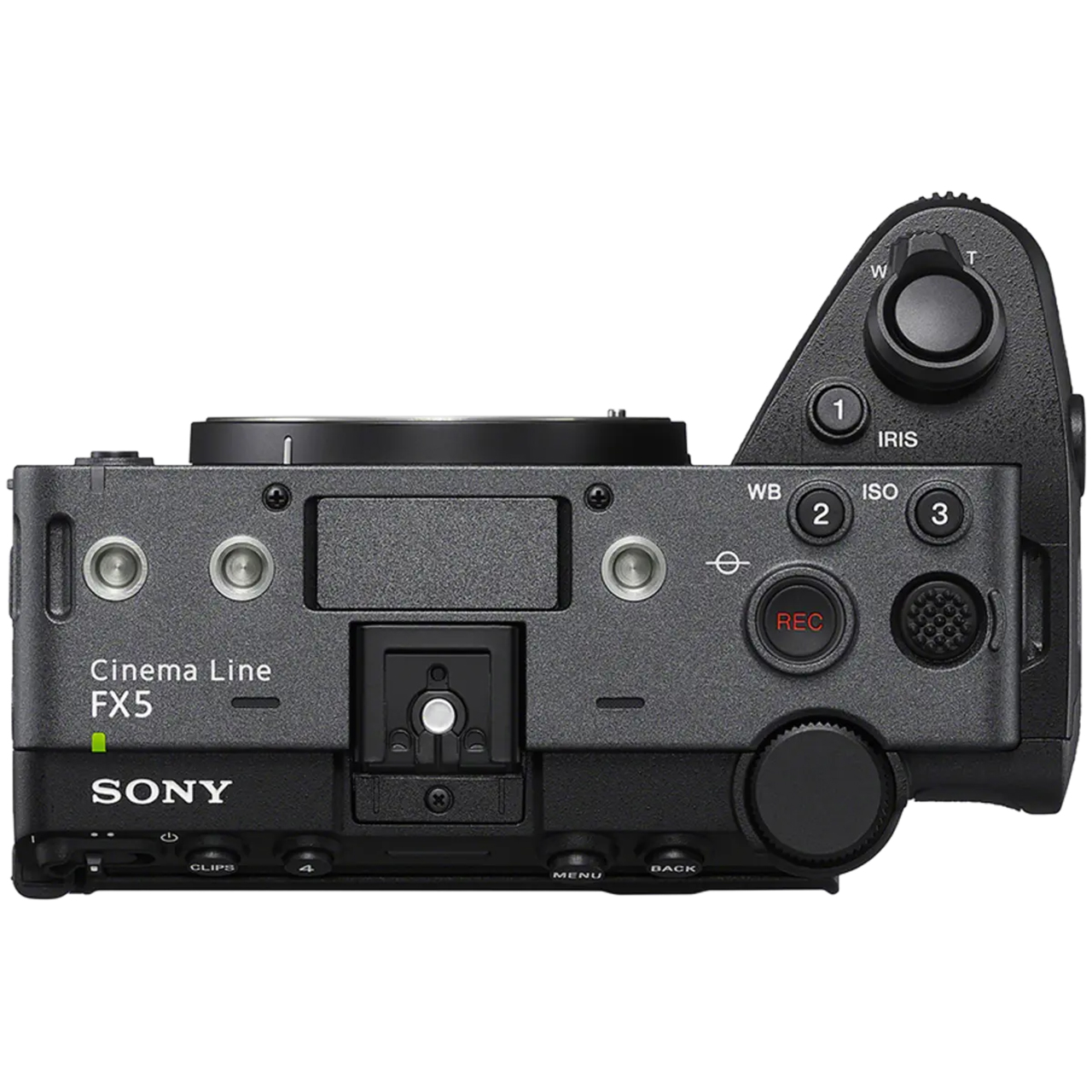

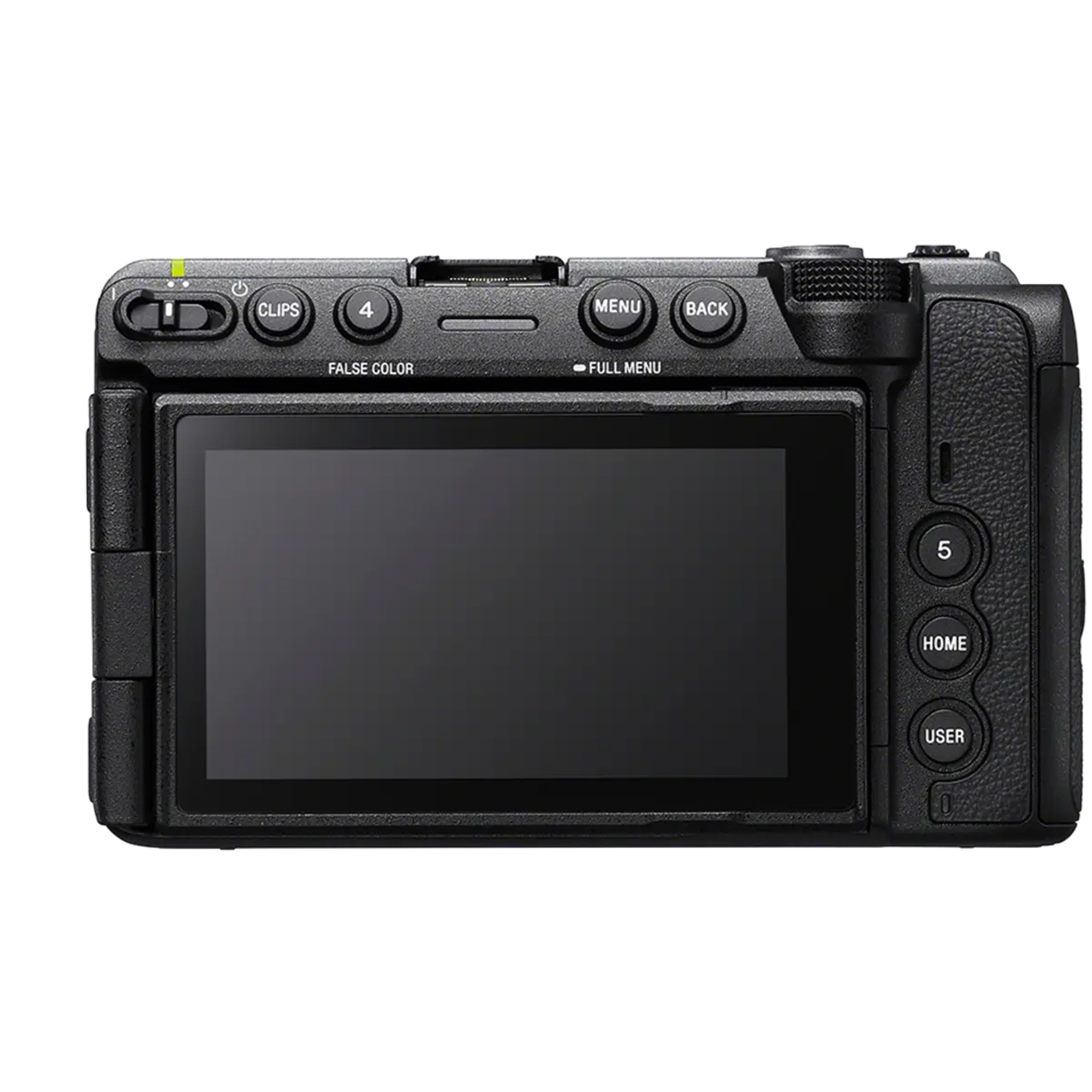

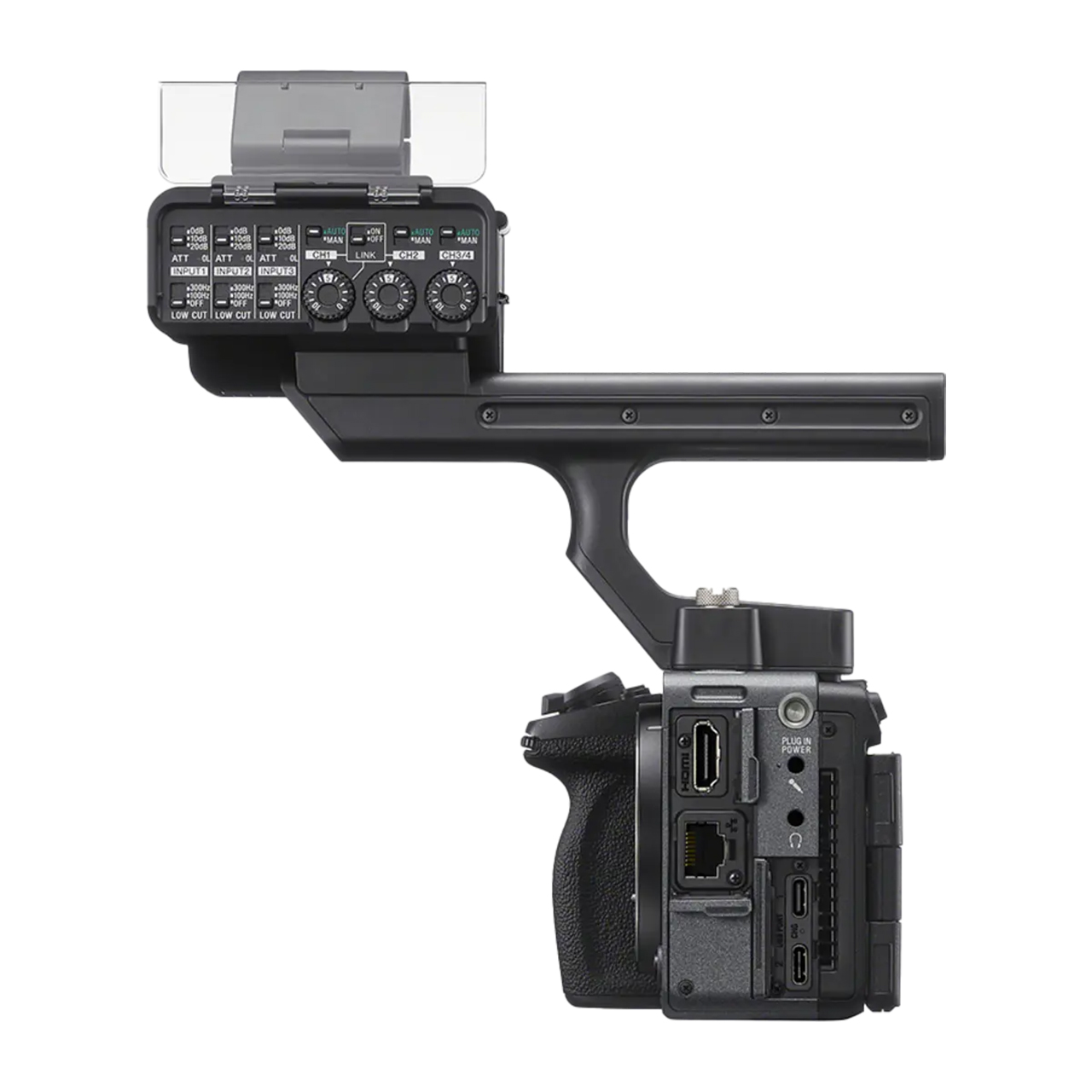

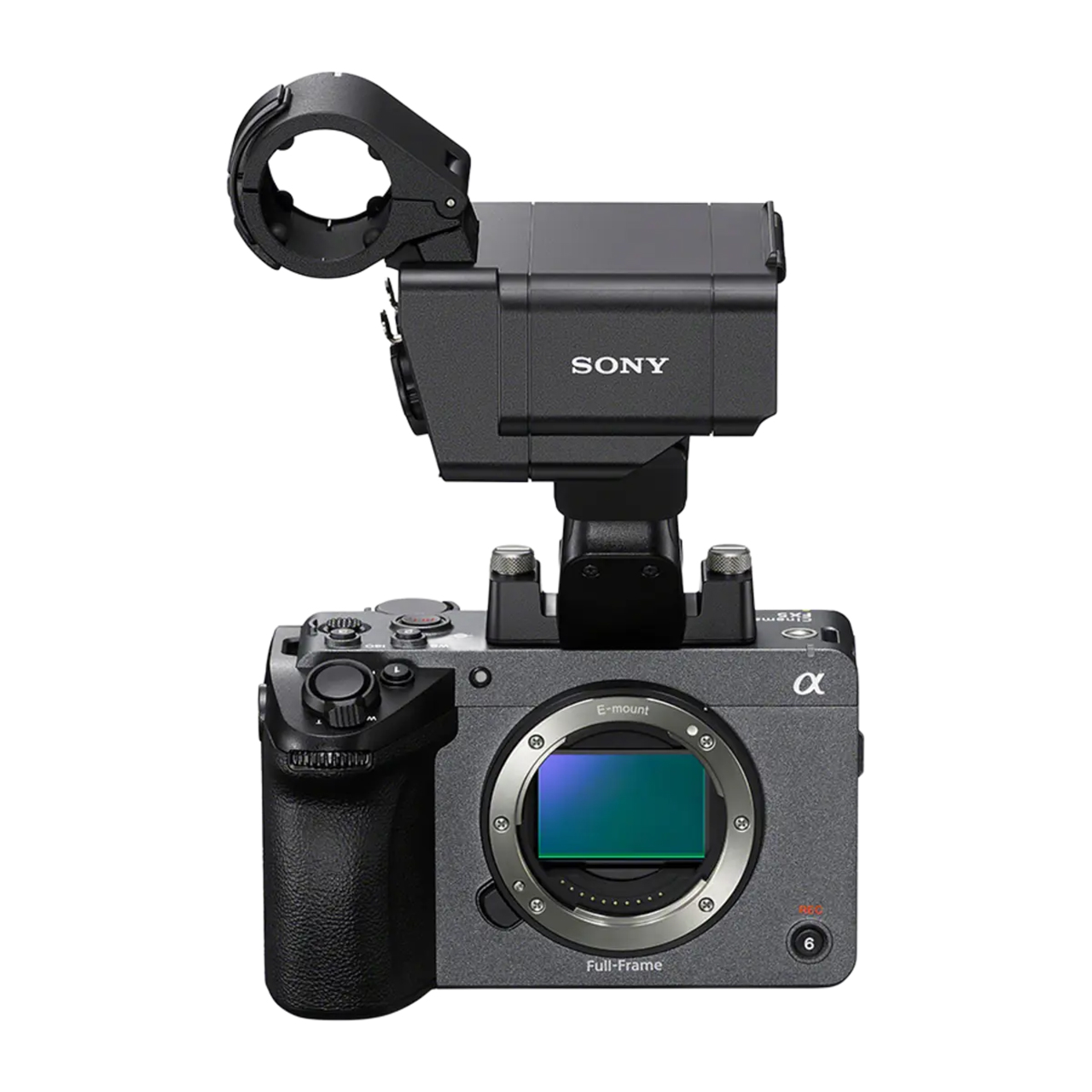

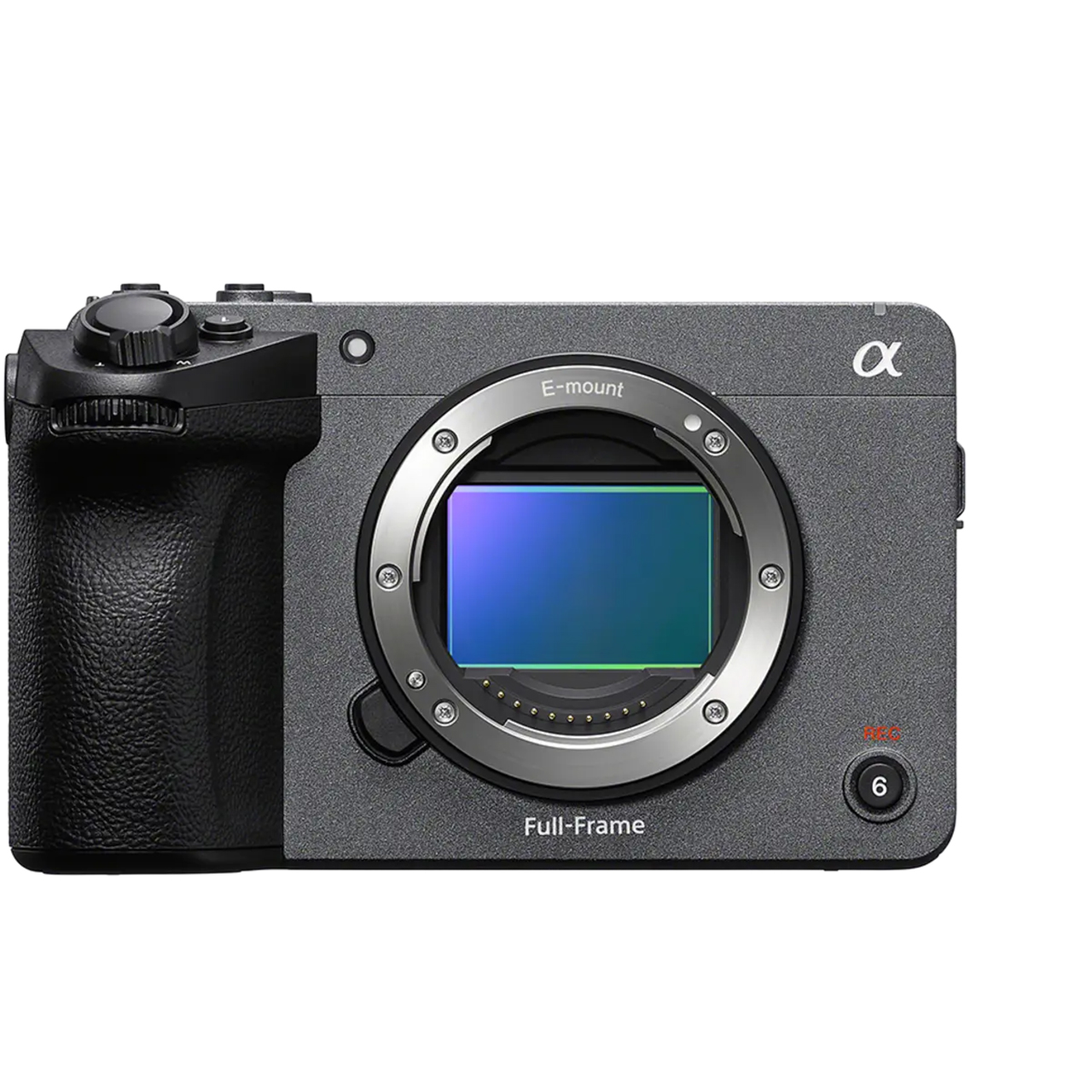

Sony Cinema Line FX5 5K Full-Frame Camera with Exmor RS CMOS Sensor & BIONZ XR2 AI Processing - XLR Handle & Body Only

ILMEFX5 - Overview

An advanced cinema look and refined operability together in a compact body!

• Features:

  • 5K full-frame fully-stacked Exmor RS™ CMOS sensor for speed, detail and latitude
  • BIONZ XR2™ with integrated AI processing for enhanced shooting support
  • Open Gate and other image scan modes
  • Internal X-OCN compressed RAW video recording
  • Three Base ISO settings for effective noise control in any environment
  • Wide 15+ stop latitude10 with low noise
  • Dual Gain Shooting debuts in the Cinema Line FX camera series
  • High-frame-rate capture, including 5K up to 60fps and 4K up to 120fps
  • Precise, reliable AF and tracking with AI subject recognition
  • Built-in de-squeeze for anamorphic shooting
  • Deep learning-based illumination estimation
  • S-Cinetone™ for a refined cinematic look
  • Wide-gamut color for more grading control
  • Three S-Log modes for flexible workflows
  • 5-axis stabilization for steadier handheld shooting
  • Lightweight, compact design for agility on set
  • High-quality 96kHz/32bit float audio recording
  • BIG6 (HOME screen for faster on-set control)
  • Optional OLED viewfinder DVFEL1B for easier outdoor monitoring
  • Monitoring support for precise shooting
  • Clear Image Zoom for smoother, more intuitive framing
  • Dual CFexpress Type A/SD card slots for flexible media workflows
  • Power that keeps pace with long shoots
  • Cooling designed for uninterrupted up to 170 minutes of recording
  • 3.5-type monitor with 4-axis multi-angle design
  • Movie-first menus & controls
  • Clear tally visibility
  • Durable, sealed body design
  • Flexible mounting points
  • Flexible monitoring, power and timecode connections
  • Wired and wireless LAN connectivity for remote workflows
  • M&C for remote operation from mobile devices
  • Catalyst Prepare and Catalyst Prepare Plugin


• Specifications:

  Network Streaming
  • Video Resolution: 3840x2160, 1920x1080, 1280x720
  • Video Data Format: MPEG-4 AVC/H.264, MPEG-H HEVC/H.265
  • Audio Data Format: AAC-LC 2ch (16-bit 48kHz)
  • Protocol: RTMP, RTMPS, SRT

    Accessibility
  • Functions: Screen Reader,Focus Magnifier,Focus Map (Movie),Peaking Display,Subject Recognition in AF,Touch Focus,Touch Tracking,Multi-angle LCD screen,Custom function,Enlarge Screen

    Camera Section
  • Sensor Type: 35mm full frame, Exmor RS CMOS sensor
  • Number of Pixels (total): Approx. 18.2MP
  • Number of Pixels (Effective): Approx. 16.6MP max.
    *Number of effective pixels varies depending on attached lenses and camera settings.
  • Latitude: 15+ stops (S-Log3)
  • Optical Low Pass Filter: Yes
  • Color Temperature Range: 2000K - 15000K

    Focus System
  • Focus Point: Max. 759 points (phase-detection AF)
  • Other Features: AF Subj. Shift Sensitivity (Movie), AF Transition Speed (Movie), Focus Map (Movie), AF Assist (Movie)
  • Recognition Target (Movies): Human, Animal, Bird
  • Focus Type: Fast Hybrid AF (phase-detection AF/Contrast-detection AF)
  • ISO Sensitivity: ISO 320 - 409600 equivalent, AUTO

    Movie Function
  • Proxy Recording: Yes
  • RAW Output: Yes (HDMI)
  • SLOW & QUICK MOTION (SHOOTING FRAME RATE): Yes
  • TC/UB: Yes

    Camera Type
  • Interchangeable lens digital camera
  • Lens Mount: E-mount
  • Recording System - Memory Card Slot:
    - SLOT A: Multi slot for SDXC (UHS-I/II compliant) memory card/CFexpress 2 Type A card
    - SLOT B: Multi slot for SDXC (UHS-I/II compliant) memory card/CFexpress 2 Type A card

    Shutter
  • Shutter Speed: Movies: 64 F to 1/8000s

    Recording (movie):
  • Audio Recording Format: LPCM 4ch (48kHz 24-bit), PCM 4ch (48kHz 32-bit float)*, LPCM 4ch (96kHz 24-bit), PCM 4ch (96kHz 32-bit float)
  • Video Compression: X-OCN, XAVC HS: MPEG-H HEVC/H.265, XAVC S: MPEG-4 AVC/H.264

    Power
  • USB Power Supply: USB Type-C Terminal. USB Power Delivery compatible.
  • Supplied Battery: One rechargeable battery pack NP-SA100
  • Battery Life (Movie, actual recording): Approx. 105 min . *Indication recording time, which is defined by repeating the cycle: Power on, start recording, zoom , stand-by and power off.
  • Battery Life (Movie, continuous recording): Approx. 170 min
  • Internal Battery Charge: Yes
  • Power Consumption with LCD Screen: Approx. 7.4 W

    LCD Screen
  • Adjustable Angle: Opening Angles: Up 98°, down 40°, side 180°, rotation 270°
  • Monitor Type: 3.5-type type TFT
  • Number of Dots: 2 764 800 dots
  • Touch Panel: Yes

    Interface
  • Wireless LAN: Yes (IEEE 802.11a/b/g/n/ac/ax (2.4 GHz band/5 GHz band/6 GHz band)
  • HDMI OUTPUT: HDMI connector (Type-A)
  • Multi Interface Shoe: Yes (with Digital Audio Interface)
  • Bluetooth: Yes
  • Headphone Terminal: 3.5mm Stereo minijack
  • Mic Terminal: 3.5mm Stereo minijack
  • PC Interface: Mass-storage
  • Multi/Micro USB Terminal: *Supports Micro USB compatible device
  • Remote Control (Wireless): Bluetooth remote control
  • LAN Terminal: 2.5GBASE-T, 1000BASE-T, 100BASE-TX
  • Functions: FTP Transfer Func.
  • USB Type-C Terminal: Yes
  • VF terminal: Yes

    Image Stabilization
  • Mode: Movie: Dynamic Active/Active/Standard/Off
  • Type: Image sensor-shift mechanism with 5-axis compensation (compensation depends on lens specifications)

    Audio
  • Microphone: Built-in, stereo
  • Speaker: Built-in, monaural

    Other
  • Dimensions (WxHxD): Approx. 5-1/4" x 3-1/8" x 3-1/2" (from grip to monitor)
  • Weight (with battery and memory card included): Approx. 1lb 9.9oz
  • Body Only: Approx. 1lb 6.7oz
  • Operating Temperature: 32°F - 104°F
  • Storage Temperature: -4°F - 131°F


• Item Includes:

  • 1x XLR Handle
  • 1x Rechargeable Battery NP-SA100
  • 1x Battery Charger BC-SAD1*
  • 1x Body cap,
  • 1x Accessory shoe cap
  • 1x VF terminal protect cap
    *USB PD compatible power supply and USB cable are not included for the Battery Charger BC-SAD1 (supplied). Simultaneous two-battery charging requires a USB PD compatible power supply that can deliver 45 W or higher. Single-battery charging requires a USB PD compatible power supply that can deliver 27 W or higher. A USB cable that support USB PD is required in both cases.


• GTIN:

  0027242936133
