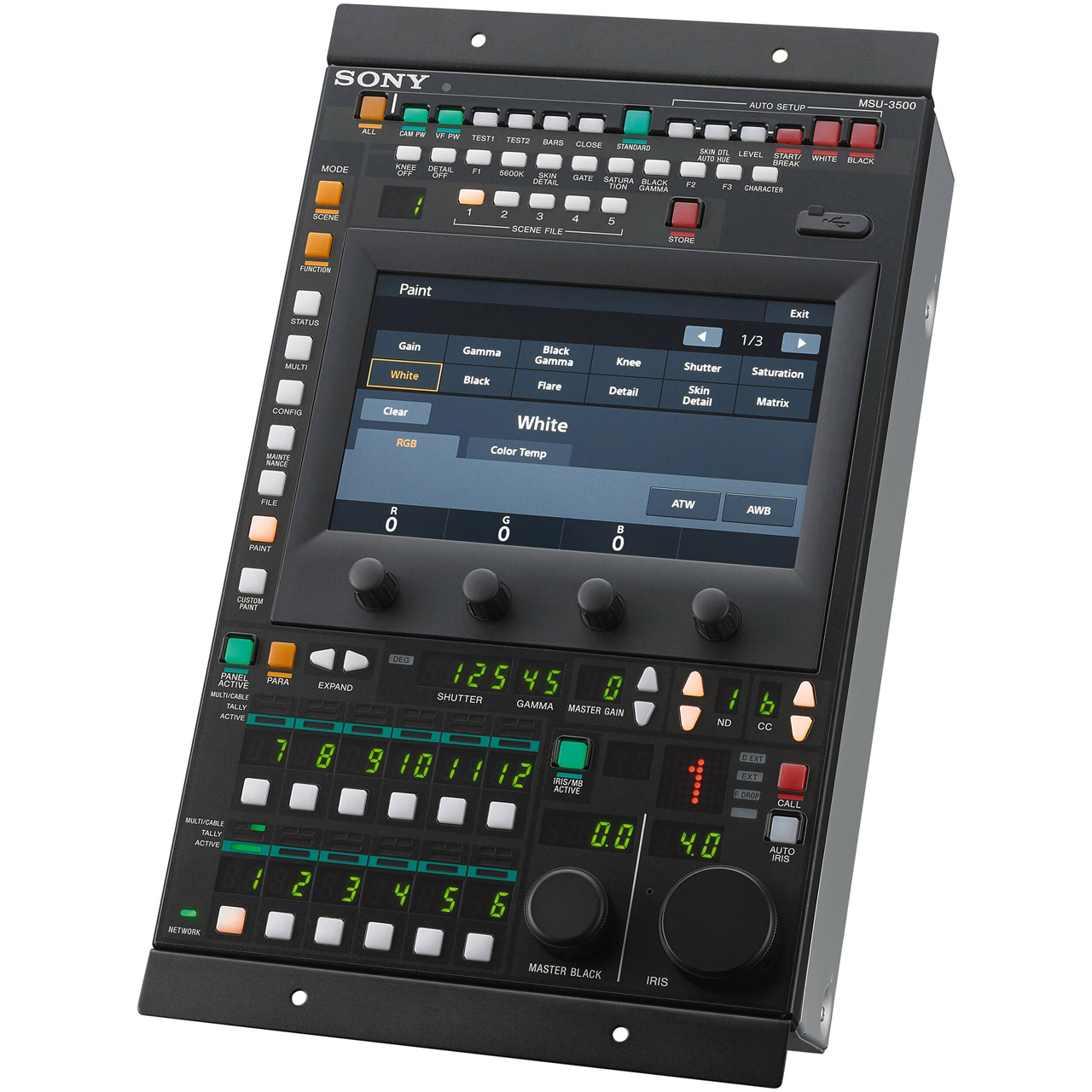

The Sony MSU-3500 is a master setup unit that allows intuitive control and maintenance of connected Sony HDC series system cameras. The MSU-3500 fits a 9.5" EIA rack (half-rack-mount size). It can control either multiple camera systems via 1000Base-T LAN, or a single camera by direct peer-to-peer connection via Sony CCA cable. Operability is enhanced by a new touchpanel with improved visibility, plus additional LED indicators and assignable keys. The menu page gives direct access to camera, CCU and BPU functions, for greater usability and expandability.
Flexible, Scalable System Configuration
The MSU-3500 can be configured for use with large and small-scale camera control systems, sharing the same mechanical dimensions and interface system as the MSU-1500 model. An MSU-3500 can flexibly control up to 96 HDC Series system camera units.
Customizable Switches
Functions and Menu can be mapped to the assignable keys via the Menu Control page, allowing quick and easy access. There are 3 assignable keys on the panel. This is available via SW Customize menu with the categorized items.
USB Flash Drive
The MSU's settings can be saved or loaded via USB flash drive. CAM/CCU/BPU Scene files/Reference files can also be saved, and for the HDRC-4000's HDR Production Converter Unit the All Setting file can be saved.
High-Speed LAN Connection
The MSU-3500 supports connectivity via 1000Base-T Ethernet LAN in addition to a single connection by Sony CCA 8-pin cable.
