Sony SNC-EP520 SD PTZ Camera with 720x480 Resolution
  • Sony SNC-EP520 SD PTZ Camera with 720x480 Resolution
  • Sony SNC-EP520 SD PTZ Camera with 720x480 Resolution
  • Sony SNC-EP520 SD PTZ Camera with 720x480 Resolution
  • Sony SNC-EP520 SD PTZ Camera with 720x480 Resolution

Questions? Ask a Markertek Expert:
800-522-2025 Email

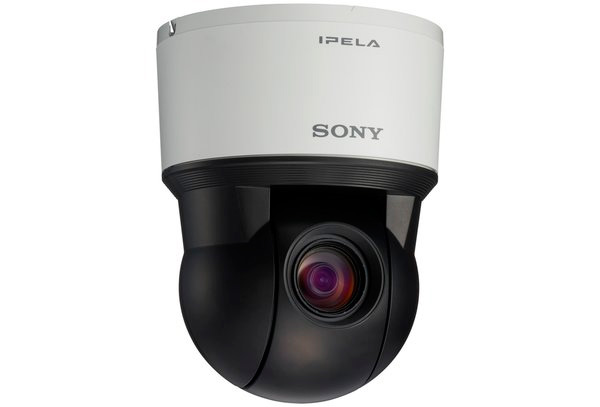

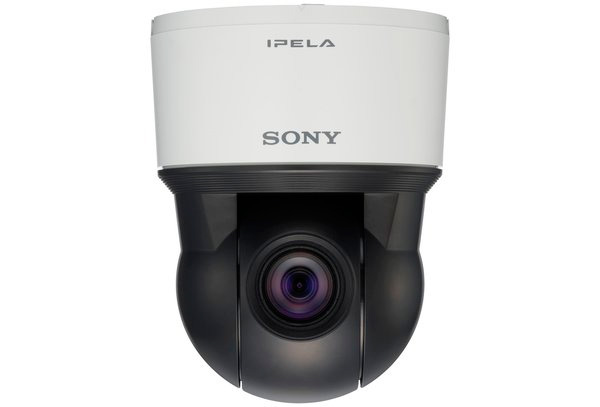

Sony SNC-EP520 SD PTZ Camera with 720x480 Resolution

Manufacturer: Sony Electronics Inc.

Item #: SNY-SNCEP520   •   MFG #: SNCEP520




Share!





SD PTZ camera with 720 x 480 resolution, 1/4 type Exview HAD CCD imager, 36x optical zoom, dual streaming JPEG/MPEG-4/H.264.


  • Features

    • High resolution PTZ camera
    • DynaView Wide-D capability
    • DEPA Intelligence for faster image processing on recorder
    • Onvif technology for easy interoperability in multi-vendor network systems
    • Day/Night modes for improved visibility
    • Dual Streaming (any combination with JPEG/MPEG-4/H.264)
    • HPoE enabled so power and data are transported by Ethernet cable
    • Noise Reduction

  • Specifications

    • IP/Analog IP
    • Camera Type PTZ camera
    • Type PTZ camera
    • Camera SNCEP520
    • Image Device 1/4-type EXviewT HAD CCD
    • Effective Pixels Approx. 0.38 Megapixel
    • Minimum Illumination Color: 1.4lx (F1.6, shutter 1/60sec, AGC ON, 50IRE[IP]); B/W: 0.15lx (F1.6, shutter 1/60sec, AGC ON, Night Mode, 50IRE[IP])
    • Lens Type Auto-focus Zoom Lens
    • Focal Length f=3.4 to 122.4 mm
    • F-Number F1.6 to F4.5
    • Compression Format H.264, MPEG-4, JPEG
    • Pan Angle 340 degrees
    • Pan Speed 300 degrees/s (max)
    • Tilt Angle 105 degrees
    • Tilt Speed 300 degrees/s (max)
    • Day Night Yes
    • Wide-D Yes
    • Zoom Ratio Optical zoom 36x, Digital zoom 12x, Total zoom 432x
    • Minimum Object Distance 10mm (wide) to 1500mm (tele)
    • White Balance Mode Auto, ATW, Indoor, Outdoor, One-push, Manual, Sodium vapour lamp
    • Horizontal Viewing Angle 57.8 to 1.7 degrees
    • Electronic Shutter 1/1 to 1/10,000 s
    • Exposure Control Full auto, Shutter priority, Iris priority, Manual
    • Gain Auto/Manual (-3 to 28 dB)
      Image Specifications Detail:
    • Image Size 704x576, 720x480, 640x480, 384x288, 320x240
    • Compression Format H.264, MPEG4, JPEG
    • Frame Rate 30 fps
      Interface Specifications Detail:
    • Interface 10BASE-T / 100BASE-TX (RJ-45)
    • External Microphone Input Mini-jack (monaural)
    • Audio Line Output Mini-jack (monaural), Max ouput level: 1 Vrms
      General Specifications Detail:
    • Weight 3 lb 12 oz (1.7 kg) (including sealing bracket)
    • Dimensions (W x H x D) o 5 7/8 x 7 5/8 inches (147.4 x 190.9 mm)
    • Finish White
    • Power Requirements HPoE (IEEE802.3at compliant) , AC24V
    • Power Consumption Approx. 25W
    • Operating Temperature 23 to 122°F (-5 to +50 °C)
    • Storage Temperature -4 to +140°F (-20 to +60 °C)
    • Compression H.264, MPEG4, JPEG
    • FPS variable up to 30
    • Resolution SD
    • Watts Approx. 25W
      System Requirements Specifications Detail:
    • Operating System Microsoft Windows XP (32bit), Microsoft Windows Vista (32bit), Microsoft Windows 7 (32/64bit)
    • Processor Intel Core2 Duo 1.8 GHz or higher, Intel Pentium4 2.4GHz or higher
    • Memory 1 GB or more
    • Web Browser Microsoft Internet Explorer 6.0 or later; Firefox 3.5, Safari 4.0, Google Chrome 4.0




Add Accessories for your SNCEP520:
