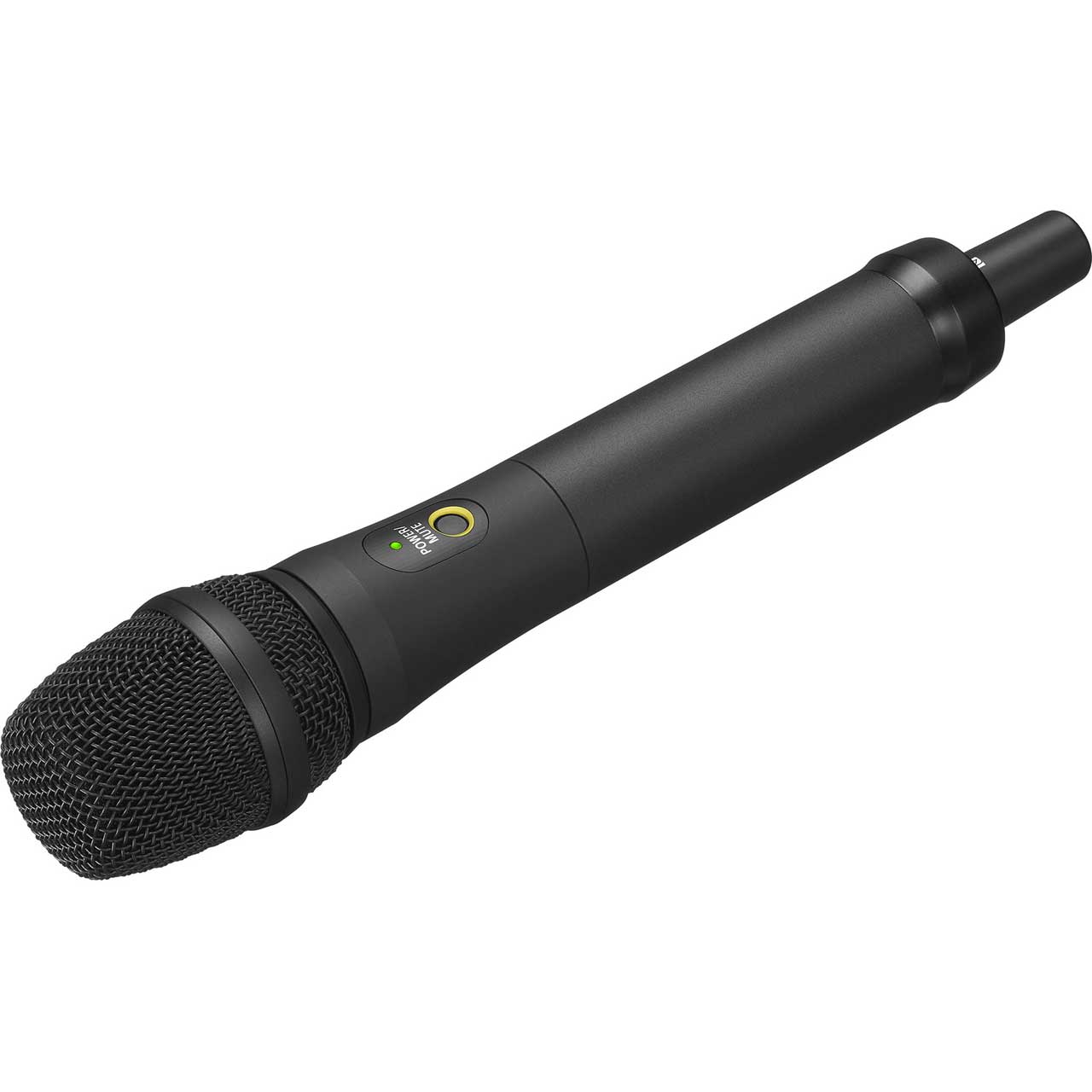

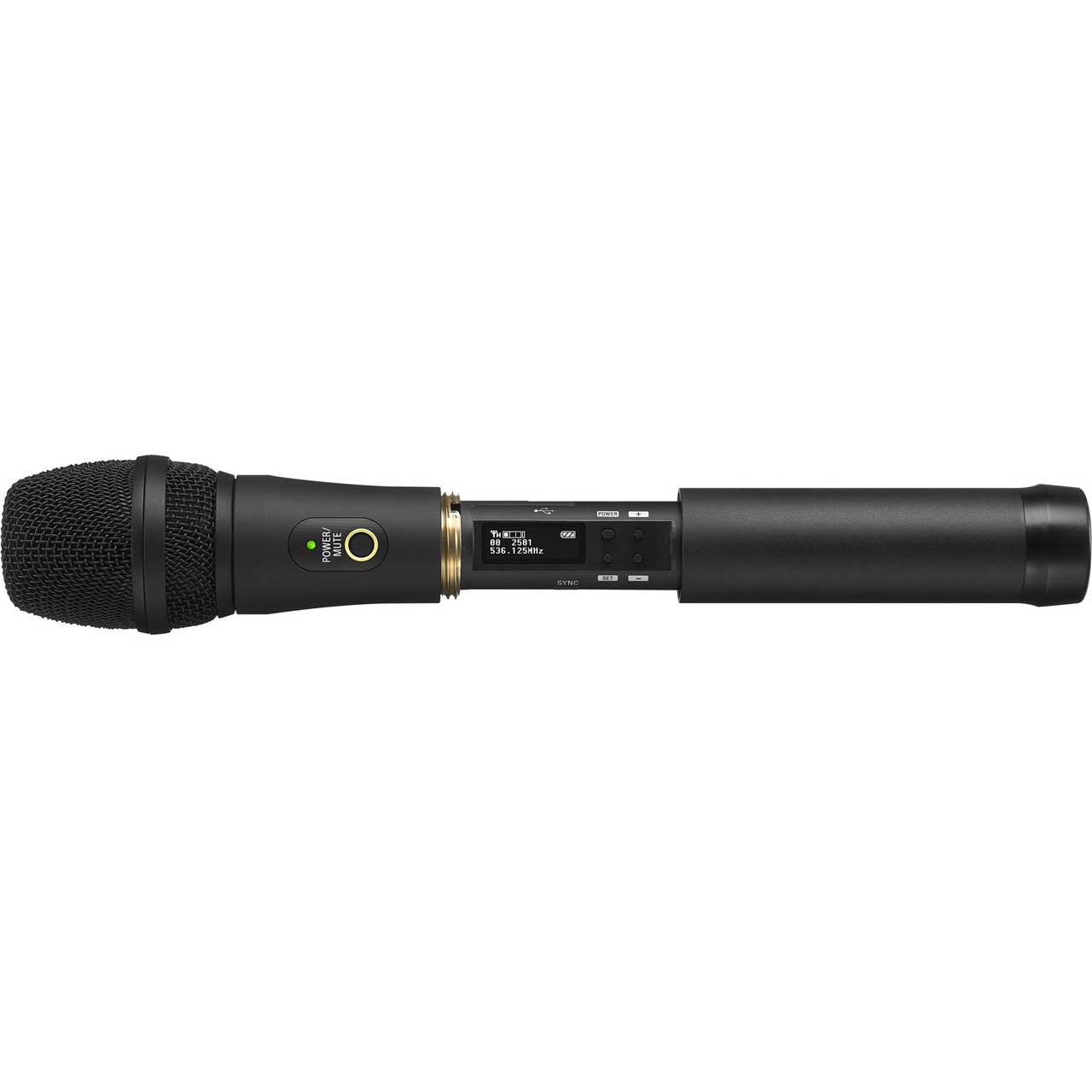

Sony UWP-D Series - UTXM40/25 UWP-D HNDH Mic Transmitter - 536.125 MHz to 607.875 MHz

ITEM #: SNY-UTXM40-25 MFG #: UTXM40/25

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

Our Price:


Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup

    UTXM40/25 - Overview

    The demand for high quality audio is increasing as high resolution content becomes prevalent in the video production industry. Today’s content creators are faced with the challenge of capturing high-quality audio quickly, reliably and with limited resources.

    Offering superb sound quality with digital processing, reliable RF transmission, true double tuner diversity reception and friendly features, the UWP-D series (UTXM40-25) is an ideal partner for ENG (electronic news gathering) and EFP (electronic field production), as well as documentaries and weddings.

    • Features:

      • High quality sound with Sony digital audio processing
      • NFC SYNC function for quick and easy secure channel setting (IR sync capability with URX-P03, URX-P03D, and URX-S03D receivers)
      • Interchangeable head for wide choice of microphone capsules
      • Auto gain mode volume control
      • +15 dB gain volume boost mode for off-mic audio
      • Transmitter frequency sent to receiver for matching multiple receivers to one transmitter
      • Variable muting function
      • Compatibility with Sony WL-800/UWP/UWP-D series
      • High visibility OLED display, ideal for indoor/outdoor use
    • Specifications:

      • Oscillator Type: Crystal-controlled PLL synthesizer
      • Antenna Type: 1/4 λ wavelength wire antenna
      • Carrier Frequencies: 25UC: 536.125 MHz to 607.875 MHz (UHF-TV Ch 25 to 36)
      • RF Output Power:
        30 mW/5 mW selectable (UC, U, CE, LA, CN models)
        10 mW/2 mW selectable (J, E, KR models)
      • Capsule Type: Dynamic
      • Directivity: Uni-directional
      • Reference Audio Input level: -55 dBV (GAIN MODE set to NORMAL, 0 dB attenuation)
      • Maximum Audio Input Level: 151 dB SPL (21 dB attenuation, using supplied microphone unit)
      • Audio Attenuator Adjustment Range: 0 dB to 21 dB (3 dB steps)
      • Frequency Response:
        70 Hz to 18 kHz (Typical) (UC, U, CE, LA, CN, E, KR models)
        70 Hz to 15 kHz (Typical) (J model)
      • Signal-to-Noise Ratio:
        60 dB (-60 dBV, 1 kHz sine wave input)
        102 dB (GAIN MODE set to AUTO GAIN, max deviation, A-weighted)
        96 dB (GAIN MODE set to NORMAL, max deviation, A-weighted)
      • Distortion: 0.9% or less (-60 dBV, 1 kHz input)
      • Audio Delay: Approx. 0.35 ms
      • Tone Signal Frequency:
        In UWP-D compander mode: 32.382 kHz
        In UWP compander mode: 32 kHz
        In WL800 compander mode: 32.768 kHz
      • Display: OLED
      • Power Requirements: DC 3.0 V (two LR6/AA size alkaline batteries) DC 5.0 V (supplied from USB Type-C connector)
      • Battery life*:
        Approx. 8 hours with output power of 30 mW (UC, U, CE, LA, CN models)
        Approx. 10 hours with output power of 10 mW (J, E, KR models)
      • Note: *Battery life has been measured with two Sony LR6/AA size alkaline batteries at 25 °C (77 °F).
      • Operating Temperature: 32 ° to 122°F (0 ° to 50°C)
      • Storage/Transport Temperature: -4° to 140°F (-20° to +60°C)
      • Dimensions (DxL): 1.89 + 10.16" (ø48 + 258mm)
      • Mass: Approx. 0.56Lbs (255g) (excluding batteries)
    • GTIN:
