Sony UWP-D26 Camera Mount Body Pack Transmitter/XLR Plug-On Wireless Mic Transmitter Package - 470.125 to 541.875MHz

ITEM #: SNY-UWP-D26 MFG #: UWP-D26

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

Our Price:

$799.99

Availability: In Stock
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.


UWP-D26 - Overview

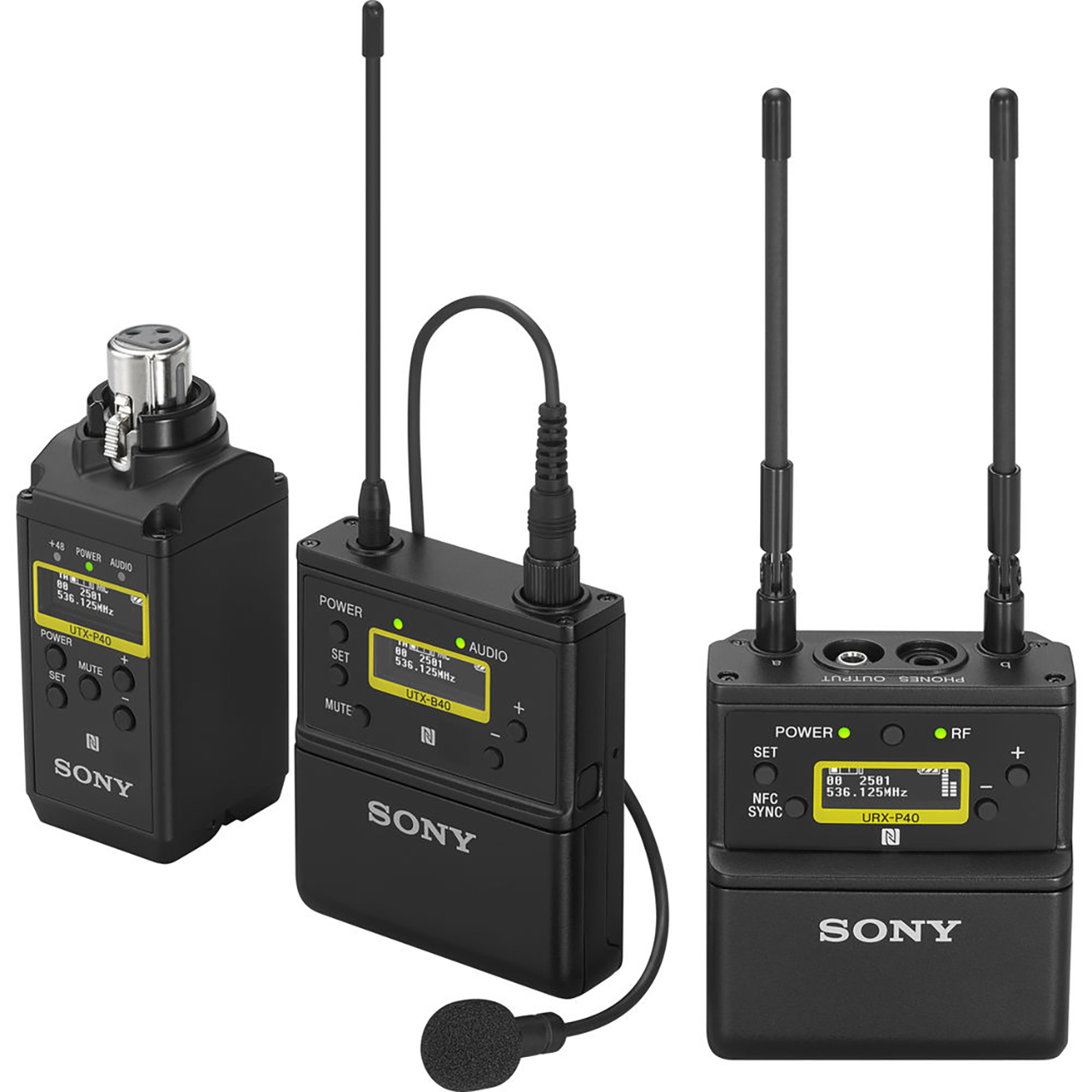

The Sony UWP-D26 is a Camera Mount Body Pack Transmitter and XLR Plug-On Wireless Microphone Transmitter Package. The demand for high quality audio is increasing as high-resolution content becomes prevalent in the video production industry. Today's content creators are faced with the challenge of capturing high-quality audio quickly, reliably and with limited resources. Offering superb sound quality with digital processing, reliable RF transmission, true double tuner diversity reception and friendly features, the UWP-D series is an ideal partner for ENG (electronic news gathering) and EFP (electronic field production), as well as documentaries and weddings. The Sony UWP-D26 package includes the UTX-B40 bodypack transmitter, UTX-P40 XLR plug-on transmitter and URX-P40 receiver, plus accessories.

Digital Audio Processing for High Quality Sound
Advanced digital audio processing technology by Sony assures high quality sound with improved transient response performance. A new [optional] digital audio interface enables direct digital sound recording with many Sony professional camcorders and Alpha interchangeable lens cameras via the SMAD-P5 Multi Interface MI shoe adaptor, bypassing A/D and D/A conversion stages to further ensure excellent sound quality.

Seamless Camcorder Integration
Integration with compatible Sony camcorders (requires SMAD-P5 Multi Interface shoe adaptor) displays audio information such as RF level meter, audio mute status and transmitter low battery alert in the camera's viewfinder. Via the SMAD-P5, audio signals are transmitted from receiver to camera without requiring a cable connection. The wireless receiver can also receive power from the camera, with synchronized power on/off between camera and receiver for more effective power management.

Fast, Easy Frequency Setting
Sony's uniquely user-friendly NFC SYNC feature allows quick, intuitive secure channel setting between transmitter and receiver.

Light, Compact Design
Reduced system size and weight enable superior mobility in a wide range of applications including news, documentaries, weddings and remote production. The receiver's compact size and light weight make it an ideal partner for use small camcorders and interchangeable lens digital cameras.

  • Specifications:

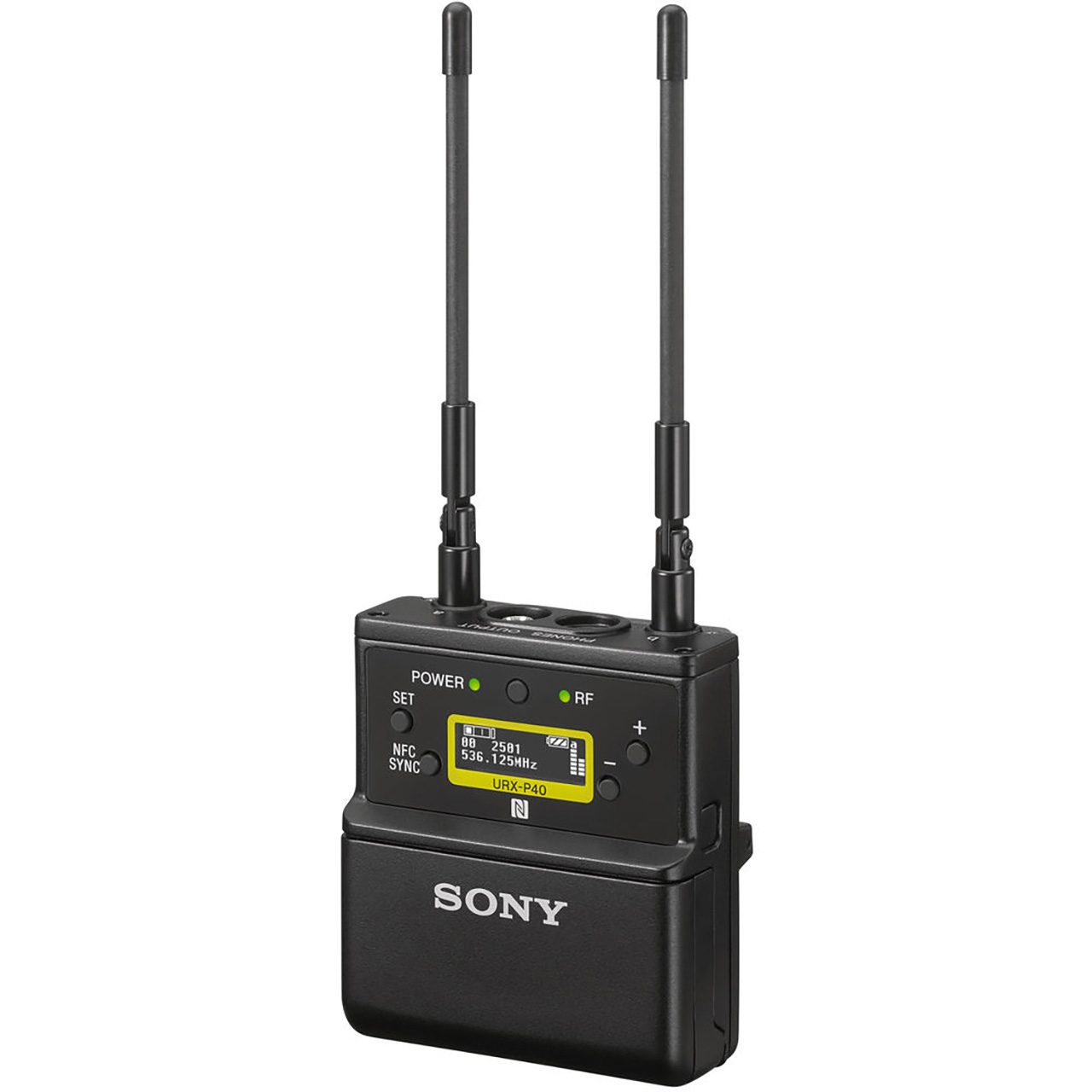

      URX-P40 Portable Receiver
    • Oscillator Type: Crystal-controlled PLL synthesizer
    • Reception Type: True diversity method
    • Antenna Type: 1/4 " wavelength wire antenna (angle-adjustable)
    • Audio Output Connector: 3.5 mm diameter 3-pole locking mini jack, external connection
    • Analog Audio Output Adjustment Range: -12dB - +12dB (3dB step)
    • Headphone Output Connector: 3.5mm diameter mini jack
    • Headphone Output Level: Max. 10mW (16Ω)
    • Display: OLED
    • Power Requirements: DC 3.0V (two LR6/AA size alkaline batteries)/DC 5.0V (supplied from USB Type-C connector)
    • Battery Life*: Approx. 6 hours
      *Battery life has been measured with two Sony LR6/AA size alkaline batteries at 77°F (25°C) DISPLAY MODE set to AUTO OFF.
    • Operating Tem: 32°F - 122°F
    • Storage/Transport Temperature: -4°F - 140°F
    • Dimensions (WxHxD): 2-1/2" x 2-7/8" x 1-1/4" (excluding antenna)
    • Mass: Approx. 4.6oz (excluding batteries)

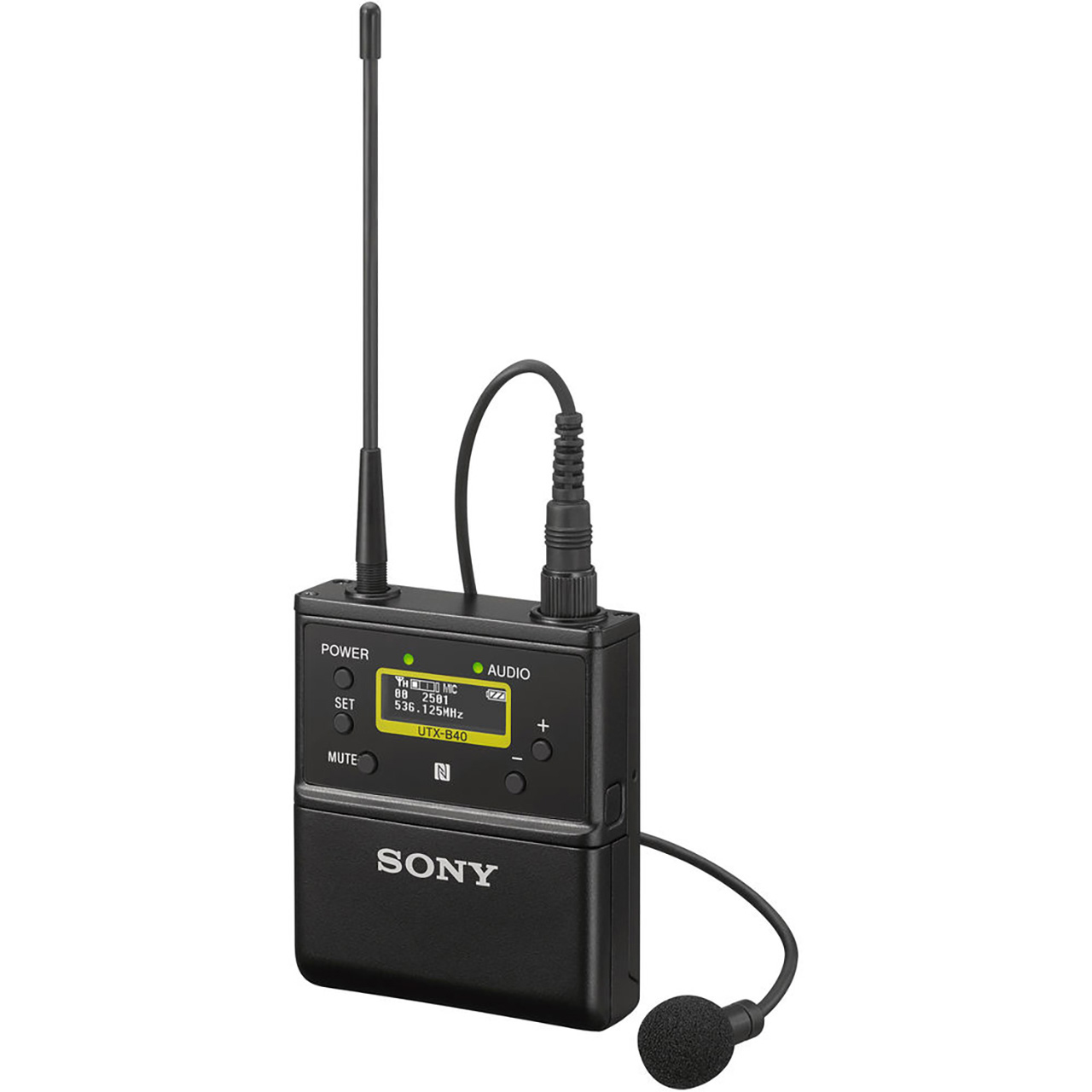

      UTX-B40 Bodypack Transmitter
    • Oscillator Type: Crystal-controlled PLL synthesizer
    • Antenna Type: 1/4 " wave length wire antenna
    • RF Output Power: 30mW/5mW selectable (UC, U, CE, LA, CN models) - 10mW/2mW selectable (J, E, KR models)
    • Capsule Type: Elect retcondenser
    • Directivity: Omni-directional
    • Input Connector: 3.5mm diameter 3-pole locking mini jack
    • Display: OLED
    • Power Requirements: DC 3.0V (two LR6/AA size alkaline batteries) - DC 5.0V (supplied from USB Type-CT connector)
    • Battery life*: Approx. 8 hours with output power of 30mW (UC, U, CE, LA, CN models) - Approx. 10 hours with output power of 10mW (J, E, KR models)
      *Battery life has been measured with two Sony LR6/AA size alkaline batteries at 77°F (25°C).
    • Operating Temperature: 32°F - 122°F (0°C - 50°C)
    • Storage/Transport Temperature: -4°F - 131°F (-20°C - 55°C)
    • Dimensions (WxHxD): 2-1/2" x 2-7/8" x 3/4" (63mm x 73mm x 19mm)(excluding antenna)
    • Mass: Approx. 2.9oz (83g)(excluding batteries)

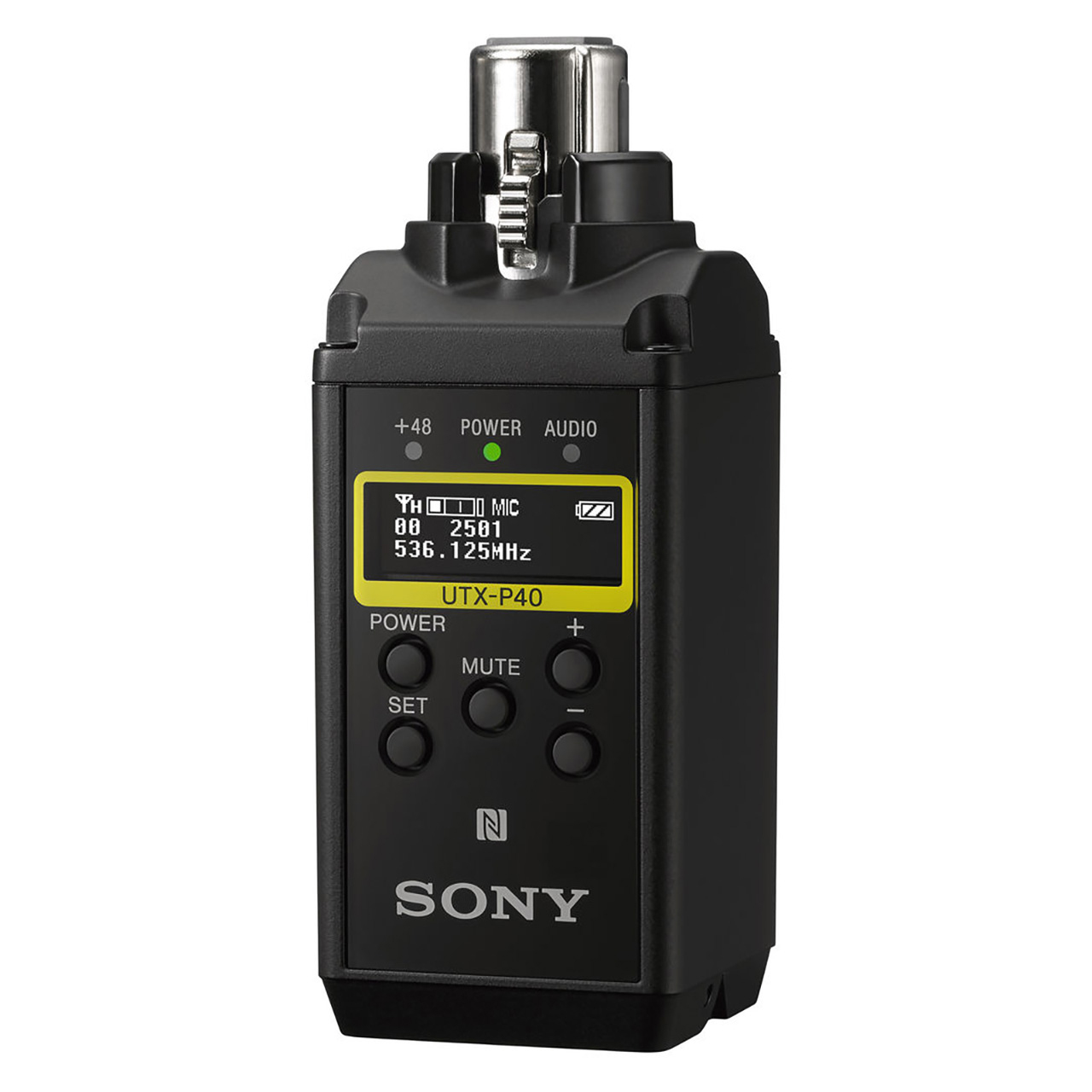

      UTX-P40 XLR Plug-On Transmitter
    • Oscillator Type: Crystal-controlled PLL synthesizer
    • Input Connector: XLR-3-11C type (female)
    • Reference Audio Input Level: -60dBV (MIC input, GAIN MODE set to NORMAL, 0dB attenuation)
    • Power Requirements: DC 3.0V (two LR6/AA size alkaline batteries)/DC 5.0V (supplied from USB Type-C™ connector)
      *Battery life has been measured with two Sony L R6/AA size alkaline batteries at 77°F (25°C)
    • Operating Temperature: 32°F - 122°F
    • Storage/Transport Temperature: -4°F - 140°F
    • Dimensions (WxHxD): 1-1/2" x 3-7/8" x 1-1/2" (38mm x 98mm x 38mm)(including the audio input connector)
    • Mass: Approx. 4.9oz (139g)(excluding batteries)

  • Item Includes:

    • 1x UTX-B40 bodypack transmitter
    • 1x UTX-P40 XLR plug-on transmitter
    • 1x URX-P40 receiver
    • 1x ECM-V1BMP omni-directional lavalier microphone
    • 1x Microphone Holder Clip
    • 1x XLR-BMP Conversion Output Cable
    • 1x Right Angle Stereo Mini Plug BMP Conversion Cable
    • 1x Belt Clip
    • 1x Shoe Mount Adaptor
    • 1x Lav Ball Windscreen
    • 1x Soft Case

  • GTIN:

    0094148284057
