Ideal for on-camera interviews, live presentations or anytime you need to capture crisp, clear sound with minimum fuss.

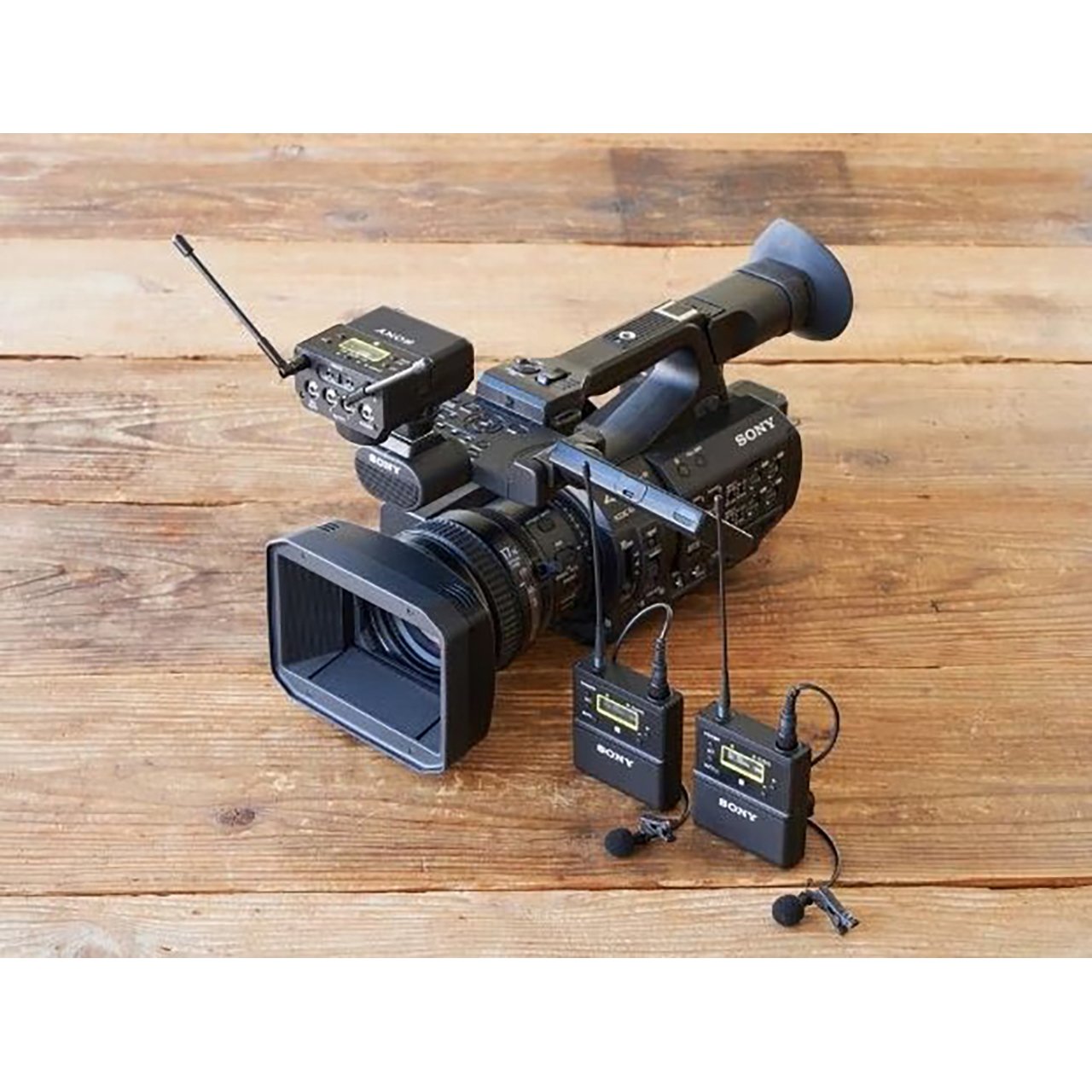

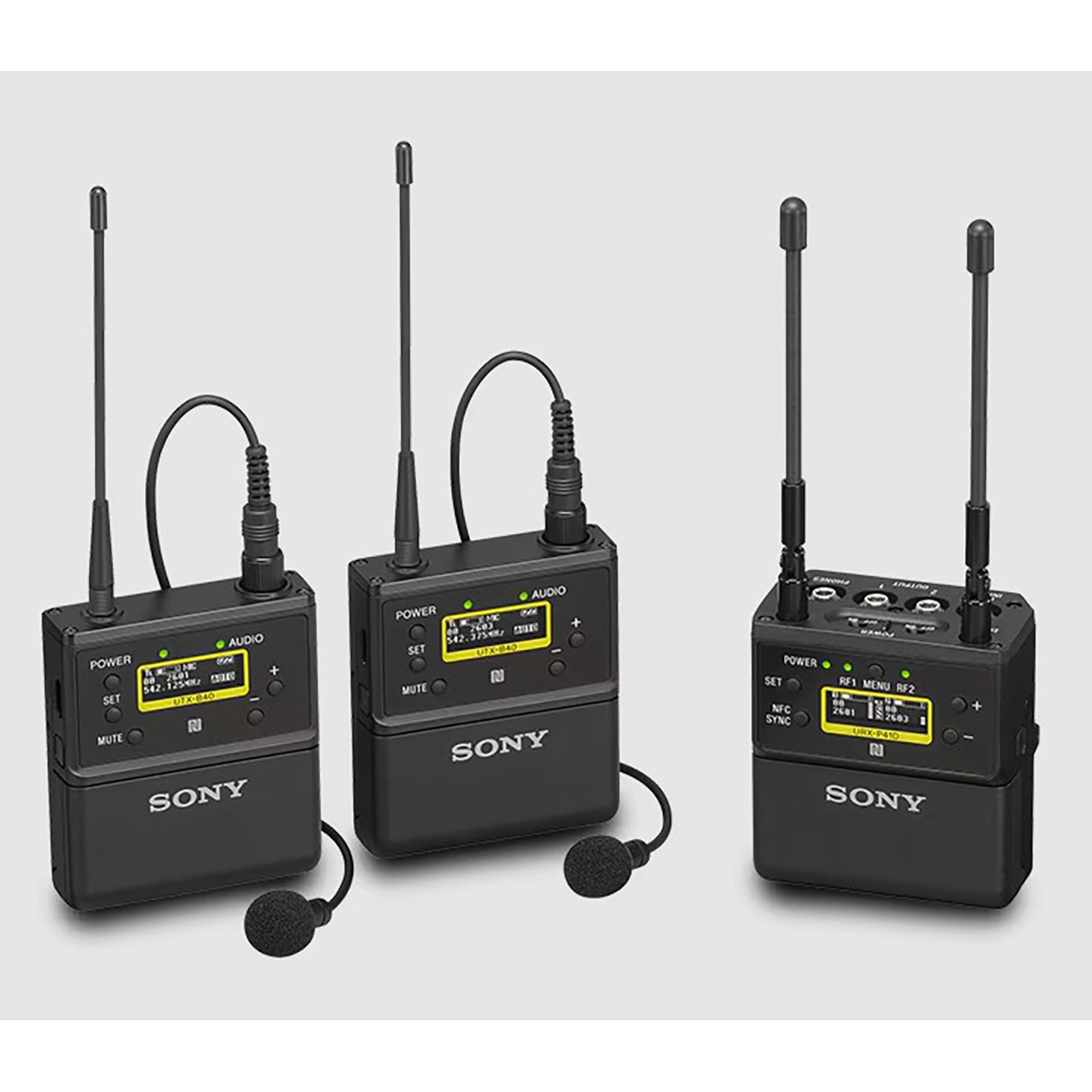

The Sony UWP-D27 is a complete wireless audio package that's ideal for on-camera interviews, live presentations and other applications where you need to capture crisp, clear sound with minimum fuss. The ECM-V1BMP omni-directional lavalier microphone connects to the light, compact UTX-B40 bodypack transmitter that's worn by an interviewee. Audio is transmitted wirelessly to the URX-P41D 2-channel portable receiver, with quick and easy wireless pairing between transmitter and receiver. An optional Multi Interface Shoe Adaptor simplifies audio recording with compatible Sony cameras and handheld camcorders.
-
- ALL BAND scan mode
- Backward compatibility with IR sync
- Portable receiver with variable output level control of ±12dB
- True diversity for stable audio
- NFC SYNC feature allows secure channel pairing between the UTX-B40 wireless transmitter and URX-P41D receiver
- High quality sound
- Compact size and light weight make it ideal for shooting with handheld cameras and camcorders
-

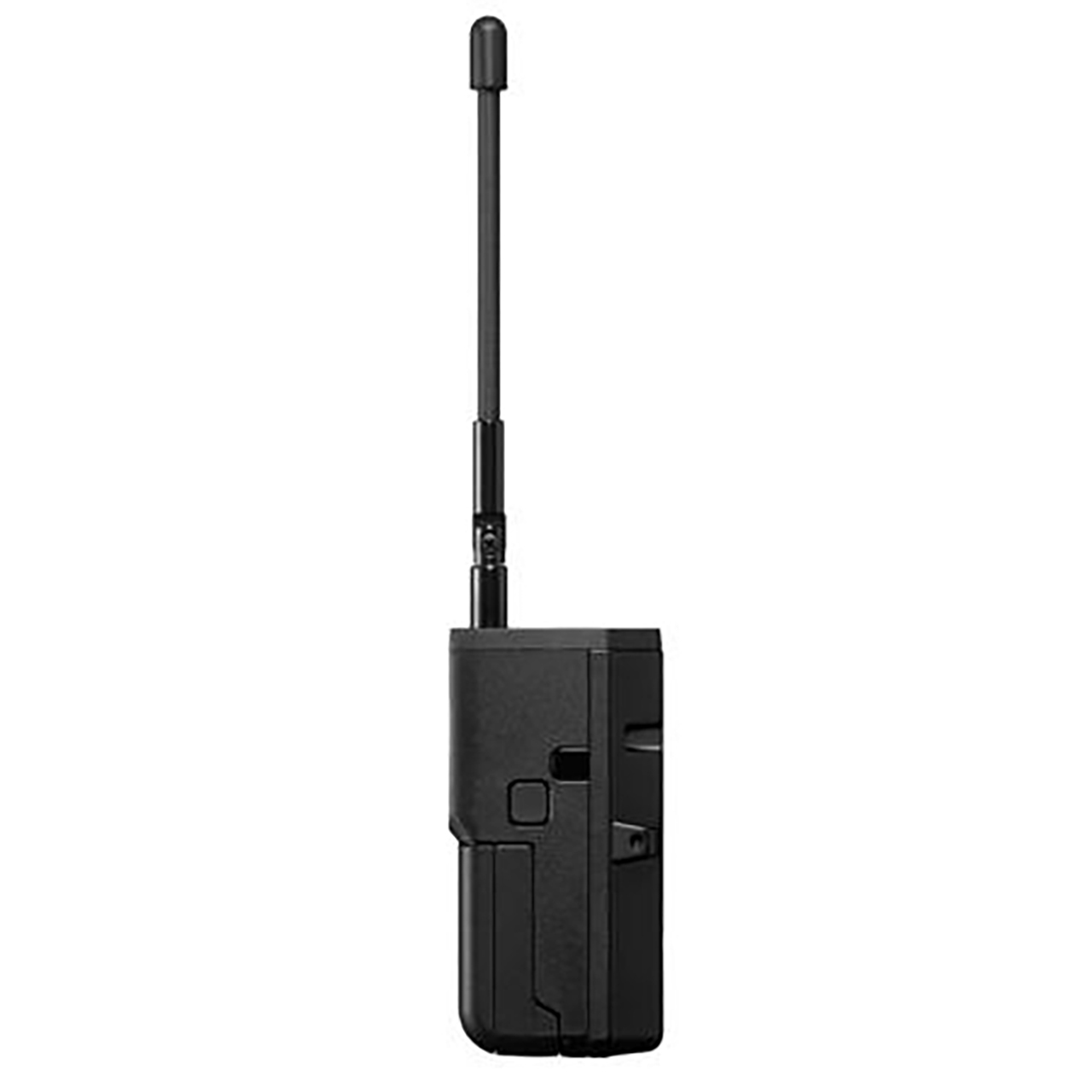

UTX-B40 Bodypack Transmitter- Oscillator Type: Crystal-controlled PLL synthesizer
- Antenna Type: 1/4 λ wave length wire antenna
- Carrier Frequencies: 25UC: 536.125MHz - 607.875MHz (UHF-TV channels 25 - 36)
- RF Output Power: 30mW/5mW selectable
- Capsule Type: Elect retcondenser
- Directivity: Omni-directional
- Input Connector: 3.5mm diameter 3-pole locking mini jack
- Reference Audio Input Level:
- -60dBV (MIC input, GAIN MODE set to NORMAL, 0dB attenuation)
- +4dBu (LINE input) - Audio Attenuator Adjustment Range: 0dB - 27dB (3dB steps)
- Frequency Response: 23Hz - 18kHz (Typical)
- Signal-to-Noise Ratio:
- 60dB (-60dBV, 1kHz input)
- 102dB (GAIN MODE set to AUTO GAIN, max.)
- 96dB (GAIN MODE set to NORMAL, max.) - Distortion: 0.9% or less (-60dBV, 1kHz input)
- Audio Delay: Approx. 0.35ms
- Tone Signal Frequency:
- In UWP-D Compander Mode: 32.382kHz
- In UWP Compander Mode: 32kHz
- In WL800 Compander Mode: 32.768kHz - Display: OLED
- Power Requirements:
- DC 3.0V (2x LR6/AA size alkaline batteries)
- DC 5.0V (supplied from USB Type-C connector) - Battery Life*: Approx. 8 hours with output power of 30mW
*Battery life has been measured with two Sony LR6/AA size alkaline batteries at 77°F (25°C). - Operating Temperature: 32°F - 122°F (0°C - 50°C)
- Storage/Transport Temperature: -4°F - 131°F (-20°C - 55°C)
- Dimensions (WxHxD): 2.48" x 2.87" x 0.75" (63mm x 73mm x 19mm)(excluding antenna)
- Mass: Approx. 2.9oz (83g)(excluding batteries)

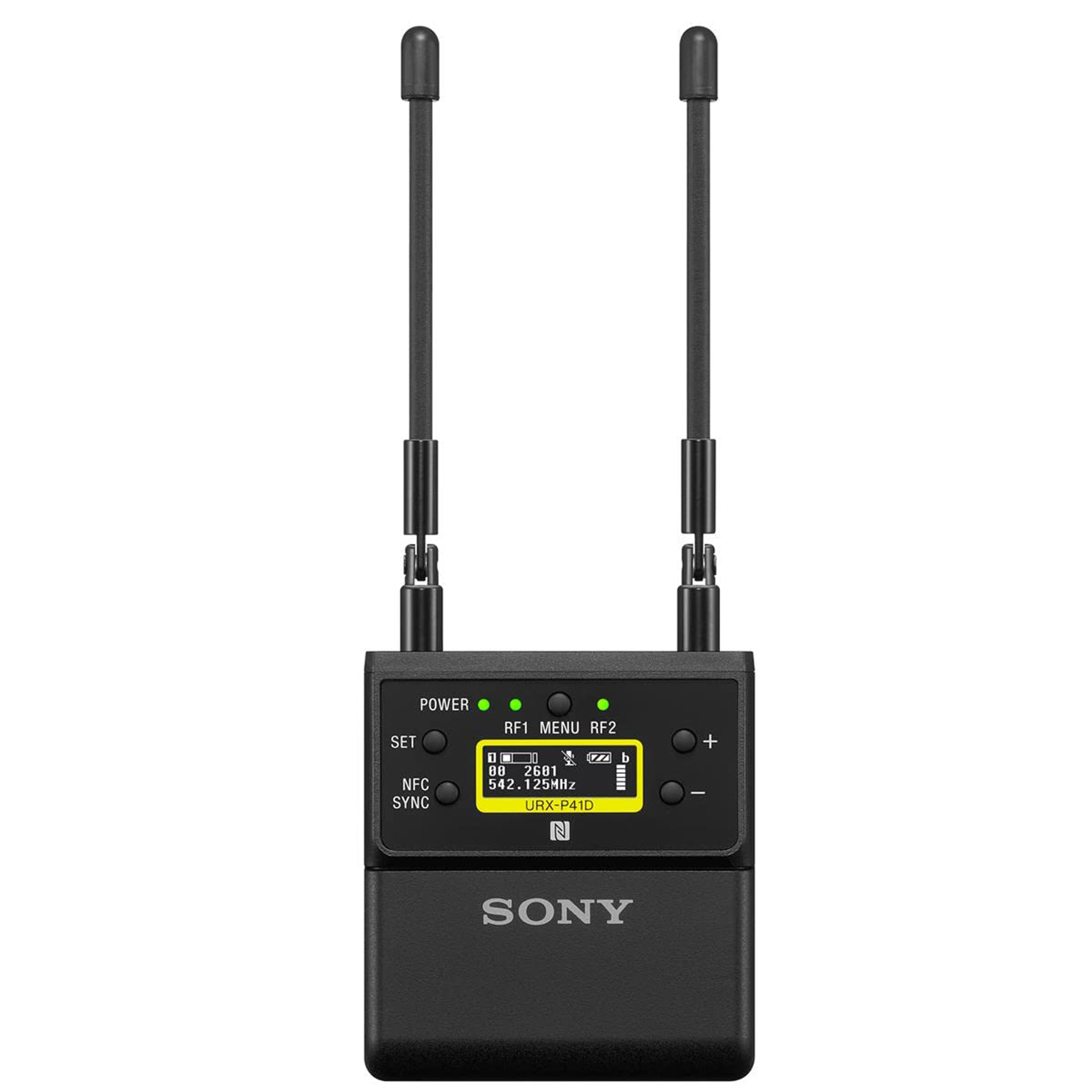

URX-P41D 2-Channel Portable Receiver - Oscillator Type: Crystal-controlled PLL Synthesizer
- Reception Type: Space diversity*
- Antenna Type: 1/4 λ wavelength wire antenna (angle-adjustable)
- Carrier Frequencies: 25UC: 536.125MHz - 607.875MHz (UHF-TV channels 25 - 36)
- Frequency Response: 23Hz - 18kHz (typical)
- Distortion (T.H.D): 0.9% or less (1kHz sine wave, 5kHz modulation)
- Signal-to-Noise Ratio:
- 60dB (1kHz sine wave, 5kHz modulation)
- 96dB (max deviation, A-weighted) - Audio Delay:
- Approx. 0.35ms (analog output)
- Approx. 0.24ms (digital output) - Analog Input: 3.5mm diameter three-pole locking mini-jack (unbalanced)
- Analog Input Level: -50dBV (±12dB Adjustable, 3dB step)
- Audio Output Level:
- -60dBV (3.5mm diameter three-pole locking mini-jack, analog output)
- -20dBFS (external connection, digital output)
- -50dBV (external connection, analog output) - Audio Output Adjust Range: -12dB - +12dB (3dB step)
- Audio Output Connector: 3.5mm diameter 3-pole locking mini-jack (balanced), External connection
- Headphone Output Connector: 3.5mm diameter mini jack
- Headphone Output Level: Max. 10mW (16Ω)
- Tone Signal Frequency:
- In UWP-D Compander Mode: 32.382kHz
- In UWP Compander Mode: 32kHz
- In WL800 Compander Mode: 32.768kHz - Display: OLED
- Power Requirements:
- DC 3.0V (with 2x AA-size alkaline (LR6) batteries)
- DC 5.0V (supplied from USB Type-C connector) - Battery Life: Approx. 4.5 hours with 2x AA-size alkaline (LR6) batteries at 77°F (25°C), DISPLAY MODE set to AUTO OFF
- Operating Temperature: 32°F - 122°F (0°C - 50°C)
- Storage/Transport Temperature: -4°F - 131°F (-20°C - 55°C)
- Dimensions (WxHxD): 2.48" x 2.76" x 1.38" (63mm x 70mm x 35mm)(excluding antenna)
- Mass: Approx. 5.6oz (159g)(excluding batteries)
-
- 2x UTX-B40 body-pack transmitters
- 1x URX-P41D portable diversity receiver
- 2x Omni-directional Lavalier microphones
- 2x Windscreens
- 2x Lavalier clips
- 1x Shoe mount adapter
- 3x Belt clips
- 2x XLR-BMP conversion output cable
- 1x Stereo mini plug-BMP conversion cable
- 1x Before Use Card
- 1x Quick Start Guide
- 1x Warranty Card
