Sony UWP-D27 Wireless Audio System - 2 Channel Tx/Rx w/ Lav Mics - UHF Freq Ch.90 - 941-960MHz

UWPD2790PAC - Overview

• Features:

  • ALL BAND scan mode
  • Backward compatibility with IR sync
  • Portable receiver with variable output level control of ±12dB
  • True diversity for stable audio
  • NFC SYNC feature allows secure channel pairing between the UTX-B40 wireless transmitter and URX-P41D receiver
  • High quality sound
  • Compact size and light weight make it ideal for shooting with handheld cameras and camcorders


• Specifications:

  UTX-B40 Bodypack Transmitter
  • Oscillator Type: Crystal-controlled PLL synthesizer
  • Antenna Type: 1/4 λ wave length wire antenna
  • Carrier Frequencies: 90UC: 941.625MHz - 951.875MHz, 953.000MHz - 956.125MHz, and 956.625MHz - 959.625MHz
  • RF Output Power: 30mW/5mW selectable
  • Capsule Type: Elect retcondenser
  • Directivity: Omni-directional
  • Input Connector: 3.5mm diameter 3-pole locking mini jack
  • Reference Audio Input Level:
    - -60dBV (MIC input, GAIN MODE set to NORMAL, 0dB attenuation)
    - +4dBu (LINE input)
  • Audio Attenuator Adjustment Range: 0dB - 27dB (3dB steps)
  • Frequency Response: 23Hz - 18kHz (Typical)
  • Signal-to-Noise Ratio:
    - 60dB (-60dBV, 1kHz input)
    - 102dB (GAIN MODE set to AUTO GAIN, max.)
    - 96dB (GAIN MODE set to NORMAL, max.)
  • Distortion: 0.9% or less (-60dBV, 1kHz input)
  • Audio Delay: Approx. 0.35ms
  • Tone Signal Frequency:
    - In UWP-D Compander Mode: 32.382kHz
    - In UWP Compander Mode: 32kHz
    - In WL800 Compander Mode: 32.768kHz
  • Display: OLED
  • Power Requirements:
    - DC 3.0V (2x LR6/AA size alkaline batteries)
    - DC 5.0V (supplied from USB Type-C connector)
  • Battery Life*: Approx. 8 hours with output power of 30mW
    *Battery life has been measured with two Sony LR6/AA size alkaline batteries at 77°F (25°C).
  • Operating Temperature: 32°F - 122°F (0°C - 50°C)
  • Storage/Transport Temperature: -4°F - 131°F (-20°C - 55°C)
  • Dimensions (WxHxD): 2.48" x 2.87" x 0.75" (63mm x 73mm x 19mm)(excluding antenna)
  • Mass: Approx. 2.9oz (83g)(excluding batteries)

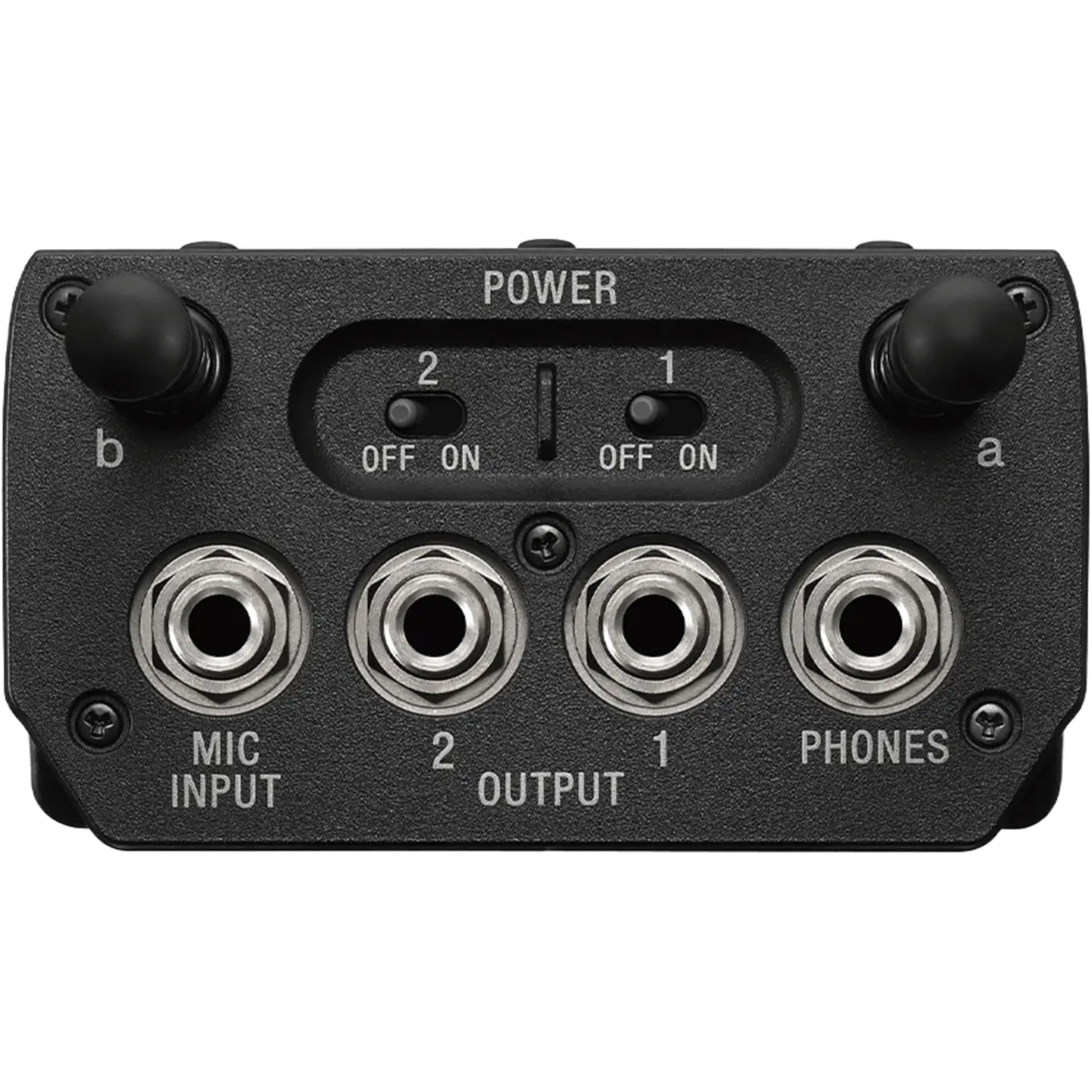

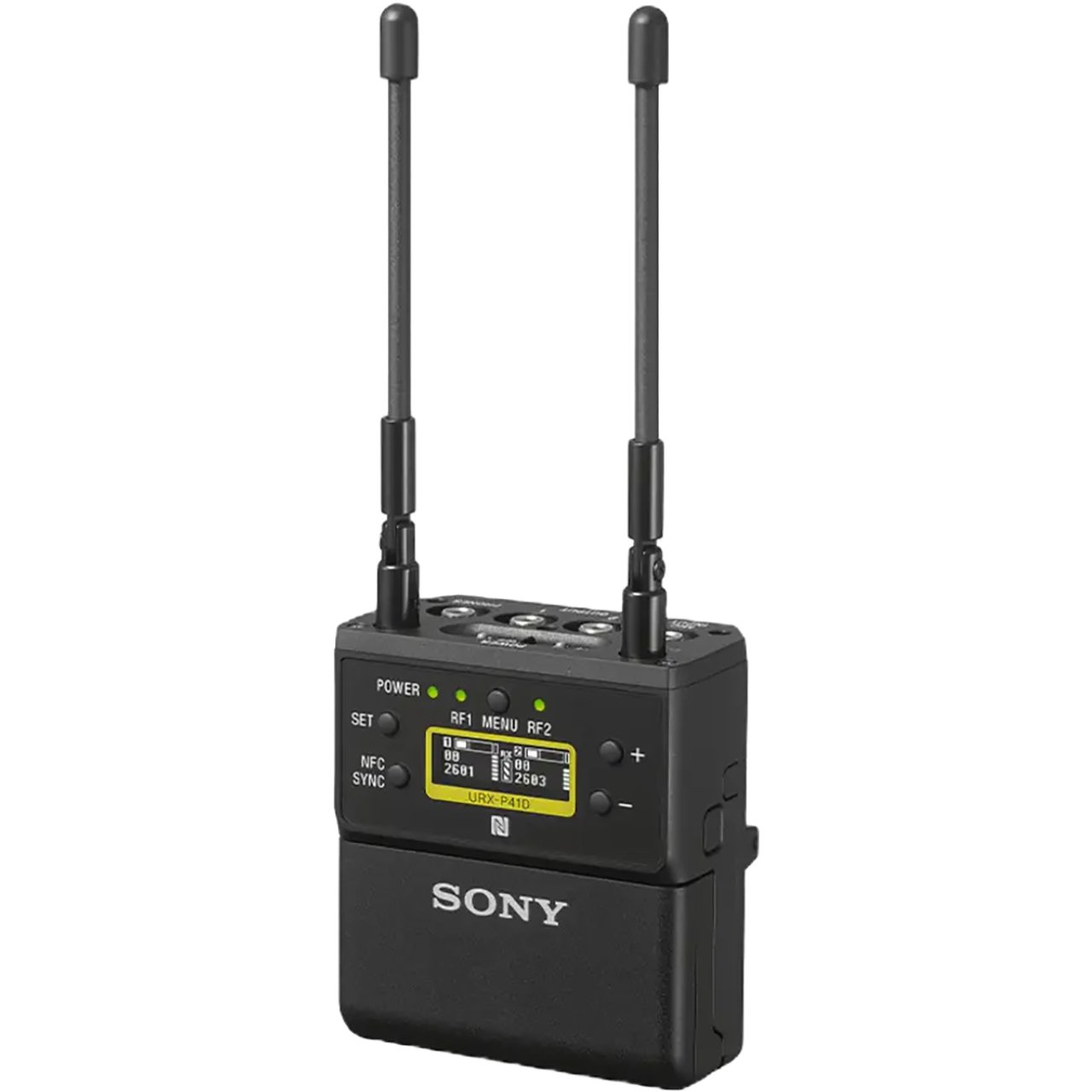

    URX-P41D 2-Channel Portable Receiver
  • Oscillator Type: Crystal-controlled PLL Synthesizer
  • Reception Type: Space diversity*
  • Antenna Type: 1/4 λ wavelength wire antenna (angle-adjustable)
  • Carrier Frequencies: 90U: 941.625MHz - 951.875MHz, 953.000MHz - 956.125MHz, and 956.625MHz - 959.625MHz
  • Frequency Response: 23Hz - 18kHz (typical)
  • Distortion (T.H.D): 0.9% or less (1kHz sine wave, 5kHz modulation)
  • Signal-to-Noise Ratio:
    - 60dB (1kHz sine wave, 5kHz modulation)
    - 96dB (max deviation, A-weighted)
  • Audio Delay:
    - Approx. 0.35ms (analog output)
    - Approx. 0.24ms (digital output)
  • Analog Input: 3.5mm diameter three-pole locking mini-jack (unbalanced)
  • Analog Input Level: -50dBV (±12dB Adjustable, 3dB step)
  • Audio Output Level:
    - -60dBV (3.5mm diameter three-pole locking mini-jack, analog output)
    - -20dBFS (external connection, digital output)
    - -50dBV (external connection, analog output)
  • Audio Output Adjust Range: -12dB - +12dB (3dB step)
  • Audio Output Connector: 3.5mm diameter 3-pole locking mini-jack (balanced), External connection
  • Headphone Output Connector: 3.5mm diameter mini jack
  • Headphone Output Level: Max. 10mW (16Ω)
  • Tone Signal Frequency:
    - In UWP-D Compander Mode: 32.382kHz
    - In UWP Compander Mode: 32kHz
    - In WL800 Compander Mode: 32.768kHz
  • Display: OLED
  • Power Requirements:
    - DC 3.0V (with 2x AA-size alkaline (LR6) batteries)
    - DC 5.0V (supplied from USB Type-C connector)
  • Battery Life: Approx. 4.5 hours with 2x AA-size alkaline (LR6) batteries at 77°F (25°C), DISPLAY MODE set to AUTO OFF
  • Operating Temperature: 32°F - 122°F (0°C - 50°C)
  • Storage/Transport Temperature: -4°F - 131°F (-20°C - 55°C)
  • Dimensions (WxHxD): 2.48" x 2.76" x 1.38" (63mm x 70mm x 35mm)(excluding antenna)
  • Mass: Approx. 5.6oz (159g)(excluding batteries)

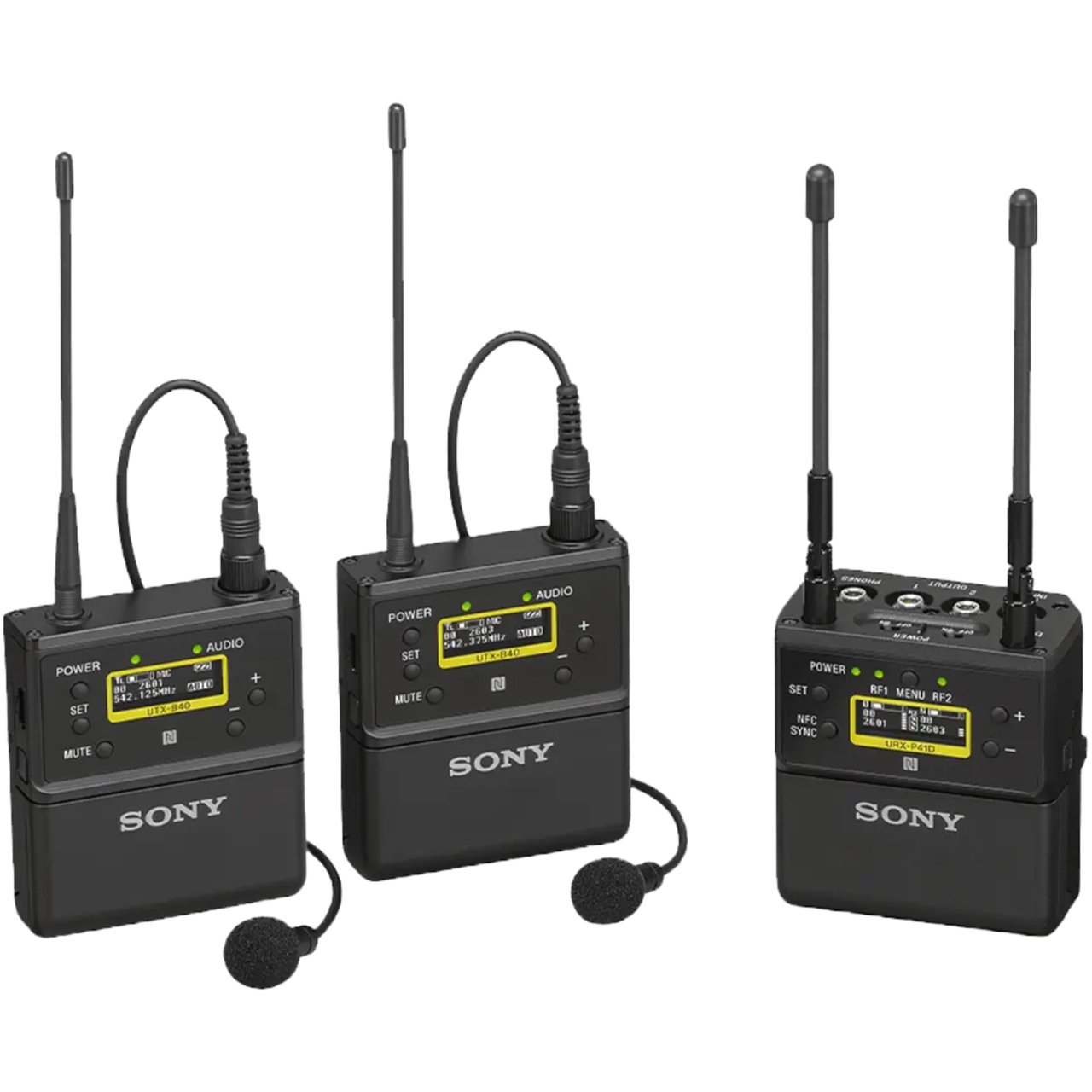

• Item Includes:

  • 2x UTX-B40 body-pack transmitters
  • 1x URX-P41D portable diversity receiver
  • 2x Omni-directional Lavalier microphones
  • 2x Windscreens
  • 2x Lavalier clips
  • 1x Shoe mount adapter
  • 3x Belt clips
  • 2x XLR-BMP conversion output cable
  • 1x Stereo mini plug-BMP conversion cable
  • 1x Before Use Card
  • 1x Quick Start Guide
  • 1x Warranty Card
