MJ-AD - Overview

MatchJack audio converter - MatchJacks connect RJ-45 patch cables to various source equipment!

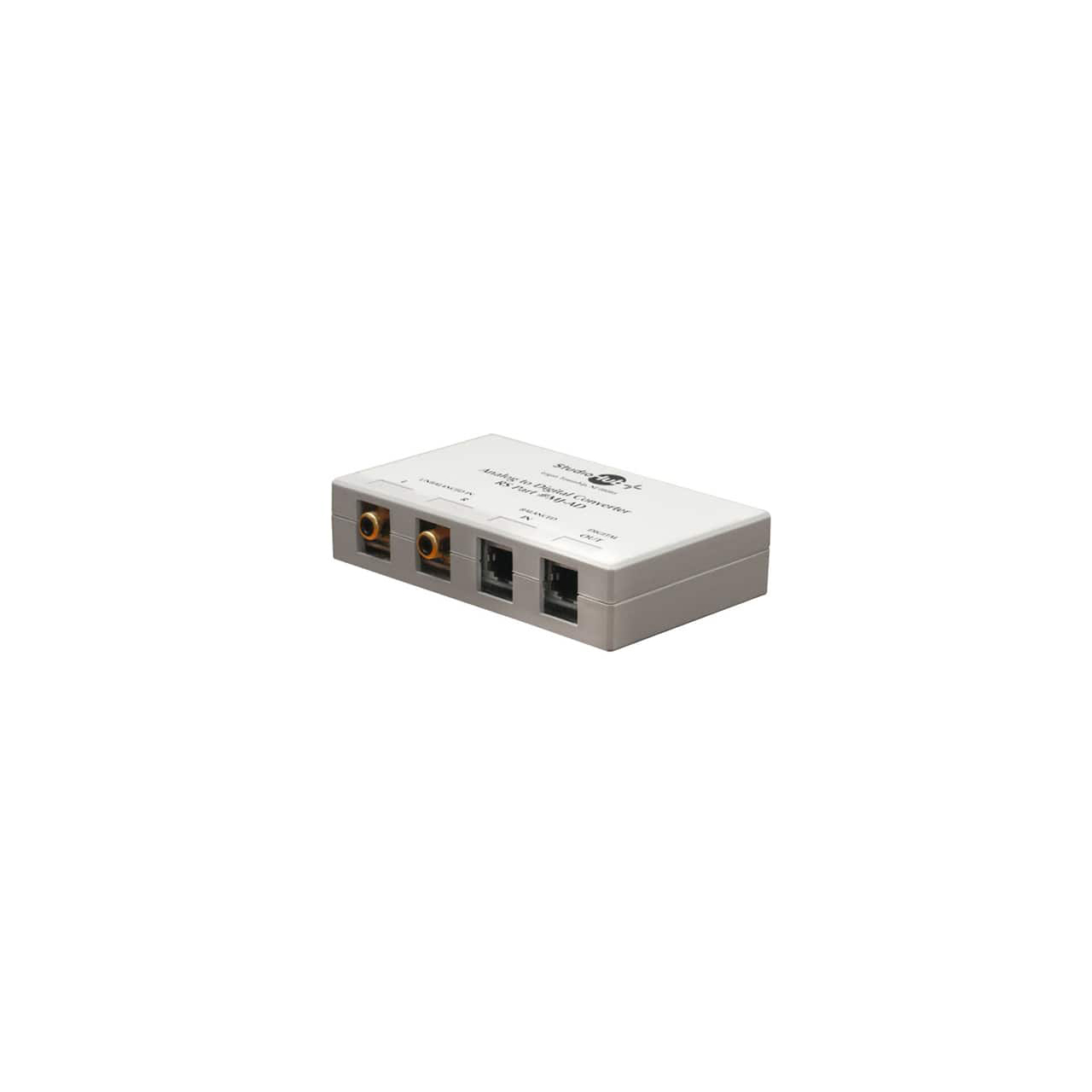

The StudioHub+ MJ-AD MatchJack is a professional stereo Analog to Digital Converter. Inputs are Analog S/PDIF and RJ45 converted to AES/EBU digital. The input signal is converted to a balanced professional level via an RJ45 wired to StudioHub+ pin-out standards. Sample rates of 32kHz, 44.1kHz, 48kHz and 96kHz are automatically selected based on the detected source sample rate. Power is supplied either via StudioHub+ "DC-Link" power (through either input or output RJ45) or via the "wall wart" power supply (included). The StudioHub+ AD MatchJack is housed in a plastic enclosure.

So, must all the audio and digital signals used with StudioHub+ be balanced?
Yes, or crosstalk will degrade. That's why they provide the "MatchJack" balancing amplifiers, AES/EBU digital audio signals are balanced right out of the box, and require no conditioning.

  • Features:

    • Converts analog signals to digital AES/EBU format
    • Ensures high-fidelity audio conversion with minimal latency
    • Compatible with a wide range of audio setups
    • Durable construction for long-term reliability


  • Specifications:

    • Analog Inputs:
    • Unbalanced: S/PDIF RCA Jack L/R
    • Balanced: RJ45 - produces +24dBm (600 ohm load) balanced floating via RJ45

      Digital Output
    • AES/EBU: RJ45
    • Sample Rate: Automatic selection, 32kHz, 44.1kHz, 48kHz, 96kHz.
    • D/A resolution: 24 bits, 128X oversampling

      General
    • Sample Rate: Automatic selection, 32kHz, 44.1kHz, 48kHz, 96kHz.
    • D/A resolution: 24 bits, 128X oversampling
    • Dynamic Range: 112dB A WTD
    • THD: <.005% reference -1dBFS (20Hz - 20kHz, fs >= 44.1kHz) <.01% @-1dBFS (20Hz - 14kHz, fs = 32kHz)
    • Frequency Response: +/- .25dB (20Hz - 20kHz, fs >= 44.1kHz) +/- .25dB (20Hz - 14kHz, fs = 32kHz)
    • Power: External +/- 15 volts 200ma supplied via StudioHub+ or wall wart.
    • Indicators: Power led
    • Dimensions: 2.8" x 4.5" x 1"


  • Item Includes:

    • 1x MJ-AD Analog to Digital AES/EBU Converter
    • 1x PS-WWU Wall adapter power supply


  • Warranty:

    • One (1) year
