Sonifex AVN-PXH12 2 x 12 Channel Mix Monitor - AoIP Portal

Manufacturer: Sonifex Ltd.

Item #: SON-AVN-PXH12   •   MFG #: AVN-PXH12




Our Price:$3,279.00

free ship


Availability: Usually ships in 3-10 business days
i
This item is currently out of stock and will ship the minute we receive it – typically 3-10 business days. Need it sooner? Expedited delivery options may be available. Email [email protected] or call customer service at 800-522-2025 and we'll make it happen.




    Share!





    The Sonifex AVN-PXH12 is a 1RU rack-mounted monitor-mixer and AoIP portal that's perfect for keeping an ear on your Audio over IP channels. The AVN-PXH12 allows you to monitor up to 12 stereo audio sources from the input total of 24, at any time. The 24 audio sources can also be selected from 4 discrete stereo analog audio inputs or from any RAVENNA or AES67 connected stream. Any AES67 audio can then be assigned to input channels on the AVN-PXH12 and mixed down to the analog outputs, headphone out or the speaker out. Each channel then can be directed to headphone left, right, or stereo mix.

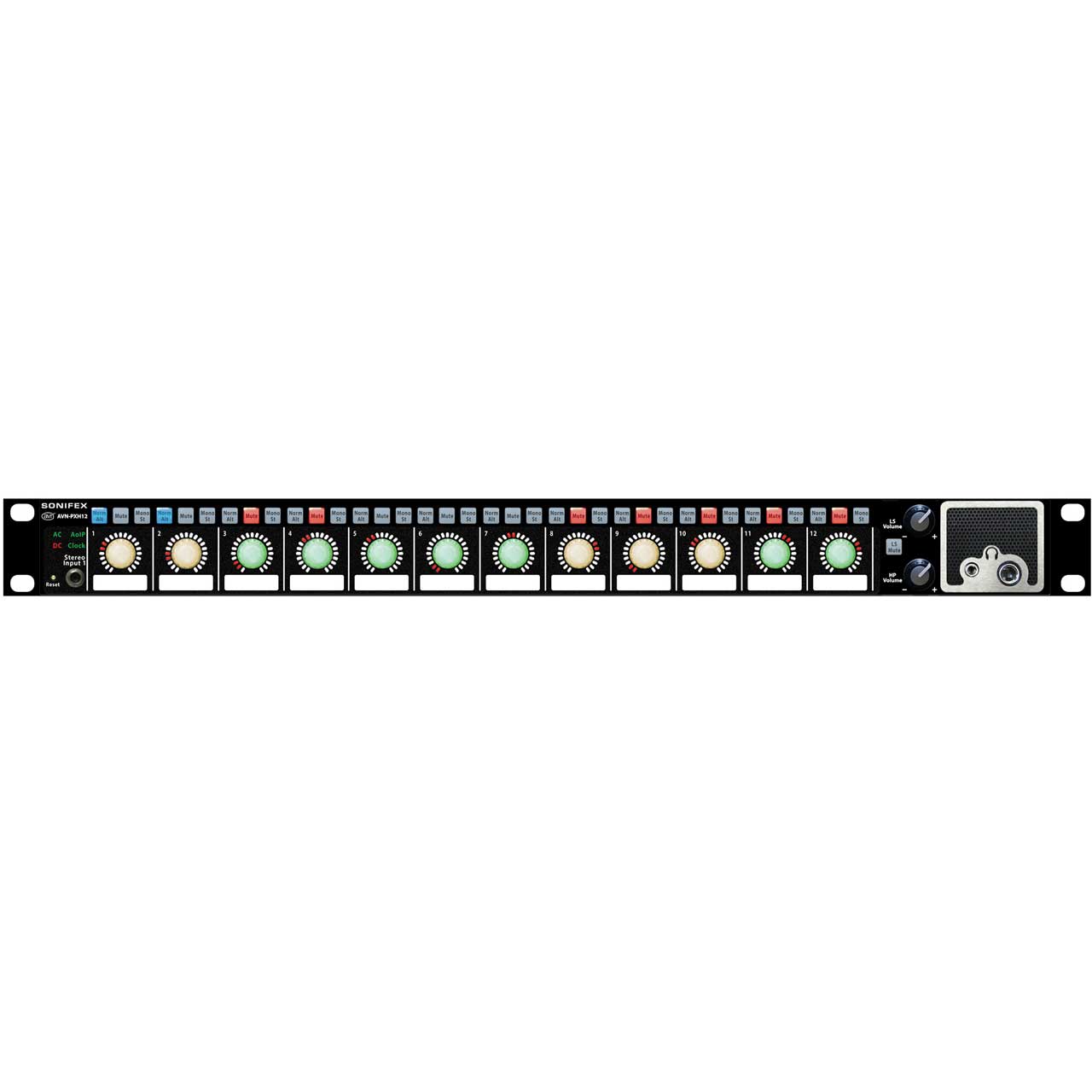

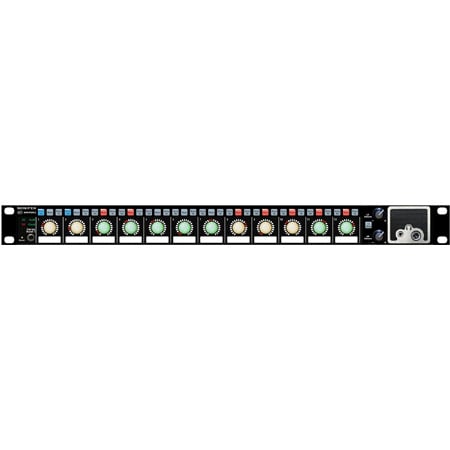

    The built-in Ethernet web server provides incredible configuration control including channel source assignment and makes backup and firmware updates a snap. The webserver is responsive and quickly re-sizes the image to fit everything from a broadcast monitor to a smartphone screen. Useful help information is provided on lower right screen, front panel mute buttons and a solo feature provide a quick way to audition channels and you get at a glance confidence monitoring via a translucent volume knob on the front panel. You can easily switch each channel from "normal" to "alternate" inputs with less than 1 millisecond accuracy for direct comparison. Connections include front panel ¬ inch and 3.5 mm jacks, 3 line level XLR out, DC power, Ten GPIO local ports and two Ethernet RJ45.


    • Features

      • A built-in web server is used for all configuration. Sources for all channels are simply assigned on one webpage and can be freely selected and altered at will
      • SAP can be used as a discovery mechanism to discover Dante devices and monitor Dante® AES67 streams. Danter is a trademark of Audinate Pty Ltd
      • Confidence monitoring on the translucent volume knob for each channel so you've got 'at-a-glance' monitoring available
      • The front panel Mute button and the Solo feature on the control knob allow a single channel, or a handful of, channels to be auditioned quickly
      • For each channel, 'Normal' and 'Alternate' inputs can be switched quickly (with <1msec accuracy) for direct comparison
      • Each channel can be directed to headphone left ear, right ear, or a stereo mix, providing you with the ability to set up a familiar headphone mix
      • 6.35mm (1/4 inch) & 3.5mm headphone outputs and a speaker output with separate LS & HP volume controls
      • Sources from AoIP, balanced or 3 x unbalanced inputs
      • Destinations to AoIP or rear panel balanced outputs
      • Dual 1Gb lan ports & 1Gb SFP fibre port
      • 10 user assignable GPIO ports
      • Dual AC & DC power supply inputs
      • Ethernet webserver control & configuration
      • Speaker mute button

    • Specifications

      • Open Standards: RAVENNA, AES67
      • Device Discovery: Bonjour (mDNS / DNS-SD) & SAP
      • Audio Delivery: RTP/UDP over IPv4 multicast
      • QoS: DiffServ
      • Stream Management: RTSP/SDP
      • Control: Ember+/webserver
      • Format: Linear PCM 24-bit (L24)
      • Channels Per Stream: Maximum of 8
      • Frames Per Packet: 48
      • Maximum Streams: RX 15, TX 2
      • Sample Rate: 48 kHz
      • Profile Support: Default, media & custom profiles
      • Timing Protocol: PTPv2, IEEE1588-2008
      • Input Impedance: >20k Ω
      • 0dBFS Line-Up: +12dBu
      • Frequency Response: 20Hz to 20kHz, +0/-0.2dB
      • THD+N: <-97dBFS, -30dBFS, 20Hz to 20kHz, unity gain, 20kHz BW
      • Noise: -100dBFS, 20kHz BW, Rs=200 Ω
      • Crosstalk: <-97dB

        Unbalanced Line Inputs
      • Input Impedance: >20k Ω
      • 0dBFS Line-Up: +12dBu
      • Frequency Response: 20Hz to 20kHz, +0/-0.2dB
      • THD+N: <-97dBFS, -30dBFS, 20Hz to 20kHz, unity gain, 20kHz BW
      • Noise: -100dBFS, 20kHz BW, Rs=200 Ω
      • Crosstalk: <-97dB

        Balanced Line Inputs
      • Input Impedance: >20k Ω balanced
      • 0dBFS Line-Up: Adjustable +15/+18/+20/+22/ +24dBu
      • Frequency Response: 20Hz to 20kHz, +0/-0.2dB
      • THD+N: <-110dBFS, -30dBFS, 20Hz to 20kHz, 20kHz BW
      • Noise: -110dBFS, 20kHz BW, Rs=200 Ω
      • Crosstalk: <-100dB
      • Common Mode Rejection: >70dB @ 1kHz

        Headphone Output
      • Output Impedance: Drives 150mW into 32 Ω to 600 Ω headphones
      • 0dBFS Line-Up: +20dBu
      • Frequency Response: 20Hz to 20kHz, +0/-0.2dB
      • THD+N: <-108dBFS, -30dBFS, 20Hz to 20kHz, unity gain, 20kHz BW
      • Noise: -110dBFS, 20kHz BW

        Balanced Line Outputs
      • Output Impedance: <50 Ω balanced
      • 0dBFS Line-Up: Adjustable +15/+18/+20/+22/ +24dBu
      • Frequency Response: 20Hz to 20kHz, +0/-0.2dB
      • THD+N: <-110dBFS, -30dBFS, 20Hz to 20kHz, 20kHz BW
      • Noise: -110dBFS, 20kHz BW, Rs=200 Ω

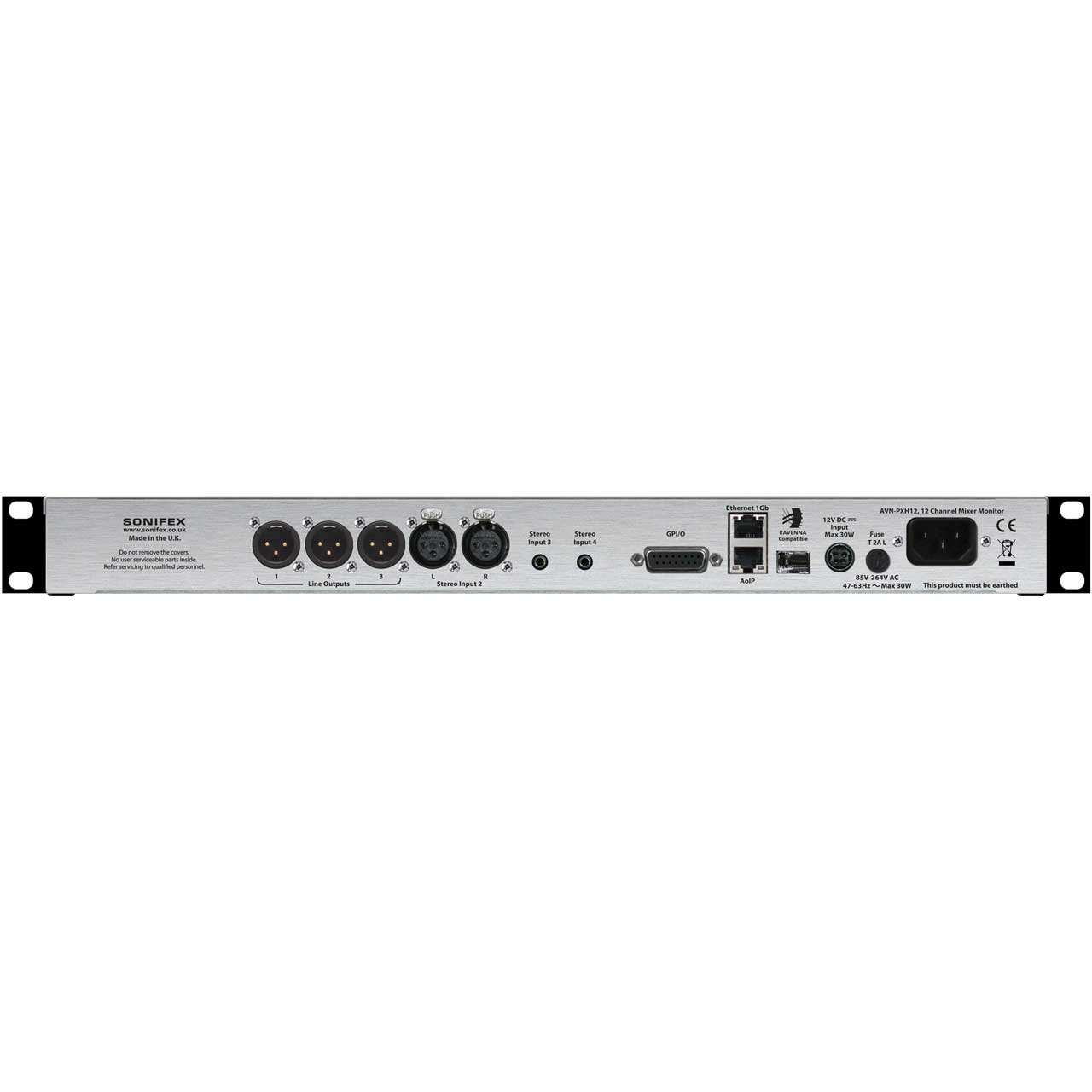

        Connections
      • Headphone: ¼inch (6.35mm) stereo jack socket; 3.5mm stereo jack socket
      • Audio Inputs: 3 x unbalanced 3.5mm stereo jack socket; 2 x balanced XLR-3 female socket
      • Audio Outputs: 3 x balanced XLR-3 male plug; 1 x loudspeaker output
      • GPIO: 15-way `D'-type socket
      • Network: 2 x gigabit Ethernet, RJ45; 1 x SFP fibre
      • Mains AC Input: Universal filtered IEC, continuously rated 85-264VAC, 47-63Hz, 20W
      • DC Input: 4 pin 7.5A power jack socket, 9.5-14VDC
      • Fuse Rating: Anti-surge fuse 2A 20mm x 5mm

        Dimensions
      • Dimensions W x D x H(Raw): 19 inch x 7.92 inch x 1.8 inch (1U) (48.3cm x 20.12cm x 4.4cm (1U))
      • Weight Nett: 6.38lbs Gross: 7.7lbs (2.9kg Gross: 3.5kg)
