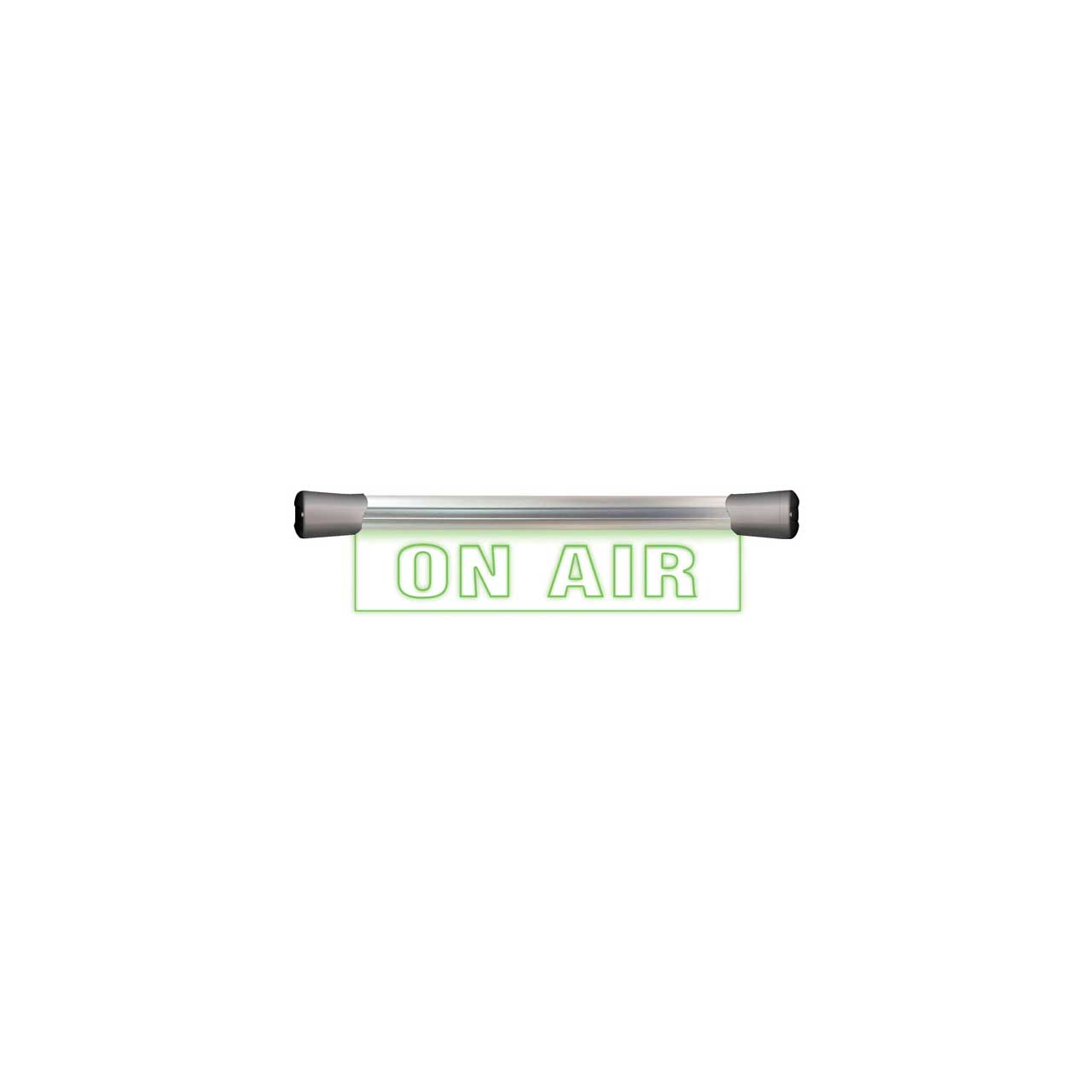

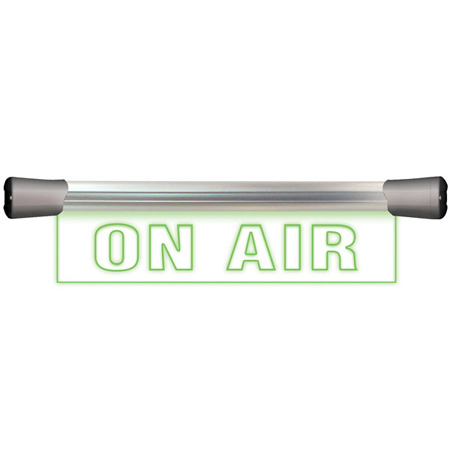

Sonifex LD-40F1ONA Single Flush Mounting 40cm ON AIR Sign

ITEM #: SON-LD-40F1ONA MFG #: LD-40F1ONA

Primary Image
Free Shipping with $49 Minimum Order

Our Price:

$515.38

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup


    LD-40F1ONA - Overview

    The Signal LED range of illuminated RGB LED signs are a new range of signs designed for installers.Because the sign itself contains the control electronics, and RGB LEDs are used, the signs can be simply configured onsite for your particular requirements.

    RGB LEDs - Any Colours Possible. The illuminating LEDs in the unit are RGB meaning that any colour can be produced.For ease of use, as standard you can configure the sign from one of 6 colours: white, green, red, blue, yellow & orange.

    Simple Installation

    The signs are supplied with a 6V wall-wartpower supply & lead. Simply wire up yourcontrol signal(s) and DC input to the `screwterminal block' inside the sign, route thecables through the integral cable clamp andmount the unit on the wall.

    The display mode and colour options areset-up using an 8 way DIP switch, accessible after installation.

    • Features:

      • Different Display Modes
        Four modes of illumination are available:
        Constant illumination.
        Flashing, regularly on/off.
        Pulsing - flashing, then off, repeated
        Off

    • Specifications:

      • Power Input: 5-7V DC
        40cm Sign: 500mA max
        Input Connector: 4 way screw terminal block
        Control Inputs: 2 x pull-down to 0V
        Dimensions:: 40cm (W) x 8cm (H)
