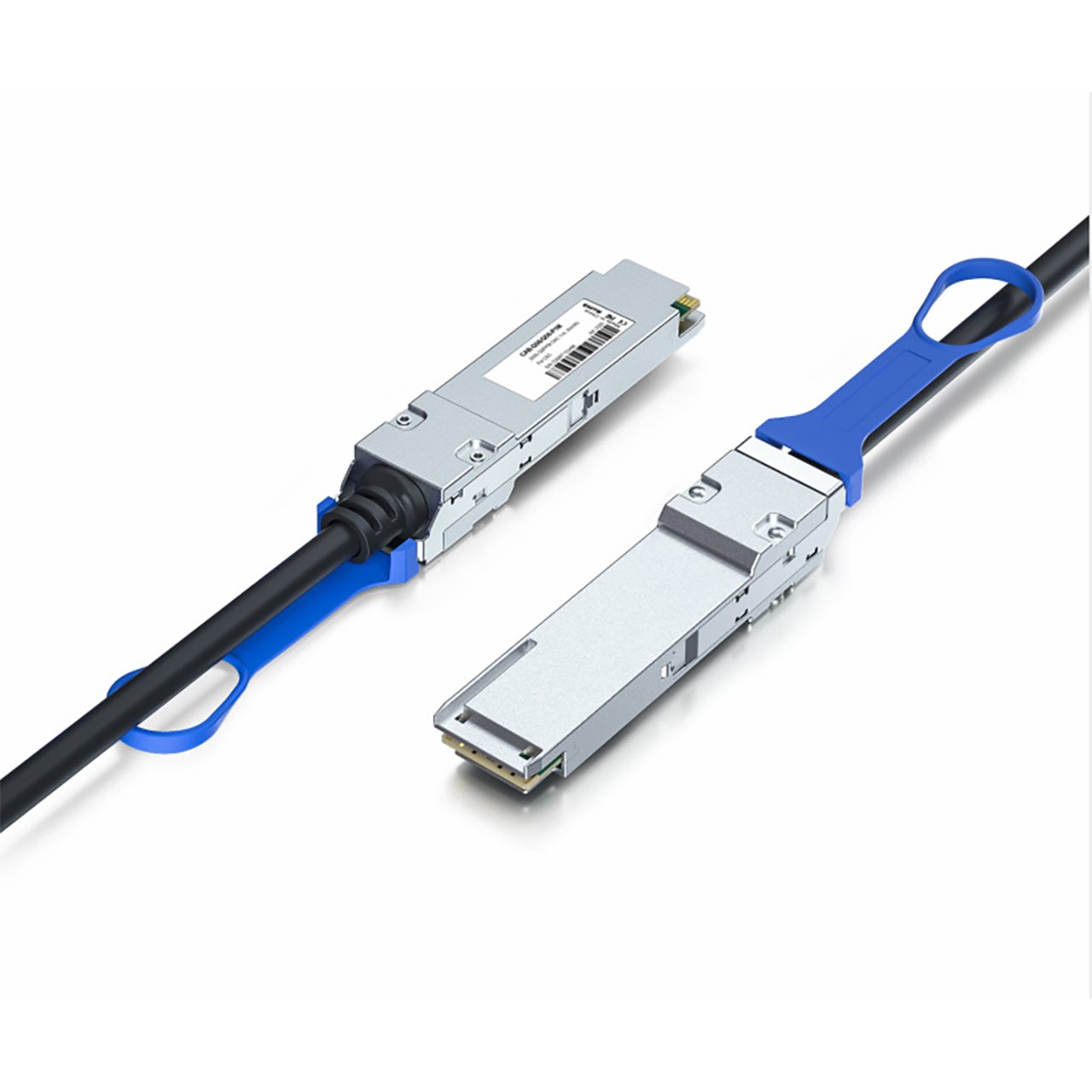

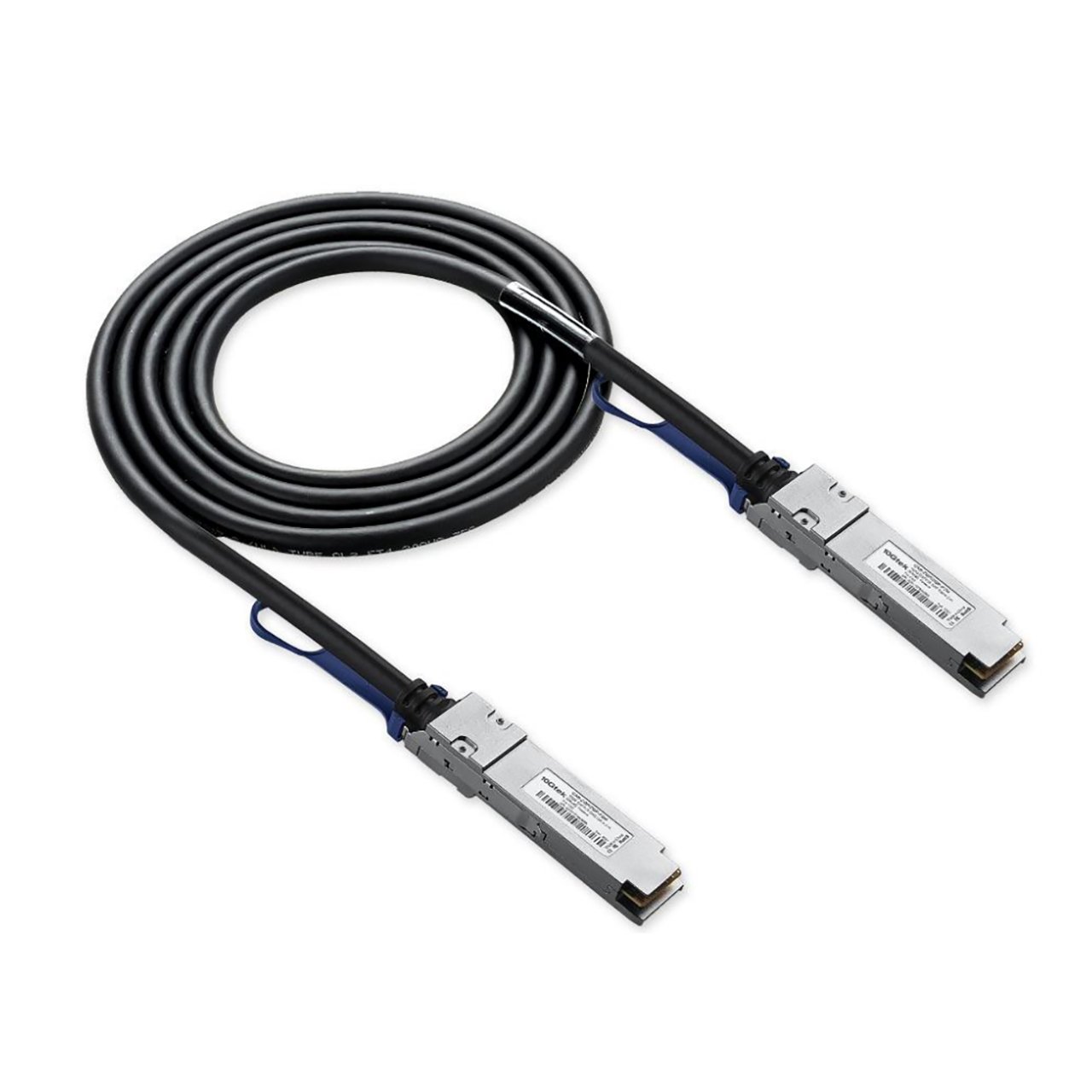

OMC Tech SQ00J0-Z1ATKZ-DAC1X1 100Gbps QSFP28 to QSFP28 DAC Passive Copper Cable - 3.3 Foot

ITEM #: SQ00J0Z1ATKZDAC1 MFG #: SQ00J0-Z1ATKZ-DAC1X1

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

Our Price:

$140.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


SQ00J0-Z1ATKZ-DAC1X1 - Overview

The OMC Tech SQ00J0-Z1ATKZ-DAC1X1 100G QSFP28 passive copper cables provide robust connections for leading-edge systems. Passive copper cables require no additional power to ensure quality connectivity. The passive copper cables fill the need for short, cost-effective connectivity in the data center.

OMC Tech's high-quality solutions provide a power-efficient replacement for active power connectivity, such as fiber optic cables for short distances. Optimizing systems to operate with OMC Tech's QSFP28 100G passive copper cables significantly reduces power consumption and EMI emissions.

  • Features:

    • Single +3.3V Power Supply
    • Compliant with QSFP28 MSA
    • Compliant with SFF-8665 & SFF-8436
    • Compliant with IEEE802.3bj standard
    • Up to 100Gbps data rates
    • Ultra-low crosstalk for improved performance
    • 30 AWG to 26 AWG cable sizes available
    • RoHS Compliant

  • Specifications:

    • Length: 3.3 Feet (1m)
    • Supply Voltage: 3.135V - 3.465V
    • Voltage on LVTTL Input: -0.3V - Vcc+2
    • Storage Temperature: -40°F - 185°F (-40°C - 85°C)
    • Relative Humidity(Non-Condensation): 35% - 60%
    • Operating Case Temperature: -4°F - 185°F (-20°C - 85°C)
    • Supply Current: 10mA
    • Power Dissipation: 0.03W

  • Item Includes:

    • 1x SQ00J0-Z1ATKZ-DAC1X1 100Gbps QSFP28 to QSFP28 DAC Passive Copper Cable - 3.3 Foot

  • Warranty:

    • 1-Year Limited Warranty
