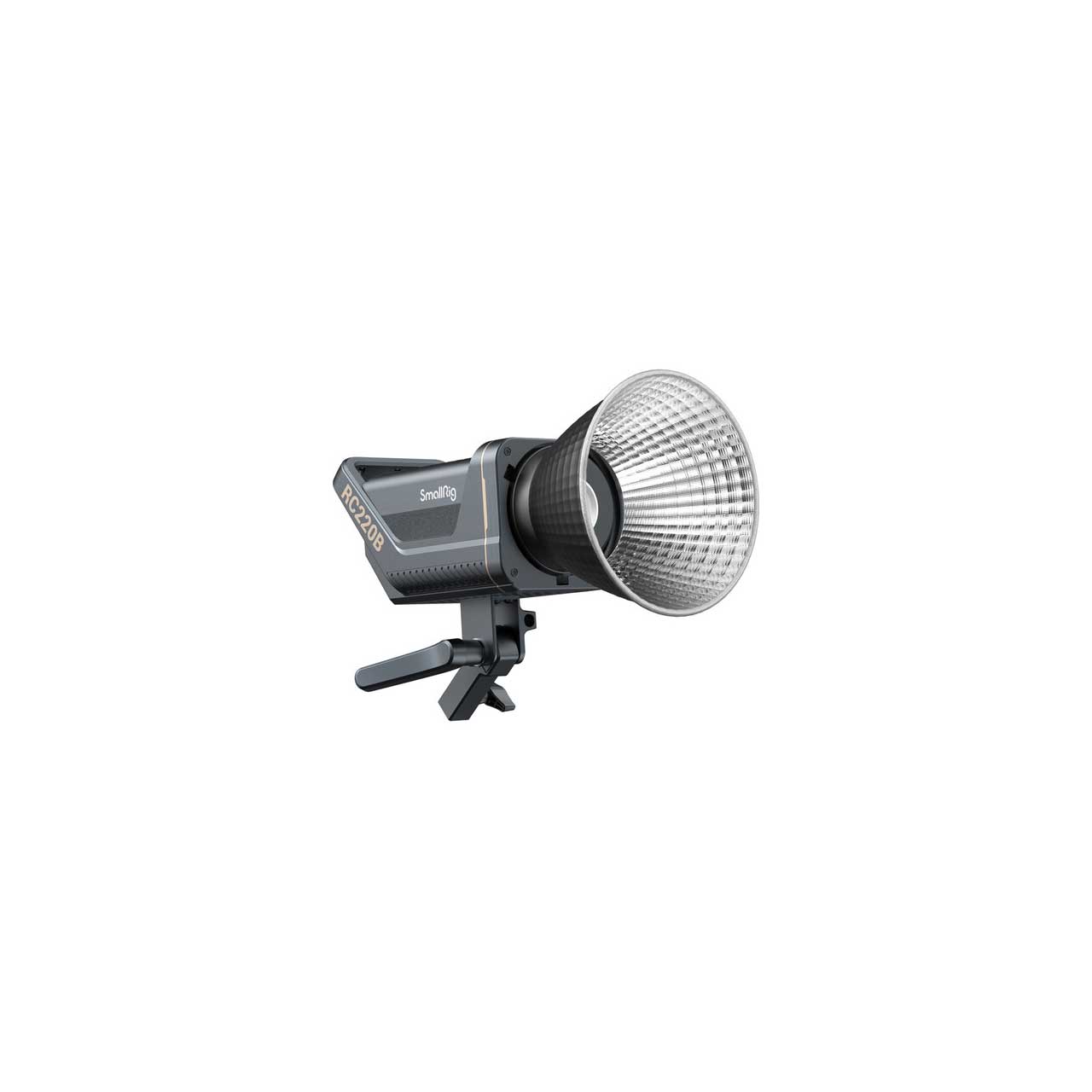

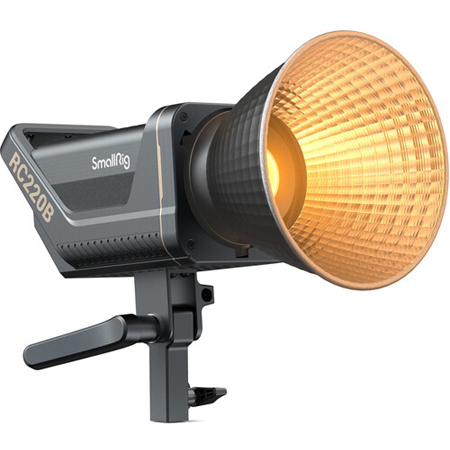

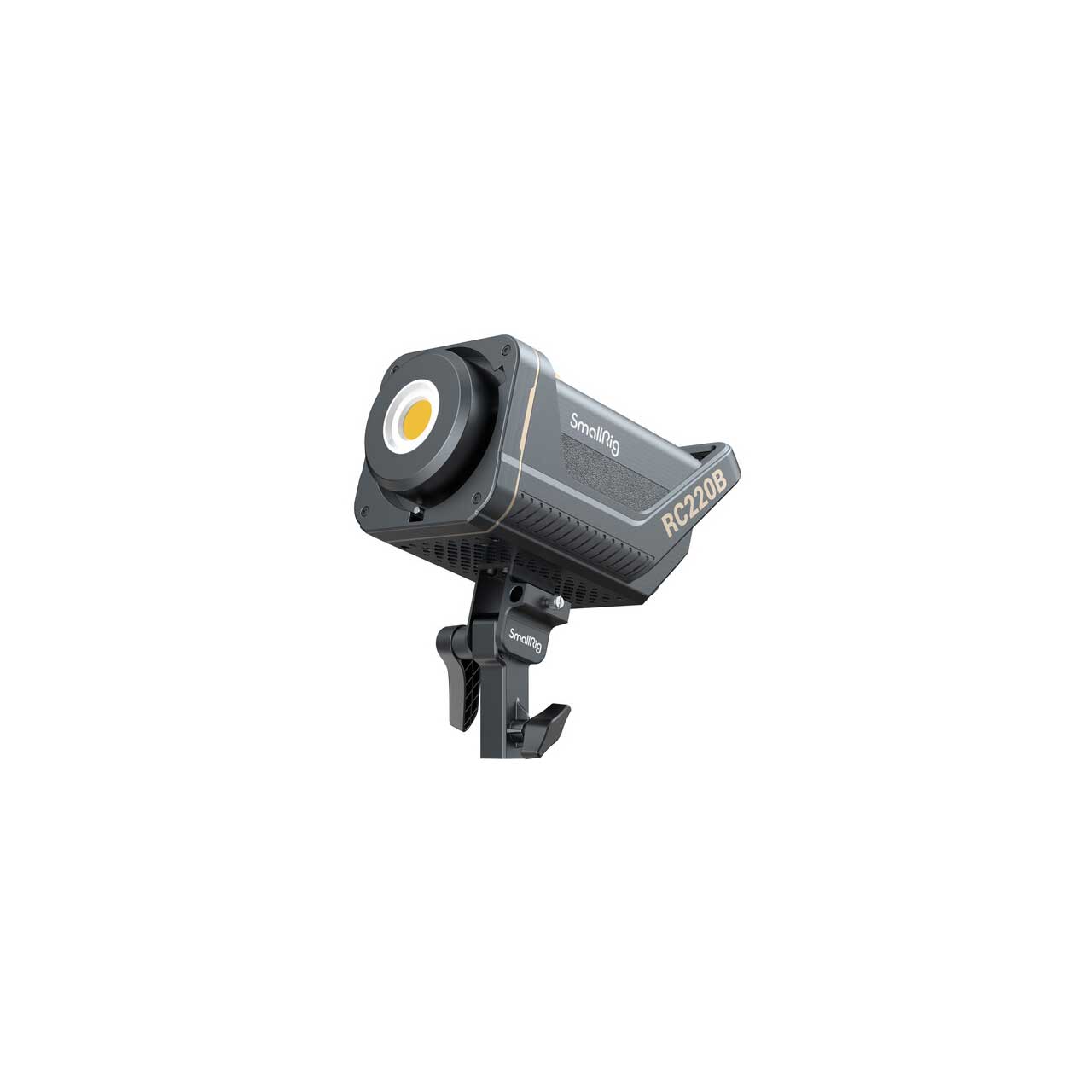

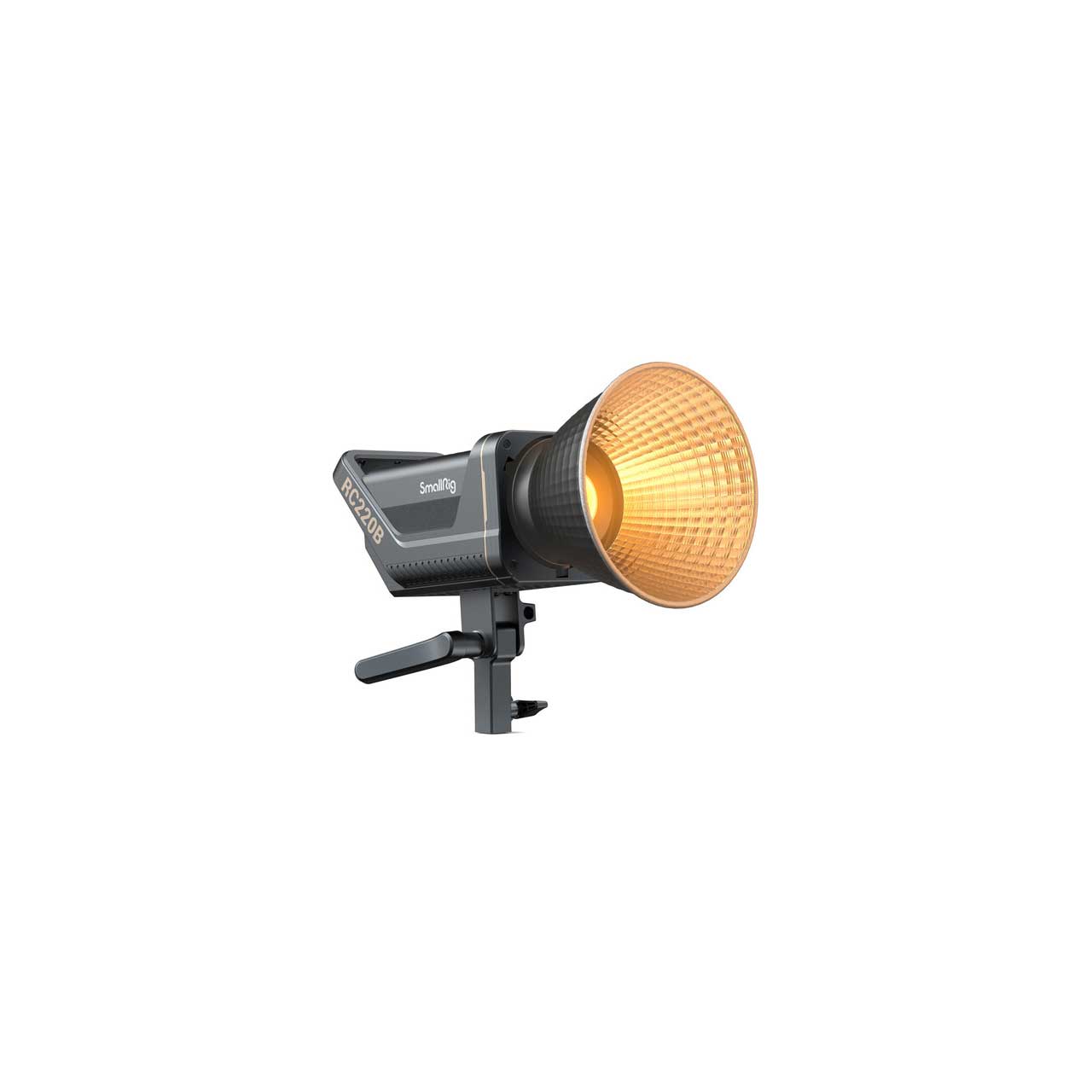

SmallRig 3473 RC 220B Point-Source Video Light (American Standard) - Bi-Light

ITEM #: SR-RC220B MFG #: RC 220B

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order


Availability: Sold Out
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.


RC 220B - Overview

Light Up Your Brilliant Ideas
The SmallRig RC 220 Series adopt COB high luminescence efficiency integrated surface light source technology, and feature high-quality lamp beads, to ensure the accuracy and stability of the optical parameters thanks to the phosphor deposition technology.

Portable, with an extremely bright color output, the SmallRig RC 220B COB Bi-Color LED Video Light is suitable for both still and video work. Filmmakers and photographers with all levels of experience are sure to appreciate its build quality and flexibility. It features a variable color output from 2700 to 6500K for interior, exterior, and mixed light situations. The fixture is more powerful than SmallRig's RC120, easily powerful enough to be used as a key light for narrative productions or for interviews. Using the included hyper reflector creates a beam with an intense center and smooth falloff to the edges. You can steplessly adjust the brightness of the fixture to get exactly the right brightness level.

Power the fixture using the included AC/DC power supply or a user-supplied 14.4V/26V battery with an optional D-Tap to 3-pin XLR power cord. The integrated cooling fan turns on automatically to prevent the light from overheating, and at 30db the fan is quieter than a refrigerator or most whispers. Featuring nine modes for creative lighting, the fixture can be used for a variety of dramatic effects. For adding softboxes and other light diffusing/shaping tools, the fixture is compatible with Bowens light-control accessories. An integrated display screen allows you to see the light's settings at a glance, while for adjustments you can control the light locally or via the SmallGoGo app, which provides wireless control over your fixture from up to 330' away.

Output

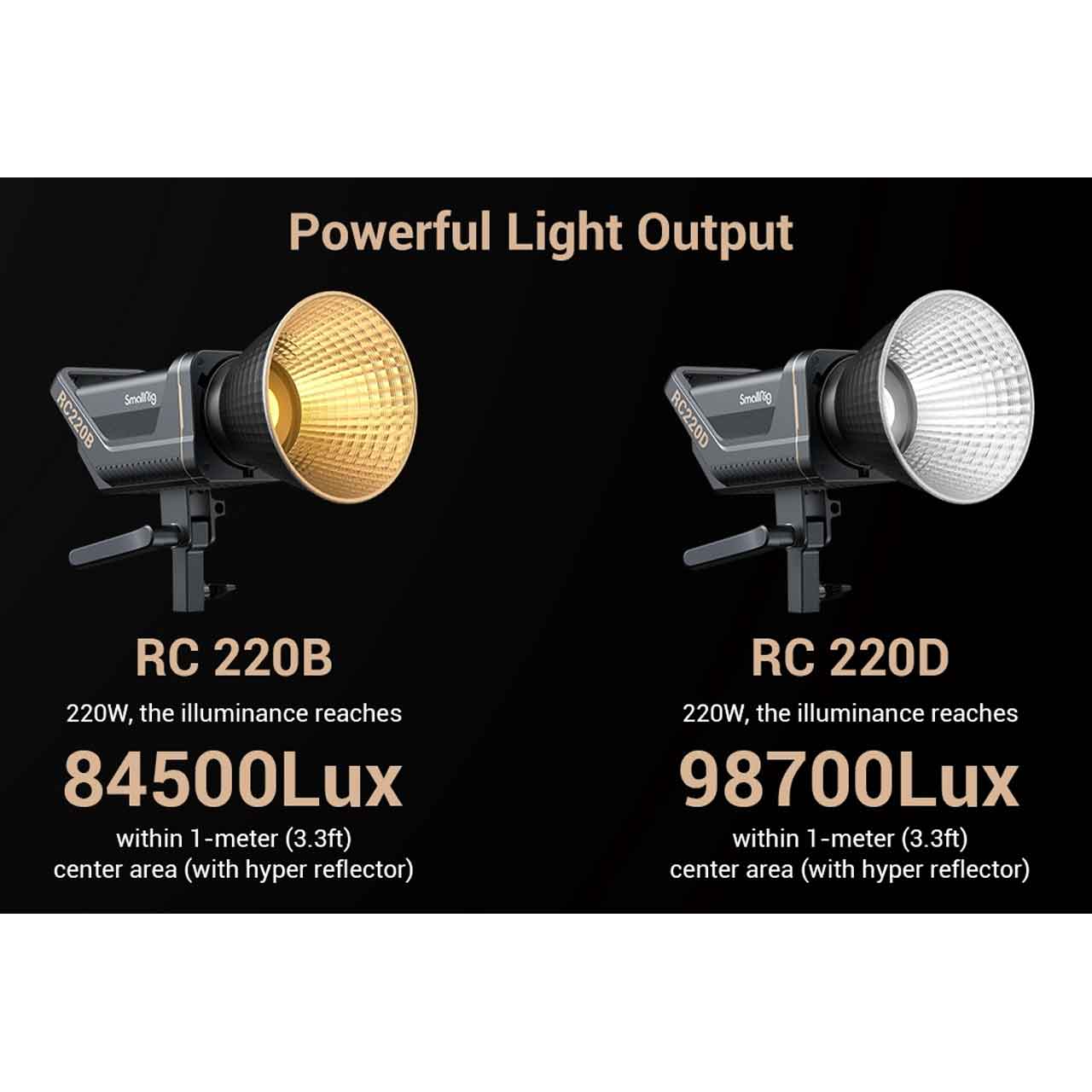

The light features a variable color temperature of 2700 to 6500K and has an output of 8670 lux at 3.3'. Utilizing the included hyper reflector will brighten the fixture's output to 84,500 lux.

9 Light Effects
Paparazzi, fireworks, lightning, faulty bulb, TV, breath, flash, party, flame

Control
Local and SmallGoGo APP control, which can simultaneously control multiple SmallRig lights and achieve extended signal coverage and control distance thanks to the built-in Mesh Bluetooth networking module.

Cooling

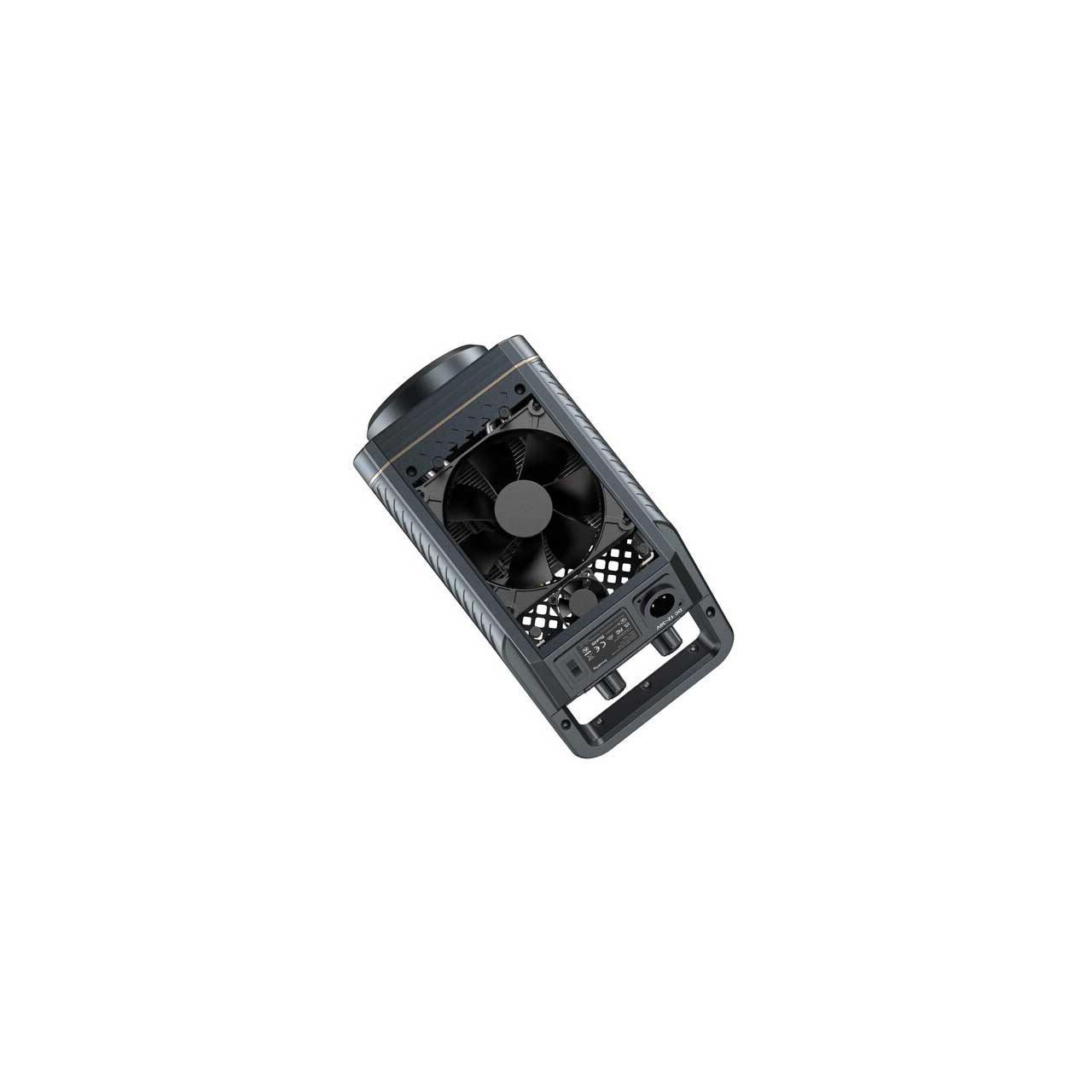

The heat dissipation system turns on when the temperature of the lamp body exceeds 140°F, and is quiet at only 30dB (±2dB) at 3.3'

Standard Bowens Mount
The fixture features a Bowens mount, so it is fully compatible with a variety of accessories. The yoke has a built-in receiver for an optional umbrella

Power
The fixture features an XLR power input connecter, so you can power it from a user-supplied 14.4V battery via an optional D-Tap to 3-pin XLR cable from a professional battery (either 14.4 or 26 volts) with a capacity above 150Wh, or from the included 12 to 30 VDC wide-range power supply.

  • Features:

    • At a distance of 1 meter (3.3 ft.), the maximum illuminance of the bare light source is 8,670 lux at 5600k. The illuminance level increases to an impressive 84,500 lux after attaching the hyper reflector;
    • TLCI 96+, CRI 95+, CCT 2700K-6500K,ultra-high color rendering, truly restore the color of objects;
    • Supports manual light control and remote control with the SmallGoGo App. Intelligent light control offers color temperature adjustment and 9 light effects;
    • Dual power supply system, support AC adapter and 14.4V/26V V-mount battery ;
    • The noise level of the ultra-quiet fan is only 30dB±2dB at 1 meter (3.3 ft.);
    • When the temperature of the lamp body exceeds 60°C (140°F), the active heat dissipation function is turned on;
    • Standard Bowens mount: compatible with most light-control accessories;
    • Comes with a high quality snowflake cloth portable storage bag

  • Specifications:

    • Light Fixture:
    • Photometrics: 5600K: 7850 fc / 84,500 Lux at 3.3' / 1 m
    • Color Temperature: 2700 to 6500K
    • Color Accuracy Standard: CRI 95, TLCI 96
    • Dimming: Yes, Continuous
    • Fixture Dimensions: 9.4 x 9.4 x 4.8" / 240.0 x 237.6 x 122.0 mm
    • Fixture Weight: 6.28 lb / 2.85 kg

      Connectors:
    • Power Input Connection: XLR 3-Pin

      Lens:
    • Reflector Mount: Bowens S-Type

      Mounting:
    • Yoke Mount: TVMP/ Hex Bolt

      Yoke:
    • Yoke Type: Yoke/Bracket
    • Tilt: 270°

      Remote Operation:
    • Remote Control Type: Wi-Fi
    • Wireless Range: 328.1' / 100 m

      Power:
    • AC Input Power: 100 to 240 VAC, 50 / 60 Hz
    • DC Input Power: 14.4 to 26 VDC
    • Power Source: AC Adapter, External Battery
    • Max Power Consumption: 260 W
    • Power Pass-Thru: No

      Power Supply:
    • Power Supply Power Connector: IEC Input / XLR 3-Pin Output

      Packaging Info:
    • Package Weight: 12.58 lb
    • Box Dimensions (LxWxH): 20.1 x 11 x 10.2"

  • Item Includes:

    • 1x RC 220B Bi-Light Video Light
    • 1x Protection Cover
    • 1x Hyper Reflector
    • 1x Power Cable
    • 1x Adapter
    • 1x Carrying Bag
    • 1x User Manual
