ShieldRock TWELVE2 12G-SDI 2x Reclocking Distribution Amplifier

ITEM #: SRK-TWELVE2 MFG #: SRBMC-TWLV2

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

Our Price:

$295.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


SRBMC-TWLV2 - Overview

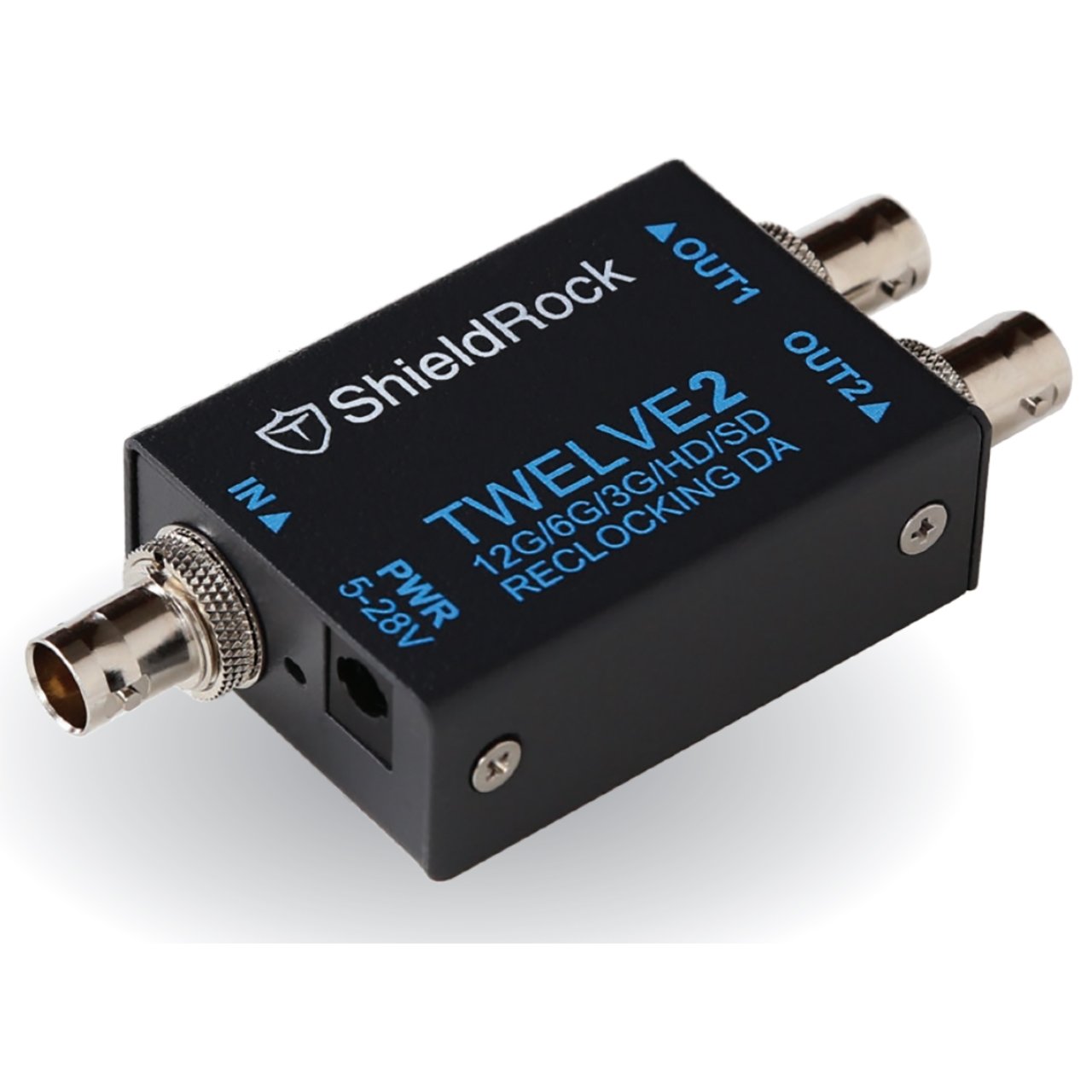

Split a 12G-SDI signal in 2 using the ShieldRock TWELVE2. This 2x DA will reclock the signal and send out dual outputs. The wide voltage input, and minimal power consumption allows for ease of integration and the ability to lock the barrel connector in place. This small and lightweight module features rugged powder coated aluminum construction.

  • Features:

    • Rugged powder coated aluminum construction
    • Locking Barrel Connectors
    • Supports NTSC/PAL, 720p, 1080p/i, and 4K at up to 60fps.
    • Supports AES10 multi-channel (MADI) audio

  • Specifications:

    • Video Interface
    • 12G-SDI, 6G-SDI, 3G-SDI, HD-SDI, SD-SDI (auto switching)
    • SMPTE 292M, 259M, 296M, 297M, 372M, 424M, 425M

      Video Format
    • 4K/UHD 2160p:23.98/24/25/29.97/30/48/50/59.94/60
    • 2K/HD 1080p: 23.98/24/25/29.97/30/48/50/59.94/60
    • 1080i: 50/59.94/60
    • 1080PsF: 23.98/24/25/29.97/30
    • 720p: 23.98/24/25/29.97/30/48/50/59.94/60
    • SD: 525i29.97 NTSC, 625i25 PAL

      Electrical
    • Input: 5-28 VDC
    • Power: 1W max

      Mechanical
    • Dimensions: 3.77" x 1.75" x 0.86" (95.9mm x 44.4mm x 21.9mm)
    • Weight: 0.16 lbs (75g)

  • Item Includes:

    • 1x ShieldRock TWELVE2 12G-SDI 2x Reclocking Distribution Amplifier

  • Warranty:

    • 1-Year Limited Warranty

  • GTIN:

    0685239811803
