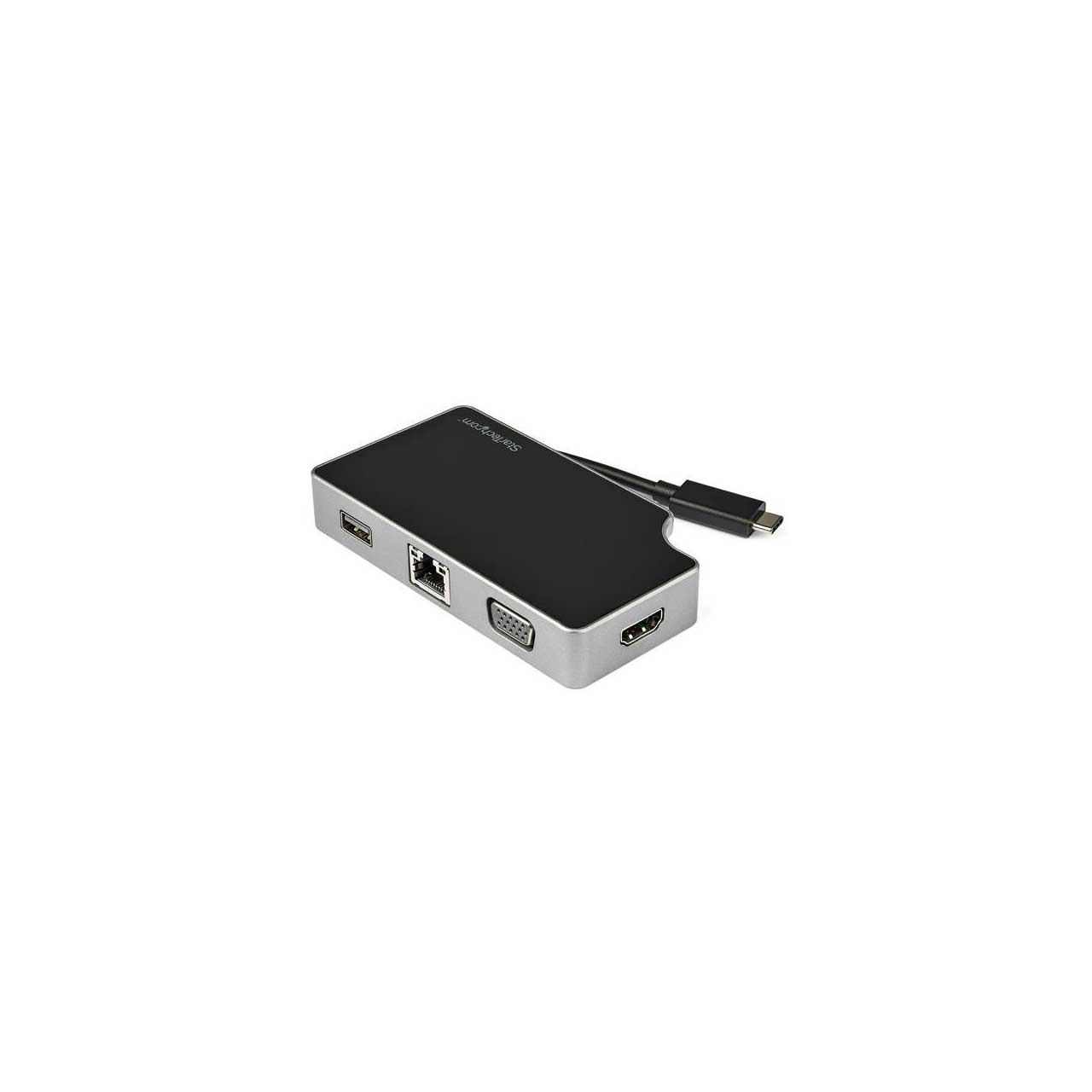

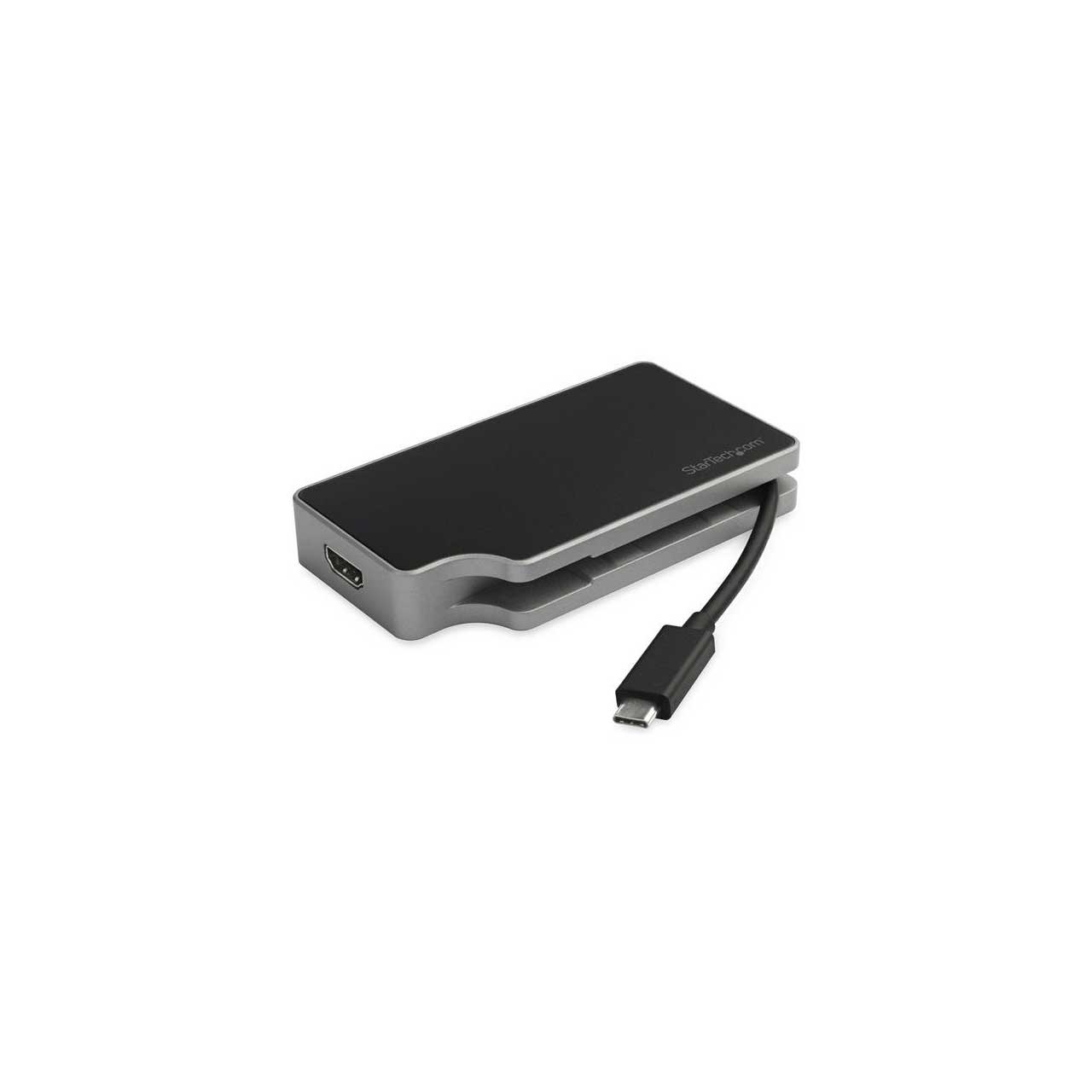

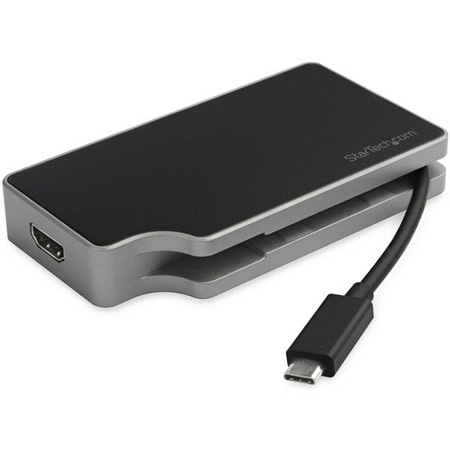

StarTech DKT30CHVGPD USB C Multiport Adapter - HDMI & VGA - 95W PD - 1xA - GbE

DKT30CHVGPD - Overview

• Features:

  • All-In-One Multiport Adapter: USB-C to 4K 30Hz HDMI or VGA Video Adapter, USB-A 5Gbps, GbE, 95W Power Delivery 3.0 passthrough; 10W for the hub & 85W charging for TB3/USB-C laptops/tablets/smartphones
  • Premium Travel Dock: This portable USB-C multiport docking station is compact, made w/ durable aluminum & has a magnetic hideaway attached cable for travel; complements MacBook & Ultrabook design
  • TB3 & USB-C Compatible: Designed for Thunderbolt 3 & USB-C laptops, tablets or smartphones like MacBook Pro, HP EliteBook, Dell XPS, Lenovo, Ultrabooks, Chromebooks, Google Pixel & Samsung Galaxy


• Specifications:

  • Hardware
  • 4K Support: Yes
  • Bus Type: USB-C
  • Chipset ID:
    VIA/VLI - VL102
    Realtek - RTS5411
    Parade Technologies - PS8338B
    Parade Technologies - PS176
    ITE Tech - IT6516
    Realtek - RTL8153
  • Displays Supported: 1
  • Fast-Charge Port(s): No
  • Industry Standards:
    IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
    USB 3.0 - Backward compatible with USB 2.0 and 1.1

    Performance
  • Auto MDIX: Yes
  • Compatible Networks: 10/100/1000 Mbps
  • Full Duplex Support: Yes
  • Maximum Analog Resolutions: 1920 x 1200p @ 60Hz (VGA)
  • Maximum Data Transfer Rate:
    5 Gbps (USB 3.0)
    2 Gbps (Ethernet; Full-Duplex)
  • Maximum Digital Resolutions: 4096 x 2160p @ 24Hz or 3840 x 2160p @ 30Hz (HDMI)
  • Type and Rate: USB 3.0 - 5 Gbit/s
  • UASP Support: Yes

    Connector(S)
  • 1 - USB Type-C (24 pin) USB 3.0 (5Gbps) Male

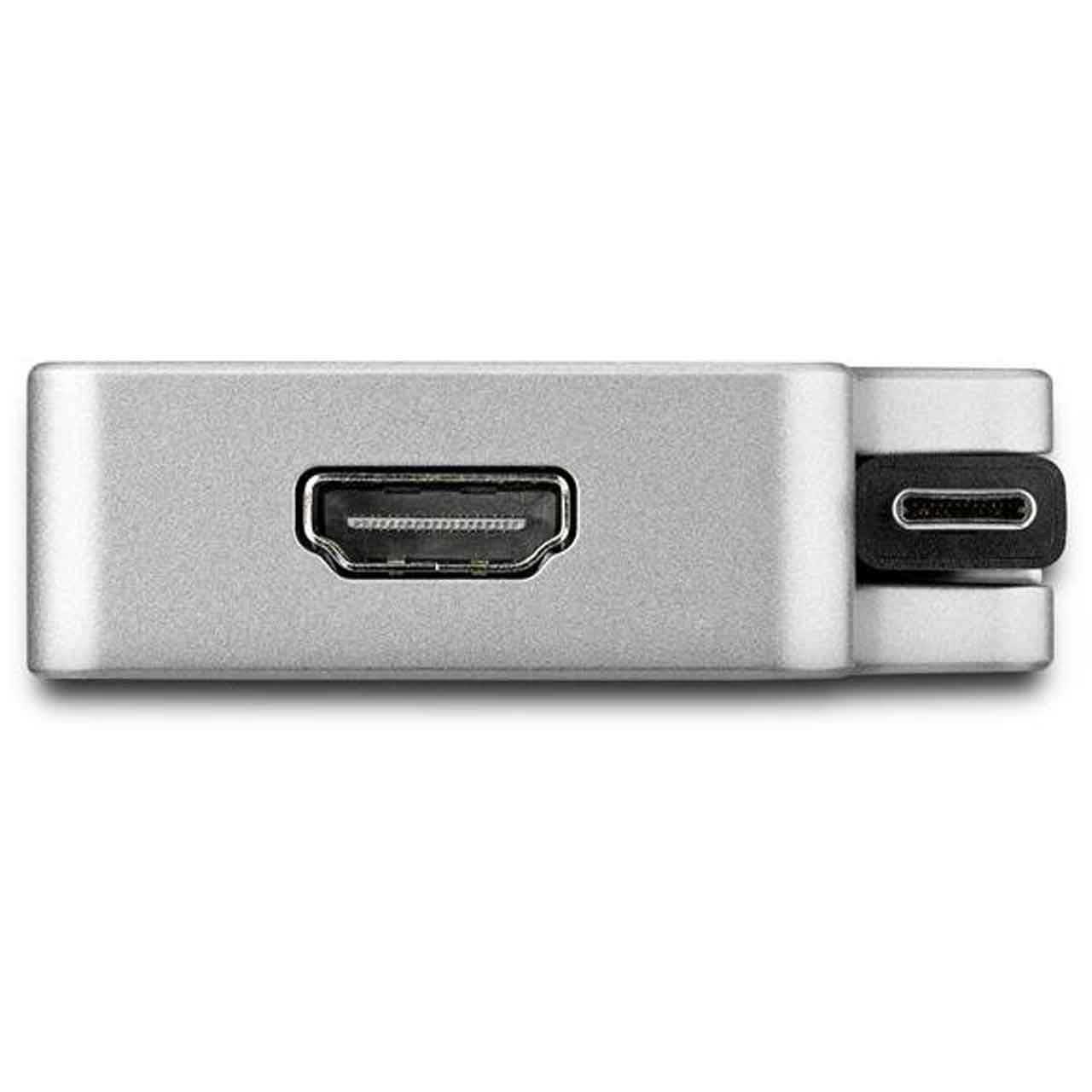

  • 1 - HDMI (19 pin) Female

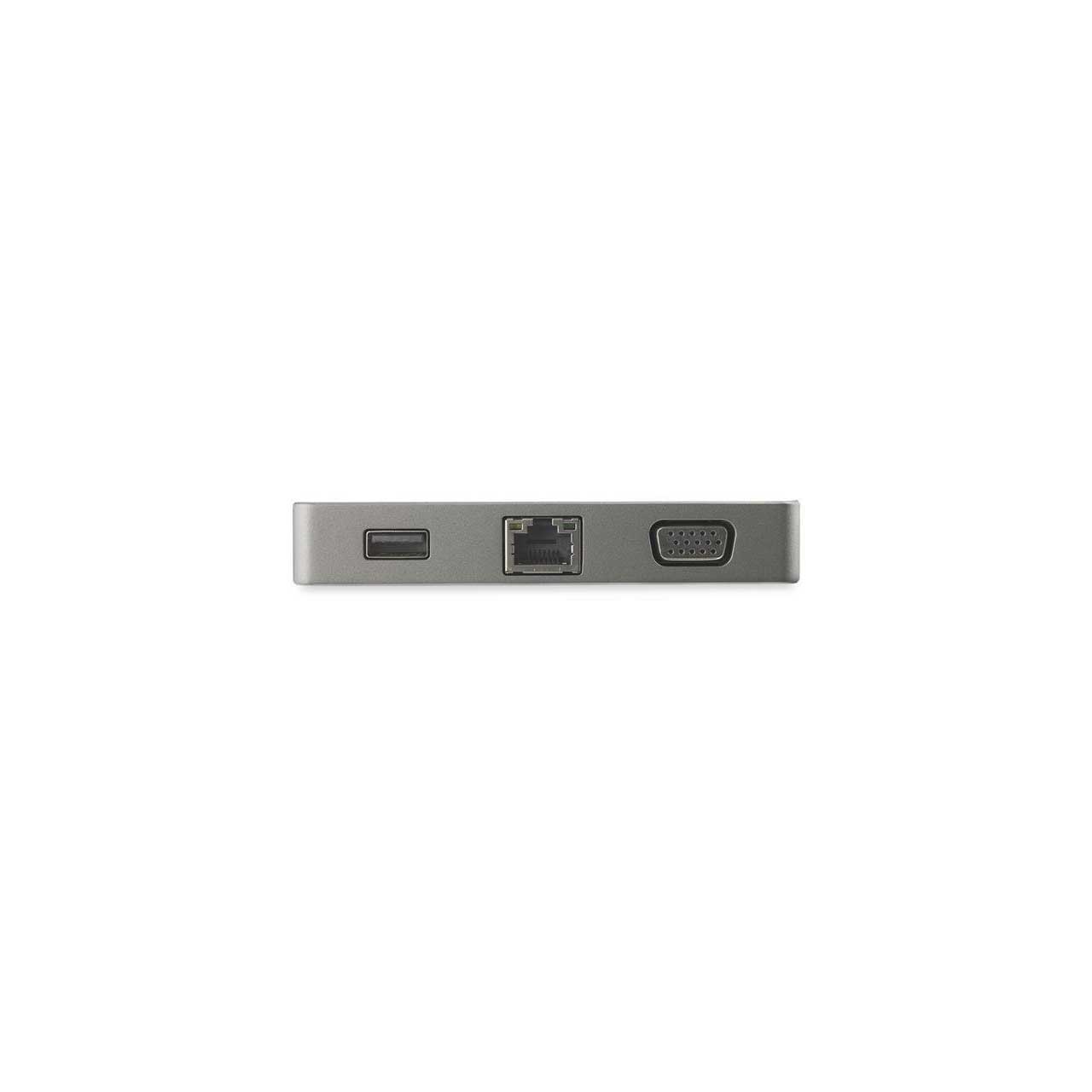

  • 1 - VGA (15 pin, High Density D-Sub) Female
  • 1 - RJ-45 Female
  • 1 - USB Type-A (9 pin) USB 3.0 Female

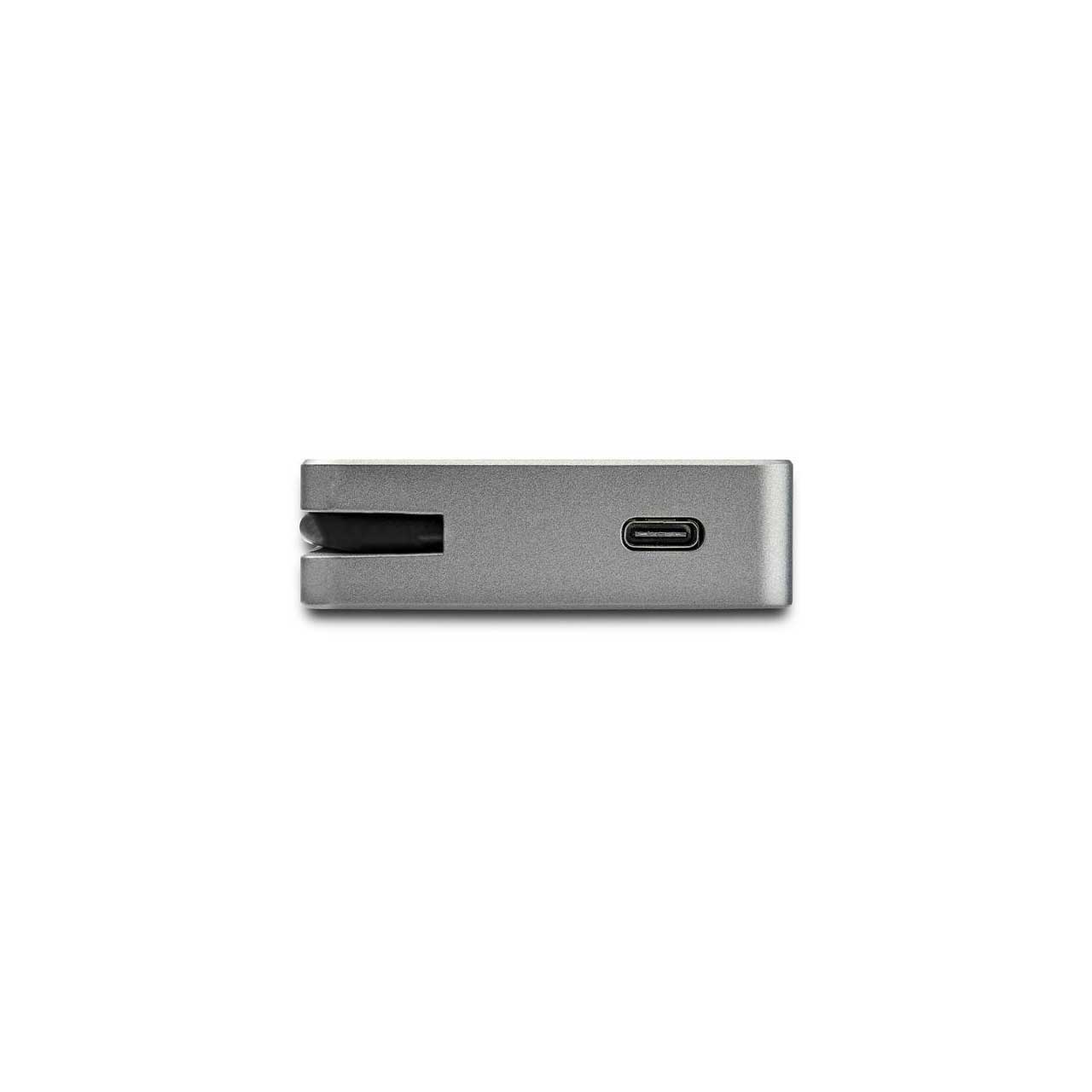

  • 1 - USB-C (24 pin) USB Power Delivery only Female

    Software
  • OS Compatibility: Windows® 7, 8, 8.1, 10
  • Mac OS® 10.11 to 10.15
  • Chrome OS™

    Power
  • Laptop Charging via Power Delivery: 85W
  • Power Consumption (In Watts): 10W
  • Power Delivery: 95W
  • Power Source: USB-Powered

    Environmental
  • Humidity: 0 to 95% RH (Non-condensing)
  • Operating Temperature: 0° to 45°C (32° to 113°F)
  • Storage Temperature: -10° to 65°C (14° to 149°F)

    Physical Characteristics
  • Cable Length: 3.3" (85mm)
  • Color: Black & Space Gray
  • Material: Aluminum
  • Height: 0.7" (1.8cm)
  • Length: 4.3" (11cm)
  • Width: 2.4" (60mm)
  • Weight: 9oz (254g))

    Packaging Information
  • Height: 1.2" (30mm)
  • Length: 6.7" (17cm)
  • Width: 5.6" (14.2cm)
  • Weight: 0.4Lbs (0.2kg)


• Item Includes:

  • 1x Multiport Adapter
  • 1x Quick-Start Guide


• Warranty:

  • 3 Years


• GTIN:

  0065030878258
