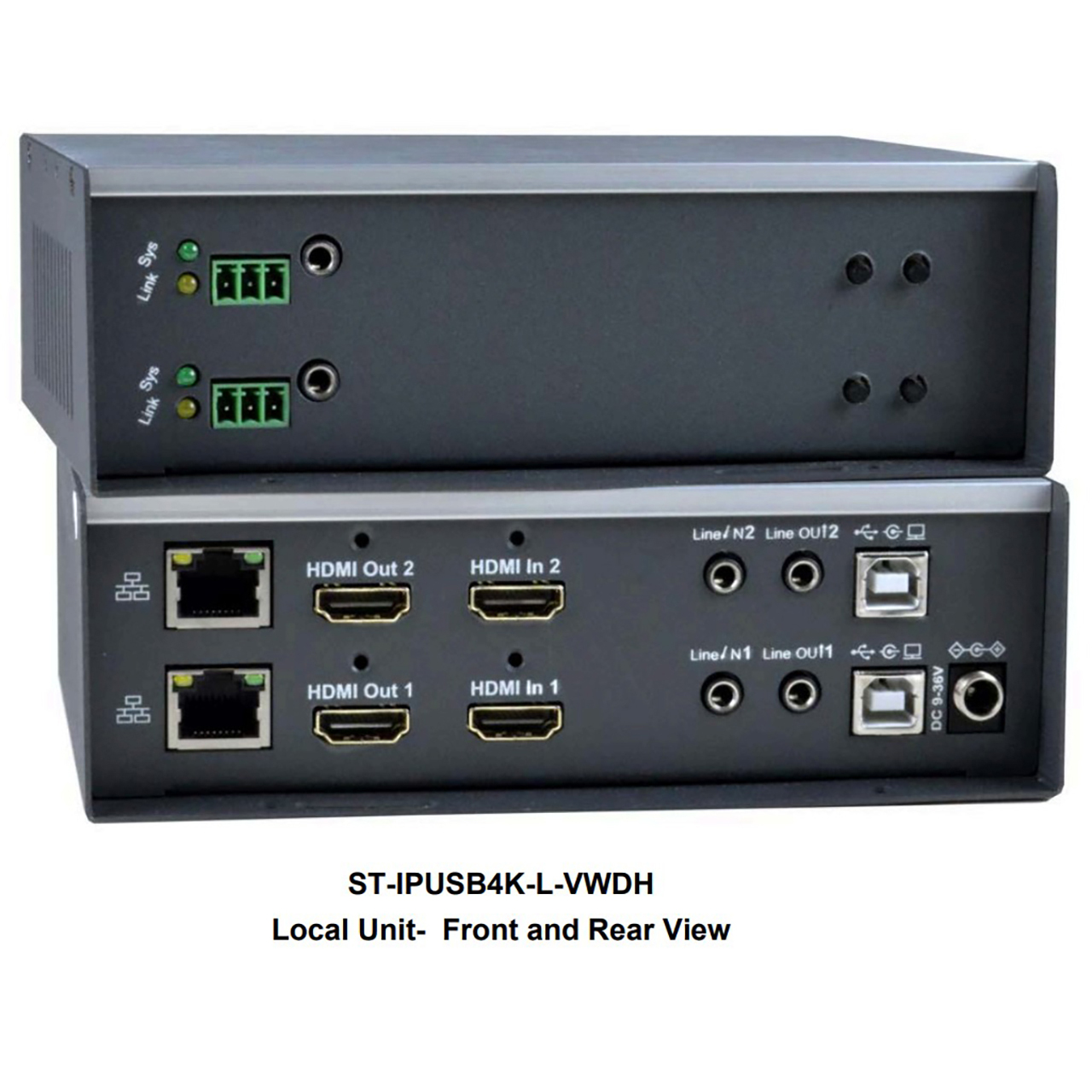

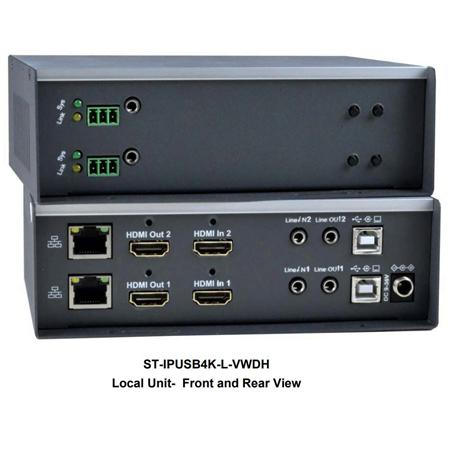

NTI - XTENDEX ST-IPUSB4K-L-VWDH Dual Monitor 4K 10.2Gbps HDMI USB KVM Extender Over IP via Two CATx Cables - Local Unit

ST-IPUSB4K-L-VWDH - Overview

• Features:

  • Use as a dual head extender or two separate extenders grouped together in one set.

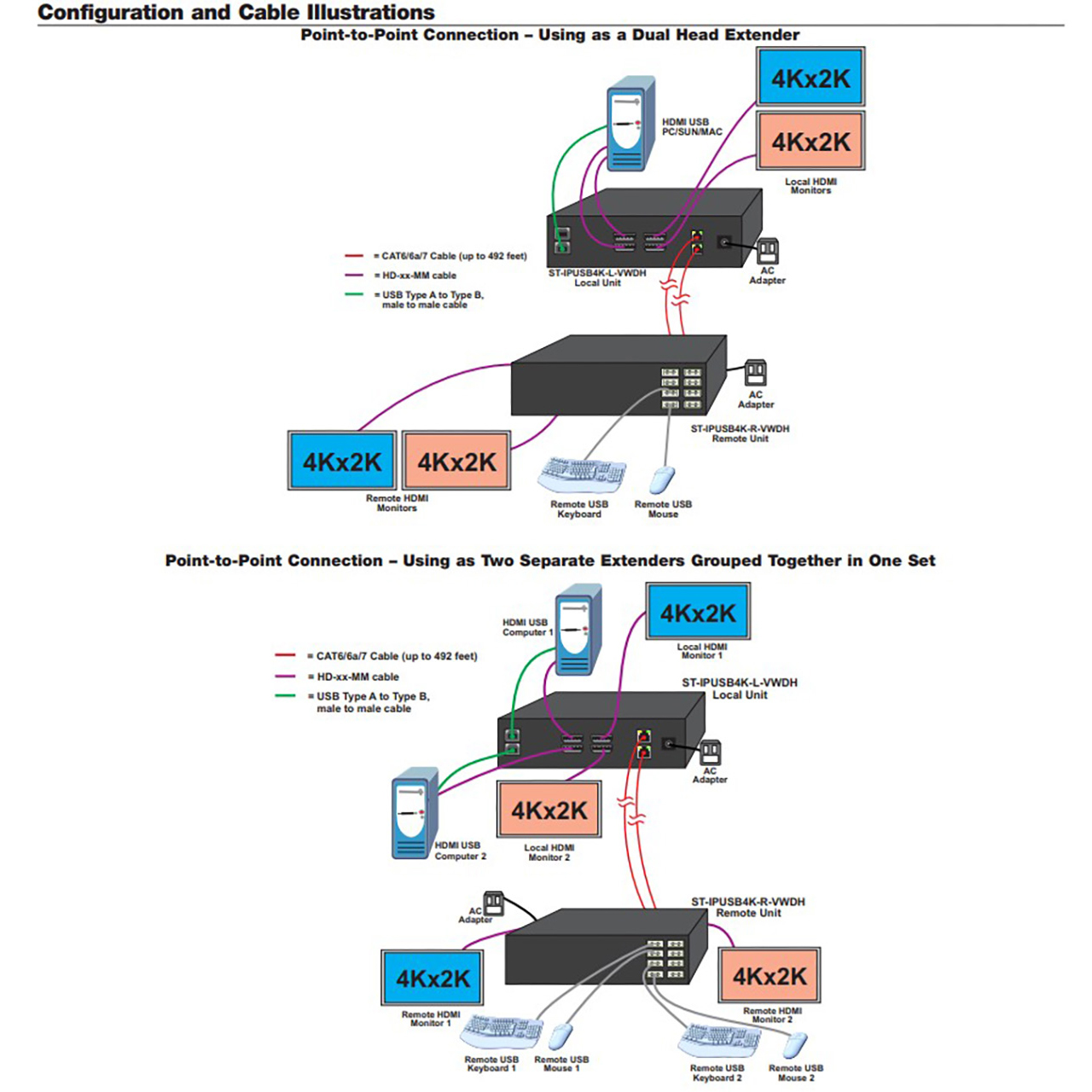

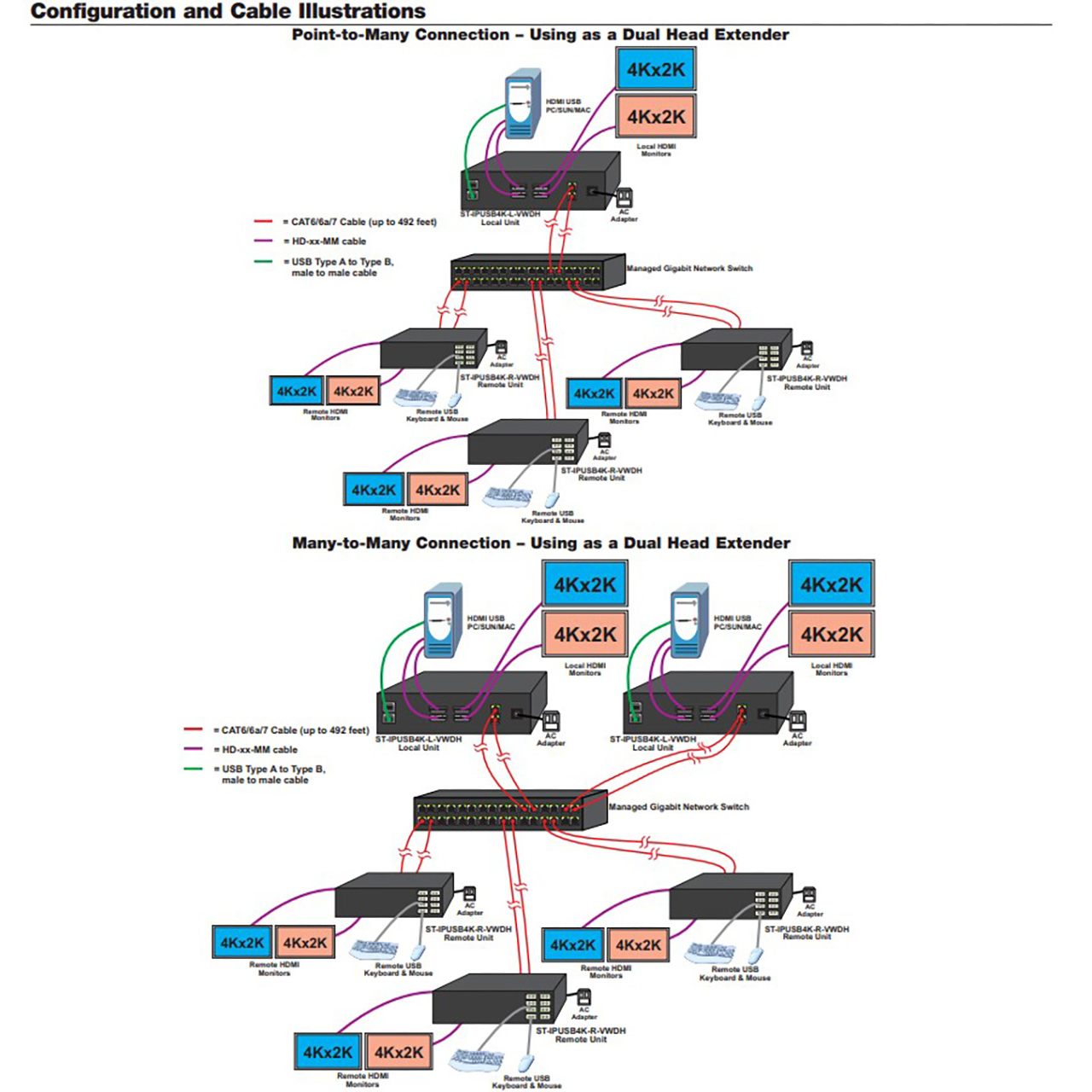

  • Supports Point-to-Point, Point-to-Many, and Many-to-Many connections.
  • 8 USB connectors for keyboard, mouse, flashdrive, HDD, or touchscreen display.

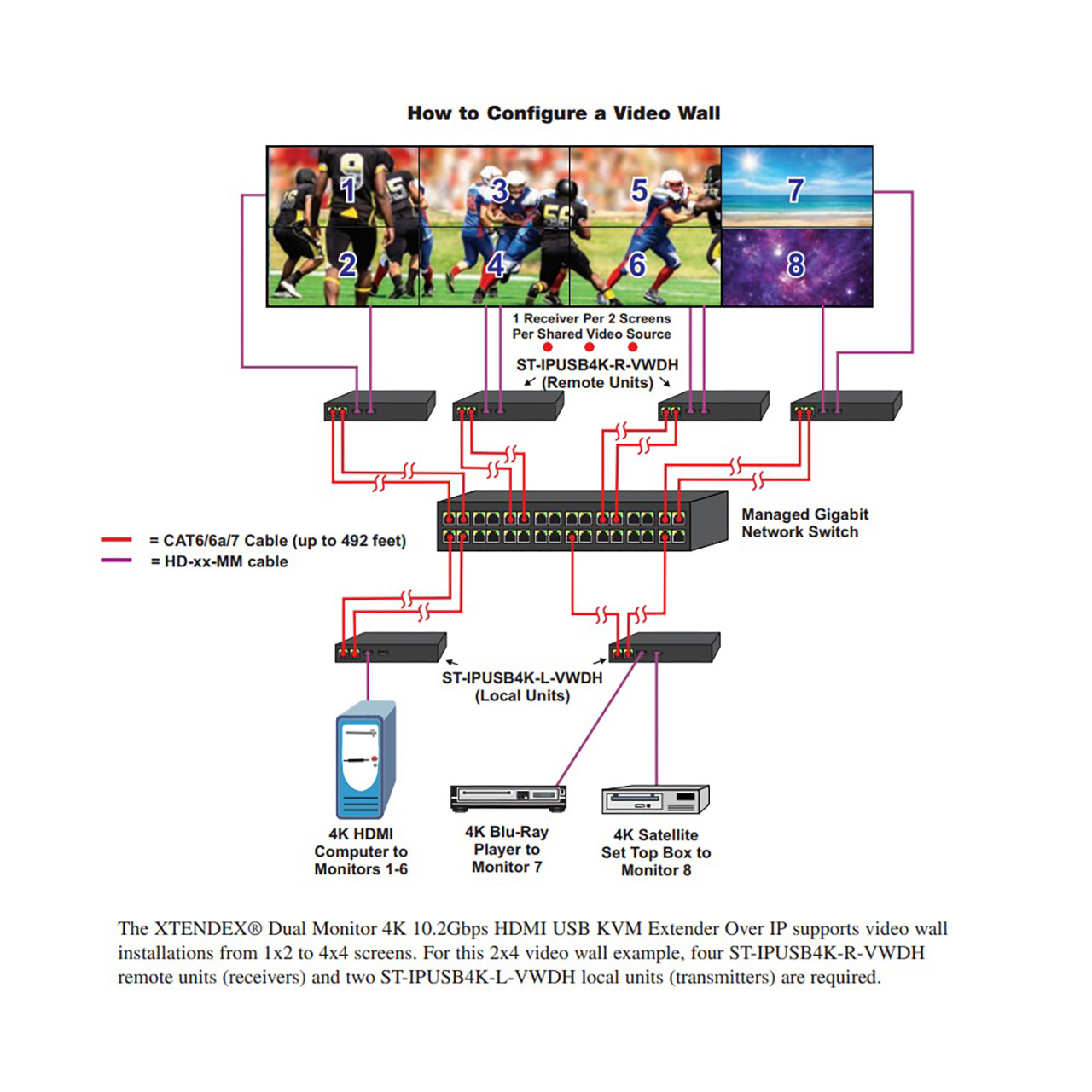

  • Supports video wall installations from 1x2 to 4x4 screens.


• Specifications:

  • Compatible with a dual-head USB computer (PC, SUN and MAC) with Ultra-HD HDMI output.
  • Multiplatform support: Windows 7/8/10/11, Windows Server 2008/2012/2016/2019/2022, Solaris, Linux, FreeBSD, and MAC OS 10/11/12.
  • Two female HDMI connectors for source.
  • Two female HDMI connectors for displays.
  • One female USB Type B connector.
  • Two female 3.5mm stereo jacks for audio out and mic in.
  • Speaker only works when in a point-to-point connection.
  • Two female 3.5mm ports for IR emitters (not included).
  • Two 3-pin screw terminals for RS232.
  • Supports full-duplex RS232 up to 115200 baud.
  • Two female RJ45 ports for sending/receiving high definition video/audio and USB signals.
  • Local and remote unit:
  • Input: 100 to 240 VAC at 50 or 60 Hz via AC adapter (included.)
  • Output: 12 VDC, 5A
  • Power consumption: Local unit: 16.32W
  • Local unit: WxDxH (in): 6.30x4.33x1.99 (160x110x51 mm).
  • 492 feet in a Point-to-Point connection.
  • 984 feet in a Point-to-Point, Point-to-Many, or Many-to-Many connection via a managed Gigabit network switch.
  • The max length between most switches and the local/remote unit is 492 feet.
  • The switch itself will determine the maximum distance.


• Item Includes:

  • Two 6.56 ft (2 m) male to male HDMI cable.
  • One 6 ft (1.8 m) male USB Type A to male USB Type B cable.
  • One 5 ft (1.5 m) male to male 3.5mm stereo audio cable.
