NTI ST-IPUSB4K-R-VWDH Dual Monitor 4K 10.2Gbps HDMI USB KVM Extender Over IP via Two CATx Cables - Remote Unit

ITEM #: ST-IPUSB4K-RVWDH MFG #: ST-IPUSB4K-R-VWDH

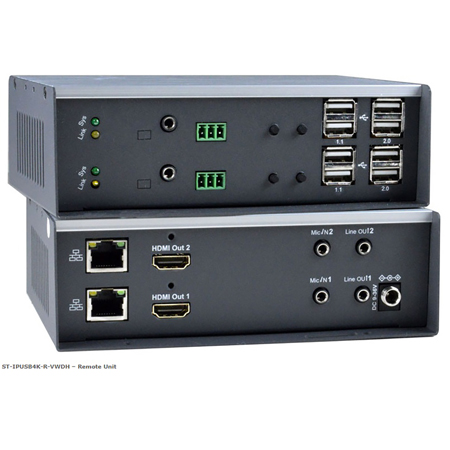

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Network Technologies Inc
Free Shipping with $49 Minimum Order

Our Price:

$935.00

Add to Wish ListLeasing Options
Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
Notify when in stock
Report Lower PriceLarge Quantity Quote

ST-IPUSB4K-R-VWDH - Overview

The Network Technologies Inc ST-IPUSB4K-R-VWDH XTENDEX Dual Monitor 4K 10.2Gbps HDMI USB KVM Over IP Extender provides remote KVM (USB keyboard, USB mouse, and two 4Kx2K 30Hz HDMI monitors) access to a dual-head USB computer up to 492 feet (150 meters) via two CAT6/6a/7 cables.

Each KVM extender consists of the ST-IPUSB4K-L-VWDH local unit that connects to a dual-head computer and also supplies video to two local monitors, and the ST-IPUSB4K-R-VWDH remote unit that connects to two HDMI monitors, 3.5mm stereo audio speakers and microphone, and up to four USB devices (keyboard, mouse, flash drive, HDD, or touchscreen display).

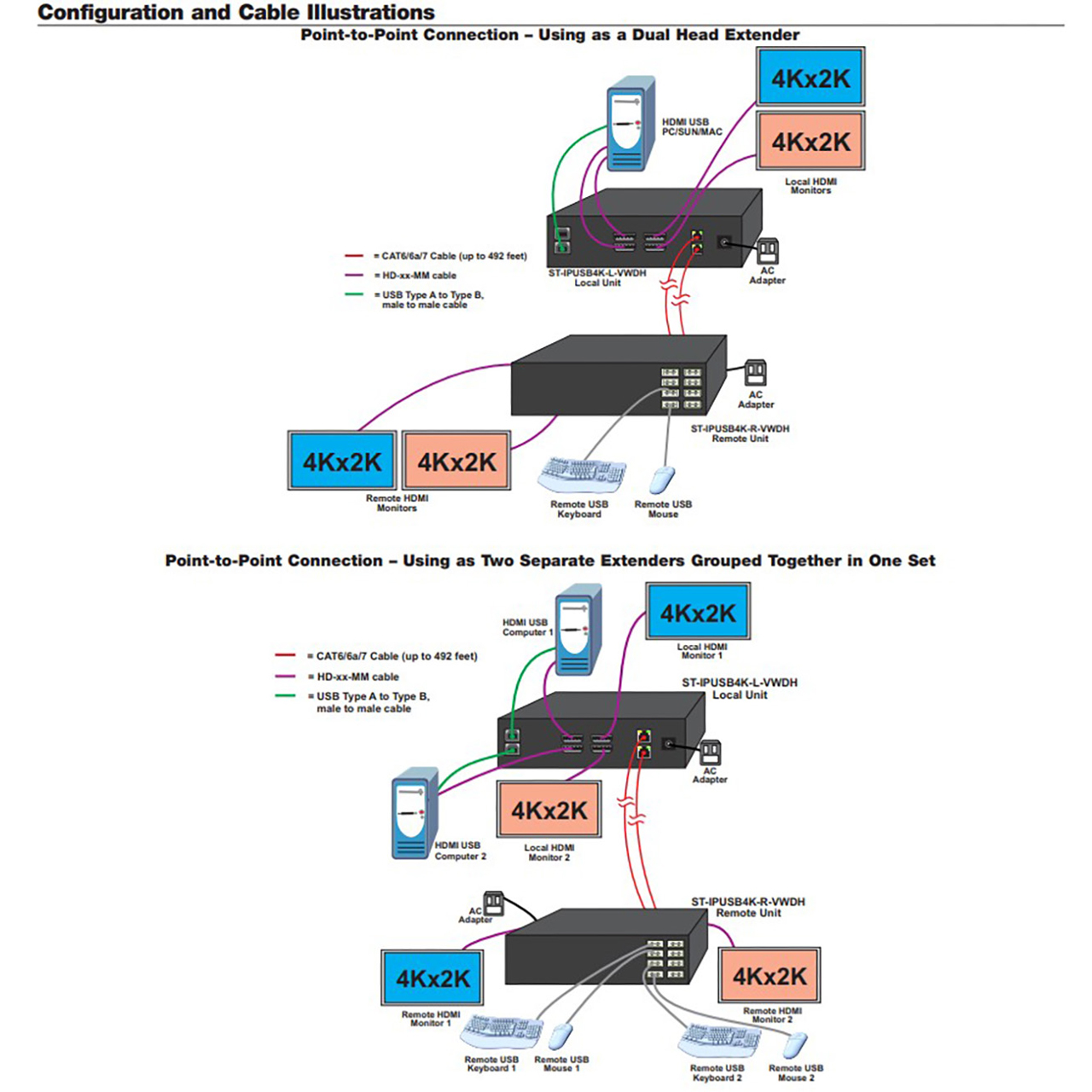

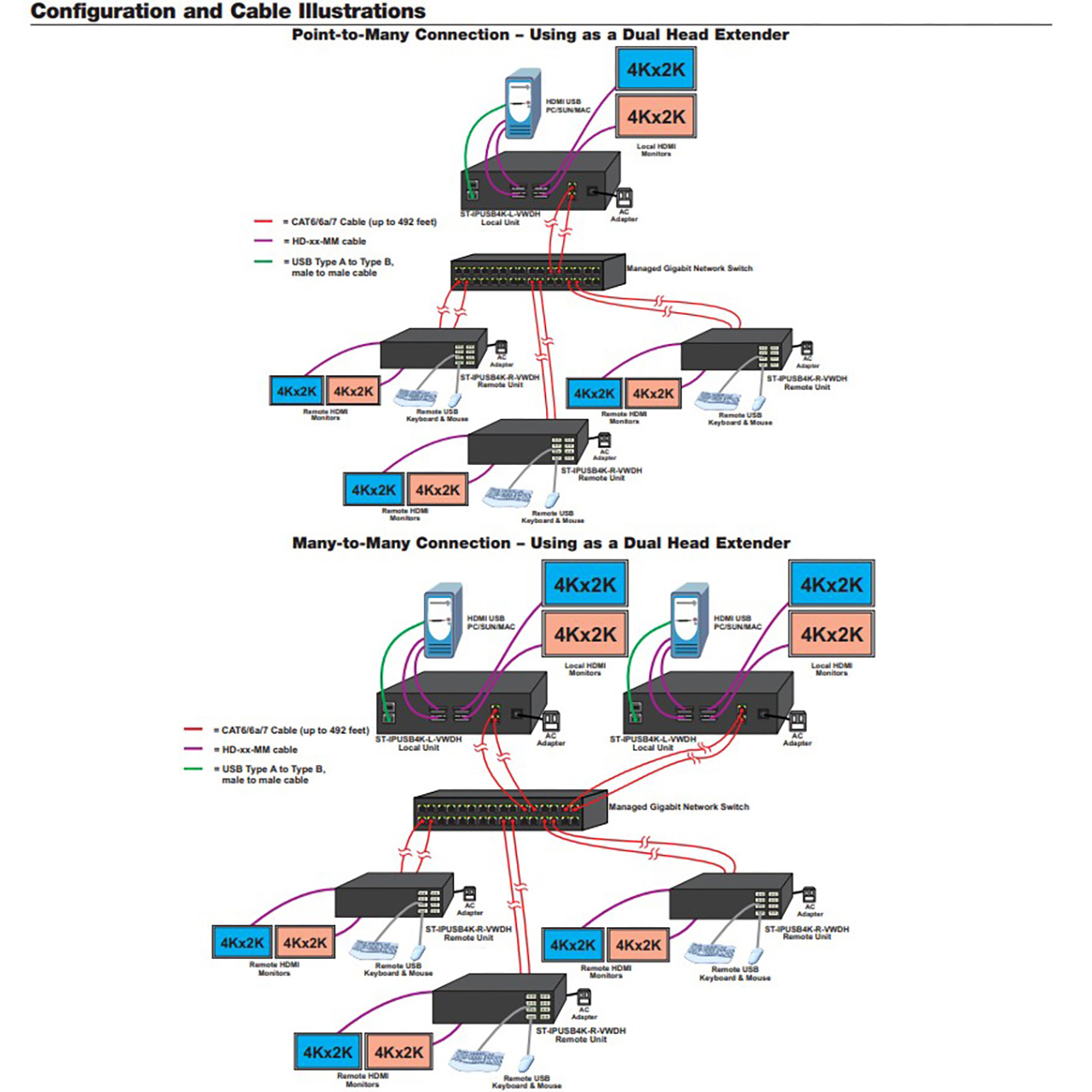

The local and remote units can be connected together for a Point-to-Point connection via CATx cable, or a Point-to-Many or Many-to-Many connection via a managed Gigabit network switch.

Please Note: Remote unit only, local unit is required and sold separately.

  • Features:

    • 2x female HDMI connectors
    • 8x female USB Type A connectors for keyboard, mouse, flashdrive, HDD, or touchscreen display
    • 4x USB 2.0 and 4x USB 1.1
    • When using as a dual head extender, only 4 of the USB ports will work
    • 2x female 3.5mm stereo jacks for audio out and mic in
    • Microphone only works when in a point-to-point connection
    • 2x female 3.5mm ports for IR receivers (not included)
    • 2x 3-pin screw terminals for RS232
    • Supports full-duplex RS232 up to 115200 baud
    • 2x female RJ45 ports for sending/receiving high definition video/audio and USB signals
    • Use as a dual head extender or two separate extenders grouped together in one set
    • Supports Point-to-Point, Point-to-Many, and Many-to-Many connections
    • 8x USB connectors for keyboard, mouse, flashdrive, HDD, or touchscreen display

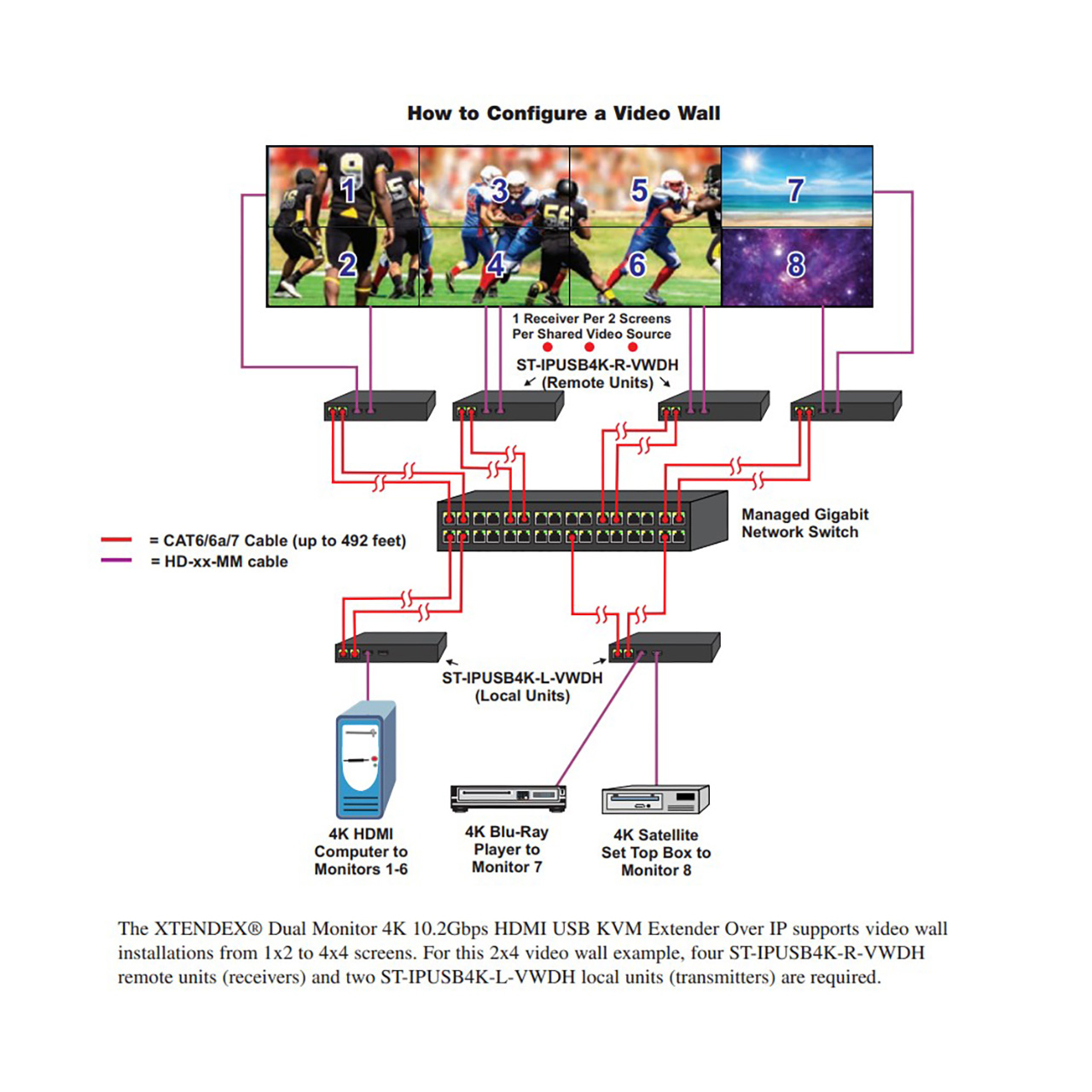

    • Supports video wall installations from 1x2 to 4x4 screens


  • Specifications:

    • Supported Video Resolutions:
      - Ultra-HD 4Kx2K resolutions (3840x2160 @ 30Hz)
      - 2K Cinema (2048x1080 @ 60Hz)
      - HDTV resolutions to 1080p
      - Up to 1920x1200 (WUXGA)
      - Supports embedded digital audio through HDMI compatible TVs or audio receivers
    • Remote Unit:
      - Input: 100V - 240VAC at 50 or 60Hz via AC adapter (included)
      - Output: 2VDC, 5A
    • Power Consumption: 34.32W
    • Max Distance:
      - 492ft in a Point-to-Point connection, 984ft in a Point-to-Point, Point-to-Many, or Many-to-Many connection via a managed Gigabit network switch
      - The max length between most switches and the local/remote unit is 492ft
      - The switch itself will determine the maximum distance
    • Operating Temperature: 32°F - 158°F
    • Storage Temperature: -4°F - 185°F
    • Operating/Storage Relative Humidity: 0% - 80%, non-condensing RH
    • Dimensions: 6.30" x 4.33" x 1.99"


  • Item Includes:

    • 1x ST-IPUSB4K-R-VWDH


  • Warranty:

    • 2 Year Limited Warranty
