StarTech US1GC301AUW USB-C to Gigabit Network Adapter with Extra USB Port - White

ITEM #: ST-US1GC301AUW MFG #: US1GC301AUW

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

List Price:

$60.99

Our Price:

$52.23

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


US1GC301AUW - Overview

This StarTech US1GC301AUW USB-C Ethernet adapter connects you to a Gigabit network through the USB-C™ or Thunderbolt™ 3 port on your laptop or desktop computer and adds connectivity for an additional USB (Type-A) peripheral device.  It's a great companion for your MacBook, Chromebook or Windows® laptop with an available USB-C port.

Powerful Gigabit Network Connections
The USB-C network adapter supports full Gigabit bandwidth by harnessing the performance of USB 3.1 Gen 1. You can quickly access very large files over the network at Gigabit speed.

Native Driver Support Makes Installation Easy
Get up and running quickly. Simply plug the adapter into the USB Type-C™ port on your laptop and connect to your network. The network adapter chipset provides native driver support in Chrome OS™, Windows®, and macOS.

Trouble-Free Connections Through USB-Type-C
The USB-C connector is smaller and easier to use than previous USB connectors. It's a reversible plug so you can connect to your devices with either side facing up, without frustration or the risk of port damage.

With a compact design, this USB-C network adapter is as portable as your laptop, perfect for ultra-portable devices that have a USB-C port, such as the MacBook and Chromebook Pixel™. The network adapter is bus-powered which makes it easy to connect when you're on the go.

Additional Connectivity With an Extra USB 3.1 port

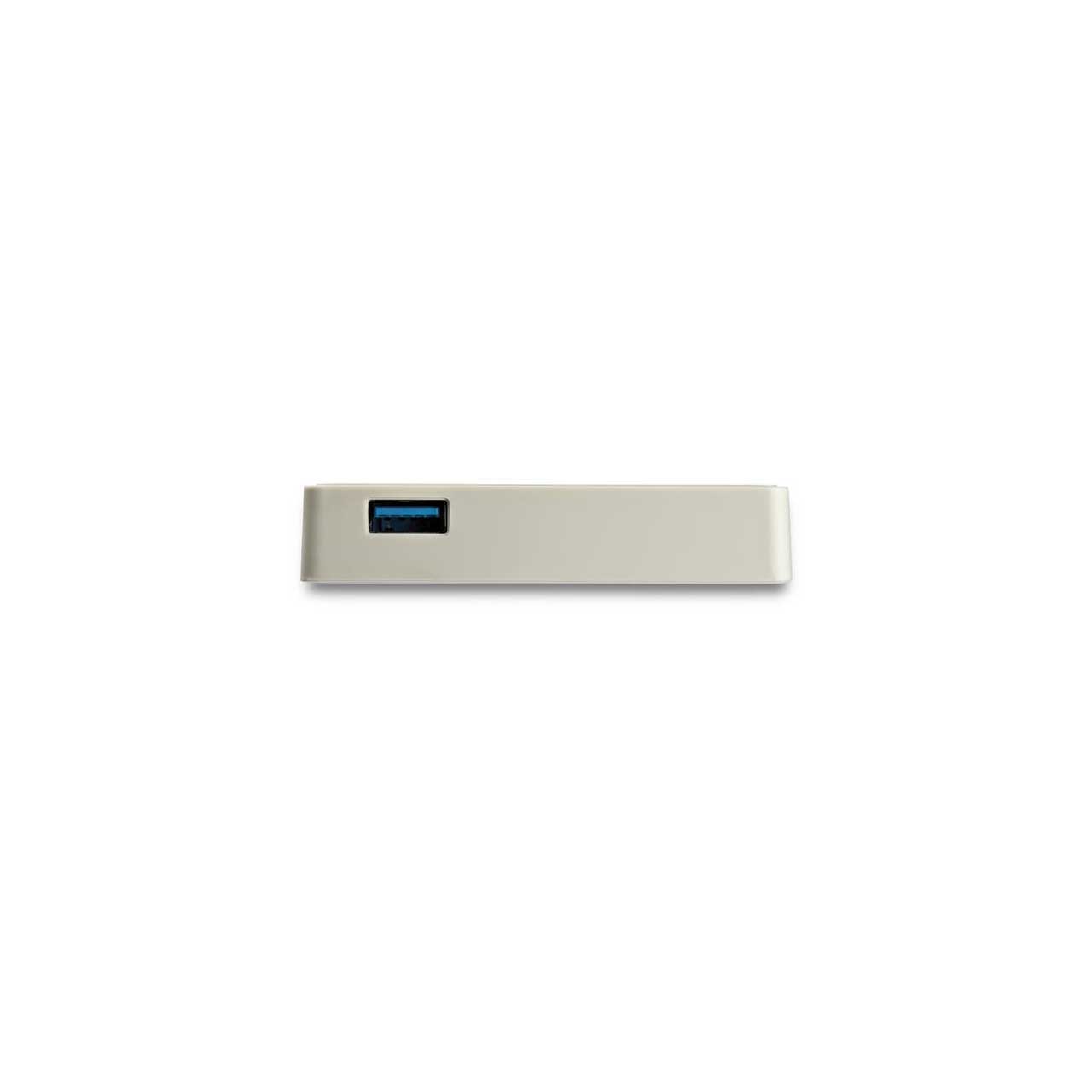

Some computers with USB Type-C only offer one port for external connectivity. This Ethernet adapter features a built-in USB Type-A port, giving you the freedom to attach an additional peripheral device, such as a USB mouse.

The US1GC301AUW is backed by a StarTech 2-year warranty and free lifetime technical support.

  • Features:

    • Add a Gigabit Ethernet network connection to your computer through a USB Type-C port
    • Works with the newest MacBook, Chromebook Pixel™and other laptop and desktop computers with a USB-C port
    • Thunderbolt 3 port compatible
    • Add a USB Type-A port to your computer for connecting an additional peripheral device
    • Native driver support in Chrome OS™ and Windows®, and macOS
    • Powered directly from the USB port
    • Compact, lightweight design for maximum portability
    • Supports 10/100/1000 Mbps auto-detection
    • IEEE 802.3i, 802.3u and 802.3ab compatible
    • IEEE 802.1Q VLAN Tagging support
    • Built-in Checksum and Large Send Offload
    • Up to 4K Jumbo Frame support
    • Wake-On-LAN support
    • IEEE 802.3az Energy Efficient Ethernet support

  • Specifications:

    • Hardware
    • Bus Type: USB 3.1 Gen 1
    • Chipset ID: Realtek RTL8153, VLI VL817
    • Industry Standards: IEEE 802.3i (10BASE-T), IEEE 802.3u (100BASE-T), IEEE 802.3ab (1000BASE-T), IEEE 802.1q (VLAN Tagging)

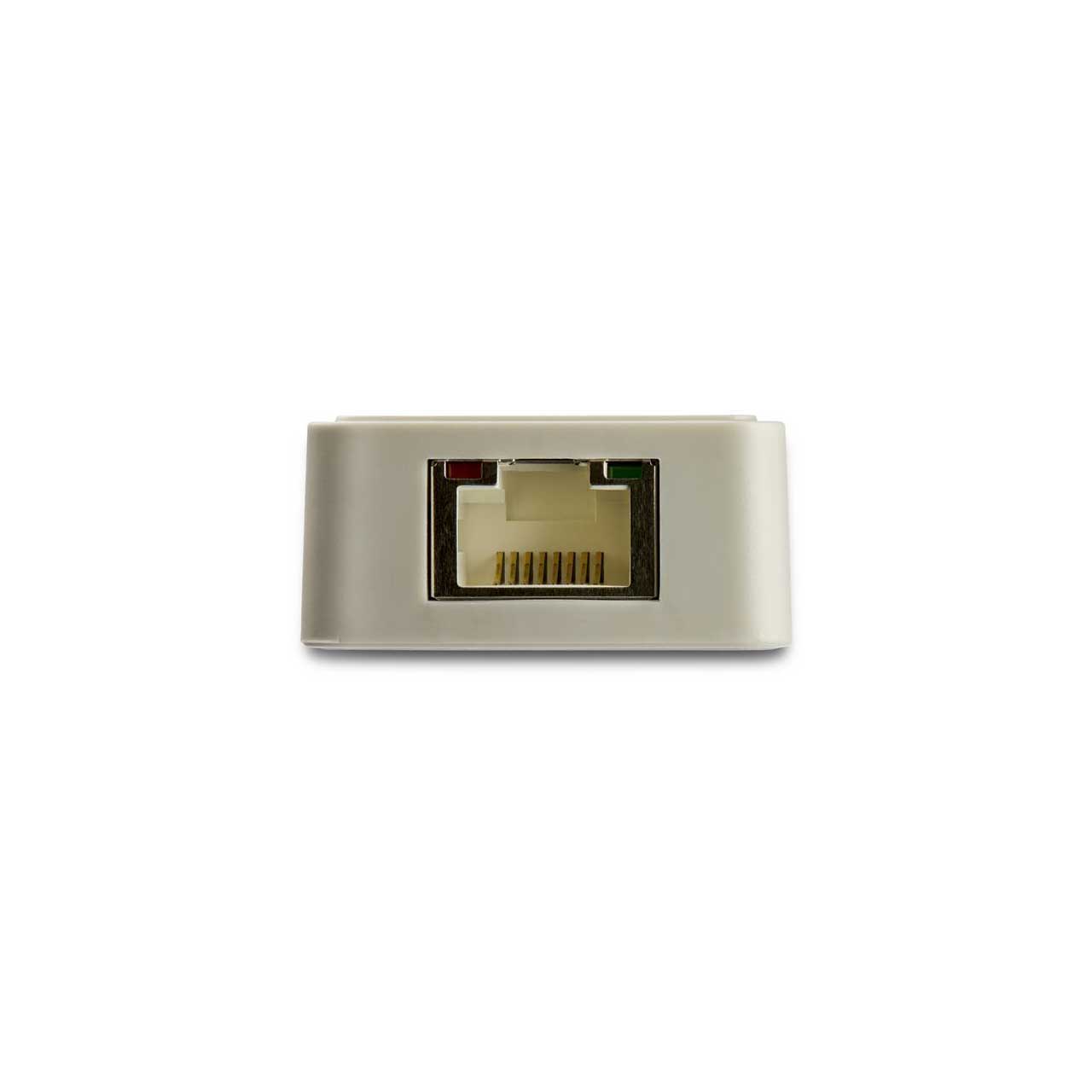

    • Interface: RJ45 (Gigabit Ethernet)
    • Ports: 1
    • USB Pass-Through: Yes

      Performance
    • Auto MDIX: Yes
    • Compatible Networks: 10/100/1000 Mbps
    • Full Duplex Support: Yes
    • Jumbo Frame Support: 9K max.
    • Maximum Data Transfer Rate: 5 Gbps (USB 3.1 Gen 1)
    • Promiscuous Mode: Yes

    • Connector Type(s)

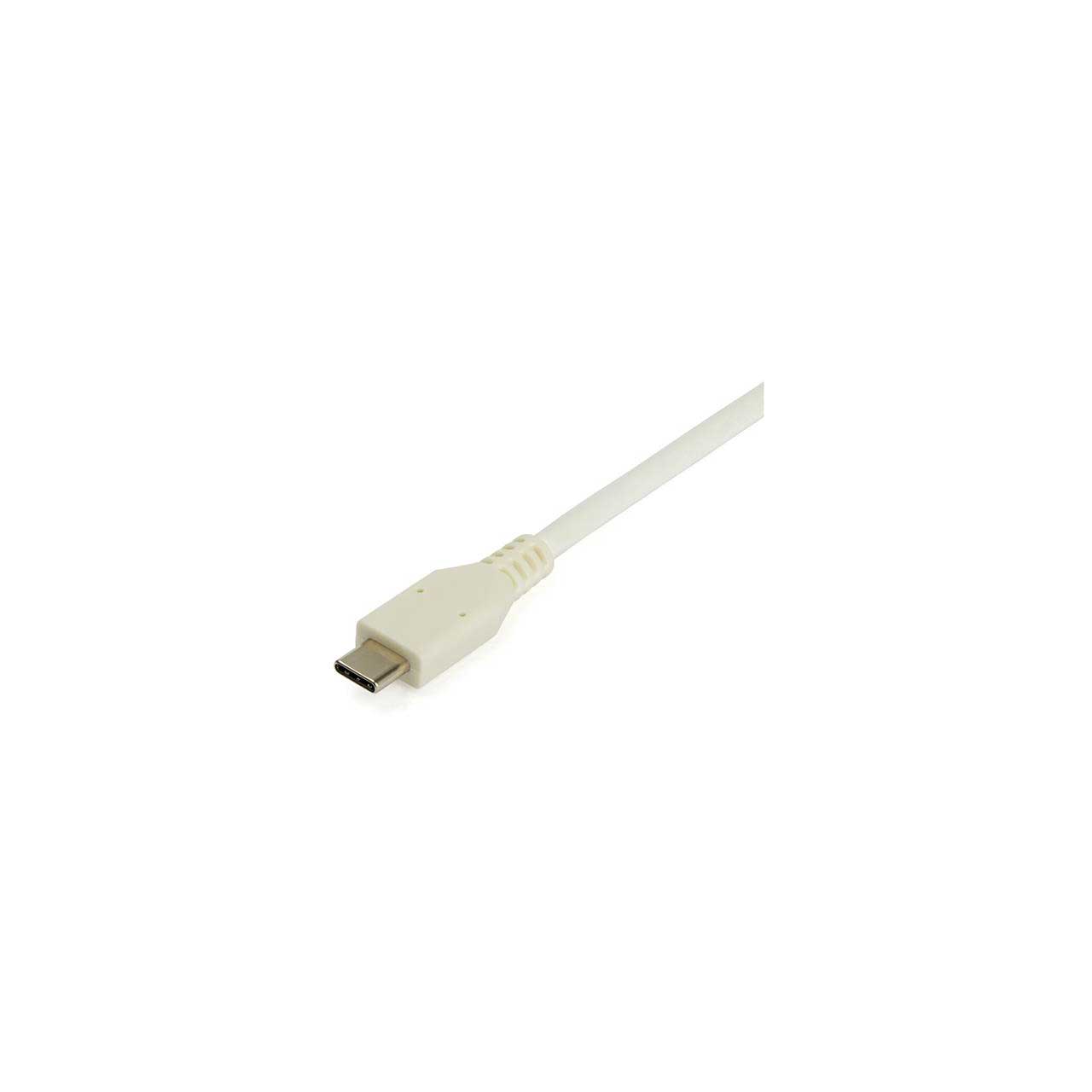

    • 1 - USB Type-C (24 pin) USB 3.0 (5Gbps) Male
    • External Ports: 1 - USB 3.1 USB Type-A (9 pin, Gen 1, 5 Gbps) Female, 1 - RJ-45 Latching Female

      Software
    • OS Compatibility: Windows® XP, Vista, 7, 8, 8.1, 10
    • Windows Server® 2003, 2008 R2, 2012
    • Mac OS® 10.11 to 10.14 VLAN tagging is currently not supported in Mac OS
    • Linux Kernel 2.6.25 to 4.11.x LTS Versions only
    • Chrome OS

      LED Indicators
    • 1 - Green: 10/100 Link/Activity
    • 1 - Amber: Gigabit Link/Activity

      Power
    • Power Source: USB-Powered

      Environmental
    • Humidity: 5% ~ 80% RH
    • Operating Temperature: 0°C to 50°C (32°F to 122°F)
    • Storage Temperature: -10°C to 60°C (14°F to 140°F)

      Physical Characteristics
    • Cable Length: 8 in [20.3 cm]
    • Color: White
    • Form Factor: Attached Cable
    • Material: Plastic
    • Product Height: 0.7 in [1.7 cm]
    • Product Length: 10.8 in [27.5 cm]
    • Product Width: 1.4 in [3.5 cm]
    • Weight of Product: 1.3 oz [38 g]

      Packaging Information
    • Package Height: 1.2 in [3 cm]
    • Package Length: 6.7 in [17 cm]
    • Package Width: 5.6 in [14.3 cm]
    • Shipping (Package) Weight: 3.2 oz [92 g]

  • Item Includes:

    • 1x USB-C to GbE Network Adapter

  • Warranty:

    • 2 Years

  • GTIN:

    0065030882941
