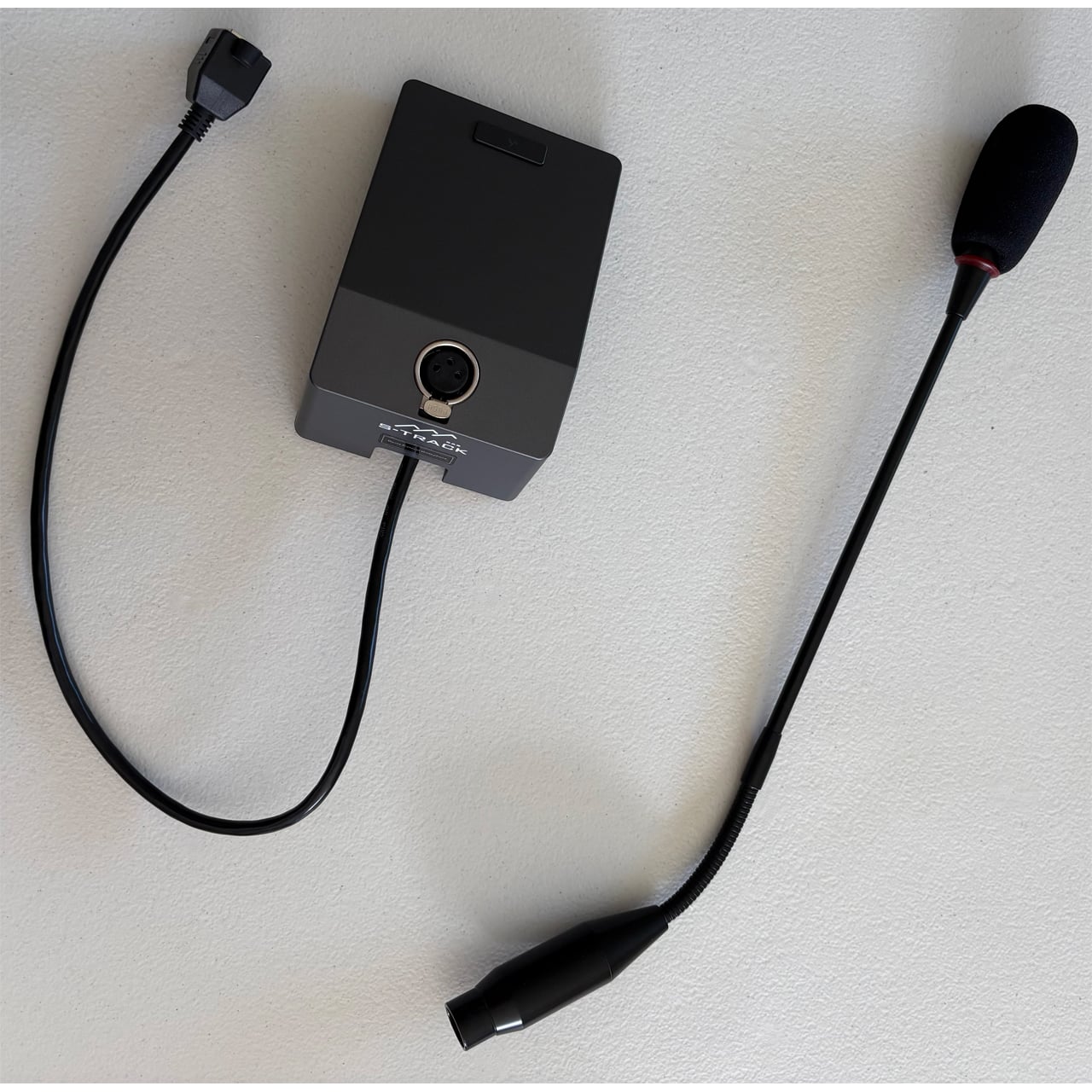

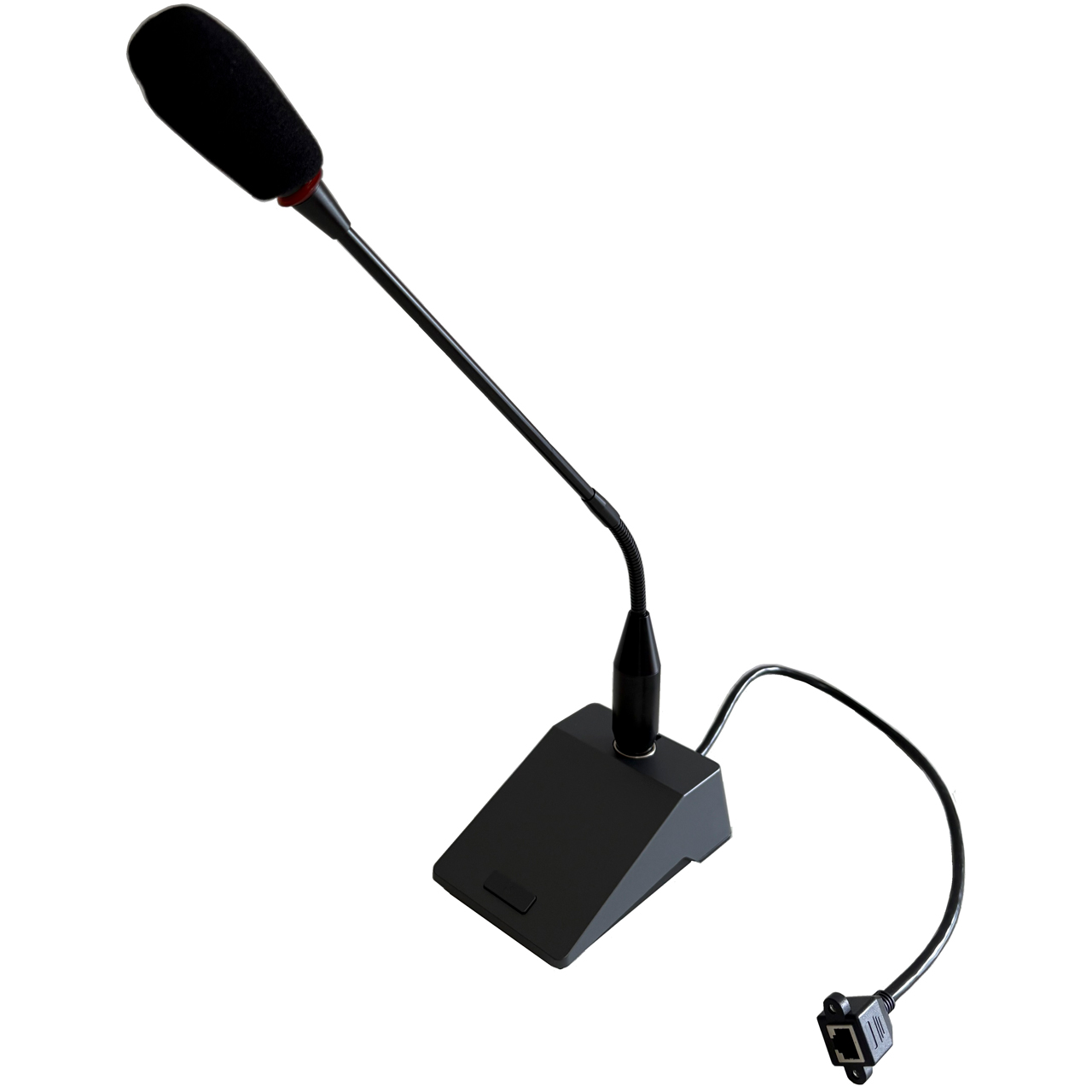

SAS S-Track PM-1 PoE Powered Dante Supercardioid Gooseneck Microphone with 24-Bit Network Audio and Mute Switch

PM1 - Overview

High-sensitivity condenser microphone!

• Features:

  • Supercardioid pickup pattern
  • 1x RJ45 output carrying 1x Dante audio channel
  • PoE powered via IEEE 802.3af/802.3at switch
  • Physical microphone on/off switch
  • Optimal pickup distance 10cm - -50cm
  • 48kHz/24-bit audio
  • Dante Controller routing


• Specifications:

  • Type: Dante PoE gooseneck microphone
  • Pickup: High-sensitivity condenser microphone
  • Output Interface: 1x RJ45, transmitting 1x channel of Dante network audio
  • Directionality: Supercardioid
  • Frequency Response: 100Hz -16kHz
  • Sensitivity: -40dB
  • Maximum SPL: 110dB
  • Equivalent Noise Level: >26dBSPL(A)
  • Signal-to-Noise Ratio: 66dB, 1kHz
  • Overload Harmonic Distortion: <1%
  • Sampling Rate: 48kHz
  • Bit Depth: 24-bit
  • Network Transmission: Dante IP/AES67/RTP Audio
  • Dante Device Latency: 1, 2, or 5ms (configurable)
  • Power Supply: 802.3af/802.3at standard PoE switch
  • Maximum Power Consumption: 1.5W
  • Microphone Pole Size: 16.54" (42cm)
  • Chassis Dimensions: 5.87" x 3.70" x 2.18" (149mm x 94.1mm x 55.4mm)
  • Weight: 1.98lbs (0.9kg)


• Warranty:

  • 2 Year Warranty
