AViPAS AV-3104 3D Joystick PTZ Camera Keyboard Controller with LCD Display
  • AViPAS AV-3104 3D Joystick PTZ Camera Keyboard Controller with LCD Display
  • AViPAS AV-3104 3D Joystick PTZ Camera Keyboard Controller with LCD Display

Questions? Ask a Markertek Expert:
800-522-2025 Email

AViPAS AV-3104 3D Joystick PTZ Camera Keyboard Controller with LCD Display

Manufacturer: AViPAS Inc

Item #: SWIT-AV-3104   •   MFG #: AV-3104



List Price:$300.00
Our Price:$280.00

free ship


Availability:
Direct Ship from manufacturer, contact us for availability
i
Item ships directly from the manufacturer and is subject to manufacturer availability. We will contact you with expected availability. You can also email [email protected], chat or call customer service (800)-522-2025 for expedited delivery options.



    California Residents:
    8pt-triangleWARNING:
    Cancer and Reproductive Harm - www.P65Warnings.ca.gov

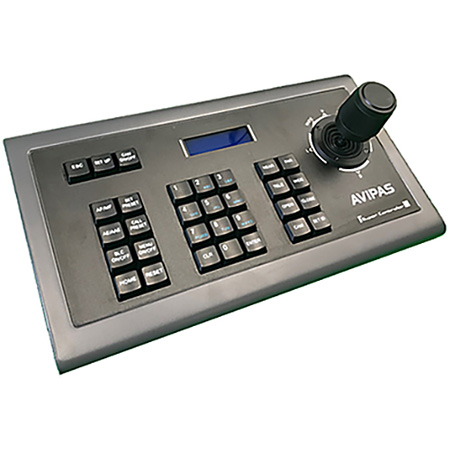

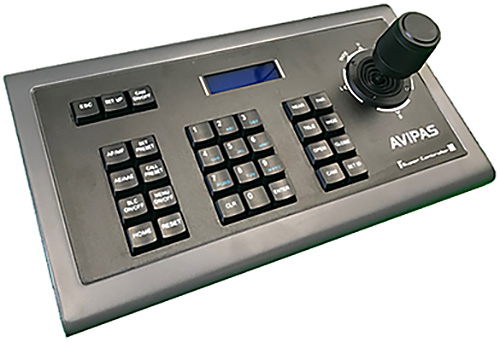

    Swit's AV-3104 is a 3D joystick PTZ camera keyboard controller with LCD Display. The electric outlet between the controlling keyboard and the receiving terminal is EIA/RS-485, which enables the keyboard to control as many as 64 PTZ cameras within a maximal communication range of 1.2 KM.


    • Features

      • Simultaneous pan/ tilt/ zoom control, adjustable speed
      • Communication: RS485 half-duplex, RS422 full duplex, RS232 serial
      • Support VISCA, Pelco-P and Pelco-D protocols
      • Baud Rate: 1200/ 2400/ 4800/ 9600 bps
      • LED status and menu display

    • Specifications

      • Communication Mode: RS485 half-duplex, RS-422 full duplex, RS-232 serial port
      • Baud Rate: 2400bps, 4800bps, 9600bps, 19200bps

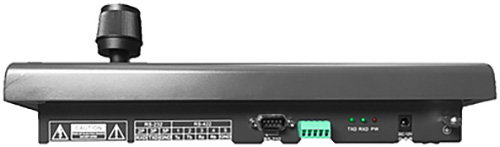

      • Interface: 5PIN Crimping terminal, RS-232 Port
      • Joystick: 3D control: up/ down/ left/ right/ rotate
      • Display: Backlight LCD screen
      • Input Voltage: DC12V ±10%
      • Power Consumption: 6W max
      • Temperature: 14°F - 122°F (-10°C - 50°C)
      • Humidity: ≥90%RH (No frosting)
      • Dimensions: 13" x 7" x 4" (320mm x 179.3mm x 106.4mm)

    • Item Includes

      • 1x AV-3104 Controller
      • 1x 5-pin plug
      • 1x DC-12V power adapter
      • 1x RS232 cable (9-Pin DB-9 Female to 8-Pin Mini-DIN Male)
      • 1x User manual
      • 1x Warranty card
