    ODT 1510 - Overview

    Please Note: Due to current global supply issues Lynx Technik is currently not accepting orders for this item at this time. Please contact us to help you select an alternate solution.

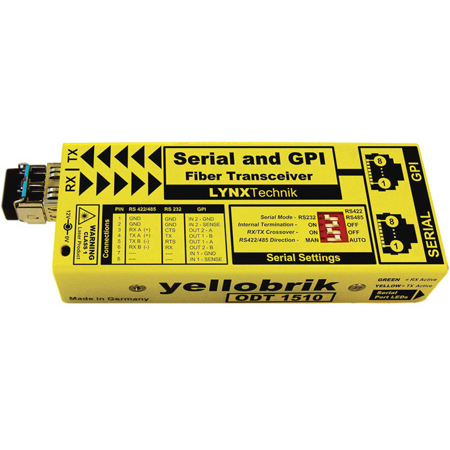

    The LYNX Technik ODT 1510 is a multi-function module which (when used with another ODT 1510 in the remote location) will extend the reach of serial RS232, RS422 or RS485 as well as two GPI (general purpose I/O) up to 10km (6.2 miles) over fiber.

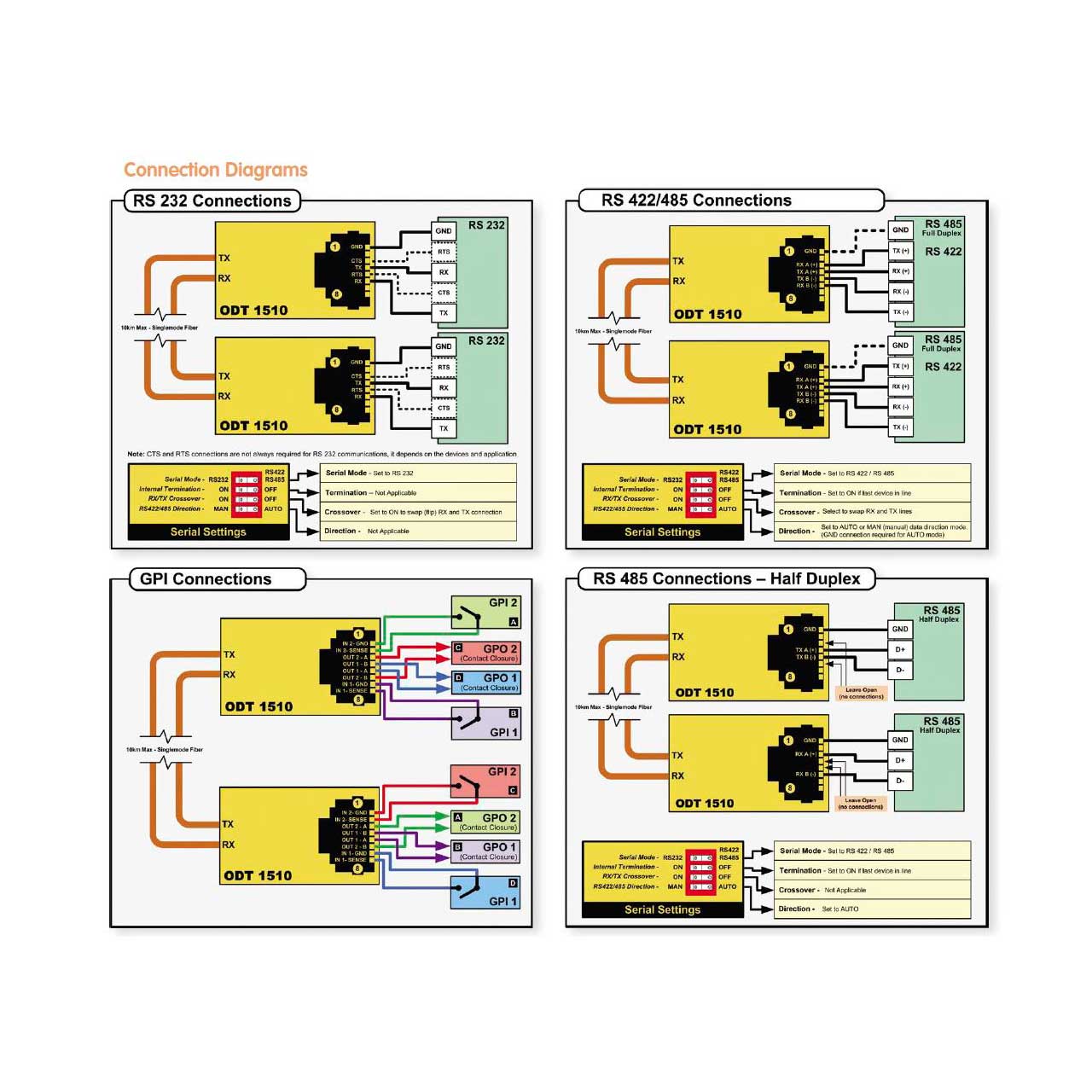

    A single RJ45 electrical serial connection can be configured for RS232, RS422 or RS485 serial standards. A separate RJ45 connector is provided for two electrical GPI inputs and outputs. Serial communications and GPI are transmitted and extended over the same fiber link.

    The ODT 1510 is completely agnostic to the serial protocol used and supports all standard protocols and proprietary protocols at data rates from 300 to 460K Baud (auto sensing and auto adjusting).

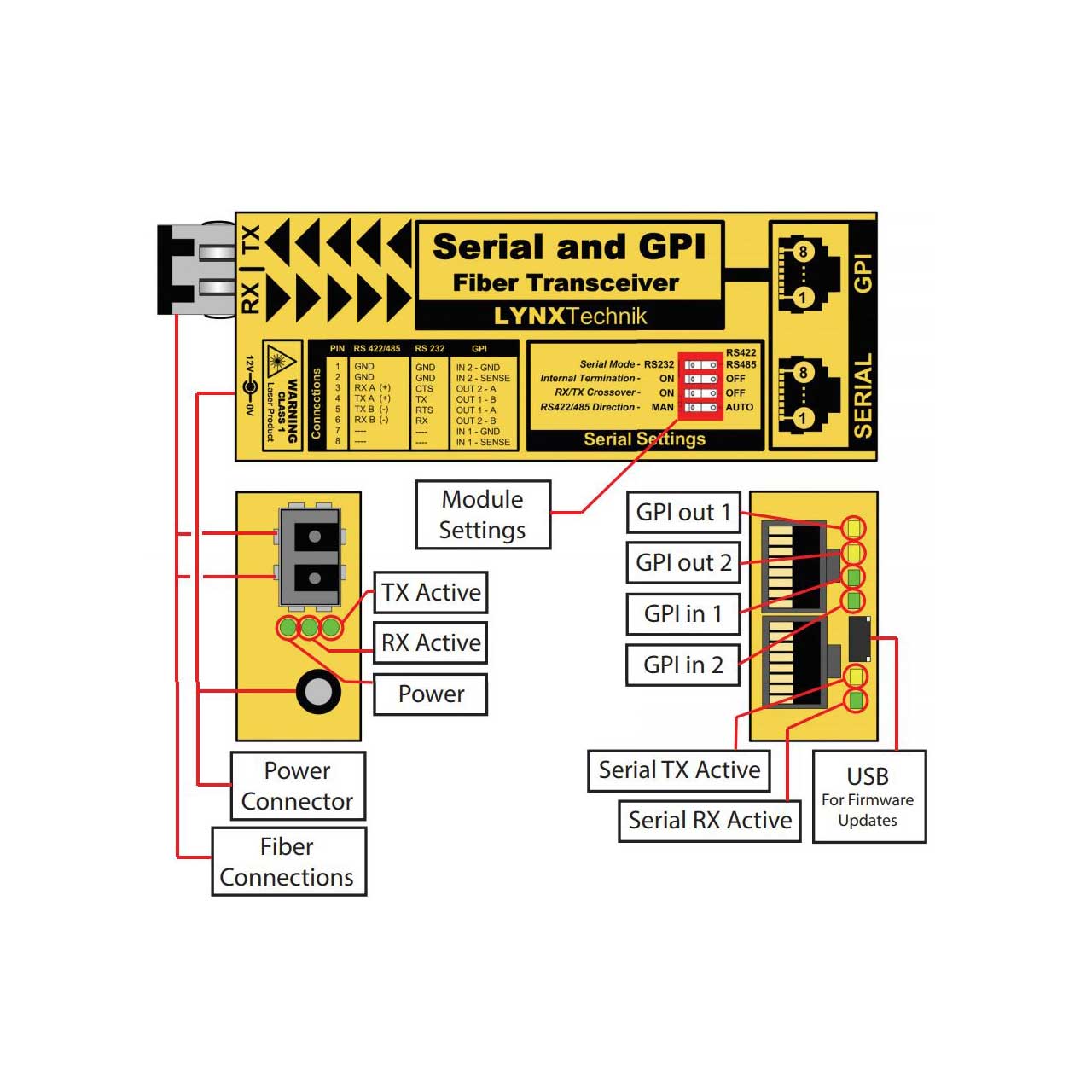

    The integrated dip switch provides precise control over the serial mode of operation with selections for the serial standard, serial termination, RX/TX crossover and RS422/485 data direction (automatic or manual). Data activity LEDs are provided for the serial port and the GPI port under the respective RJ45 connectors.

    The ODT 1510 also supports mixing and matching of serial standards. For example: the transmitting module can have a RS232 input, and the receiving module can be set for RS422 output.

    • Features:

      • Extend serial and GPI connections up to 10km
      • Supports serial RS232 or RS422 or RS485
      • 2 x GPI connections
      • Singlemode fiber 1310nm up to 10km (6.2 miles)
      • Multimode fiber 850nm up to 550m (1,804 feet)
      • LC/PC duplex fiber connections
      • Switchable RX/TX crossover
      • Automatic or manual data direction
      • Switchable end of line termination
      • `Plug and Play' - No PC software drivers needed
      • Supports all serial protocols (standard or proprietary)
    • Specifications:

      • Serial I/O
      • EIA/ETA RS232C / RS422 / RS485 (selectable)
      • Connector - RJ45
      • Baud rate - Auto sense and auto adjust from 300 to 460k
      • Serial setting dip switch provides settings for:
      • Select RS232 / RS422 / RS485 modes
      • Select serial termination (for end of line)
      • RX/TX crossover to flip the RX and TX if needed
      • Set RS422/485 data direction to automatic or manual if needed
      • LED status indicators (under RJ45 connector)
      • Serial TX activity + Serial RX activity
      • RS422/485 Max number of electrical nodes = 25
      • ESD protection for up to 26kV

        GPI I/O
      • 2x general purpose inputs + 2x general purpose outputs
      • Connector RJ45
      • GPI Inputs:
      • External passive closure between pins (short) to trigger
      • Max input switching frequency 25Hz (50 operations / second)
      • Input insulation 3.75kV
      • GPI Outputs:
      • Internal contact closure (relay)
      • Max switching frequency 25Hz (50 operations / second)
      • Max switching power 220VDC / 0.25A or 250VAC / 0.25A
      • Output insulation 3.75kV
      • LED status indicators (under RJ45 connector)
      • GPI Input 1 activity / GPI Input 2 activity
      • GPI Output 1 activity / GPI Output 2 activity

        Fiber Optic
      • 1 x Fiber output (TX) and 1x Fiber input (RX)
      • Singlemode fiber or Multimode fiber. LC/PC connections
      • Singlemode Version: ODT 1510
      • TX wavelength 1310nm, power -3dBm
      • RX input range 1260nm to 1620nm, sensitivity -3dBm to -21dBm
      • Max. Distance 10km (6.2 miles)
      • Multimode Version: ODT 1510 MM
      • TX wavelength 850nm, power -2dBm to -7dBm
      • RX input 850n, sensitivity 0dBm to -15dBm
      • Max. Distance 550m (1804 feet)
      • RX and TX activity LEDs on side of module next to fiber I/O

      • Power: +12VDC @ 2.0W nominal - ( supports 7 - 15VDC input range )
      • Size: 120 x 42 x 22mm (4.73 x 1.65 x 0.86") including connectors
      • Weight: 125g (4.4oz)
      • Ambient: 41 - 104°F 90% Humidity (non condensing)
    • Item Includes:

      • 1 x ODT 1510 Module
      • 1 x AC Power Supply
      • 2 x Module Mounting Brackets
      • 1 x Plastic Transport Case
