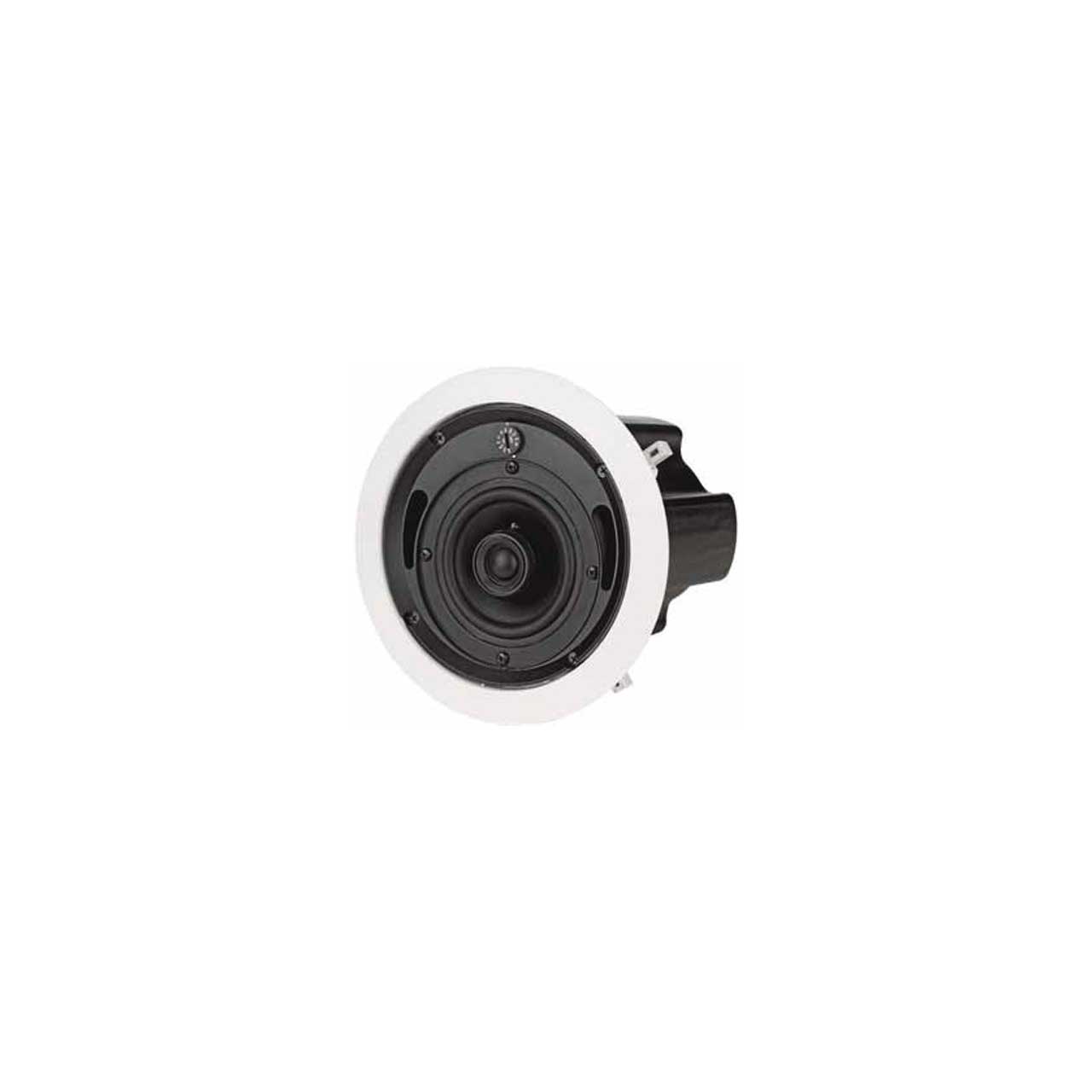

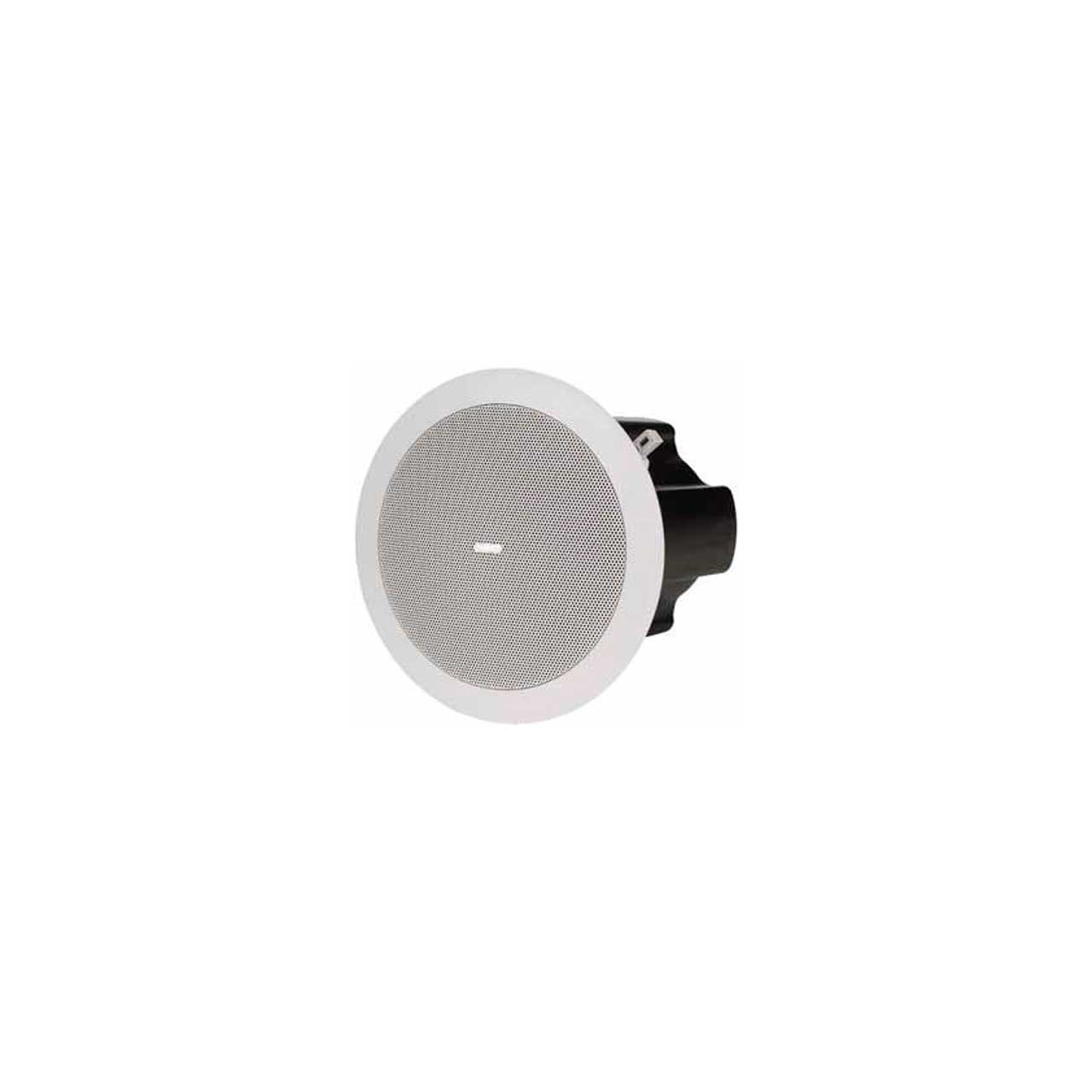

Tannoy CVS4 Coaxial Ceiling Speaker - Pair
  • Tannoy CVS4 Coaxial Ceiling Speaker - Pair
  • Tannoy CVS4 Coaxial Ceiling Speaker - Pair
  • Tannoy CVS4 Coaxial Ceiling Speaker - Pair

Questions? Ask a Markertek Expert:
800-522-2025 Email

Tannoy CVS4 Coaxial Ceiling Speaker - Pair

Manufacturer: Tannoy Ltd.

Item #: TAN-CVS4   •   MFG #: CVS4




Our Price:$266.00

free ship


Availability: Usually ships in 3-10 business days
i
This item is currently out of stock and will ship the minute we receive it – typically 3-10 business days. Need it sooner? Expedited delivery options may be available. Email [email protected] or call customer service at 800-522-2025 and we'll make it happen.


  • Special Order Item: non-cancelable, non-returnable, non-refundable.


Share!

California Residents:
8pt-triangleWARNING:
Cancer and Reproductive Harm - www.P65Warnings.ca.gov





The compact, small footprint CVS 4 is a 100mm (4") full bandwidth blind mount model, specifically designed for all applications requiring the combination of excellent sonic quality for music and speech reinforcement,exceptional reliability and most critically - affordability.

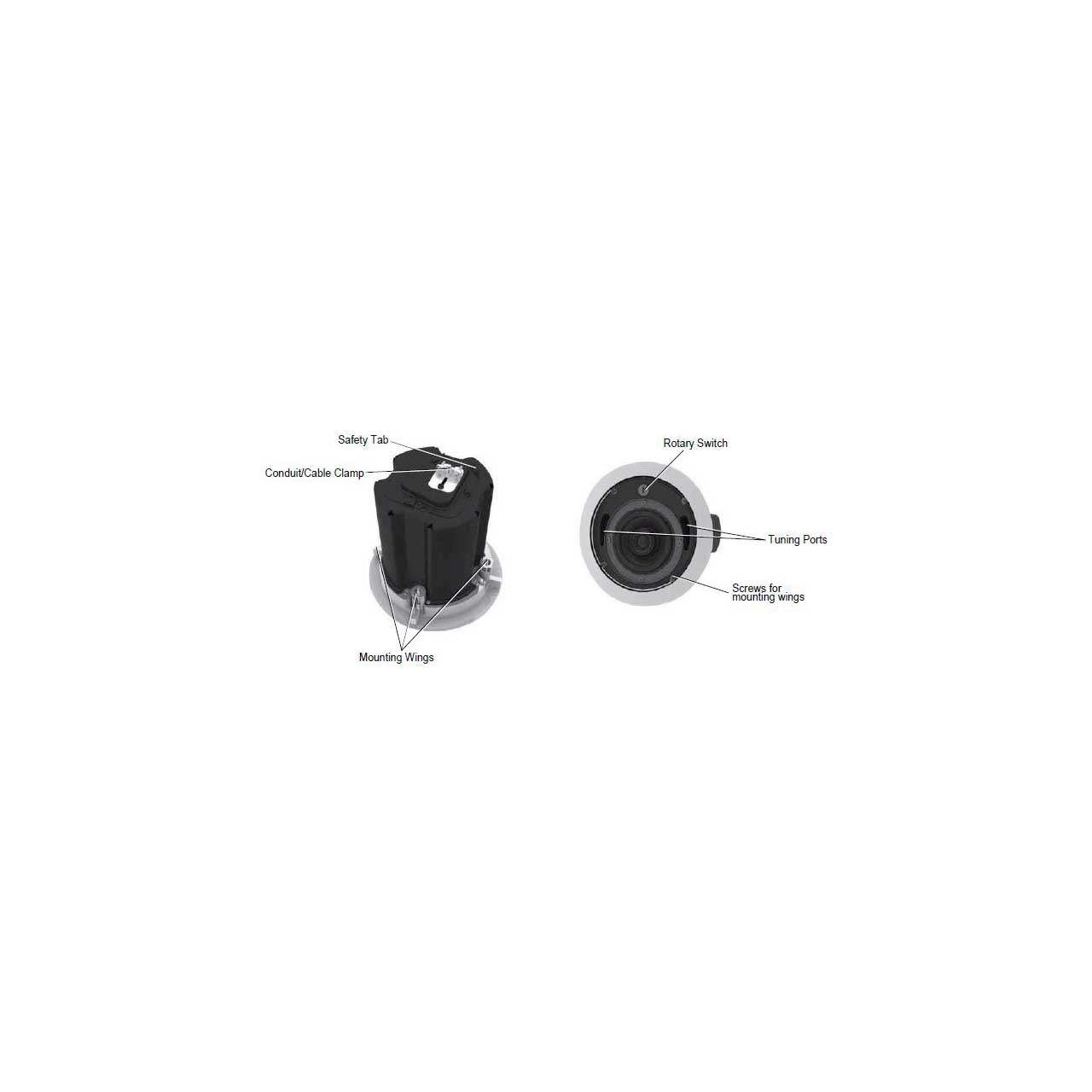

The CVS 4 is supplied with an integral zinc-plated steel back can, with recessed termination box, the removable locking connector has screw terminals for secure wire termination and "loop through" facility. Strain relief is provided by a clamping mechanism for use with plenum rated cable or conduit. The drive unit itself is mounted in a vented, injection moulded, paintable front baffle manufactured from UV / weather resistant UL94V-0 ABS material.

An integral low insertion loss 30 W line transformer uses an easily accessible front baffle mounted rotary tapping switch to select between low impedance and 70 V or 100 V operation.

APPLICATIONS
Ballrooms and convention Centres
Bars & Restaurants
Casinos
Concourses
Conference rooms
Fitness Centres & Leisure Facilities
Hotels
Museums & Galleries
Retail Spaces & Malls


  • Features

    • Coaxially mounted 100mm (4") mineral loaded woofer with rubber surround and 19mm (0.75") soft dome diffraction loaded tweeter.
    • High power & high sensitivity with extended frequency response and very low distortion
    • Wide, controlled constant directivity dispertion for optimum coverage.
    • UV/weather resistant UL94V-0 ABS front baffle
    • Easily accessible tapping switch on front baffle.
    • Low insertion loss 30 W line transformer
    • Ferrofluid cooled neodymium HF
    • Packaged with tile rails and C-ring for quick & easy installation and simple stocking logistics

  • Specifications

    • PERFORMANCE
    • Frequency Response (-3dB) (1): 85Hz - 19kHz
    • Frequency Range (-10dB) (1): 77Hz - 22kHz
    • System Sensitivity (1W @1m) (2): 87dB (1W = 2.45V for 6 Ohms)
    • Nominal Coverage Angle: 90 degrees conical
    • Coverage Angle (1kHz to 6kHz): 102 degrees conical
    • Directivity Factor (Q): 5.6 averaged 1kHz to 6kHz
    • Directivity Index (DI): 7.1 averaged 1kHz to 6kHz
    • Rated Maximum SPL: Average:103dB; Peak: 109dB
    • Power Handling (3): Average: 40W; Programme: 80W; Peak: 160W
    • Recommended Amplifier Power: 80W @ 6 Ohms
    • Nominal Impedance: 6 Ohms
    • Transformer Taps (via front rotary switch): 70V: 30W / 15W / 7.5W / 3.75W / OFF & low impedance operation; 100V: 30W / 15W / 7.5W / OFF & low impedance operation
    • Crossover: 2.7kHz
    • TRANSDUCERS
    • Low Frequency: 100mm (4.00") mineral loaded cone
    • High Frequency: 19mm (0.75") coaxially mounted
    • PHYSICAL
    • Enclosure Back Can: Zinc plated steel; Baffle: Reflex loaded UL 94V-0 rated ABS ; Grille: Steel, with weather resistant coating
    • Safety Features: Safety ring located at rear of enclosure for load bearing safety bond
    • Clamping Design: Security toggle clamp
    • Cable Entry Options: Cable clamp & squeeze connector for conduit up to 22mm
    • Connectors Removable locking connector with screw terminals with "loop through" facility
    • Safety Agency Ratings: UL-1480, UL-2043, CE
    • Hole Cutout Diameter: 180mm (9.84")
    • Dimensions: Bezel diameter: 213.0mm (8.39"); Front of ceiling to rear of back can: 202.5mm (7.97"); Front of ceiling to top of safety loop: 214.9mm (8.46")
    • Net Weight (ea): 2.60kg

  • Item Includes

    • INCLUDED ACCESSORIES
    • C Ring
    • Tile bridge
    • Paint mask
    • Cutout template
    • Grille

  • GTIN:

    5035866142309
