Pure Resonance Audio C3 3 Inch Micro Speaker with Drywall Mounting Ring

ITEM #: PRA-C3-DM-KIT MFG #: PRA-C3-DM-KIT

Primary Image
Free Shipping with $49 Minimum Order

List Price:

$102.99

Our Price:

$84.99

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup


    PRA-C3-DM-KIT - Overview

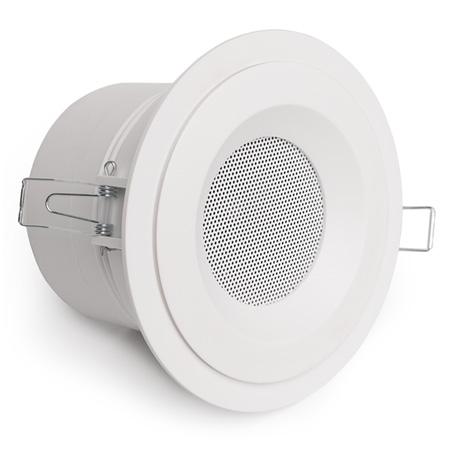

    C3 3" Drywall Mount Ceiling Speaker
    The Pure Resonance Audio PRA-C3-DM-KIT 3" ceiling speaker with drywall mounting ring kit is designed for installing into conventional drywall ceilings with no above ceiling access. The intelligent modern design of the drywall mounting ring recesses the speaker into the ceiling and blends seamlessly with the aesthetics offering a simple and attractive way to create the perfect atmosphere in any flat or smoothly textured ceiling.

    With 8 ohm and commercial 70 volt audio taps, the C3 speaker is designed to provide excellent sound quality for a wide variety of business music sound system applications such as background music, paging, and sound masking. Compact and lightweight, the Pure Resonance Audio C3 3" micro speaker fits beautifully into the drywall mounting ring and produces quality sound and excellent dispersion of both music and vocals. Because of its small size, the C3 speaker is great for installations where architectural or aesthetic considerations require a small format speaker.

    The C3 drywall mounting ring is quick and easy to install. After you cut your hole into the drywall ceiling, the mounting ring simply pops in and the C3 ceiling speaker smoothly twists into the mount.

    • Features:

      • Quick and Easy to Install - Ideal for hard, flat drywall ceilings, simply twist on the drywall mounting ring and you're ready to install
      • Compact and Lightweight - The C3 provides the smallest possible footprint while maintaining quality sound
      • 70-Volt and 8-Ohm Taps - The built-in 70-volt and 8-ohm taps make the C3 perfect for background music in commercial environments
      • Stylish Design - The intelligent, stylish design that won't distract from the ceiling design
      • Multi-Application - The C3 ceiling speaker is perfect for providing background music for offices, retail stores, coffee shops, restaurants, hotels, foyers, hallways, auxiliary spaces and more
      • No Hardware Needed - The unique drywall mount design requires no additional hardware to install onto the C3 speaker, just screw on the mounting ring

    • Specifications:

      • Frequency Response: 120Hz - 20kHz
      • Low Frequency (-10 dB): 180 Hz - 20 kHz
      • Impedance: 8 ohms with 70V transformer (built-in)
      • Maximum Input Voltage: 17 dBV (7.1V, 6W into 8Ω)
      • Power Taps @ 70V: 1.5W / 3W / 5W
      • Power Taps @ 100V: 3W / 6W / 10W
      • Transducer: Full-range 3" driver
      • Nominal Coverage Angle: 130° Conical Coverage
      • 180° Coverage Angle: -1 dB @ 1.25 kHz, -5 dB @ 2.5 kHz
      • 140° Coverage Angle: -10 dB @ 10 kHz
      • Sensitivity SPL: 85 dB @ 1W/1 m
      • Maximum SPL: 89.6 dB referenced @ 1m
      • Cutout Size: 4.25" (107.95 mm)
      • Drywall Ring (Dia): 5.125" (130.18 mm)
      • Bezel (Dia): 4.88" (123.83 mm)
      • Mounting Depth (Dia x D): 4.125" (104.78 mm) x 3.16" (80.16 mm) without connector. 4.125" (104.78 mm) x 3.88" (98.43 mm) with connector

    • Item Includes:

      • 1x C3 3" Micro Ceiling Speaker
      • 1x Drywall Mounting Ring

    • Warranty:

      • Speakers: 2 Years
      • Amplifiers & Electronics: 1 Year
      • Microphones: 1 Year
      • Accessories: 1 Year
