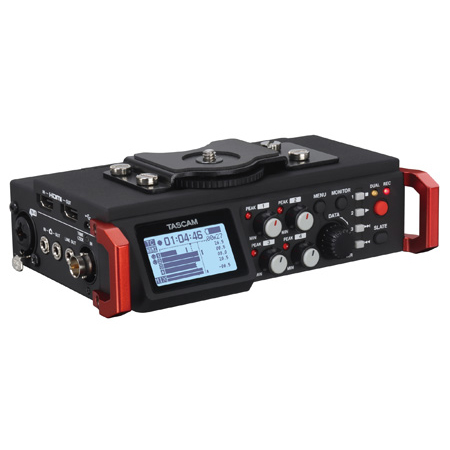

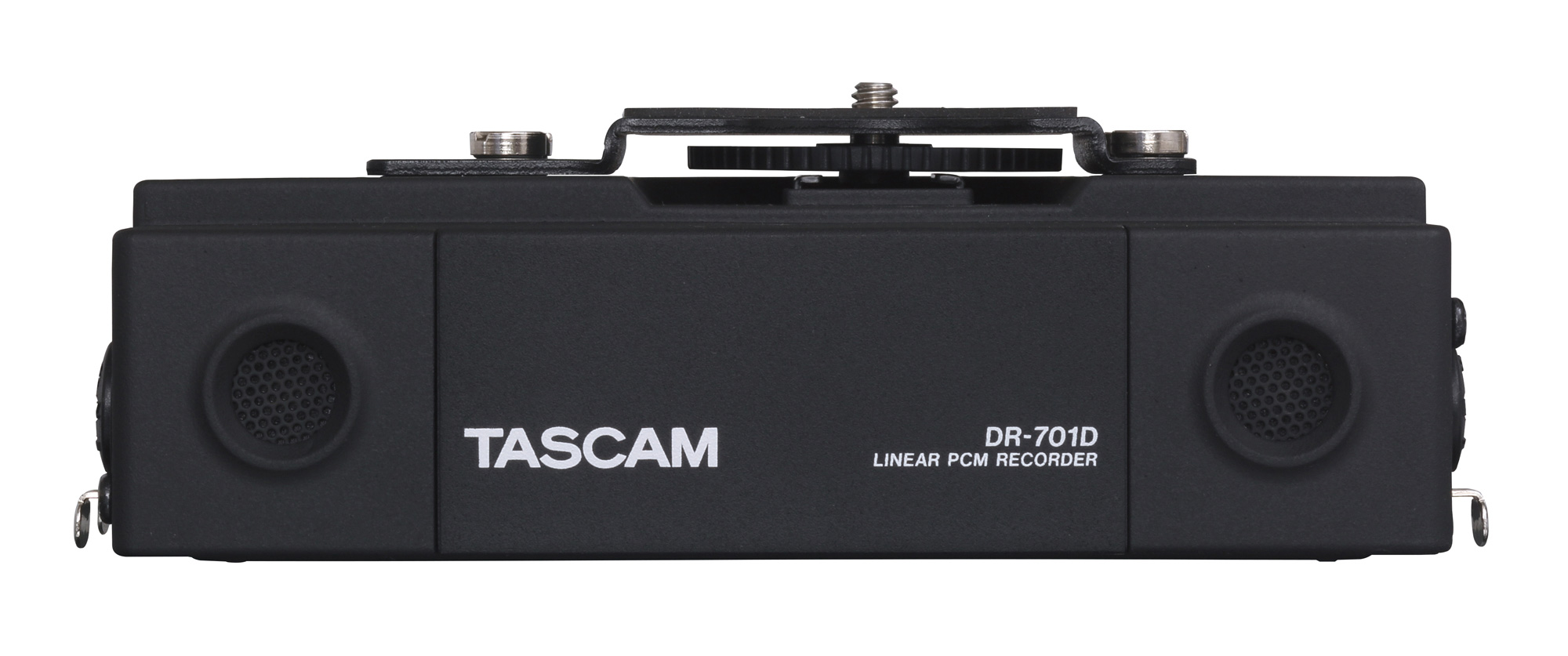

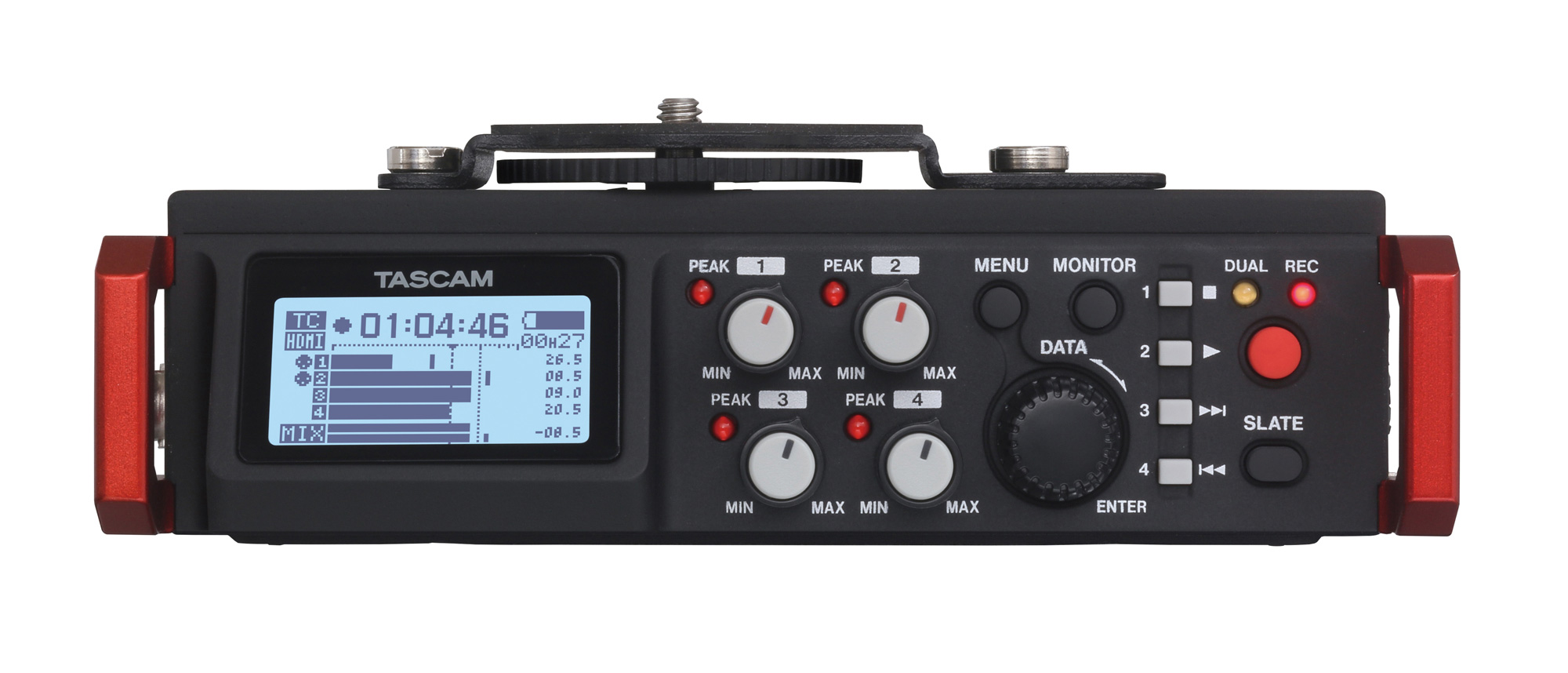

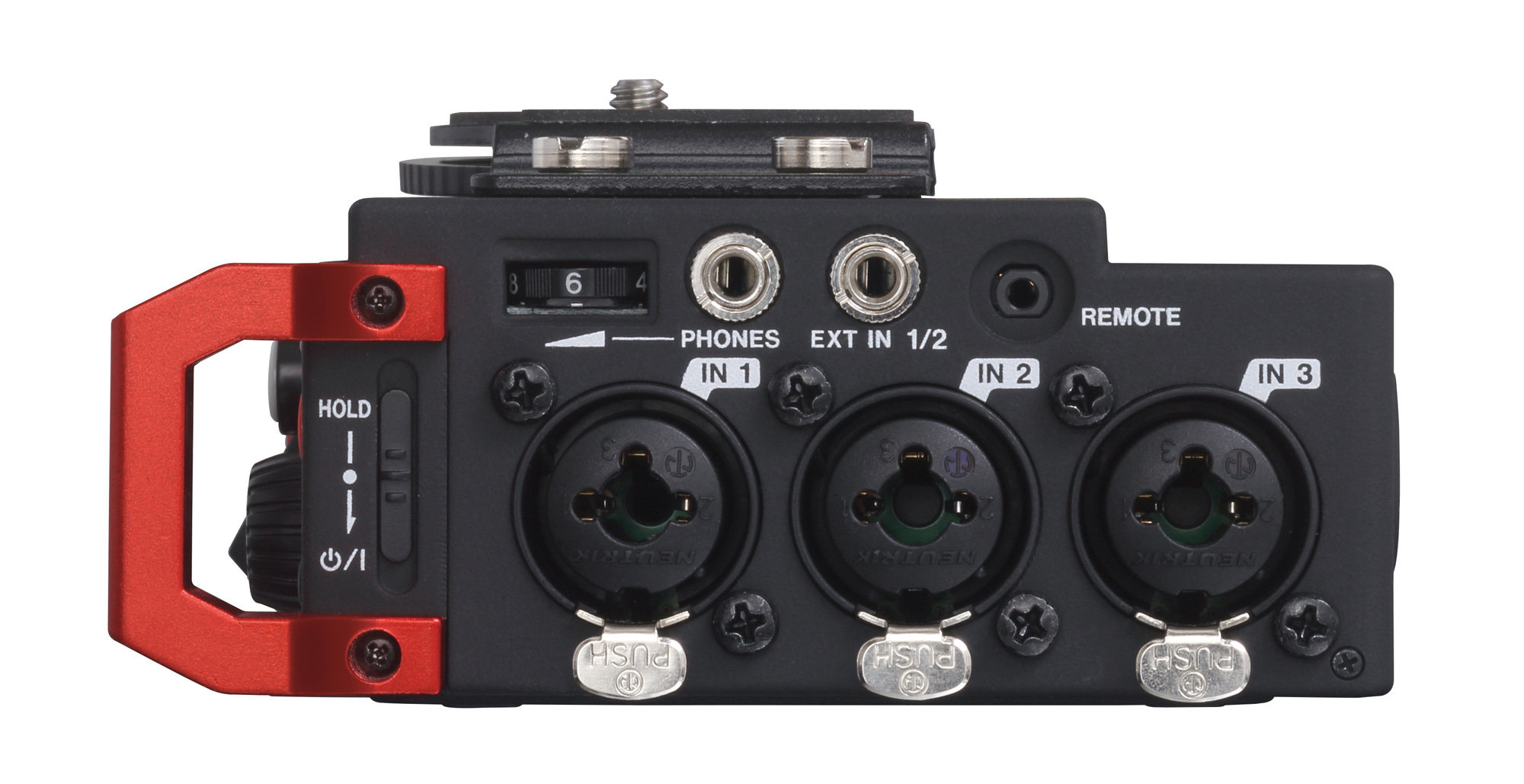

Tascam DR-701D 6-Track Field Recorder for DSLR with SMPTE Timecode - Li-Ion

ITEM #: TCM-DR-701D MFG #: DR-701D

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the TCM-DR-701D

DR-701D - Overview

The DR-701D is TASCAM's flagship recorder for single-shooter video production. A timecode generator is included for location reference, which can be jam synced from a SMPTE generator, camera, or smart slate. The HDMI in and out allows a DSLR camera to start recording on both devices, and video clock prevents drift between sound and picture.

Four mic inputs can be individually recorded and mixed to a stereo track, for a total of six-track recording. For additional tracks, multiple units can be cascaded together. The lightweight yet rigid chassis is forged from a magnesium alloy. Tripod mounts on the top and bottom of the unit allow the unit to mount under a camera, attach to a follow-focus cage, or used stand-alone.

Designed for the needs of professional filmmakers, television producers, advertisers, and documentarians, the DR-701D packs high quality multitrack recording into a package compact enough for use with any camera.

PLEASE NOTE: This product contains Lithium Ion Batteries. Due to FAA regulation this item is restricted to ground transportation in the lower 48 contiguous states and cannot ship to Alaska, Hawaii or Puerto Rico.

  • Features:

    • 6-track recording (4 tracks + L-R stereo mix)
    • Perfect camera sync using HDMI video clock synchronization
    • One button press on the camera starts sound recording on the DR-701D
    • Cascade feature for additional track recording
    • SMPTE timecode stores time data in recorded audio files
    • The magnesium-alloy chassis is lightweight yet rugged enough for daily on-set use
    • High-quality HDDA (High Definition Discrete Architecture) mic preamps
    • Multiple mic inputs support various recording options
    • Multiband limiter and 5-stage low-cut filter built-in
    • Record the built-in stereo mic together with external mics
    • A temperature-compensated crystal oscillator (TCXO) provides a solid internal clock
    • Designed for use with video and DSLR cameras

  • Specifications:

    • Recording media SD card(64MB to 2GB), SDHC card(4GB to 32GB), SDXC card(48GB to 128GB)
    • Recording format
    • WAV 44.1k/48k/96k/192k Hz, 16/24-bit
    • BWF 44.1k/48k/96k/192k Hz, 16/24-bit
    • Number of input channels
    • 44.1k/48k/96k Hz 4 maximum
    • 192kHz 2 maximum
    • Number of recording tracks
    • 44.1k/48k/96k Hz 6 maximum
    • 192kHz 2 maximum
    • Analog audio inputs *The maximum input level the level that the input knob can be adjusted and a digital full-scale(0dBFS) signal can be input without distorting.
    • *The minimum input level is the level that the input knob can be adjusted and a -20dBFS signal can be input.
    • IN 1, IN 2, IN 3, IN 4 XLR can provide phantom power
    • Connectors XLR-3-31 (1:GND, 2:HOT, 3:COLD)
    • 6.3mm(1/4")standard TRS jacks(tip:HOT, Ring:COLD, Sleeve:GND)
    • Input gain "LOW"/"MID"/"HI"/"HI+"
    • Input impedance 2k ohms
    • Phantom power 48V +/-4V(10mA/CH), 24V +/-4V(10mA/CH)
    • Maximum input level +4dBu
    • Minimum input level -72dBu
    • MIC input gain TRIM MAX
    • LOW +20dB
    • MID +40dB
    • HI +52dB
    • HI+
    • +64dB
    • Input gain "LINE"
    • Input impedance 10k ohms
    • Nominal input level +4dBu
    • Maximum input level +24dBu
    • Power Source 4x AA batteries (alkaline, NiMH or lithium) AC adapter (TASCAM PS-P515U, sold separately) External battery pack (TASCAM BP-6AA, sold separately)

  • GTIN:

    0043774031986
