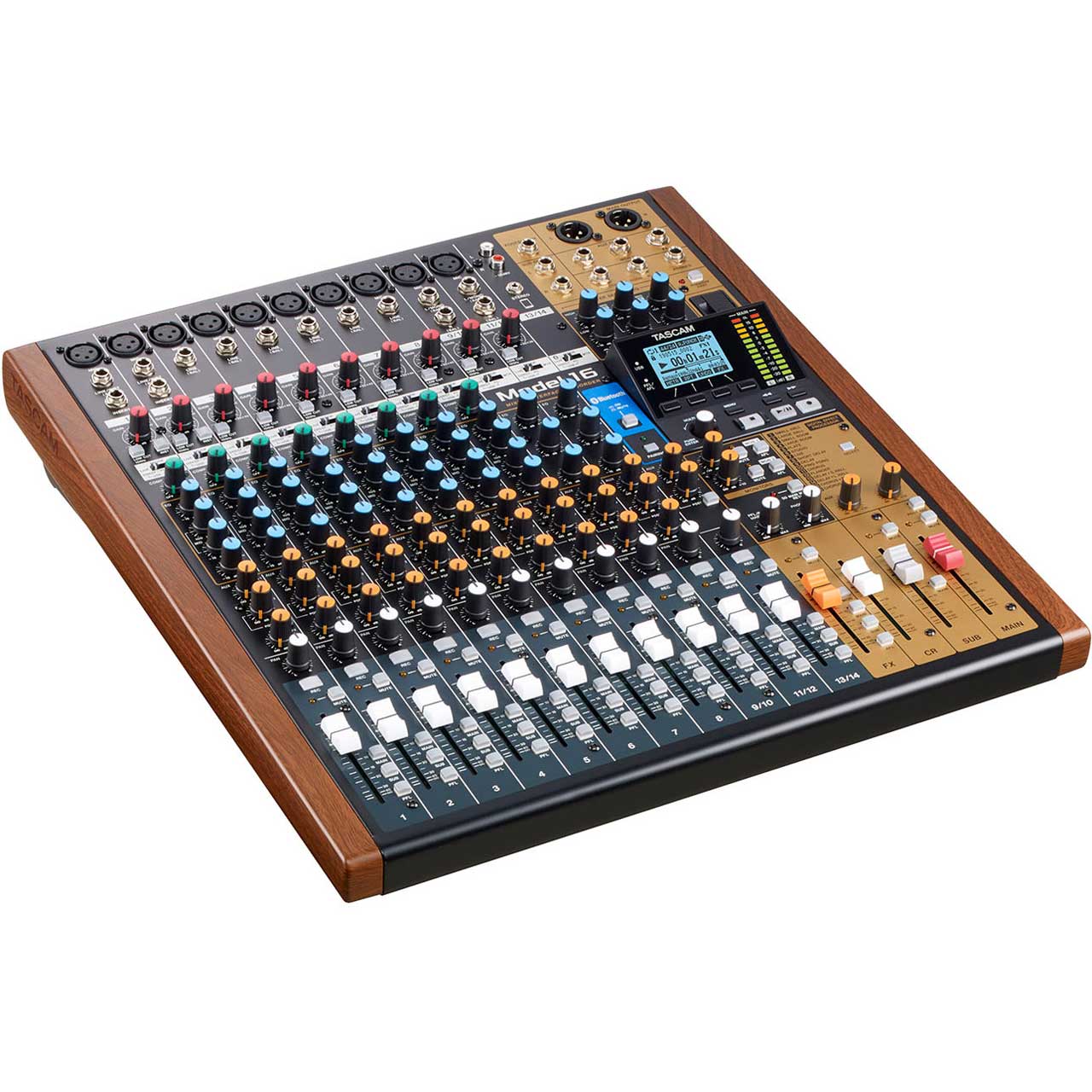

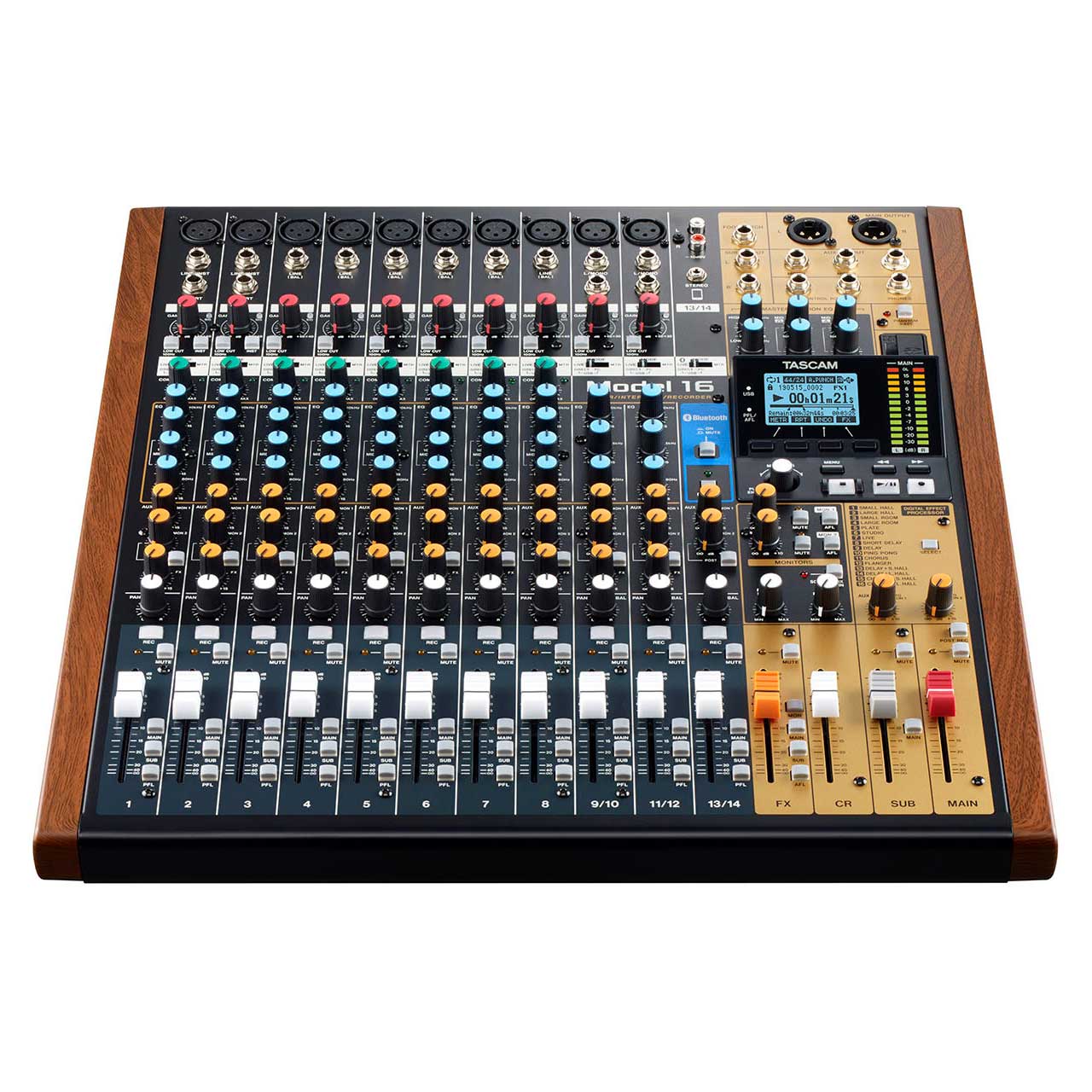

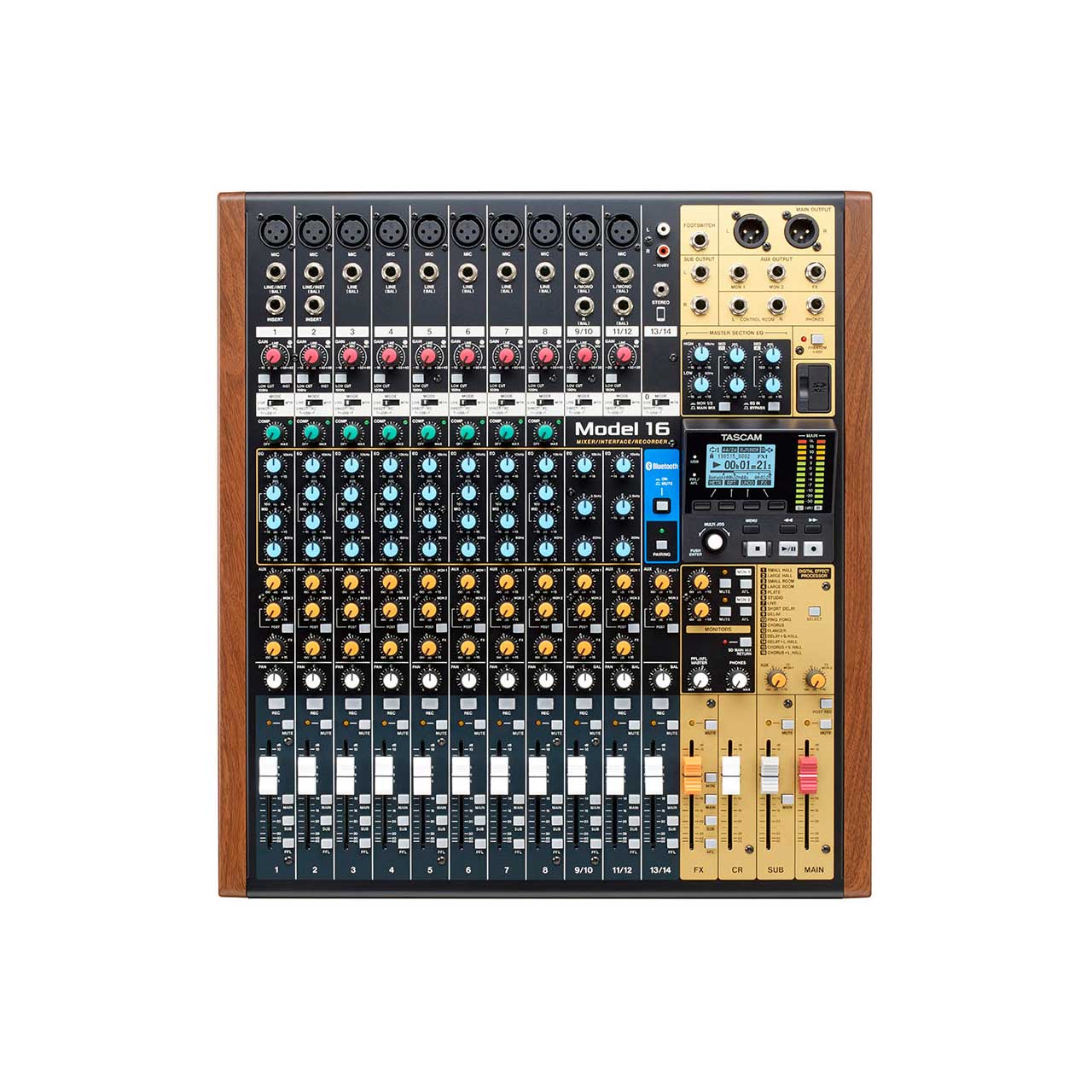

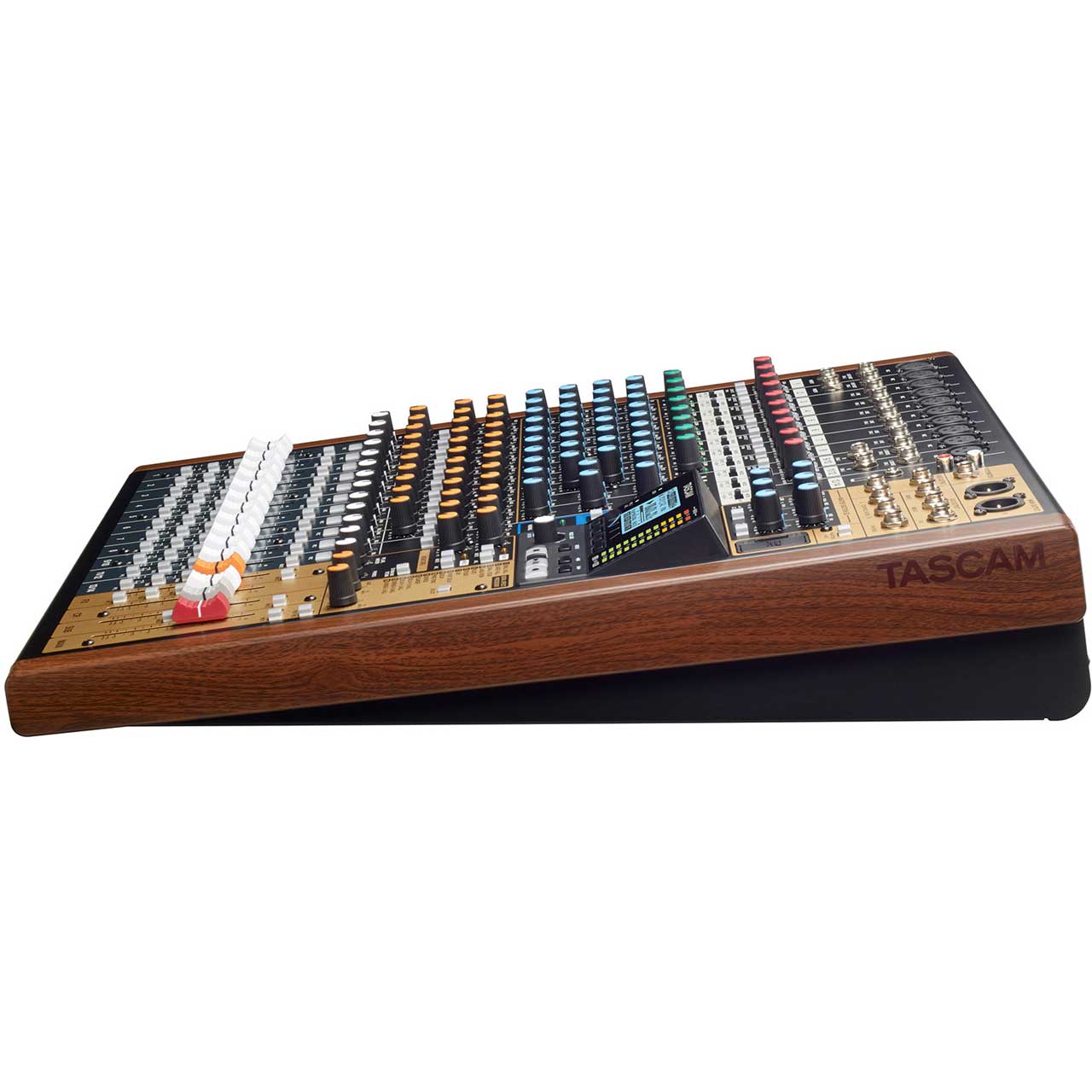

Tascam MODEL-16 - 16-Channel Mixer/Recorder/Interface

MODEL-16 - Overview

• Features:

  • 16-track multi-track recorder (WAV, up to 48kHz/24-bit) to SD, SDHC & SDXC cards (Class 10 or higher required)
  • Punch in/out capability (up to 8 tracks simultaneously)
  • Built-in USB Audio Interface to send/receive (16-in/14-out) audio data to/from DAW
  • 14 inputs (10 Monaural XLR/TRS balanced and 2 Stereo-paired TRS balanced)
  • 10 mic Pre-amps utilizing TASCAM Ultra-HDDA Mic Pre-amp technology (CH 1 - 8)
  • Pre-amp Gain Controller with Signal/Over-load Indicator (CH 1 - 12)
  • Input Mode switch (LIVE/USB/MTR) per input channel
  • 1-knob compressor (CH 1 - 8)
  • 3-band EQ with a sweep-able mid-range frequency (CH 1 - 8)
  • 100Hz Low-cut Filter (CH 1 - 12)
  • Phantom Power (+48V) for all XLR inputs
  • 3 AUX Outputs (MON 1[pre], MON 2[pre/post], FX[post])
  • Mute, MAIN/SUB, PLF switches per input channel
  • Bluetoothr 5.0 input supporting both AAC and SBC codecs
  • LINE Inputs via RCA Pin and 1/8" Stereo Mini jacks (CH 13/14)
  • Hi/Lo shelf, wide and narrow-Q semi-parametric EQs (for Main and SUB outputs)
  • 16 Editable Multi-Effects:
    SMALL HALL
    LARGE HALL
    SMALL ROOM
    LARGE ROOM
    PLATE
    STUDIO
    LIVE
    SHORT DELAY
    DELAY
    PINGPONG
    CHORUS
    FLANGER
    DELAY + S.HALL
    DELAY+ L.HALL
    CHORUS + S.HALL
    CHORUS + L.HALL
  • MAIN Output via XLR balanced and SUB Output via TRS balanced connectors
  • 1 Stereo Output for Control Room
  • 1/4" Stereo Headphone Output
  • REMOTE connector for a Foot Switch (TASCAM RC-1F)
  • Self-emitted buttons for key operations such as REC and Play for better status legibility
  • Comprehensive simplified menu tree
  • Multi Jog-dial for quick menu operation
  • 19-inch rack mountable with optional Model 16 rackmount kit
  • FAUX wood Side Panels (Removable)


• Specifications:

  • Recording Section
  • Supported Media (Class 10 or higher required):
    SD (512MB - 2GB)
    SDHC (4GB - 32GB)
    SDXC (64GB - 512GB)
  • File System:
    SD card: FAT16
    SDHC card: FAT32
    SDXC card: exFAT
  • Recording File/Playback Format: WAV (BWF)
  • Sampling Frequency: 44.1k/48kHz
  • Bit Depth: 16/24 bit
  • Max. Recordable Channel Number: 16ch (14ch + 2 stereo mix)

    MIC Inputs
  • Connector: XLR 3-31
  • Max. Input Level: 10dBu
  • Nominal Input Level: -8dBu
  • Min. Input Level: -58dBu
  • Gain Adjustable Range: 0dB - 50dB
  • Input Impedance: 1.8kΩ
  • Phantom Power Supply: 48V

    LINE & INST Inputs
  • Connector: 1/4" TRS Phone jack
  • Max. Input Level: 22dBu
  • Nominal Input Level: 4dBu
  • Gain Adjustable Range:
    -10dB - 40dB: CH 1 - 8
    20dB - 30dB (LINE): CH 9/10 and 11/12
  • Input Impedance:
    22kΩ
    10MΩ

    INSERT - CH 1 & 2
  • Connector: 1/4" TRS Phone jack
  • Max. Input/Output Level: 18dBu
  • Nominal Input/Output Level: 0dBu
  • Input Impedance: 10kΩ
  • Output Impedance: 100Ω

    RCA Input
  • Connector: RCA Pin jack (Unbal.)
  • Max. Input Level: 8dBV
  • Nominal Input Level: -10dBV
  • Input Impedance: 10kΩ

    STEREO Input
  • Connector: 3.5mm Stereo Mini jack (Unbal.)
  • Max. Input Level: 8dBV
  • Nominal Input Level: -10dBV
  • Input Impedance: 10kΩ

    MAIN Output
  • Connector: XLR 3-32
  • Max. Output Level: 22dBu
  • Nominal Output Level: 4dBu
  • Output Impedance: 100Ω

    SUB, MONITOR, FX, CONTROL ROOM Outputs
  • Connector: 1/4" TRS Phone jack
  • Max. Output Level: 16dBu
  • Nominal Output Level: -2dBu
  • Output Impedance: 100Ω

    PHONES Output
  • Connector: 1/4" Stereo Phone jack
  • Output Level: 80mW + 80mW (32Ω loaded)

    USB Audio
  • Connector: USB B type 4-pin
  • Format: USB 2.0 High-Speed, Mass-storage class/USB Audio Class
  • Sampling Rate: 44.1k/48kHz
  • Bit Depth: 16/24 bit
  • Max. Input/Output: 16ch

    Channel EQ
  • Low-Cut: 100Hz, -18dB/Octave
  • Hi-Shelving: 15dB/-15dB, Cut off frequency = 10kHz
  • Mid - Peaking:
    MONO: 15dB/-15dB, 100Hz - 8kHz Variable
    STEREO: 15dB/-15dB, Center frequency = 600Hz
    MID Band Q Fix, 0.55
  • Low-Shelving: 15dB/-15dB, Cut off frequency = 80Hz

    Master Section EQ
  • Hi-Shelving: 15dB/-15dB, Cut off frequency = 10kHz
  • MID-WIDE - Peaking: 15dB/-15dB, 100Hz - 8kHz Variable, Q: 0.5 FIX
  • MID-NARROW - Peaking: 15dB/-15dB, 100Hz - 8kHz Variable, Q: 5 FIX
  • Low-Shelving: 15dB/-15dB, Cut off frequency = 60Hz


  • Residual Output Noise: -100dBu (MAIN OUT, MAIN fader: MIN)
  • Equivalent Input Noise: -127dBu (Mono Input Channel, Rs: 150Ω knob: Max)
  • Total Harmonic Distortion:
    0.01% or less (MIC IN to MAIN OUT, Max input level, 10dBu, 1kHz, GAIN min.)
    0.004% or less (MIC IN to MAIN OUT, nominal input level, 4dBu, 1kHz, GAIN min.)
  • Frequency Response:
    20Hz - 30kHz (0.5/-1.0dB: Analog)
    20Hz - 20kHz (0.5/-1.0dB: Digital)
  • Crosstalk: -80dB, channels/input and output (1kHz, PAN fully counter clockwise / fully clockwise)
  • Maximum Gain:
    74dB (MIC->MAIN OUT)
    50dB (MIC->INSERT OUT)
    74dB (MIC->SUB OUT)
    79dB (MIC-CR OUT)
    75dB (MIC->MONITOR OUT)
    75dB (MIC->FX OUT)
    24dB (USB/SD -> MAIN OUT)
  • Remote Connector: 1/4" TS Phone jack
    *Compatible with TASCAM RC-1F Foot Switch
  • Power: AC 100 - 240V, 50/60Hz
  • Power Consumption: 40W
  • Operating Temperature: 41°F - 95°F (5°C - 35°C)
  • Dimensions (HxWxD): 4.45" x 16.9" x 18.2" (112.9mm x 430mm x 463mm)(including knob height and protrusion)
  • Weight: 15.4lbs (7kg)


• GTIN:

  0043774034079
