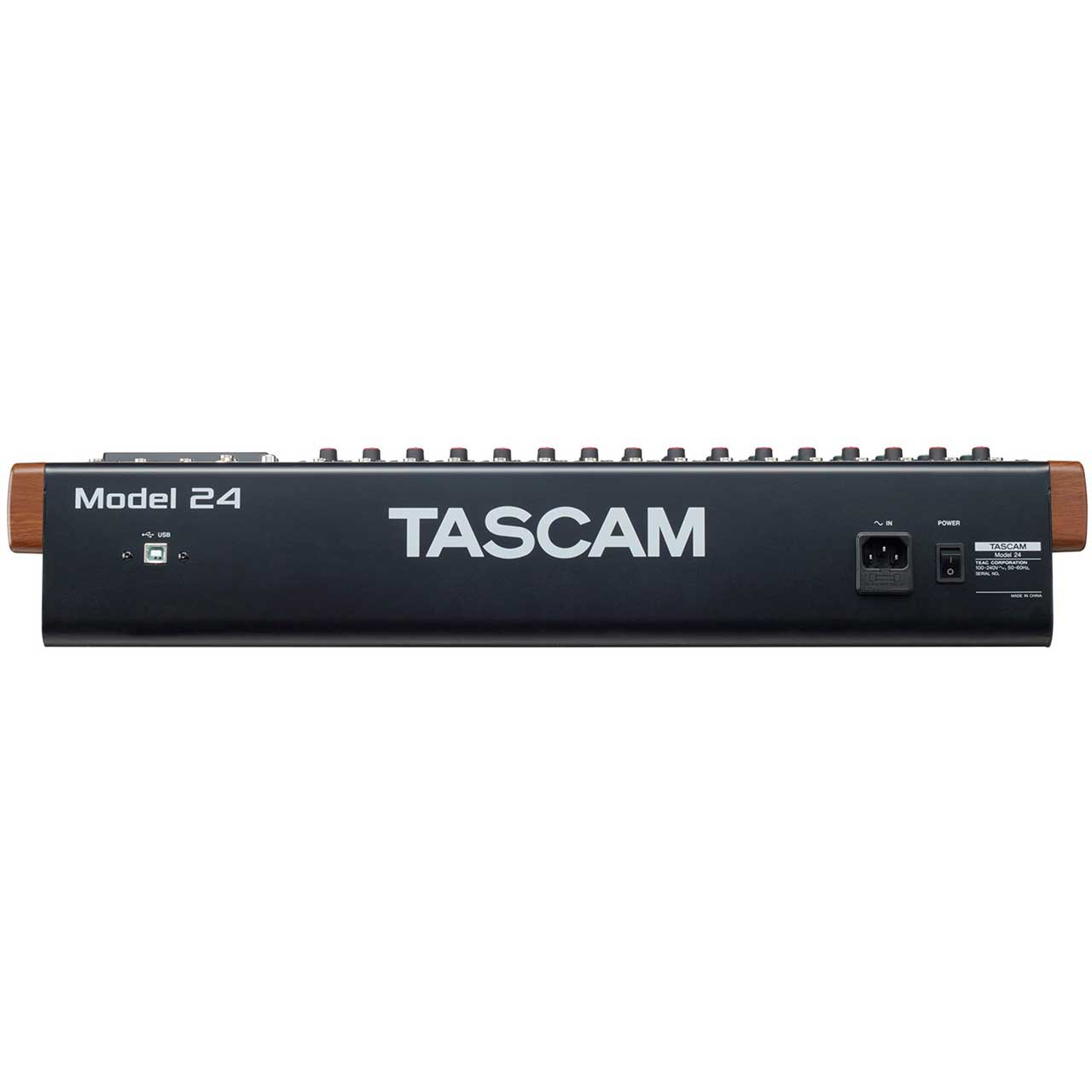

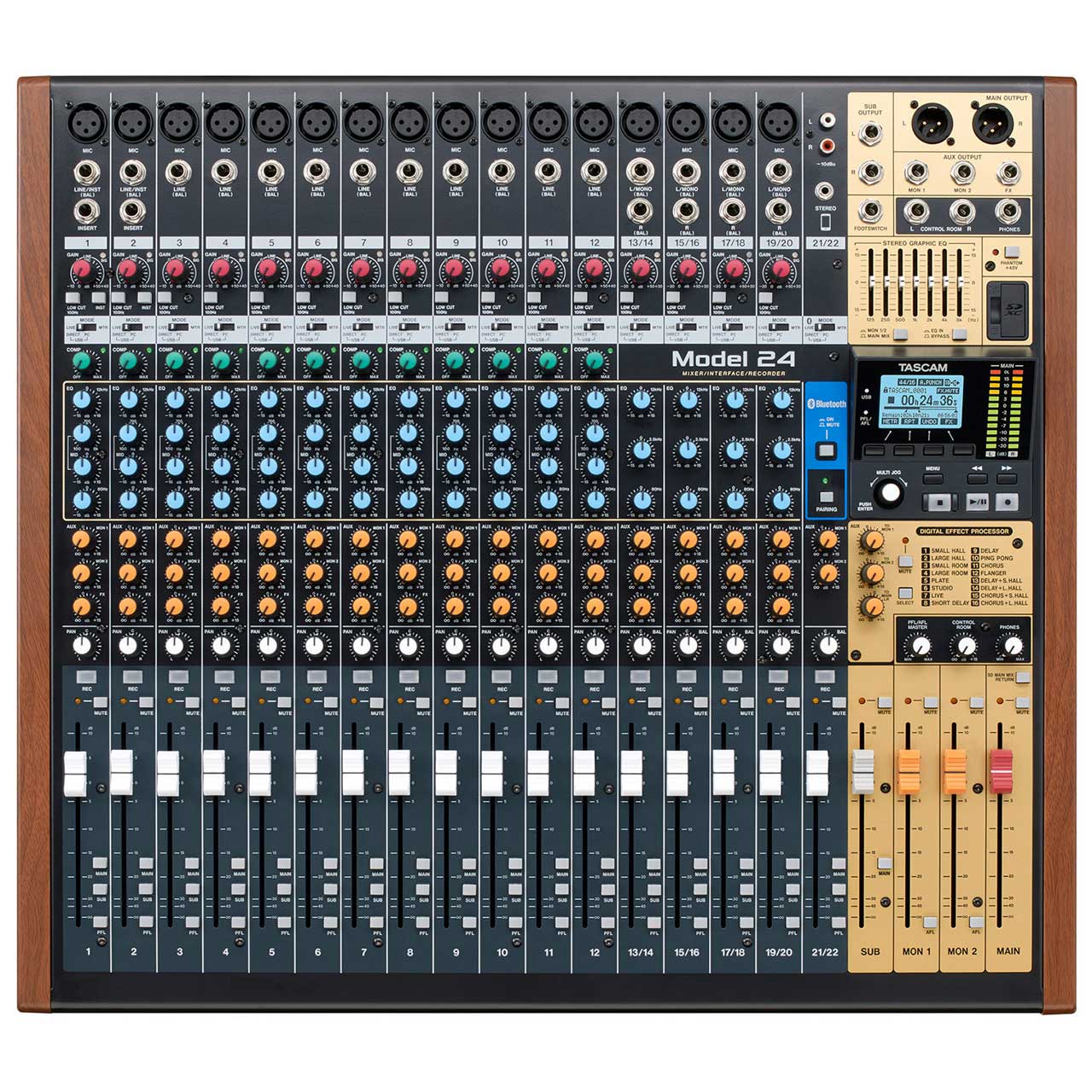

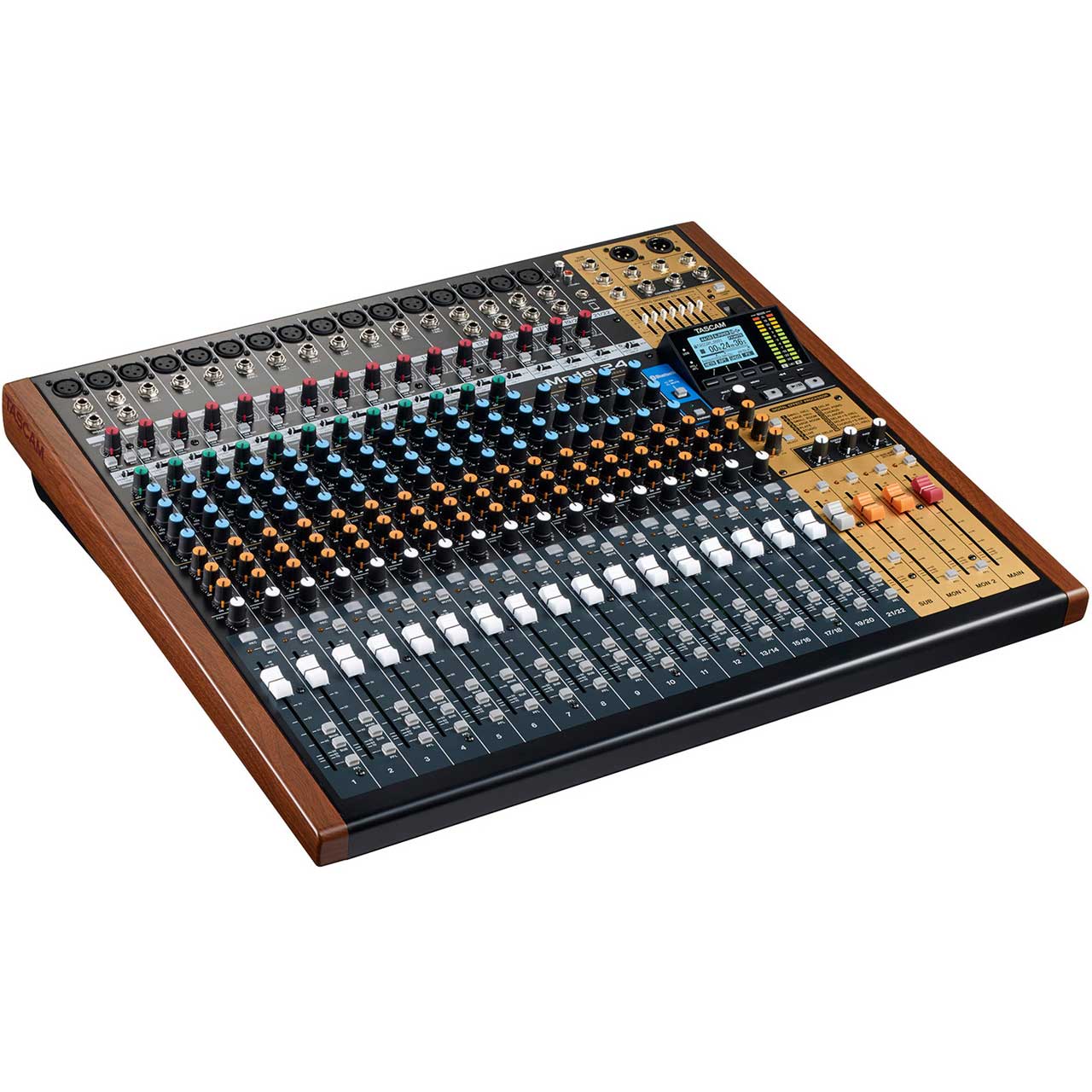

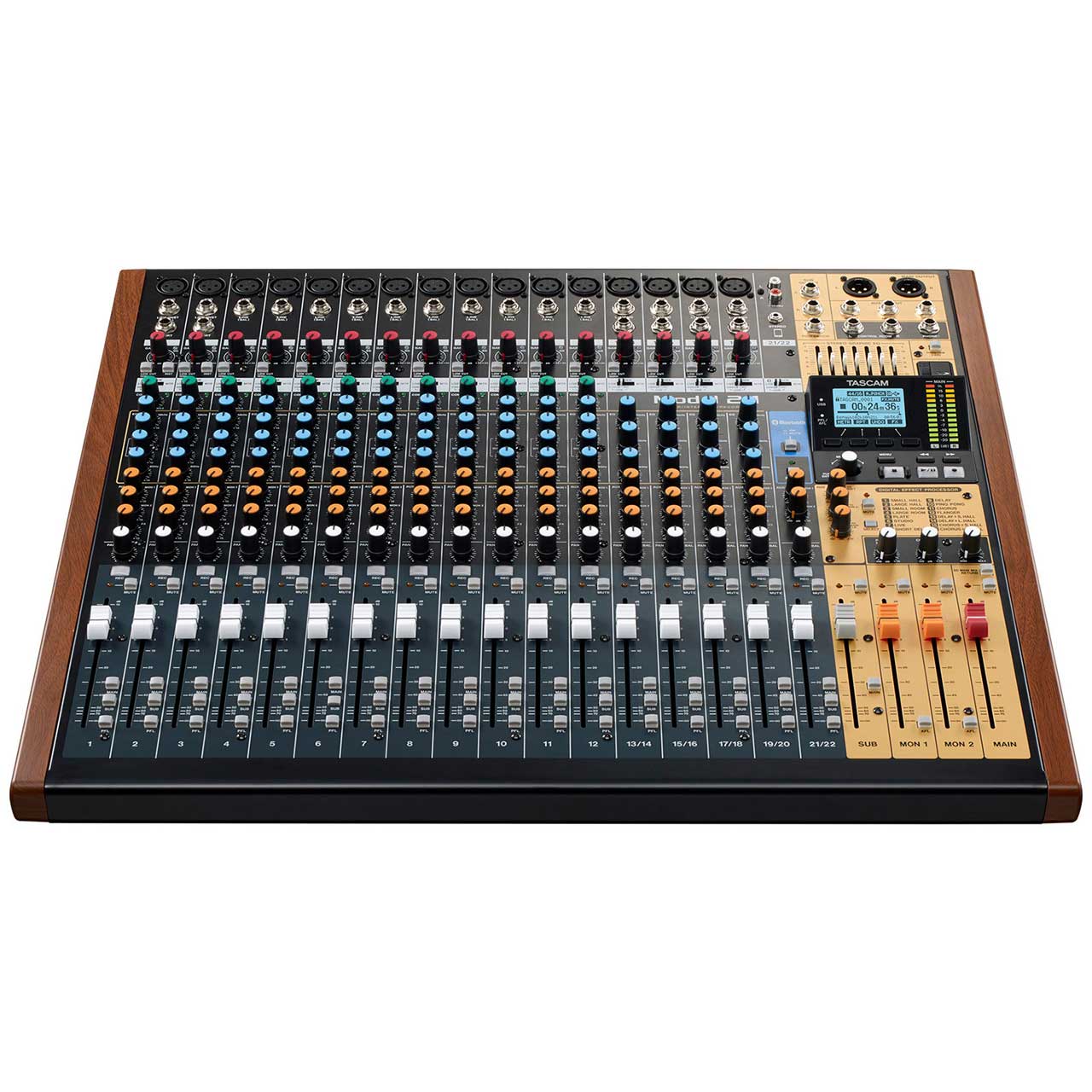

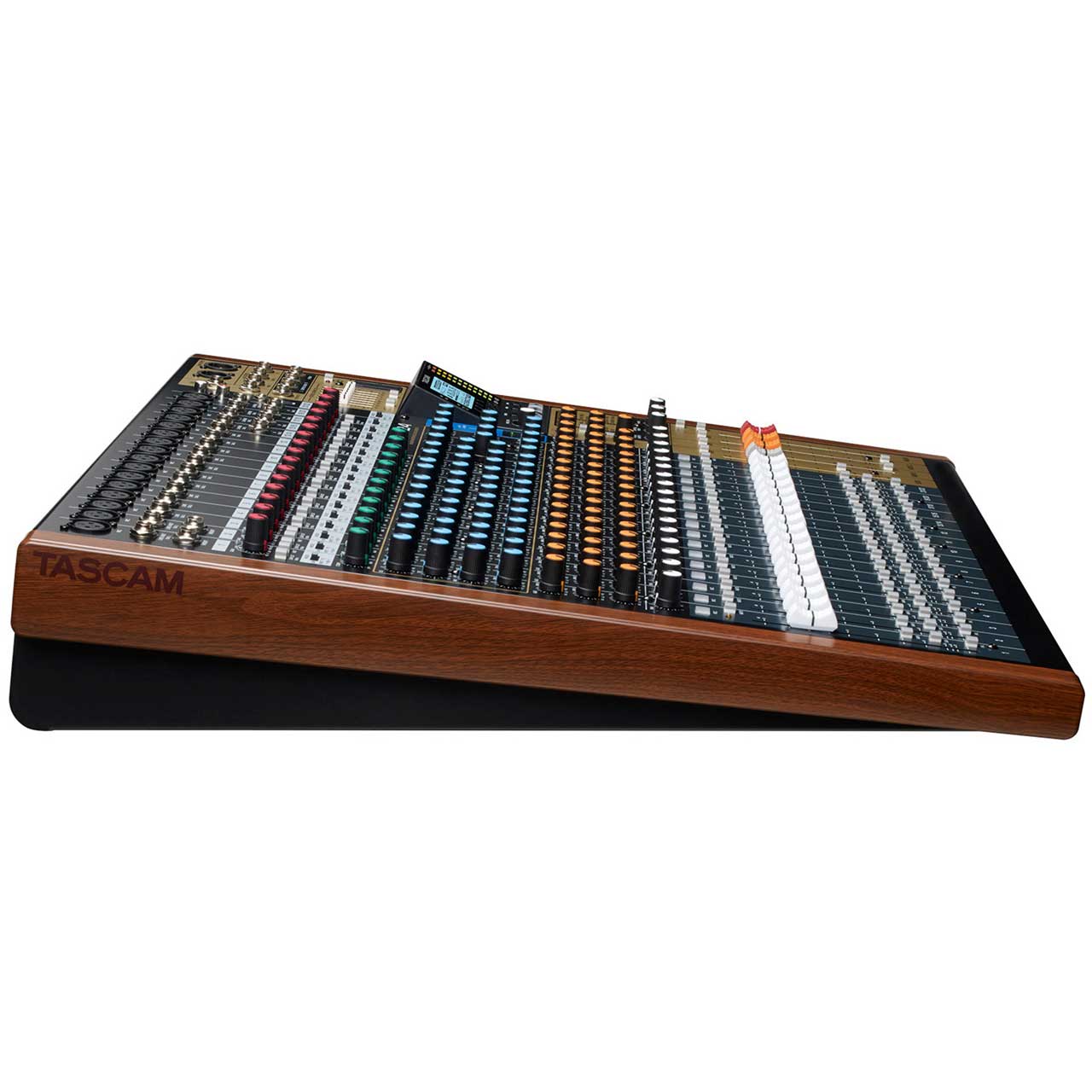

Tascam Model 24 22 Channel Mixer/24 Track Recorder/USB Interface

ITEM #: TCM-MODEL-24 MFG #: MODEL 24

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

List Price:

$1,599.00

Our Price:

$1,299.00

Availability: In Stock
iAvailability Description Popup


    MODEL 24 - Overview

    The TASCAM Model 24 was developed for easy and immediate operation, with everything you need placed right at your fingertips. 100mm faders allow for precise control over volume. A full set of familiar EQ and Auxiliary knobs remove the need to menu diving, and all input/output connections are all on the surface for quick and easy access.

    Featuring 16 high-grade TASCAM mic preamps in addition to multiple sets of stereo line inputs, the Model 24 delivers studio quality audio performance right from the start. When it's time to record The TASCAM Model 24 allows musicians and engineers to capture up to 24 tracks simultaneously (at 24bit/48kHz resolution) directly to the SD card, with the ability to support punch in/out 8 tracks at the same time. And once the take is done, the Model 24 can easily playback any or all of the recorded tracks through the console for immediate mixdown.

    In addition to the studio quality mic preamps and powerful EQ and routing options the Model 24 features a dedicated stereo channel 1/8", dual RCA Bluetooth™ connectivity. This allows users to easily integrate mobiles devices into the mix for rehearsal playback, walk-in music and more. Finaly, the TASCAM Model 24 can also act as a powerful audio interface and will connect directly to your PC or Mac for easy integration with your DAW of choice.

    Designed to be both lightweight and rugged, the Model 24 can easily be carried from studio to stage with the confidence that TASCAM's legendary reliability will keep the music going.

    • Features:

      • All-in-One, Multitrack Recorder with 22 channel Mixer and USB Audio Interface
      • WAV 48kHz/24-bit, 24 channel multitrack recording to SD, SDHC and SDXC cards
      • Built-in USB Audio Interface to send/receive audio data to/from DAW
      • 22 Inputs (20 Balanced, 12 Monaural, and 4 Stereo)
      • 16 TASCAM Microphone Preamps
      • Input Mode switch on every input channel
      • TASCAM Ultra-HDDA Mic Pre-amp (Channels 1 to 12)
      • Preamp Gain Controller with Overload indicator (Channels 1 to 12)
      • 3-band EQ with a sweepable mid-range frequency (Channels 1 to 12)
      • 100kHz Low-cut Filter (Channels 1 to 12)
      • 7-band Graphic EQ
      • 16 Pre-set Effects
      • 100mm Long-throw Faders for precise adjustment
      • Mute, Main/Sub, PLF switches on every input channel
      • Bluetooth® input supporting both AAC and SBC codecs
      • SUB Outputs via XLR Balanced and RCA Unbalanced connectors
      • LINE Inputs via RCA Pin and 1/8" Stereo Mini jacks
      • 3 AUX Outputs (Monitor 1, Monitor 2, FX)
      • 1 Stereo Output for Control Room
      • Phantom Power (+48V)
      • 1/4" Stereo Headphone Output
      • Backlit buttons for key operations such as REC and Play
      • Multi Jog-dial for quick menu operation
      • 12-segment LED Output Level Meters

    • Specifications:

      • Recording Section
      • Supported Media: SD (512MB - 2GB), SDHC (4GB - 32GB), SDXC (64GB - 128GB), Class 10 or higher required.
      • File System: SD card: FAT16, SDHC card: FAT32, SDXC card: exFAT
      • Recording File Format: WAV
      • Playback Format: WAV
      • Sampling Frequency: 44.1k/48kHz
      • Bit Depth: 16/24-bit
      • Recordable Channel: Max. 24 channels (22ch + 2 stereo mix)

        MIC Input
      • Connector: XLR 3-31 (1: GND, 2: HOT, 3: COLD)
      • Maximum Input Level: +10dBu
      • Nominal Input Level: -8dBu
      • Minimum Input Level: -58dBu
      • Gain Adjustable Range: 0 - 50dB
      • Input Impedance: 1.8kΩ
      • Phantom Power Supply: +48V

        LINE Input
      • Connector: 1/4" TRS Phone jack (Balanced)
      • Maximum Input Level: +22dBu
      • Nominal Input Level: +4dBu
      • Gain Adjustable Range: -10 - +40dB: CH1 - 12; +20 - +30dB: CH13/14 - 19/20
      • Input Impedance: 22kΩ

        INSERT Input
      • Connector: 1/4" TRS Phone jack (T: Send, R: Return, S: GND)
      • Return (Ring): Maximum Input Level: +18dBu; Nominal Input Level: 0dBu; Input Impedance: 10kΩ
      • Send (Tip): Maximum Output Level: +18dBu; Nominal Output Level: 0dBu; Output Impedance: 100Ω

        RCA Input
      • Connector: RCA Pin jack (Unbalanced)
      • Maximum Input Level: +8dBV
      • Nominal Input Level: -10dBV
      • Input Impedance: 10kΩ

        STEREO Input
      • Connector: 1/8" (3.5mm) Stereo Mini jack (Unbalanced)
      • Maximum Input Level: +8dBV
      • Nominal Input Level: -10dBV
      • Input Impedance: 10kΩ

        MAIN Output
      • Connector: XLR 3-32 (1: GND, 2: HOT, 3: COLD)
      • Maximum Output Level: +22dBu
      • Nominal Output Level: +4dBu
      • Output Impedance: 100Ω

        SUB, MONITOR, FX, CONTROL ROOM Output
      • Connector: 1/4" TRS Phone jack (T: HOT, R: COLD, S: GND)
      • Maximum Output Level: +16dBu
      • Nominal Output Level: -2dBu
      • Output Impedance: 100Ω

        PHONES Output
      • Connector: 1/4" Stereo Phone jack
      • Output Level: 80mW + 80mW (32Ω loaded)

        REMOTE Input
      • Connector: 1/4" TS Phone jack, Compatible with TASCAM RC-1F Foot Switch

        USB
      • Connector: USB B type 4-pin
      • Format: USB2.0 High-Speed, Mass-storage class/USB Audio Class
      • Sampling Rate: 44.1k/48kHz
      • Bit Depth: 16/24-bit
      • Maximum INPUT and OUTPUT: 24 Inputs/22 Outputs

        Bluetooth
      • Output Class: Class 2 (Transmission range: approx. 33ft/10 m)(* Transmission range may vary, depending on surroundings)
      • Bluetooth Version: 4.0
      • Supported Profile: A2DP, AVRCP 1.0
      • Supported A2DP Codecs: SBC, AAC
      • A2DP Content Protection: SCMS-T

        Channel EQ
      • Low-Cut: 100Hz, -18dB/Octave
      • Hi-Shelving: +15dB/-15dB, Cut off frequency: 12kHz
      • Mid: Peaking; (MONO): +15dB/-15dB, 100Hz - 8kHz Variable; (STEREO): +15dB/-15dB, Center frequency = 600Hz; MID Band Q Fix, 0.55
      • Low-Shelving: +15dB/-15dB, Cut off frequency = 80Hz

        Graphic EQ
      • Band: 7-Band
      • Frequency: 125/250/500/1k/2k/4k/8kHz
      • Gain: +15dB/-15dB

      • Power: AC 100 - 240V, 50/60Hz
      • Power Consumption: 52W
      • Dimensions (WxHxD): Including Side Panels: 22.67" x 20.20" x 4.43" (including knobs and connectors); Excluding Side Panels: 20.26" x 19.80" x 4.43" (including knobs and connectors)
      • Weight: 22.04lbs
      • Operating Temperature: 41°F - 95°F

    • GTIN:

      0043774033911
