Teradek 10-0641 Cubelet 605/625 HDSDI/HDMI AVC Encoder/Decoder Pair
  • Teradek 10-0641 Cubelet 605/625 HDSDI/HDMI AVC Encoder/Decoder Pair
  • Teradek 10-0641 Cubelet 605/625 HDSDI/HDMI AVC Encoder/Decoder Pair
  • Teradek 10-0641 Cubelet 605/625 HDSDI/HDMI AVC Encoder/Decoder Pair
  • Teradek 10-0641 Cubelet 605/625 HDSDI/HDMI AVC Encoder/Decoder Pair
  • Teradek 10-0641 Cubelet 605/625 HDSDI/HDMI AVC Encoder/Decoder Pair

Questions? Ask a Markertek Expert:
800-522-2025 Email

Teradek 10-0641 Cubelet 605/625 HDSDI/HDMI AVC Encoder/Decoder Pair

Manufacturer: Teradek, LLC

Item #: TER-10-0641   •   MFG #: 10-0641




Our Price:$3,580.00

free ship


Availability:
More on the way, usually ships in 3-10 business days
i
This item is currently out of stock and will ship the minute we receive it – typically 3-10 business days. Need it sooner? Expedited delivery options may be available. Email [email protected] or call customer service at 800-522-2025 and we'll make it happen.



    California Residents:
    8pt-triangleWARNING:
    Cancer and Reproductive Harm - www.P65Warnings.ca.gov





    Cube 600 Series Encoder - H.264(AVC) SDI/HDMI
    The Teradek Cube 605 Encoder is a real-time H.264 encoder with 3G-SDI and HDMI inputs. It encodes up to 1080p video at bit rates up to 15 Mbps, allowing for high-quality images to be streamed over Ethernet, Wi-Fi, or USB (Wi-Fi streaming is limited to 10 Mbps). When bandwidth is limited, adaptive bit rate allows the Cube to automatically adjust and stream at the highest quality possible. The Cube 600 Series Encoder can ingest up to 1080p60 signals, but outputs them at a frame rate of 30 fps (or lower, per your selection), for a max output of 1080p30.

    Cube 600 Series Encoder features support for 33-point 3D LUTs, as well as Pomfort LiveGrade integration that lets you monitor graded footage on the set or afterwards. Looks can be applied to the stream or controlled separately using the free Teradek TeraView app (iOS). Cube also offers support for USB modems for streaming video live over cellular networks.

    Cube 600 Series Encoder has an SD card slot that enables you to record the stream for post-production, in which case the recording bit rate and resolution match the encoded stream quality. The Cube 600 Series Encoder also has a configurable test pattern generator that lets you test your stream without connecting a video source, and prevents interruptions if video sync is lost.

    You can monitor the video stream on up to six networked iOS devices simultaneously using the Teradek TeraView or VUER app, or six Android devices using the Teradek VLC app, or a mix-and-match of six to accommodate both iOS and Android users. This allows clients, the crew, and the director to see the footage at the same time in real time.

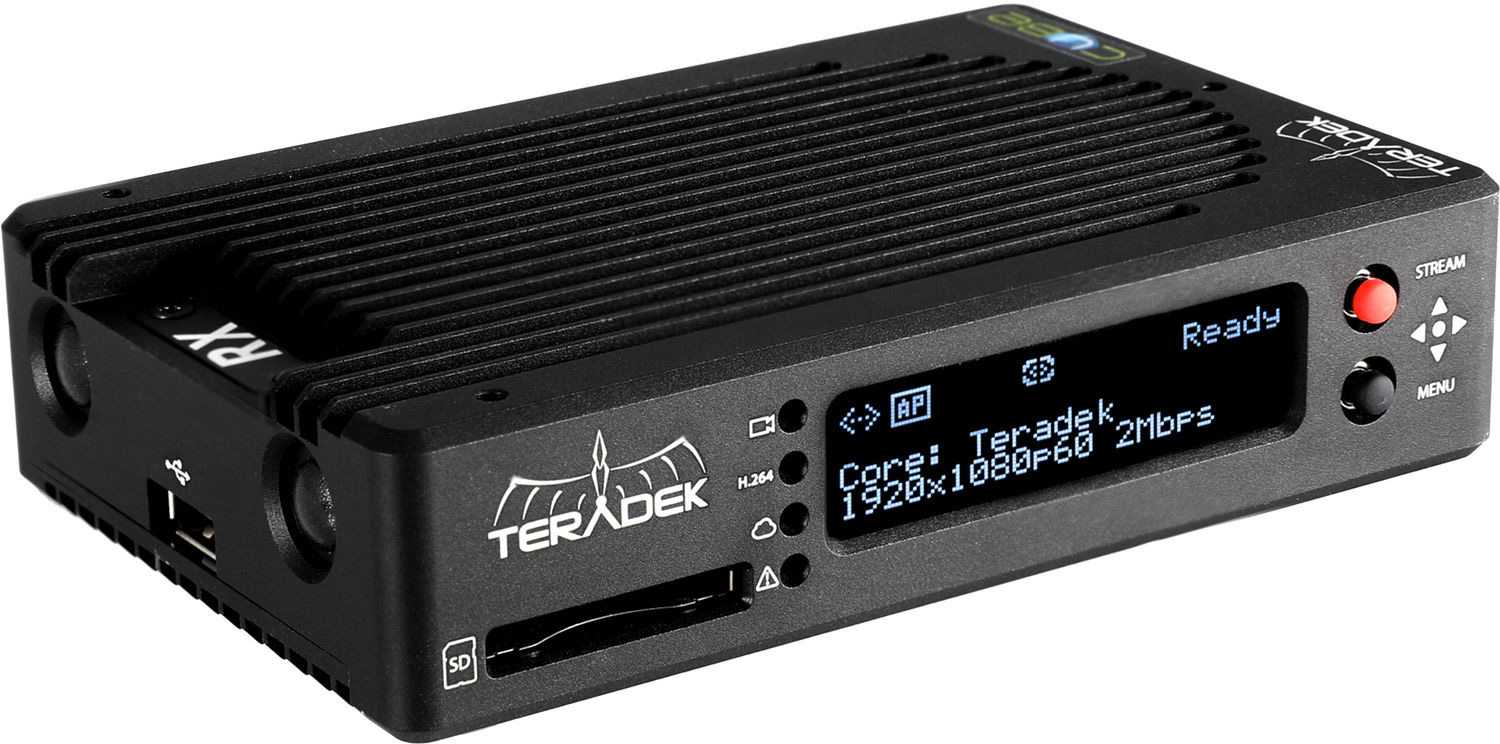

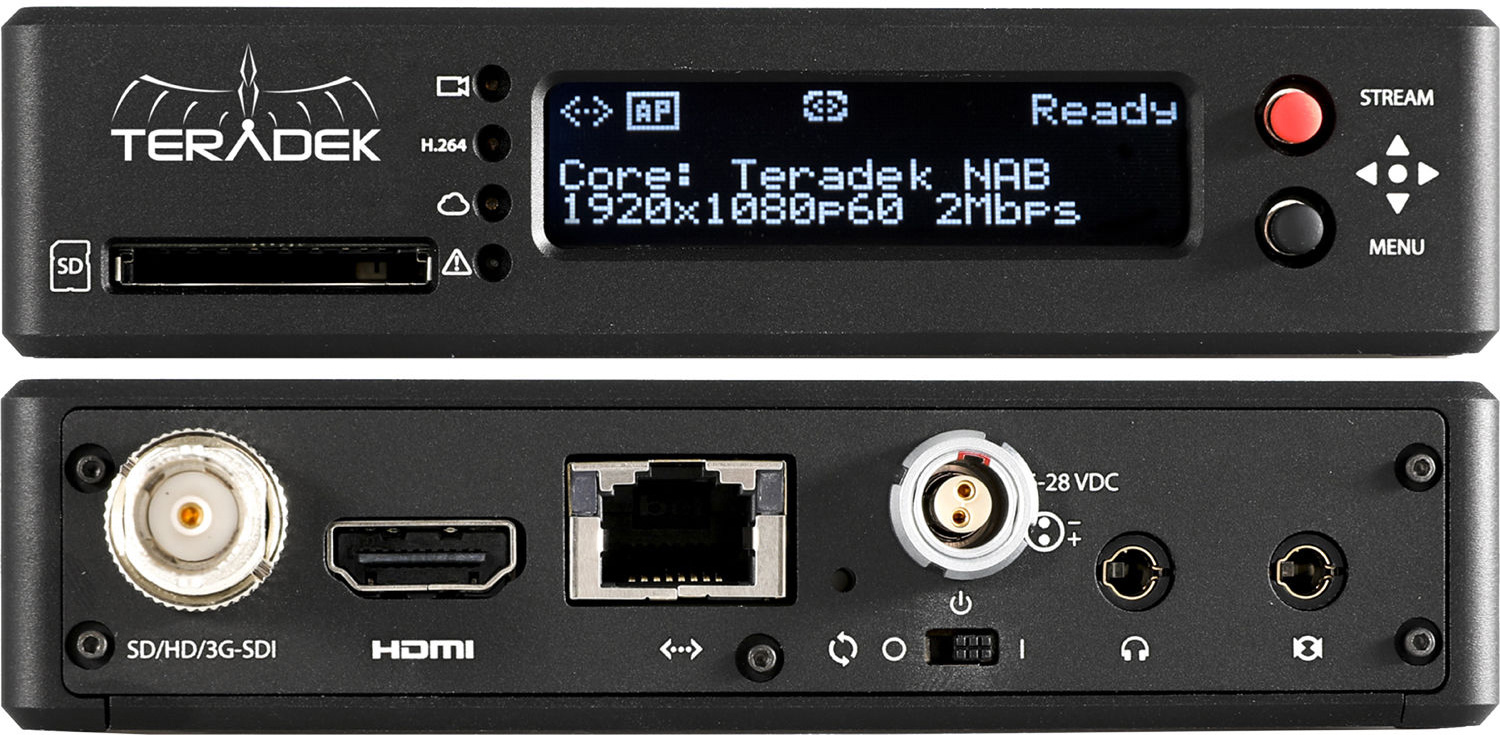

    Cube 600 Series Encoder has a robust aluminum housing and an OLED display with joystick navigation buttons. It is manufactured in the USA.

    Designed for Professionals
    Cube is manufactured in the USA and features 3G-SDI and HDMI inputs along with a new, high-powered 802.11AC WiFi adapter. Cube's rugged aluminum chassis and professional locking 2-Pin Connector connector ensure it's ready for constant use in any environment.

    Higher Bitrates
    The Cube 600 series encodes video at bitrates up to 15 Mbps for pristine quality in any application. When bandwidth is limited, adaptive bitrate allows Cube to automatically adjust and stream at the highest quality achievable.

    Improved Wireless Performance
    Built-in 802.11ac dual band (2.4/5GHz) WiFi offers higher data throughput and stronger wireless connectivity at longer distances.

    iPad Monitoring for All
    Cube 600 series supports monitoring on up to 6 devices iOS devices simultaneously so clients, crew, and director can all see the action.

    Cube 600 Series Decoder - H.264(AVC) SDI/HDMI GbE
    The Teradek Cube 625 is the latest in Teradek's line of professional, scalable integrated decoders designed for video over IP delivery. Compatible with Cube encoders, Cube 625 offers SD/HD MPEG-4 AVC decoding for point-to-point video distribution, allowing content creators, broadcasters and system integrators to cost-effectively and reliably meet strict QoS requirements.With flexible HDMI/3G-SDI dual-output and Ethernet/WiFi (2.4/5Ghz)/cellular USB connection options, Cube 625 streamlines IP video deployment in existing workflows and enhances infrastructure for all users. Small form factor and high-performance decoding make it one of the most versatile solutions for content delivery strategies in the video ecosystem.


    • Specifications

      • Cube 605
        Video Inputs
      • 1x SD/HD-SDI (75Ω BNC)
      • 1x HDMI Type-A receptacle

        Supported Resolutions
      • 1080p 23.98/24/25/29.97/30/50/59.94/60*
      • 1080i 50/59.94/60
      • 1080PsF 23/24/25/29/30
      • 720p 50/59.94/60
      • 576i
      • 480i
      • 480p (for HDMI input only)
      • 576p (for HDMI input only)
        *Ingests 1080p50/59/60

        Color Correction
      • CDL/1024 1D LUT (supports 10-bit color)
      • 33 x 33 x 33 3D LUT (supports 10-bit color)

      • Video Compression: H.264, Baseline, Main and High Profile
      • Supported Video Bitrate: 250Kbps to 15Mbps*
        *15 Mbps (wired)
      • Test Pattern Generator Support: Supports custom test pattern
      • Video Format Conversion Support: Built-in video scaler and deinterlacer
      • Network Protocols: TCP/IP, UDP, HTTP, DHCP, NTP, SSL, IGMP
      • Supported Video Transport Protocols:
        RTMP
        RTP, RTSP, RTSP over HTTP
        MPEG-TS (MPEG-TS is an optional paid license)

        Remote Control
      • Teradek Core
      • Software Or Platform Integration
      • Ustream, YouTube Live, Facebook & new Livestream

        Audio Input
      • Embedded Audio Input
      • Analog Line or Mic in, adjustable gain

        Physical
      • Dimensions: 4.75"W x 3"D x 1.1"H (120.7mm x 76.2mm x 27.9mm)
      • Weight: 11.6oz (328.9g)
      • Construction: Milled Aluminum
      • Mountability: Can be mounted horizontally or vertically with 1/4" 20 mounting holes

        Power Input
      • 2 Pin Connector Power input
      • Battery: No Battery Included

      • Nominal Power Consumption: 7W (no WiFi)
      • Auxilary Power Input: 6 - 28V DC

        Cube 625
        Video Outputs
      • HDMI 1.4a: Full Size
      • SD/HD/3G-SDI (75Ω BNC)

        Supported Resolutions
      • 1080p 23.98/24/25/29.97/30/50/59.94/60*
      • 1080i 50/59.94/60
      • 1080PsF 23/24/25/29/30
      • 720p 50/59.94/60
      • 576i
      • 480i
      • 480p (for HDMI output only)
      • 576p (for HDMI output only)

      • Video Compression: Decompresses H.264, Baseline, Main and High Profile
      • Supported Video Bitrate: 250Kbps to 15Mbps*
        *15Mbps (wired), 10Mbps (WiFi)
      • Video Format Conversion Support: Built-in video scaler and deinterlacer
      • Embedded Audio Input: Analog Line or Mic in, adjustable gain

        Physical
      • Dimensions: 4.75"W x 3"D x 1.1"H (120.7mm x 76.2mm x 27.9mm)
      • Weight: 11.6oz (328.9g)
      • Construction: Milled Aluminum

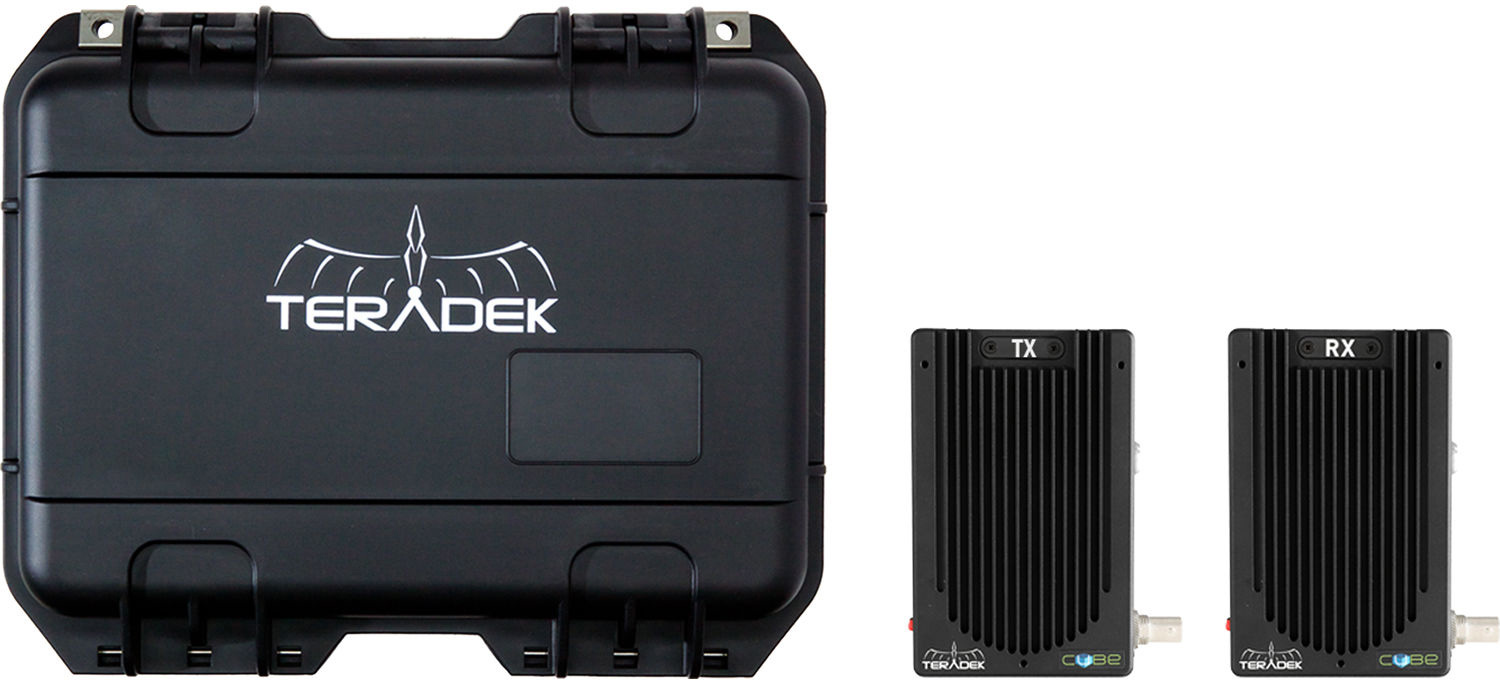

    • Item Includes

      • 1x Cube 600 series Encoder - H.264 (AVC) SDI/HDMI (with WiFi option)
      • 1x Cube 600 series Decoder - H.264 (AVC) SDI/HDMI (with WiFi option)
      • 1x Military-Standard Protective Waterproof Case
