Teradek 10-1807 ACE 500 HDMI Wireless RX

Manufacturer: Teradek, LLC

Item #: TER-10-1807   •   MFG #: 10-1807




Our Price:$549.95

free ship


Availability:
More on the way, usually ships in 3-10 business days
i
This item is currently out of stock and will ship the minute we receive it – typically 3-10 business days. Need it sooner? Expedited delivery options may be available. Email [email protected] or call customer service at 800-522-2025 and we'll make it happen.



    California Residents:
    8pt-triangleWARNING:
    Cancer and Reproductive Harm - www.P65Warnings.ca.gov

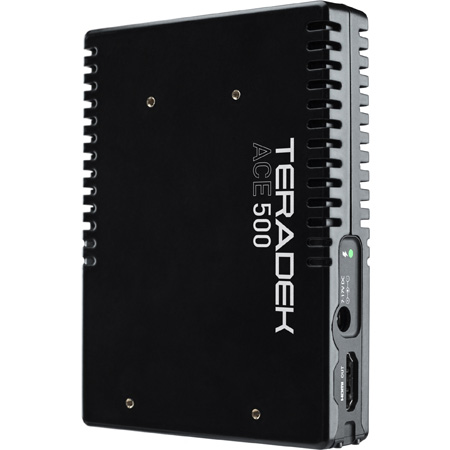

    The Teradek Ace 500 10-1807 is a compact, lightweight and powerful wireless video system designed for professionals on a budget.

    Zero-Delay Wireless Video
    Transmit uncompressed 1080p60 video to receivers up to 500ft away with less than 1ms of delay.

    Bolt Compatibility
    Ace 500 receivers are compatible with all Bolt 500, LT & XT transmitters and integrated SmallHD Bolt monitors.

    Reliability
    Built with the same reliability and performance as the Bolt, Ace 500 ensures you have a continuous video feed when you need it most.

    Receivers
    Send video from the transmitter to up to 4 receivers within 500 ft.

    Mounting Options
    Ace receiver includes 1x 1/4-20" and 2x 4-40" mounting points.

    Powering Options
    Keep your Ace powered with optional battery plates* attached directly to your receiver.
    *Available in Sony L-Series, BP-U, BP-9 and Canon LP-E6.


    • Features

      • 1080p60 wireless video, less than 1ms of delay
      • Up to 500 ft. wireless range
      • HDMI output
      • Transmit to up to 4 receivers
      • 1x 1/4-20" mounting point

    • Specifications

      • Video
      • Video Outputs: 1x HDMI Type-A receptacle
      • Color Sampling: HDMI: RGB 4:4:4, 8-bit
      • Delay Tx To Rx: <0.001sec (without format conversion)

        Supported Resolutions
      • 1080p 23.98/24/25/29.97/30/50/59.94/60
      • 1080psf23.98/24/25/29.97/30
      • 1080i50/59.94/60
      • 720p50/59.94/60
      • 480p59.94/576p50 (via HDMI ports only)
      • 480i(NTSC)/576i(PAL)

        Video Processing
      • Video Compression: Visually lossless
      • Test Pattern Generator Support: Yes
      • Video Format Conversion Support: None
      • Color Correction: None

        Audio Processing
      • Audio Compression: 48kHz 24-bit PCM

        Inputs
      • Audio Input: Embedded Audio Input

        Physical
      • Dimensions: 3.4" x 4.5" x 0.6" (8.6cm x 11.5cm x 1.5 cm)
      • Weight: 5.2oz (146g)
      • Construction: Aluminum and ABS plastic
      • Mountability:
        1/4"-20 mounting threads
        2x 4-40 mounting holes

        Interfaces
      • Configuration Interfaces: OSD that appears on the Video Output which can be controlled with the Menu Joystick
      • Switches: Reset Button
      • Desktop App: Feature-rich Bolt Manager Application for OSX & Windows
      • USB Interface Functionality: Upgrade via Mini-USB

        Network
      • Antennas: Internal Antennas
      • Non-DFS Wireless Frequencies:
        US: 5.19 - 5.23 GHz and 5.755 - 5.795 GHz
        EU & JP: 5.19 - 5.23 GHz
      • DFS Wireless Frequencies:
        US: 5.27 - 5.55 GHz and 5.67 GHz
        EU & JP: 5.27 - 5.67 GHz
      • RF Channel Selection: Auto only (NOT configurable)
      • Encryption: AES-128
      • RF Power: Up to 17dBm
      • Range: Up to 500ft line of sight
      • Unicast Multicast: Unicast/Multicast
      • Noise Rejection: Can coexist with WiFi and 5GHz cordless phones

        Power
      • Power Input: Barrel Connector 7-17 VDC
      • Power Output: None
      • Nominal Power Consumption: 7.3W (Measured at 1080p60)

        Environmental
      • Operating Temperature: 32°F - 104°F (0°C - 40°C)

    • Item Includes

      • 1x Ace 500 RX
      • 1x Mini-USB (5pin) to USB - 18in/45cm Cable
      • 1x Ultra Thin HDMI Male Type A to HDMI Male Type A 18"
      • 1x R/A Barrel Power Supply Unit 18W AC Adapter 12VC (International) 6ft
      • 1x Quickstart Guide

    • GTIN:

      0818264024768
