10-2119-G - Overview

Recipient of Scientific and Engineering Awards from the Academy of Motion Picture Arts and Sciences!

The Teradek 10-2119-G Bolt 4K MAX is the most reliable, highest performance wireless video system ever created. Featuring exclusive technology found only in this model, the MAX is designed to be your mission critical wireless workhorse.

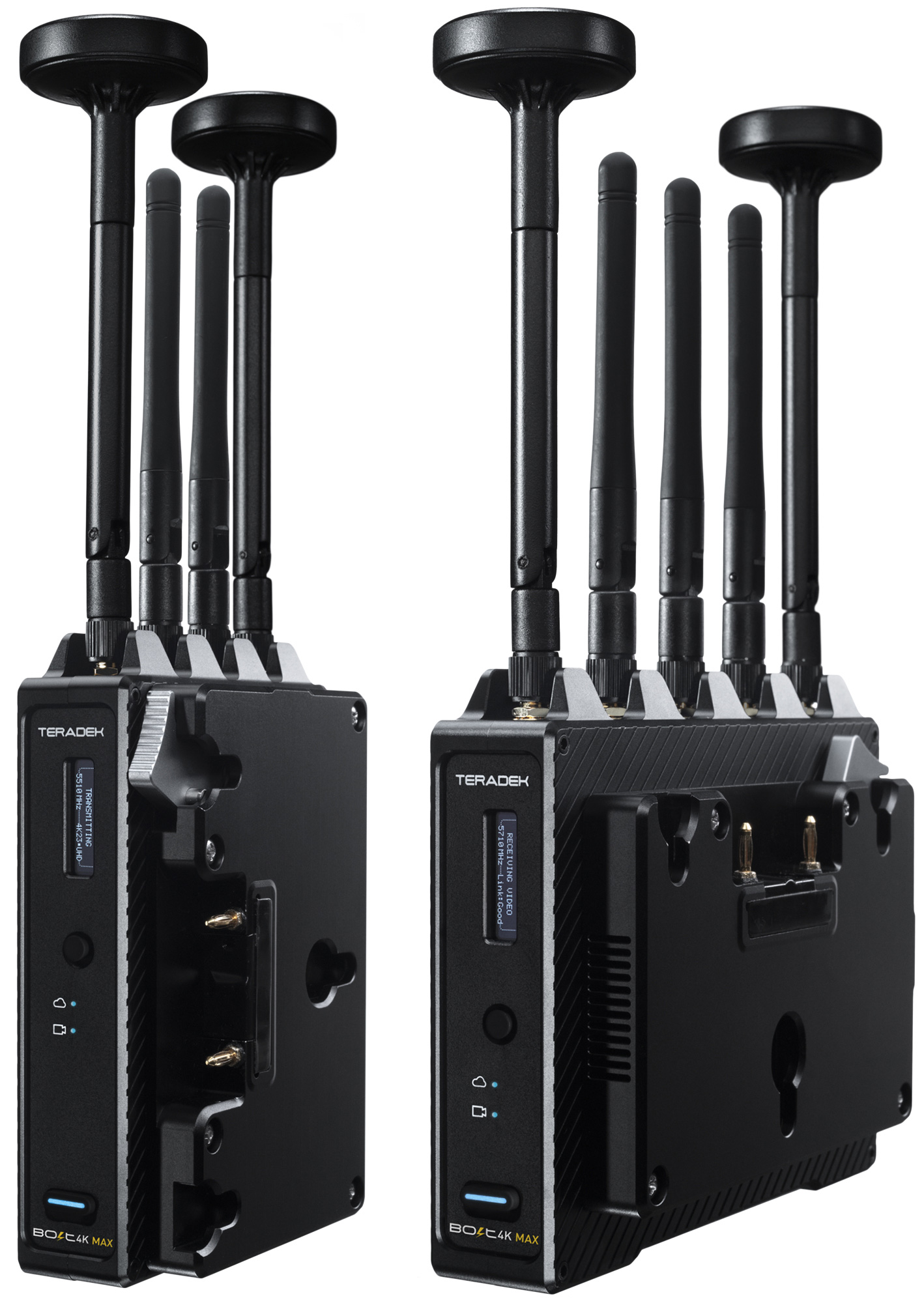

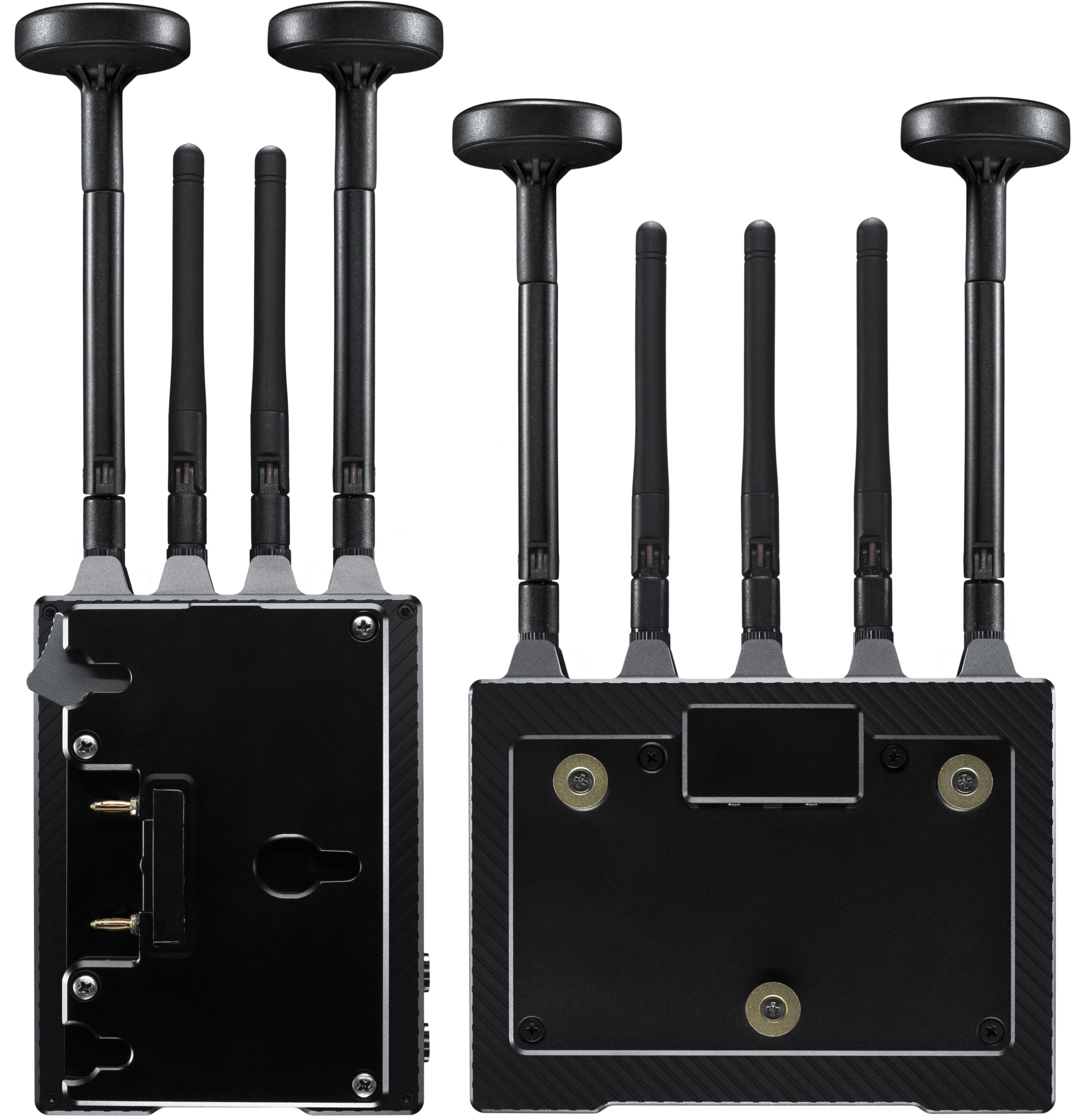

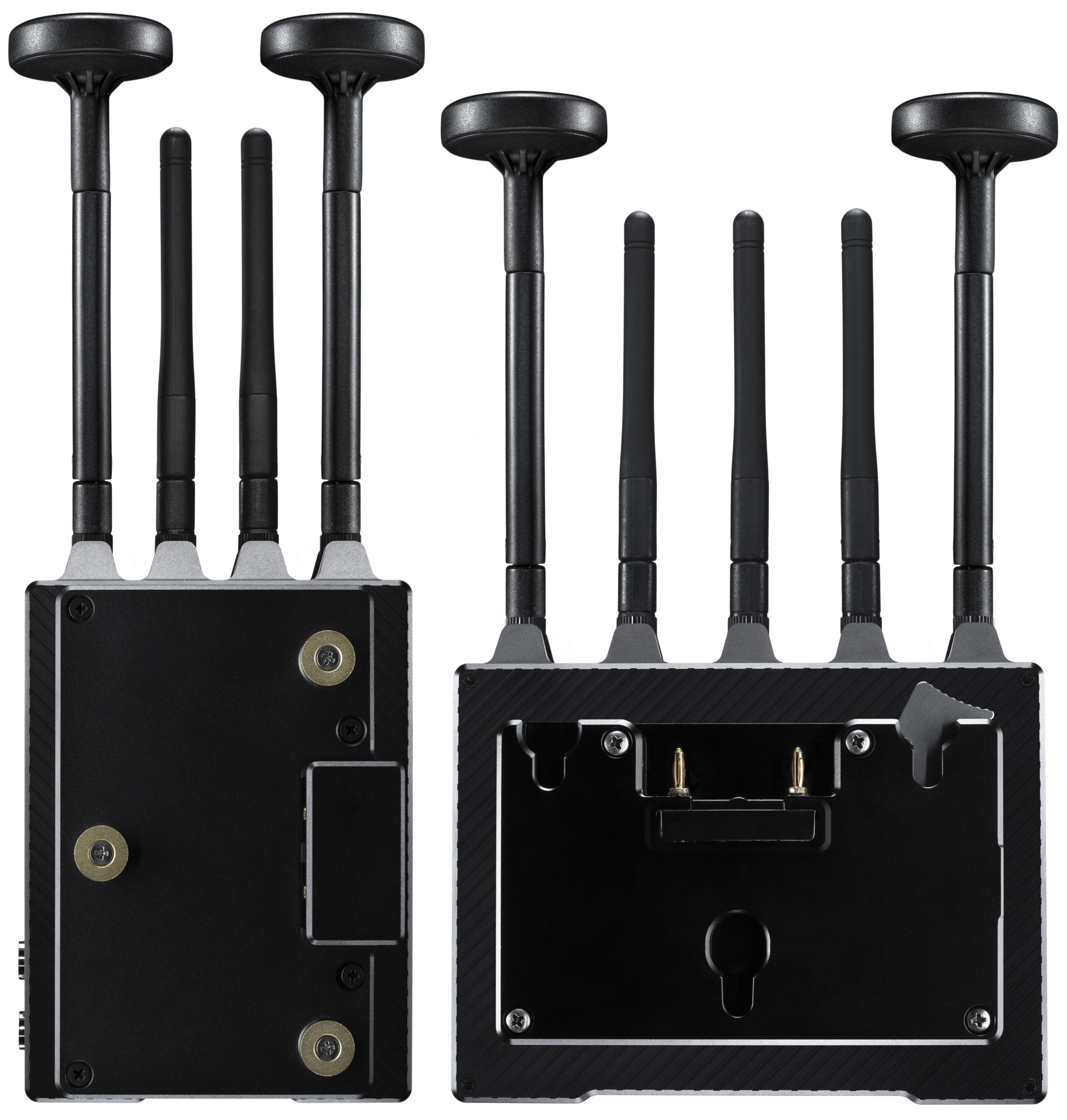

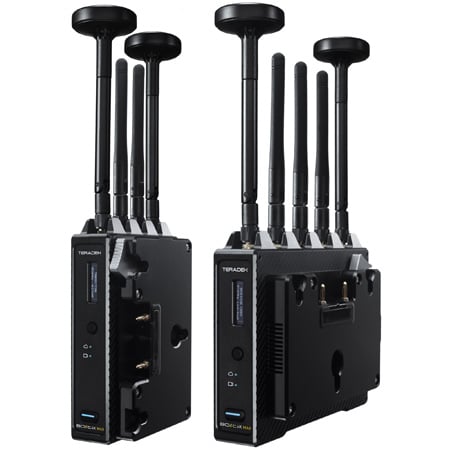

The Bolt 4K MAX Wireless TX/RX is a real time wireless video transmission system that supports up to 4K 60FPS video signals up to 3,000 ft line of sight. Key features include increased range, faster reconnection times, easier setup with Bluetooth App for iOS or Android, and more stable connectivity. These devices are cross-compatible with the entire Bolt 4K Family. Featuring a Gold Mount Battery Plate for mounting directly to the back of your camera or monitor. This set includes the Bolt 4K MAX TX, Bolt 4K MAX RX, Carrying Case, and other essentials you need to get started.

Fixed Frequency Mode locks onto your designated 5GHz channel for enhanced performance in challenging RF environments.

A unique antenna design provides a clearer wireless signal with faster re-connection times over long distances.

  • Features:

    • Includes: 1 TX & 1 RX
    • Video: Up to 4K60FPS
    • Range: Up to 3000ft
    • Inputs: 12G-SDI, HDMI 2.0
    • Outputs: 12G-SDI, HDMI 2.0
    • Multicast: Up to 6 RXs
    • Compatibility: Bolt 4K 750, Bolt 4K 1500


  • Specifications:

    • Bolt 4K MAX TX Gold Mount
    • Video Inputs: 1x 12G-SDI SMPTE 2082-1 standard/75Ω (accepts 12G-SDI, 6G-SDI, or 3G-SDI) 1x HDMI Type-A receptacle accepts HDMI 2.0 or HDMI 1.4)
    • Video Outputs: 1 x Loopout 12G-SDI SMPTE 2082-1 standard / 75Ω
    • SDI Ancillary Data Support: Supports transmitting metadata, timecode, & start/stop flags from most camera manufacturers.
    • Color Sampling: SDI: YCbCr 4:2:2, 10-bit/ HDMI: RGB 4:4:4, 8-bit
    • Input Cross Conversion: Yes, HDMI to SDI
    • Delay Tx To Rx: <0.001sec
    • Supported Resolutions: 4Kp23.98/24/25/29.97/30/50/59.94/60; 1080p23.98/24/25/29.97/30/50/59.94/60; 1080psf23.98/24/25/29.97/30; 1080i50/59.94/60
    • 720p50/59.94/60; 480p50 576p59.94/60; 480i(NTSC)/576i(PAL)
    • Video Compression: Visually Lossless, Video Format Conversion Support, Connect an HD source to the Tx & get a 4K signal out of Rx, Connect a 4K source to the Tx, get HD resolution out of Rx, You can also mix & match from a single source: 4K signal into Tx can be 4K output from 1x Rx & HD output from a 2nd Rx; Input/output configurations are controlled directly on units or via Bolt 4K app
    • Color Correction: None
    • Dimensions: 5.20 x 3.58 x 1.06" (132 x 91 x 27mm)
    • Weight: Bolt 4K Tx with 4x antennas (no battery plates): 0.90Lbs (408g) Gold-Mount Battery Plate Set (Male+Female): 0.38Lbs (172g)

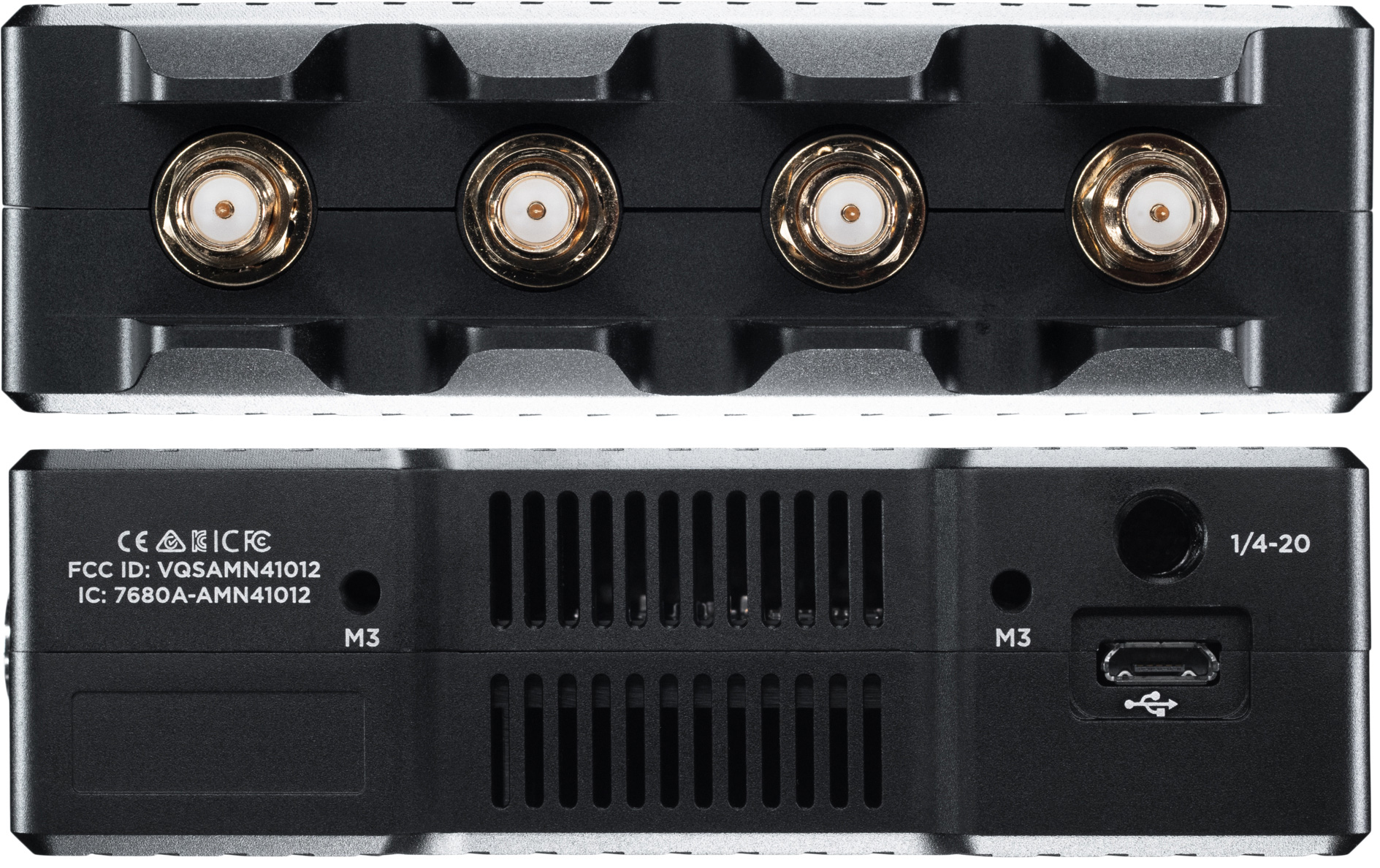

    • Antennas: 4 External 2dBi RP-SMA antennas (included)
    • Rf Power: 19 dbm EIRP (4 external 2dBi antennas) (<80mW transmit power)

      Bolt 4K MAX RX Gold Mount
    • Video Outputs: 2x 12G-SDI SMPTE 2082-1 standard/75Ω (accepts 12G-SDI, 6G-SDI, or 3G-SDI) 1x HDMI Type-A receptacle accepts HDMI 2.0 or HDMI 1.4)
    • SDI Ancillary Data Support: Supports transmitting metadata, timecode, & start/stop flags from most camera manufacturers.
    • Color Sampling: SDI: YCbCr 4:2:2, 10-bit/ HDMI: RGB 4:4:4, 8-bit
    • Input Cross Conversion: Yes, HDMI to SDI
    • Delay Tx To Rx: <0.001sec
    • Supported Resolutions: 4Kp23.98/24/25/29.97/30/50/59.94/60; 1080p23.98/24/25/29.97/30/50/59.94/60; 1080psf23.98/24/25/29.97/30; 1080i50/59.94/60; 720p50/59.94/60; 480p50 576p59.94/60; 480i(NTSC)/576i(PAL)
    • Video Compression: Visually Lossless, Video Format Conversion Support, Connect an HD source to the Tx & get a 4K signal out of Rx, Connect a 4K source to the Tx, get HD resolution out of Rx, You can also mix & match from a single source: 4K signal into Tx can be 4K output from 1x Rx & HD output from a 2nd Rx, Input/output configurations are controlled directly on units or via Bolt 4K app
    • Color Correction: 17x17x17 3D LUT (supports 10-bit color)
    • Dimensions: 4.41 x 5.47 x 1.06" (112 x 139 x 27mm)
    • Weight: Bolt 4K Rx with 5x antennas (no battery plates): 1.09Lbs (496g) Gold-Mount Battery Plate Set (Male+Female): 0.38Lbs (172g)

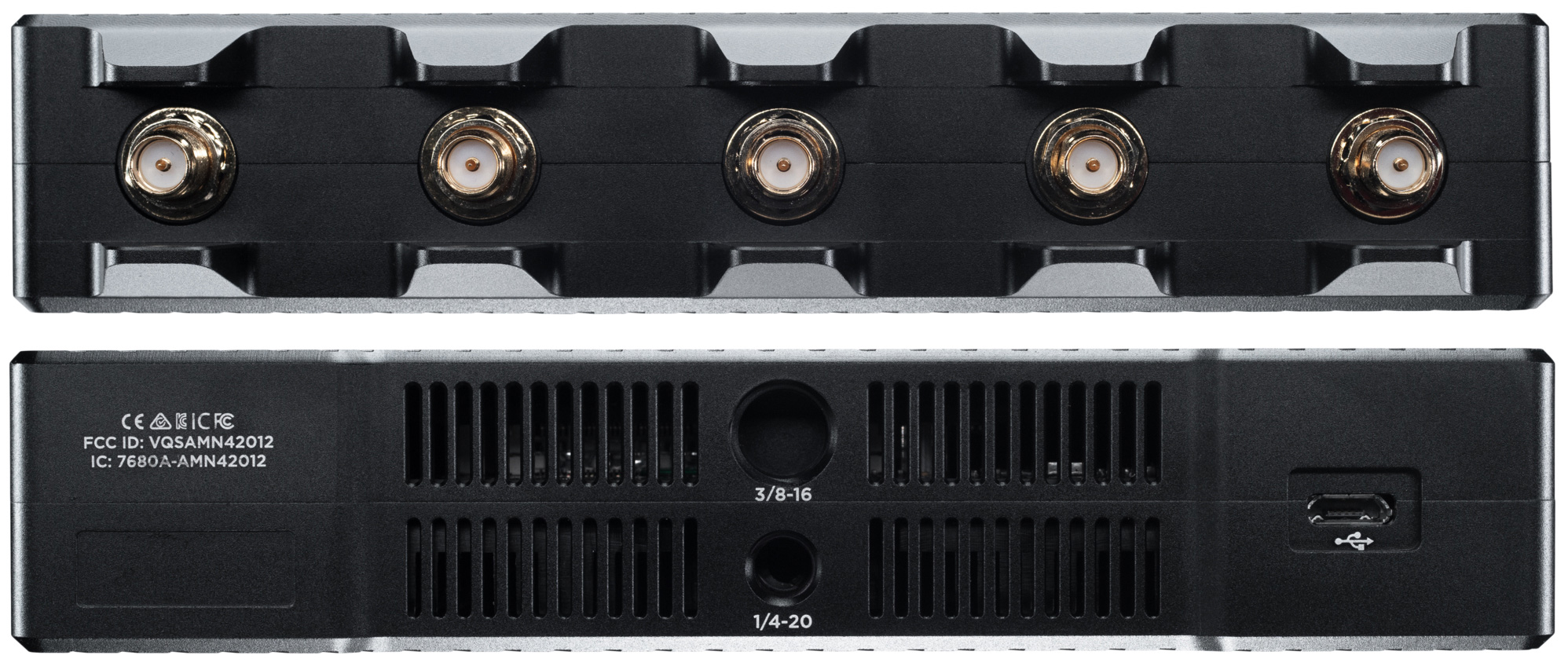

    • Antennas: 5 External 2dBi antennas (included) or optional Array Panel Antenna
    • Rf Power: 17 dbm EIRP (one external 2dBi antenna) (<51mW transmit power)

      Bolt 4K MAX RX & TX Gold Mount
    • Battery: None, optional Gold Mount Battery Plate
    • Operating Temperature: 32 - 104°F (0 - 40°C)
    • Power Input: 2-Pin Circular locking Connector RX: 6-28VDC TX: 7-28V DC
    • Nominal Power Consumption: RX: 18W TX: 20W
    • Noise Rejection: Can coexist with WiFi & 5GHz cordless phones. Can operate up to 6 sets in same location.
    • Unicast Multicast: Can connect one Transmitter to up to 6 Receivers
    • Range: Up to 1500', line of sight
    • Encryption: AES-256, RSA-1024 key exchange
    • Rf Channel Selection: Auto, Manual available for non-DFS Channels
    • Channel Bandwidth: 14x 40MHz wide channels
    • Wireless: Non-DFS Frequencies: 5.190 - 5.230GHz & 5.755 - 5.795GHz DFS Frequencies: 5.270 - 5.670GHz
    • USB Interface Functionality: Upgrade via Micro-USB
    • Switches: On/Off Switch
    • Configuration Interfaces: OSD with Menu, Joystick Navigation
    • Mountability: Multiple mounting options with 1/4"x20 & M3 holes
    • Construction: Milled Aluminum (Chassis) & regulation-compliant PCB
    • Audio Format: 48kHz 24-bit PCM
    • Audio Output: Embedded SDI/HDMI Audio Output (2-Ch)


  • Item Includes:

    • 1x Bolt MAX 12G-SDI/HDMI Wireless TX Gold Mount
    • 1x Bolt MAX 12G-SDI/HDMI Wireless RX Gold Mount
    • 1x Lightstand Adapter 3/8in
    • 1x Hot Shoe Adapter
    • 2x HDMI Male Type A (Full) - HDMI Male Type A (Full) 18in Cable
    • 2x (Bit 118) 2pin Conn. to PowerTap - 18in Cable
    • 1x USB Male Type A (Full) - USB Male Type B (Micro) -3ft Cable
    • 2x SDI 12G BNC to BNC Cable Length: 18in / 46cm
    • 1x Teradek Case Large - Bolt 4K TX/2RX
    • 1x Teradek Vinyl Zipper Bag 250x150mm
    • 1x Teradek Vinyl Zipper Bag 250x230mm
    • 1x PSU 2pin Conn. to 30W AC Adapter (Int) - 6ft Cable
    • 9x Antenna 2dBi WIFI 2.4/5.8GHz (Small Antenna)
    • 1x Teradek Standard Terms & Conditions
    • 1x Insert - Product Register
    • 1x Quickstart Guide - Bolt 4K 750/1500


  • GTIN:

    0818264025796
