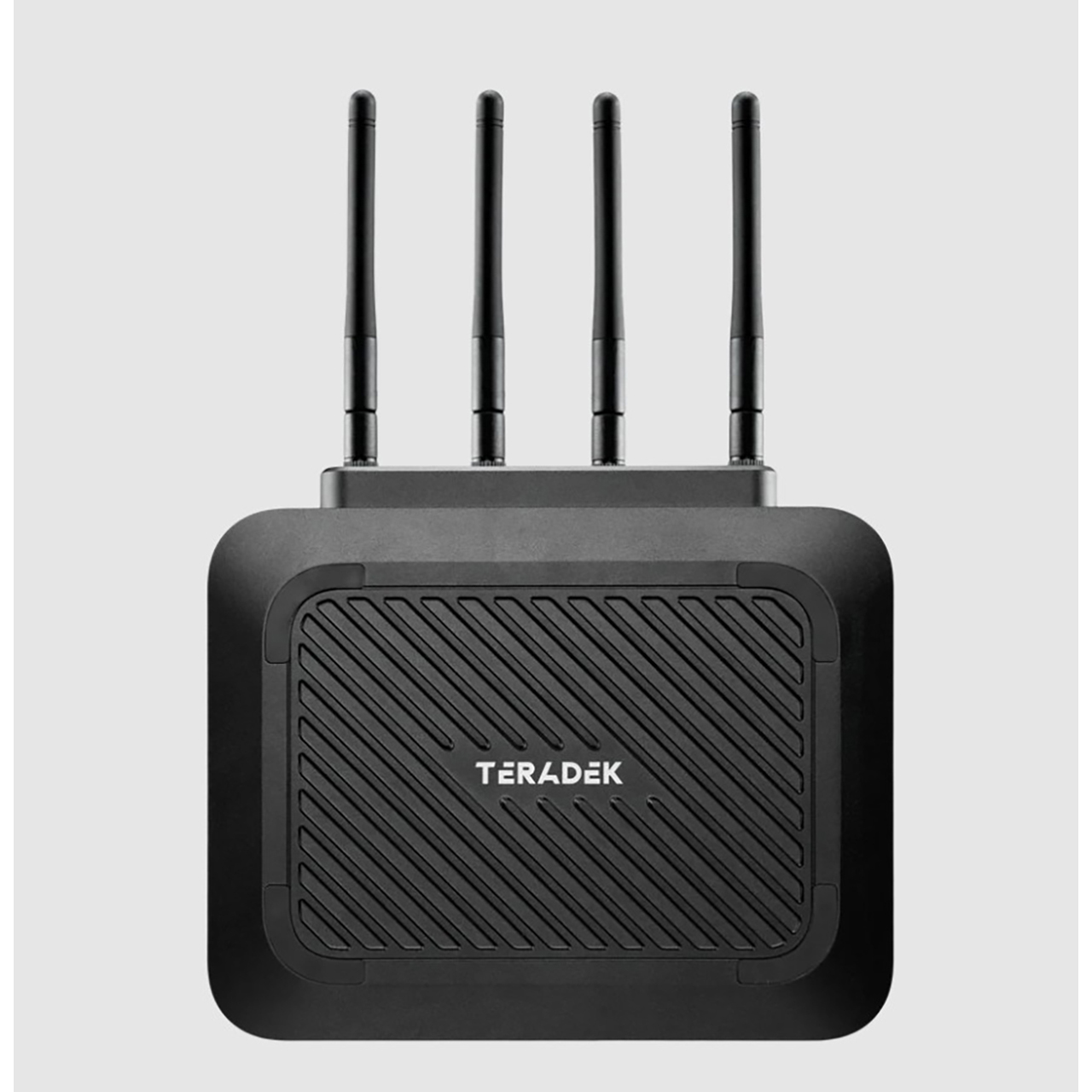

Teradek 10-0065-G Link AX 5-Port Wireless Access Point Router - Gold Mount

- Overview

• Features:

  • Wi-Fi 6 (802.11AX)
  • Compatible with Node
  • Wi-Fi monitoring with multiple Serv devices*
  • 20 independent viewers using Teradek TV app*
  • Rugged Design
  • Robust Aluminum Chassis

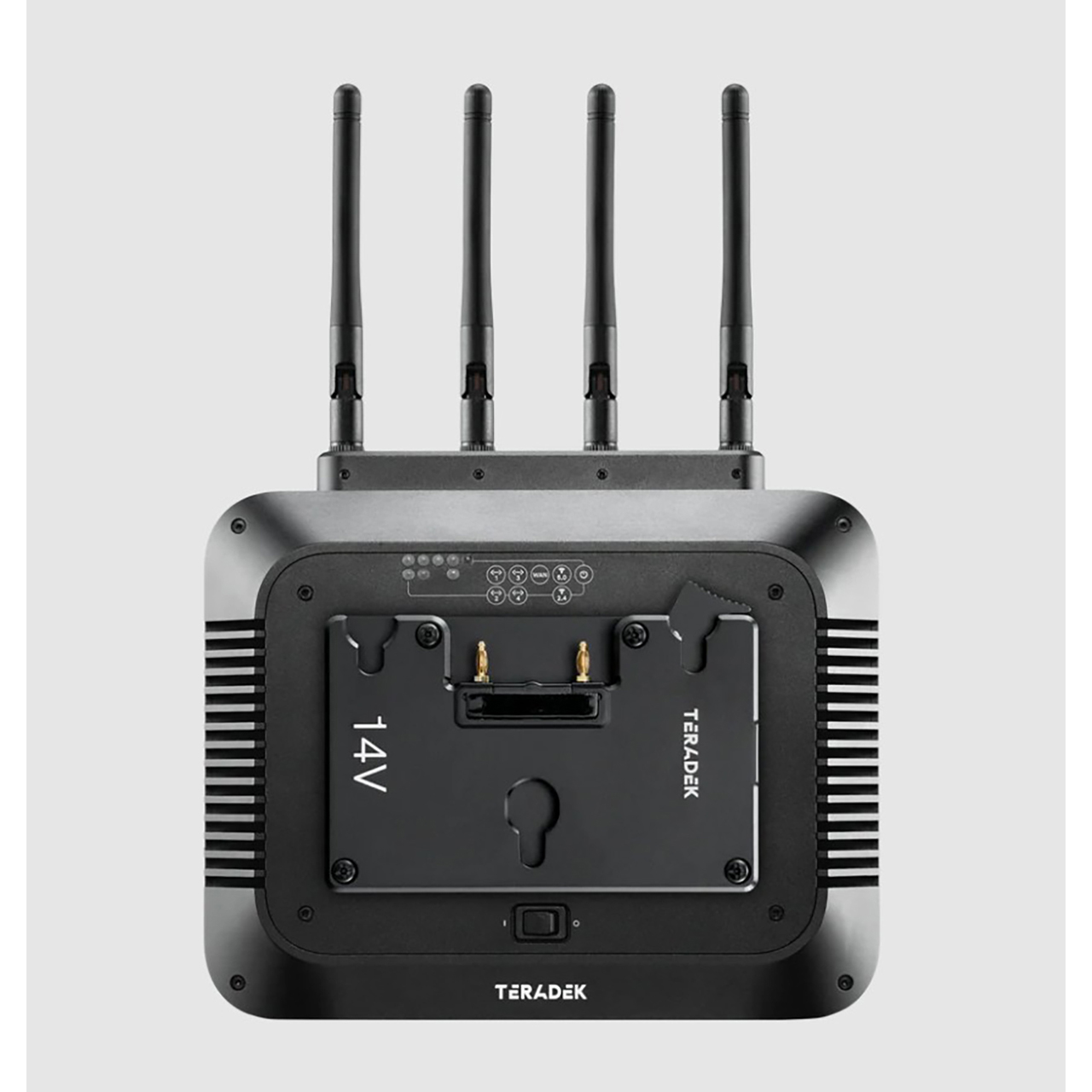

  • Gold Mount Plate
  • 3/8" and 1/4"-20 Mounting Points
  • 5 customizable ethernet ports
  • USB-A for cellular modems like Node II with Teradek Data
  • Add an internet connection to enable remote monitoring or camera-to-cloud workflows.

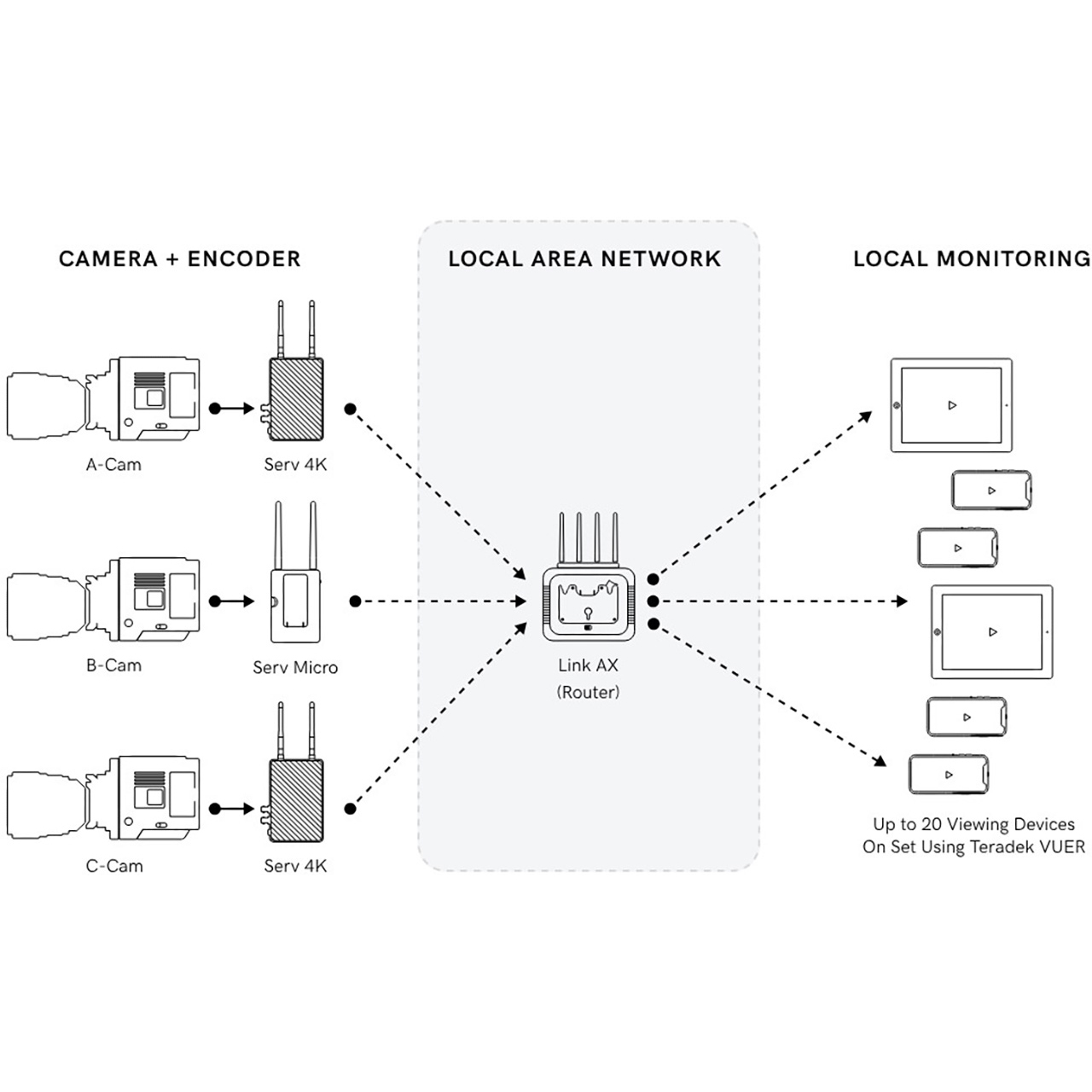

  • Simultaneous control of multiple cameras over Wi-Fi


• Specifications:

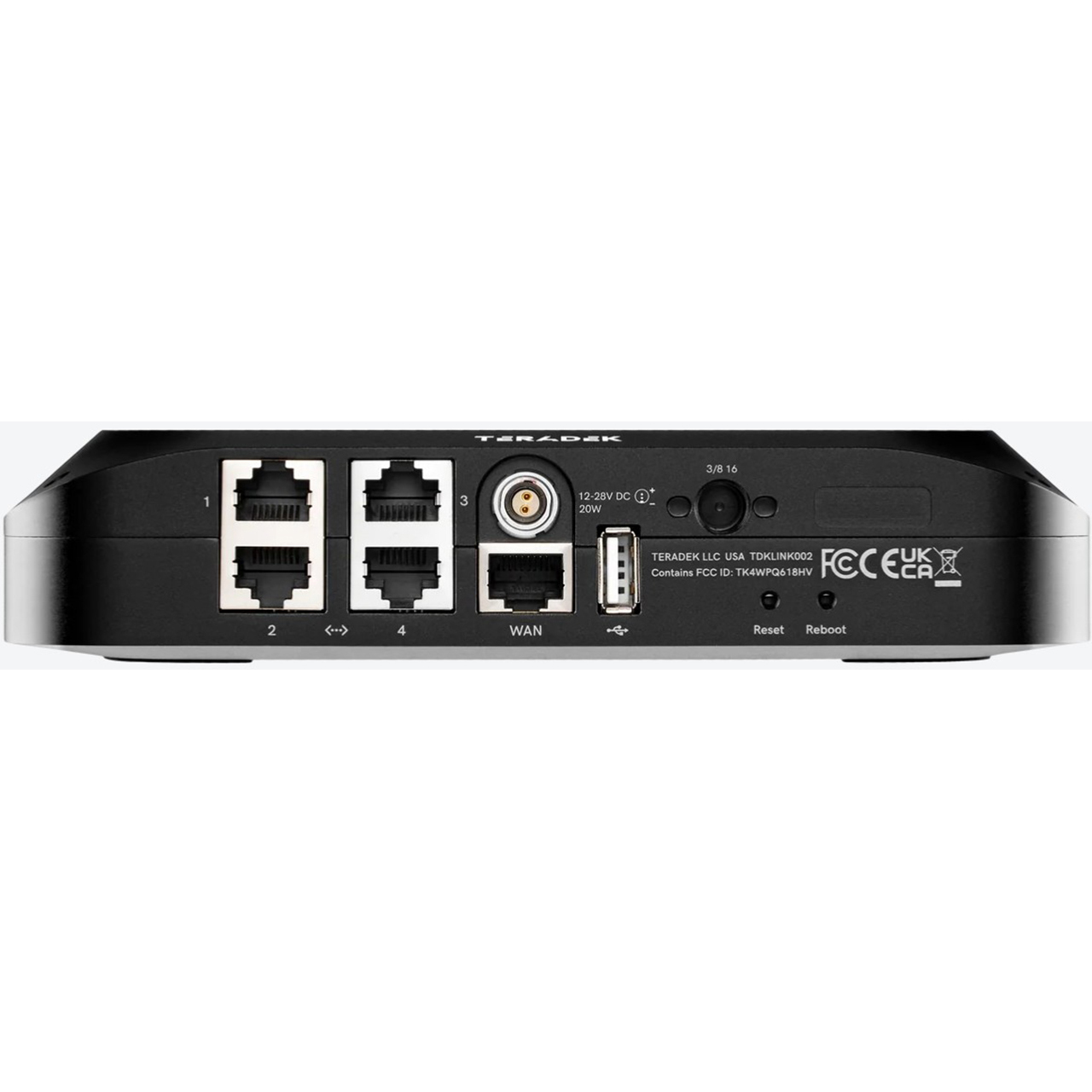

  • Ethernet: 4x 1Gbps Ethernet Ports 1x 2.5Gbps Ethernet Port
  • USB: USB 2.0
  • WiFi: 2x2 2.4GHz MU-MIMO OFDMA 802.11 b/g/n/ax, max 20dBm per chain; 2x2 5GHz MU-MIMO OFDMA 802.11 a/n/ac/ax, max 20dBm per chain
  • Frequency Range: 2.412 - 2.472GHz, 5.180 - 5.825GHz
  • Encryption: 802.11AX, 802.1x, 802.11i, WPA2, WPA and WEP 64/128 TKIP 128bit AES
  • Power Input: 12V - 28V 2-pin locking connector
  • Nominal Power Consumption: 17.5W (Max)
  • PoE: Supports IEEE 802.3at 48V - 56V
  • Configuration Interfaces: Feature rich web UI for configuration and control
  • Switches: On/Off, Reset, and Reboot switches
  • Status LEDs: Multiple LEDs for device, wireless, and network statuses


• Item Includes:

  • 1x Link AX Wireless Access Point Router 5-Port with Gold Mount Plate
  • 1x 3/8" Lightstand Adapter
  • 1x PSU 2-pin Conn. to 36W AC Adapter (Int) - 6ft Cable
