10-0264 - Overview

Reinvent your live streaming workflow with Teradek Wave, the only live streaming monitor that handles encoding, smart event creation, network bonding, multistreaming, and recording - all on a 7" daylight-viewable touchscreen display. Watch your live productions in real-time on the same device you're using for encoding with the quality and reliability expected in traditional broadcasts. With Wave, you can prepare multiple events ahead of time using Wave's innovative project workflow: FlowOS.

Wave was designed to simplify live production by combining a number of key technologies into a single product, thereby reducing the amount of equipment required to stream a high quality event.

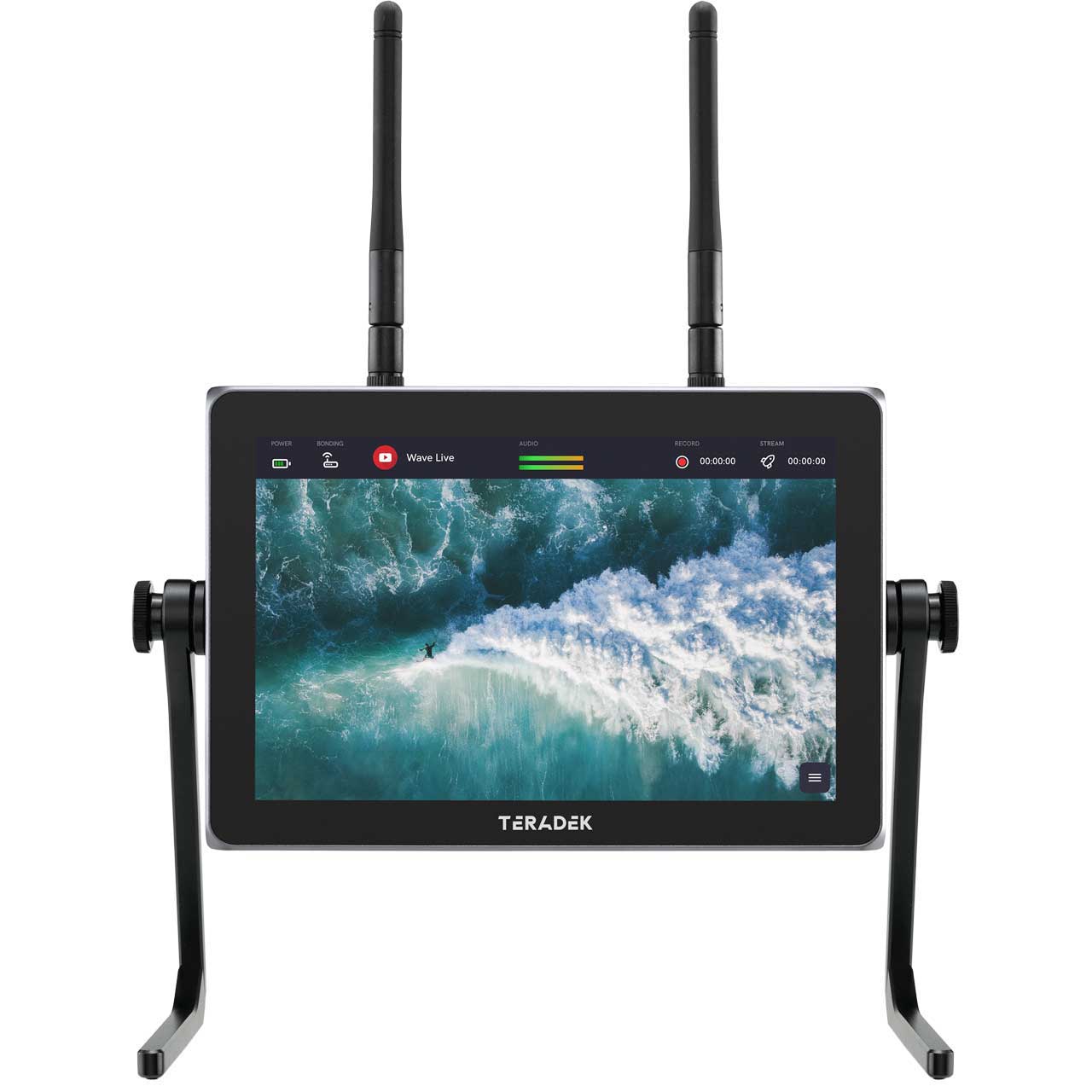

7" Touchscreen, Daylight Viewable Monitor
Monitor your live stream as it happens, even in broad daylight. Reduces the need for an additional screen on the production desk. The perfect compliment to video switchers with or without streaming capabilities (Roland, DataVideo, Blackmagic Design, etc..).

Interactive Operating System
Makes the device incredibly intuitive and easy to use. Allows you to plan and prep multiple events ahead of time and save your configuration for later use.

Network Bonding
Allows you to stream from just about any location by load balancing network bandwidth across multiple connections (Ethernet, WiFi, USB cellular modems, mobile hotspots). Increases stream reliability by lowering the amount of upload bandwidth required per connection
Requires Teradek Sharelink subscription.

Wave App
The iOS and Android app for Wave allows you to monitor your video and audio in real time, check your stream statistics, and enables phone bonding (contribute your Phone LTE connection to Wave, NOT hotspot).

Hot-swappable Power
Continuous power with Sony L-series batteries allows you to stream for as long as you need to, whether you're operating on a desktop or have the Wave attached to your camera.

Applications:
Small Businesses (Live Production Companies)
House of Worship (HoW)
Lifestyle aka IRL (Weddings, Content Creator Streamers)
Education
Recreational Sports

  • Features:

    • Multi-Destination Streaming
    • 1000nit daylight-viewable display
    • Two portable, continuous powering solutions for backup in the event of an outage
    • Hot-swappable Sony L-series batteries
    • USB-C power connector
    • Switch between mounting on camera or setting on table top
    • 1/4"- 20 mounting holes
    • Stand included
    • Durable machined aluminum body
    • Stream in AVC/H.264
    • Compatible with YouTube, Facebook, Vimeo, Wowza, and any other RTMP(S) platform
    • Video Quality: Up to 1080p60
    • On-board recording
    • Monitor your stream from the Wave mobile app
    • FlowOS user interface purpose-built for Wave
    • Smart Event Creator
    • Live monitoring of video and stream settings/analytics
    • Multiple Internet Inputs: WiFi 6, Gigabit Ethernet, Cellular: 2x USB 2.0 (for LTE modems**), Cellphone Bonding

  • Specifications:

    • Video
    • Video Inputs: 1x HDMI Type A receptacle
    • Supported Input Resolutions: 1080p 23.98/24/25/29.97/30/50/59.94/60, 1080i 50/59.94/60, 720p 50/59.94/60
    • Video Compression: H.264 (AVC), baseline/main profile
    • Supported Video Bitrate: 250 kbps to 15 Mbps
    • Supported Resolutions: 1080p, 720p, 480p, 360p, 240p
    • Supported Frame Rates: 10, 14, 20, 25, 30, 50, 60

      Network
    • Ethernet: 10/100/1000 BASE-T
    • Wireless: WiFi: Dual Band MIMO 802.11 ac/ax/a/b/g/n, Access Point (AP), or Client Mode
    • USB: USB for external modem support
    • WiFi: Channel Selection Auto with 3 modes: 2.4 or 5 GHz, Auto (2.4 GHz only), Auto (5 GHz only), Manual: Configurable to specific channels

      Protocol Support
    • Network Protocols: TCP/IP, UDP, HTTP, DHCP, NTP, SSL, IGMP
    • Supported Video Transport Protocols: RTMP(S), Airmix
    • Bonding: Requires a Sharelink subscription.
    • Platform Integration: Facebook, YouTube Live, Vimeo, Wowza
    • Cloud Services: Sharelink

      Audio
    • Audio Input Embedded HDMI audio input, 2-Channel, 3.5mm analog audio input
    • Audio Output: 3.5mm TRRS headphone output, adjustable volume
    • Audio Compression: AAC-LC
    • Supported Audio Bitrate Details: HD: 256 kbps, High: 192kpbs, Medium: 128kpbs, Low: 96 kpbs, Mobile: 48kpbs

      Physical Attributes
    • Dimensions: 7" W x 4.78" H x 1" D (178 x 122 x 26mm)
    • Weight: 24oz [680g]
    • Construction: Machined aluminum and ABS Plastic
    • Mountability: 1/4" 20 mounting holes with stand adapter

      Panel
    • Type: IPS LCD 7"
    • Nits 1000 Daylight viewable

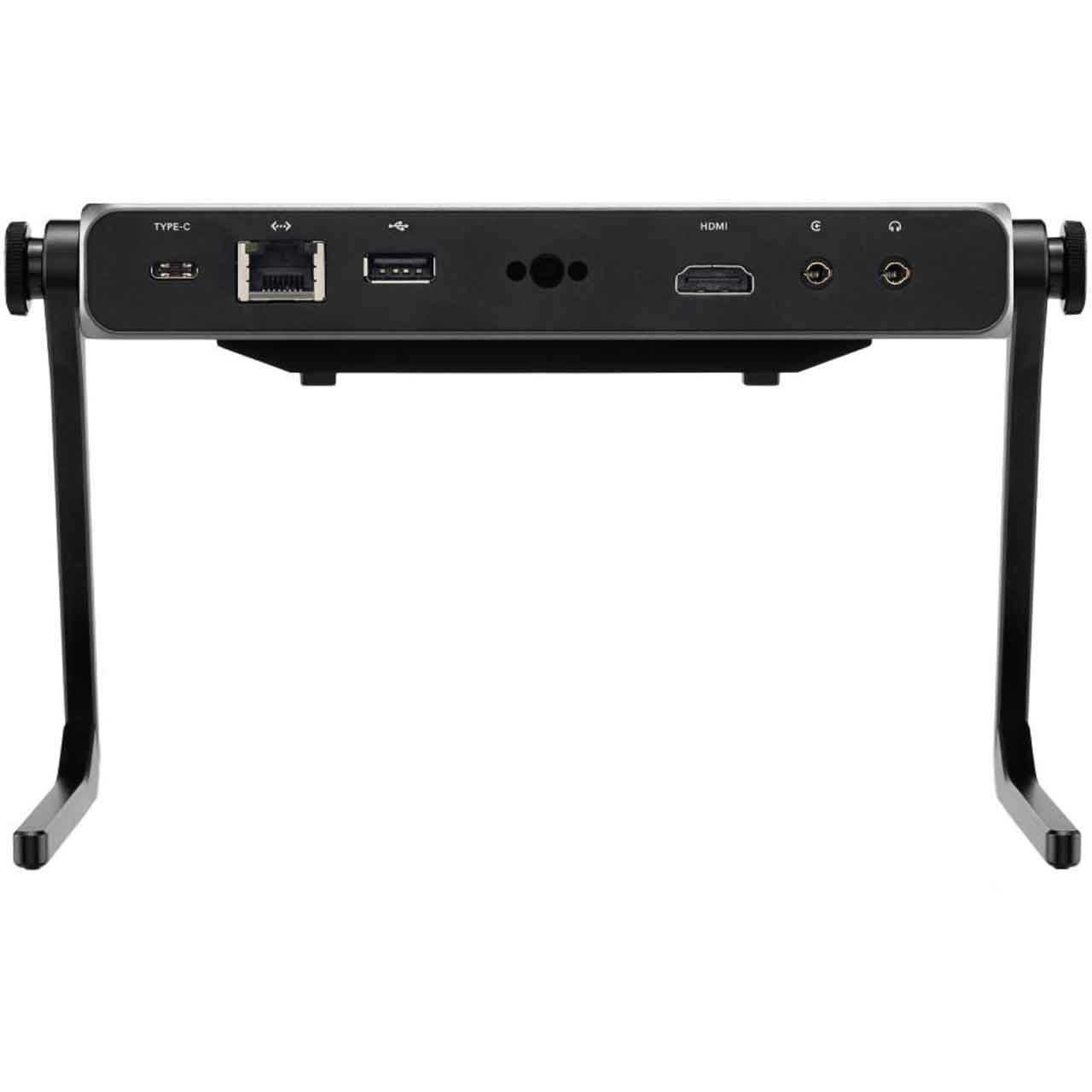

      Interfaces
    • Configuration Interface: OSD with touchscreen, Feature-rich Web UI for configuration and control

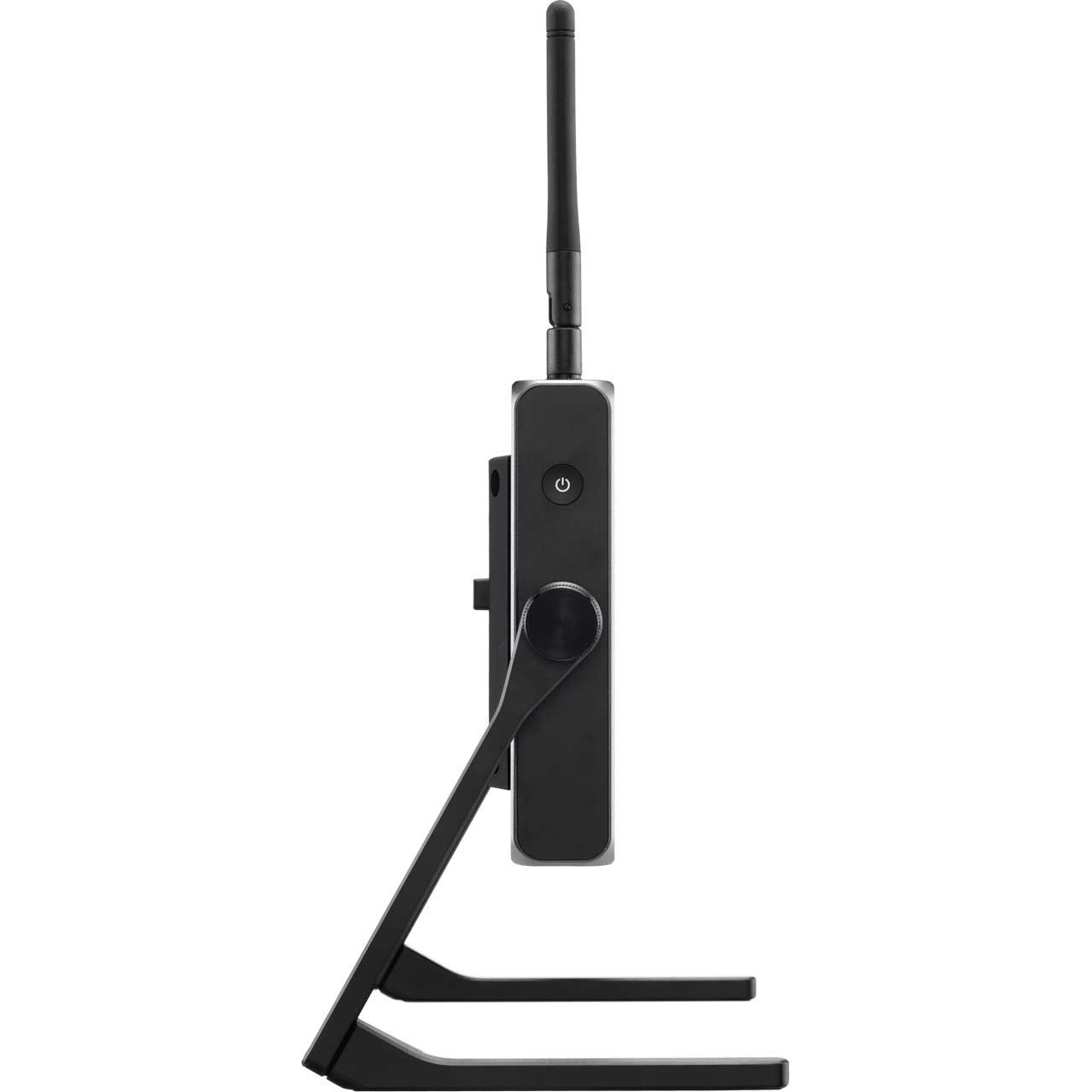

    • Switches: On/Off and reset switch

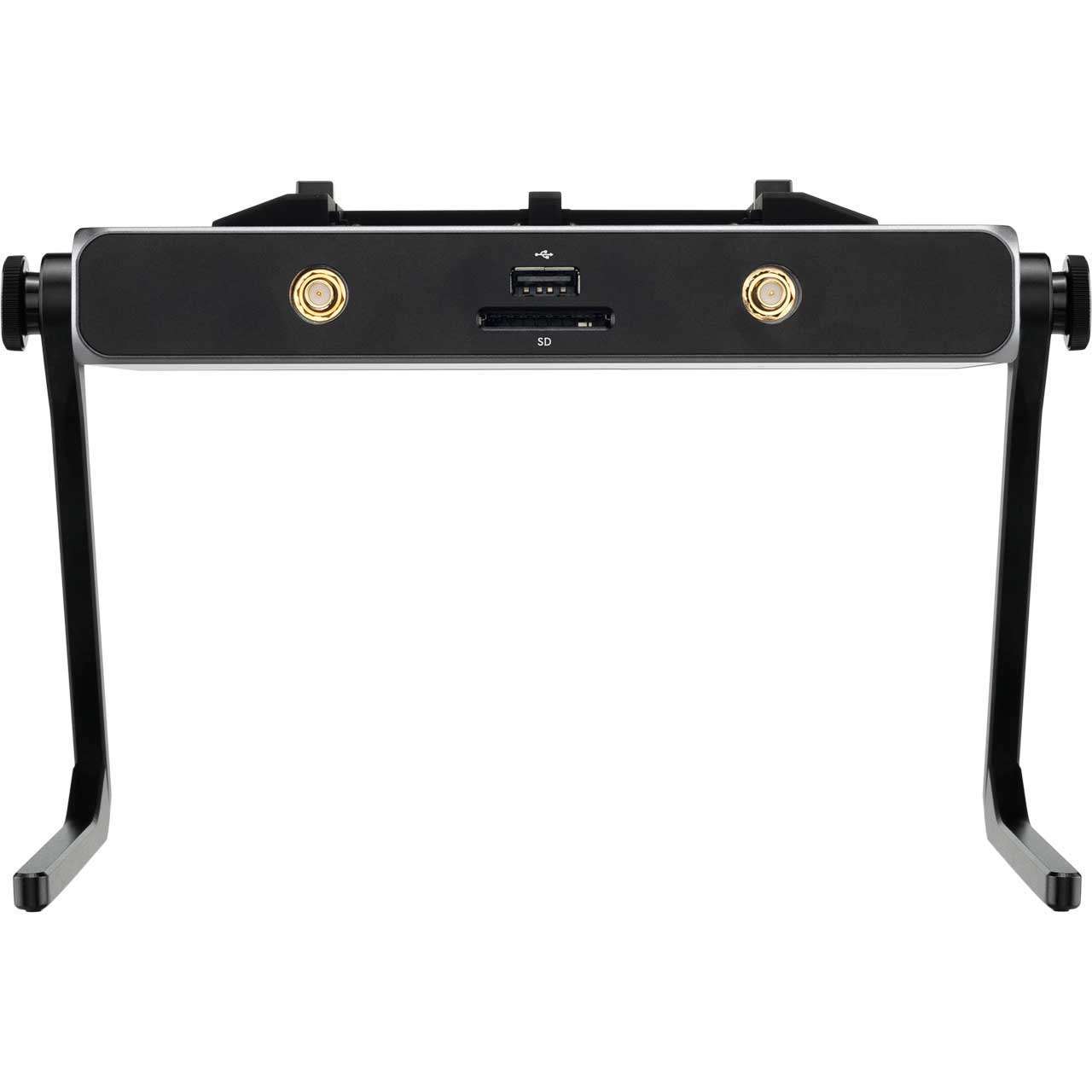

    • Recording/Storage: Full SD/SDHC (class 6 and above) formatted FAT32, USB formatted FAT 32
    • Mobile App: Wave App for iOS or Android devices
    • USB Interface Functionality: 2x powered USB 2.0 host ports

      Power
    • Power Input: USB-C connector, power adapter and USB-C cable included

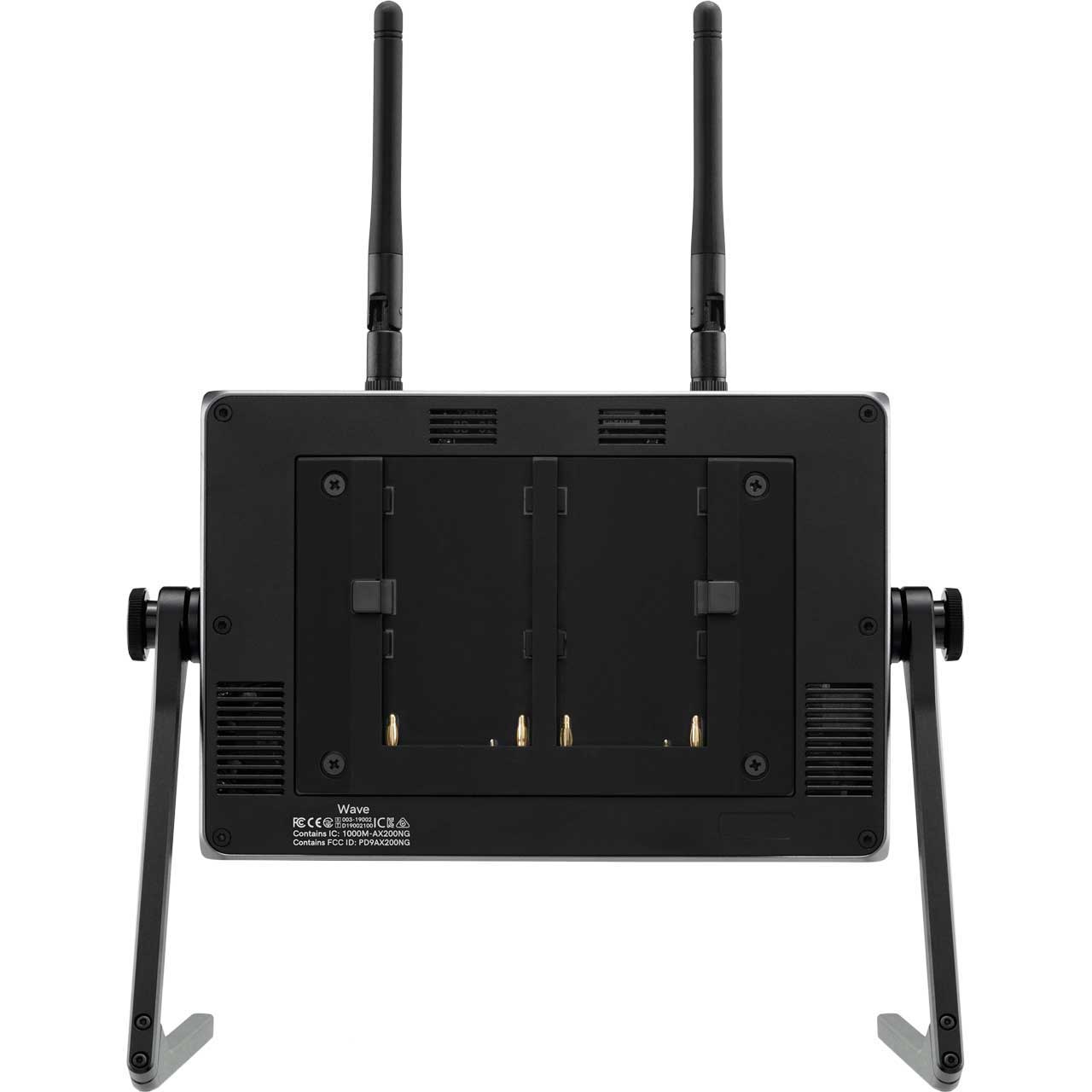

    • Battery: Plates for external Sony L-series
    • Nominal Power: Consumption Up to 12W (with optional internal modem: up to 14W)

  • Item Includes:

    • 1x 7" Screen Protector
    • 1x Tabletop Stand
    • 1x Thin Ethernet cable
    • 1x Thin HDMI cable
    • 1x 7" Neoprene monitor sleeve
    • 1x Sony L Series Battery Bracket plate
    • 1x PSU 30W USB-C Power Adapter
    • 1x WiFi antennas
    • 1x Quickstart Guide - WAVE

  • GTIN:

    0818264027004
