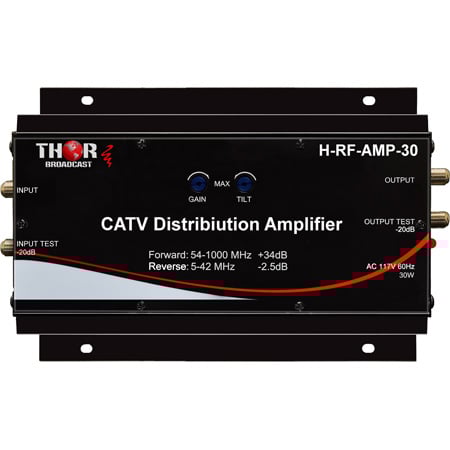

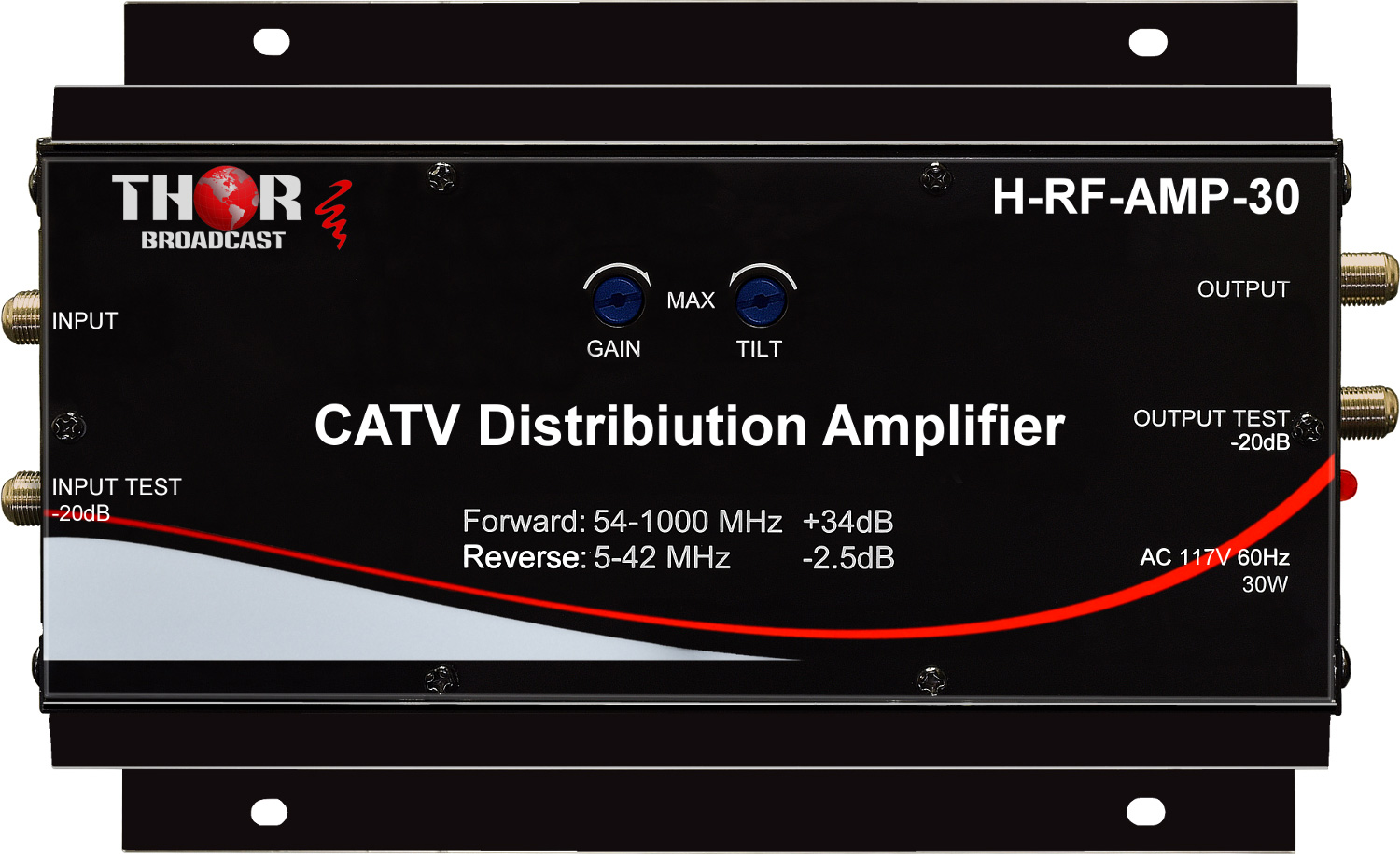

Thor H-RF-AMP-30 Distribution Amplifier 30db 54-1000Mhz COAX CATV QAM ATSC Analog RF

ITEM #: THR-H-RF-AMP-30 MFG #: H-RF-AMP-30

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the THR-H-RF-AMP-30

H-RF-AMP-30 - Overview

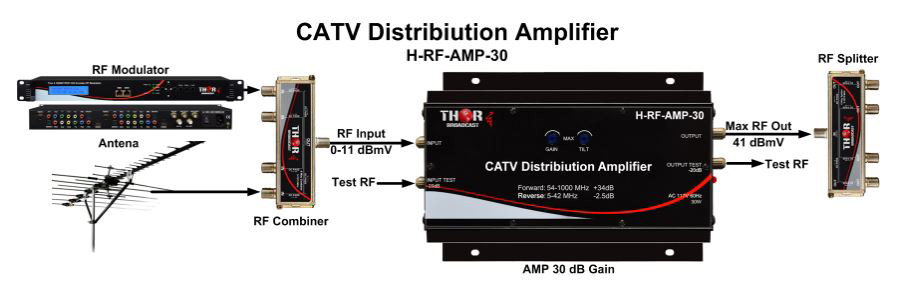

This amplifier makes an excellent distribution system amplifier for heavily loaded MDU and broadband CATV and SMATV systems. Because of its extremely low-noise figure and low distortion, the Thor H-RF-AMP-30 is ideally suited for use in larger networks where amplifier cascading is required.

Applications:
CATV RF QAM over coax amplification
The 30dB gain from off ait antenna ATSC / DVB-T / ISDB-T
Analog RF - NTSC / PAL video amlification

  • Features:

    • Broadband 54-1000MHz frequency range (Channels CATV 2-158)
    • 30dB gain for optimal carrier-to-noise ratio and superior picture quality
    • ± 0.5dB flatness across band provides low distortion and excellent frequency response
    • Employs state-of-the art hybrid push-pull technology for distortion-free audio-video quality
    • Adjustable slope and gain controls for easy system balancing
    • Easy-access controls and lowloss (-20dB) test point enable simplified setup and performance monitoring
    • Shielded enclosure provides over 95dB RFI shielding performance reducing leakage and ingress
    • Built-in lightning and line voltage surge protection protects the unit from damage


  • Specifications:

    • Bandwidth-CA-30/1000: 54~1000MHz
    • Bandwidth-CA-30/550: 54~550MHz
    • Gain (FWD) 54~1000 MHz: 30dB
    • Gain (FWD) 54~550 MHz: 30dB
    • Max. Output (158 ch.) (CA-30/1000): 40 dBmV
    • Max. Output (82 ch.) (CA-30/550): 43 dBmV
    • Flatness: 0.5dB
    • Noise Figure (FWD) CA-30/1000: 5dB
    • Noise Figure (FWD) CA30/550: 4.5dB
    • Composite Second Order (FWD): 70dB
    • Composite Triple Beat (FWD): 61dB
    • Input Test Point Loss: 20dB
    • Power Input: 115VDC
    • Power Required: 4Watt
    • Dimensions: 8" (L) x 2.75" (D) x 4.5" (H)
    • Weight: 2.3 lbs.
