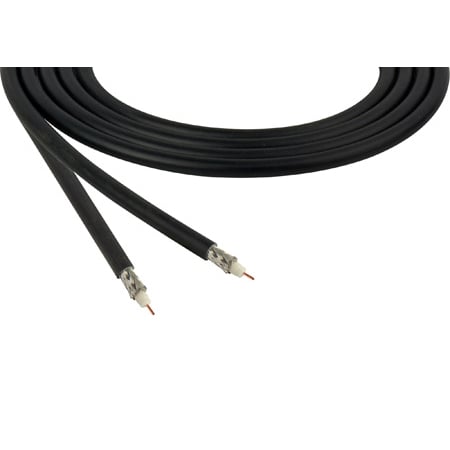

Belden 1505A is a 75 Ohm 6G-SDI Coaxial RG-59 Video Cable, 20 AWG with a Solid Bare Copper Conductor, PE Insulation, Foil plus 95% Tinned Copper Braid Shield in a CMR rated PVC Jacket.
Belden’s premium multi-channel 6D-SDI coax cable meets the SMPTE ST-2081 6G-SDI Standards to support 6 Gbps and maximum resolutions for 4K video & audio applications up to 30Hz. This cable supports: 1080P (All formats to YUV 4:4:4), 10/12-bit 4Kx2K RAW, 10-bit 4Kx2K YUV 4:2:2.
Digital and Analog Video
6 Gb/s UHDTV
ENG News Set-ups
Electronic Field Production
