Tieline TLR6200-4W Gateway 4 WNET 1RU 4 Mono/2 Stereo Multi Channel IP Audio Codec - Analog/AES3/AES67/SMTPE ST 2110-30

ITEM #: TIE-TLR6200-4W MFG #: TLR6200-4W

  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
free ship

List Price:

$6,857.00

Our Price:

$6,515.00

Availability: Temporarily Out of Stock
iAvailability Description Popup


    TLR6200-4W - Overview

    The Tieline TLR6200-4W Gateway 4 with Wheatnet IP is a powerful DSP-based 1RU IP codec designed for live remote broadcasting applications, as well as STL or SSL links. The Gateway 4 enables transport of multiple channels of mono or stereo audio across the Public Internet or any QoS-enabled IP network, including T1 and T3 connections and private WANs with MPLS. The Gateway includes support for AES67, ST 2110-30, AES3 and analog I/O as standard.

    The Tieline Gateway 4 is ideal for remote broadcasts, STLs, and Studio-to-Studio Links (SSLs). It offers two stereo connections, or one stereo and two mono connections, or up to 4 mono connections. It supports AES67, ST 2110-30, plus AES3 and analog I/O out-of-the-box. It also includes SmartStream PLUS redundant streaming and Fuse-IP data aggregation technologies.

    Gateway 4 Delivers Best-In-Class DSP-Based Reliability And Performance
    The Gateway 4 delivers best-in-class DSP-based reliability and performance for mission critical broadcast streaming applications. It is ideal for:

    -Remote broadcast applications.
    -Studio-to-Transmitter Links (STLs)
    -Studio-to-Studio Links (SSLs)

    The Gateway 4 is designed for solutions requiring up to 4 audio streaming channels with advanced redundancy features and remote configuration and control. It supports 4 full-duplex audio channels in 1RU and is backward compatible with all Tieline IP codecs. The Gateway 4 provides two stereo connections, or one stereo and two mono connections, or up to 4 mono connections.

    Multiple Backup Options
    The Gateway 4 has multiple levels of power, audio and network redundancy. The codec features dual Gigabit Ethernet ports, dual AoIP ports, dual internal power supplies, automated audio silence detection and IP network backup solutions to ensure you're always on the air.

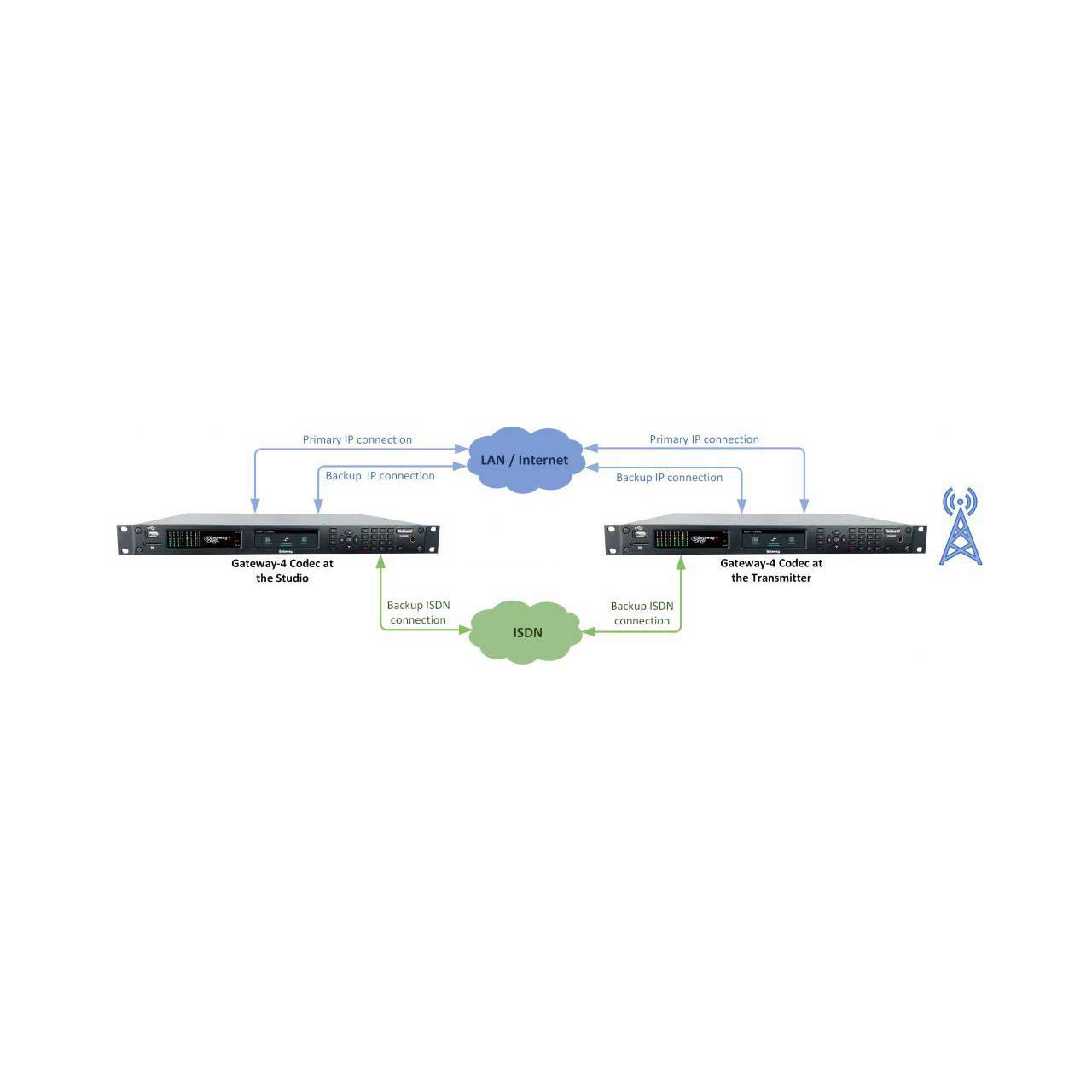

    Automated network failure detection provides auto switching to a backup IP connection. The codec can automatically switch between 4 backup audio sources to maintain program output at transmitter sites. It is also possible to fail over to ISDN using an optional ISDN module. IP fail over options include:

    -Connection audio.
    -Icecast streaming client.
    -Audio file backup.
    -Hardware bypass of audio inputs to outputs if power fails.

    TLR6200-4W - Required Accessories

      TLR6200-4W - Recommended Accessories
