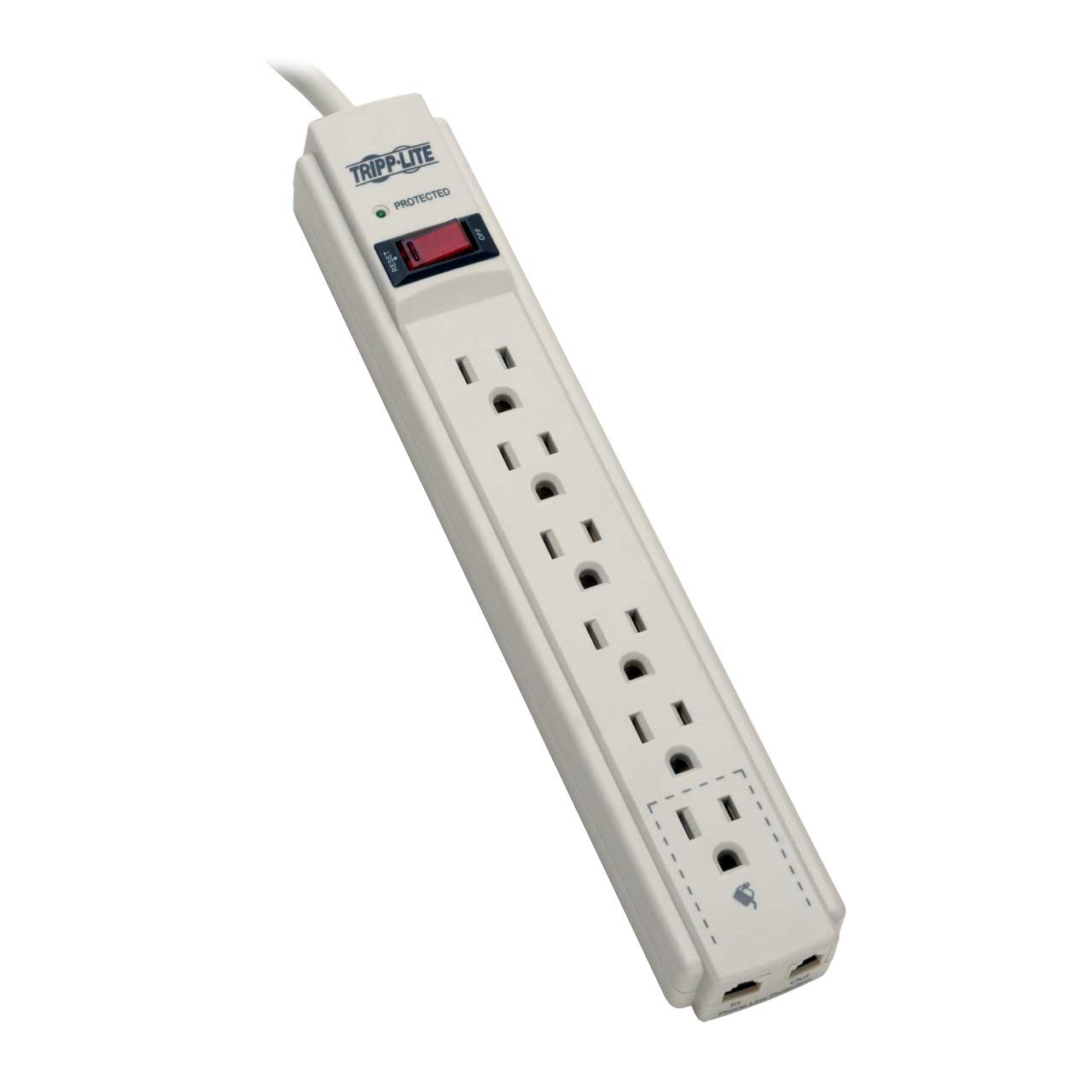

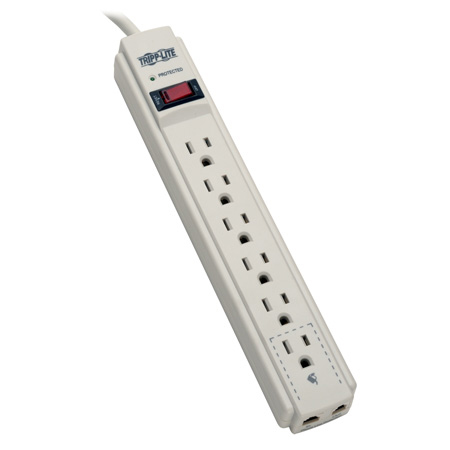

Tripp Lite 6 Outlet Surge Suppressor with Modem / Fax protection

TLP604TEL - Overview

• Features:

  • 790 joules AC surge suppression shields equipment from the strongest surges and line noise
  • 6 AC outlets with room for 1 transformer plugs without blocking outlets covers computers and peripherals

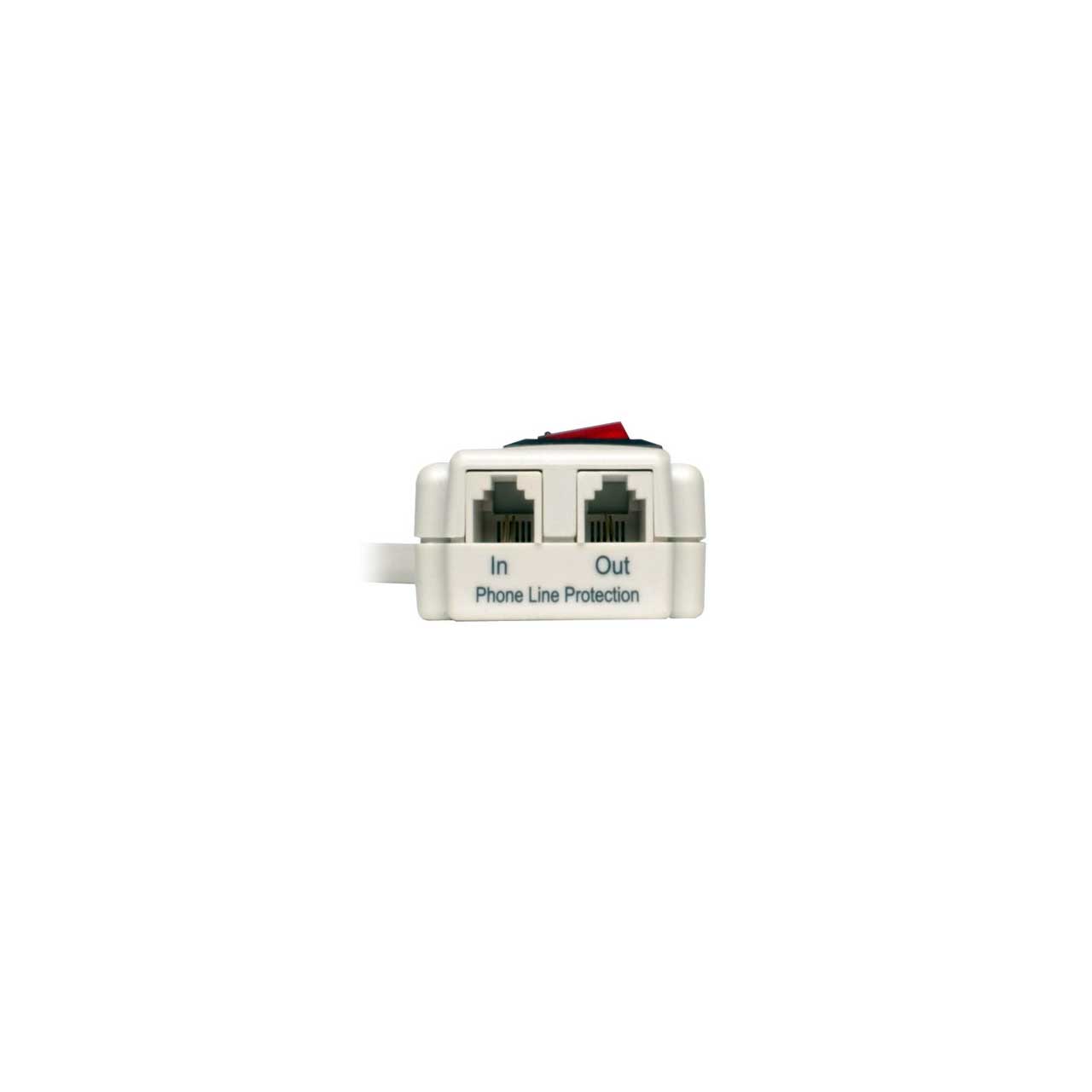

  • Phone line surge suppression protects both dialup and DSL modems, plus fax machines, cordless phones and more (pair of RJ11 jacks, 2 wire, 1 line, includes 6 ft phone cable)
  • 4 foot AC line cable
  • Built-in power switch and 15 amp circuit breaker offers power control and overload protection over all outlets
  • Fail-safe thermal fusing protects against fire and other damage in the event of an extreme, extended overvoltage or surge condition
  • Diagnostic LEDs confirm surge suppression status
  • Attractive white suppressor housing with keyhole mounting tabs allow versatile placement options
  • UL1449 3rd Edition Rated (400V all modes), UL1363 (Power Tap), UL497A (Communications), Meets FCC part 68 rules, cUL (Canada)
  • Exceeds IEEE 587 category A & B surge suppression specifications
  • $20,000 Ultimate Lifetime Insurance (U.S., Canada, and Puerto Rico only)
  • Automatic shutoff cuts power to outlets when the protection circuit has been compromised


• Specifications:

  • Output
  • Frequency Compatibility: 50 / 60 Hz
  • Output Receptacles: (6) 5-15R
  • Output (Watts): 1800
  • Circuit Breaker (amps): 15
  • Transformer Accommodation: Supports 1 large transformer plug accessory without covering remaining outlets, accepts up to 4 transformers total
  • Outlet Orientation: Single row
  • Right-Angle Outlets: No

    Input
  • Nominal Input Voltage(s) Supported: 120V AC
  • Recommended Electrical Service: 120V (110-125V)
  • Input Connection Type: NEMA 5-15P
  • Input Cord Length (ft.): 4
  • Input Cord Gauge Type: 14 gauge, SJT
  • Voltage Compatibility (VAC): 120
  • Maximum Surge Amps: 35500
  • Right-Angle Plug: No

    Surge/Noise Suppression
  • AC Suppression Joule Rating: 790
  • AC Suppression Response Time: < 1 ns
  • Protection Modes: Includes full normal mode (H-N) and common mode (N-G / H-G) line surge suppression
  • Clamping Voltage (RMS): 150
  • UL1449 Let Through Rating: 400V

    Physical
  • Shipping Dimensions (HxWxD): 13.2" x 5.2" x 1.8"
  • Shipping Weight (lbs.): .91
  • Unit Dimensions (HxWxD): 10.8" x 1.85" x 1.23"
  • Unit Weight (lbs.): .82
  • Material of Construction: Plastic

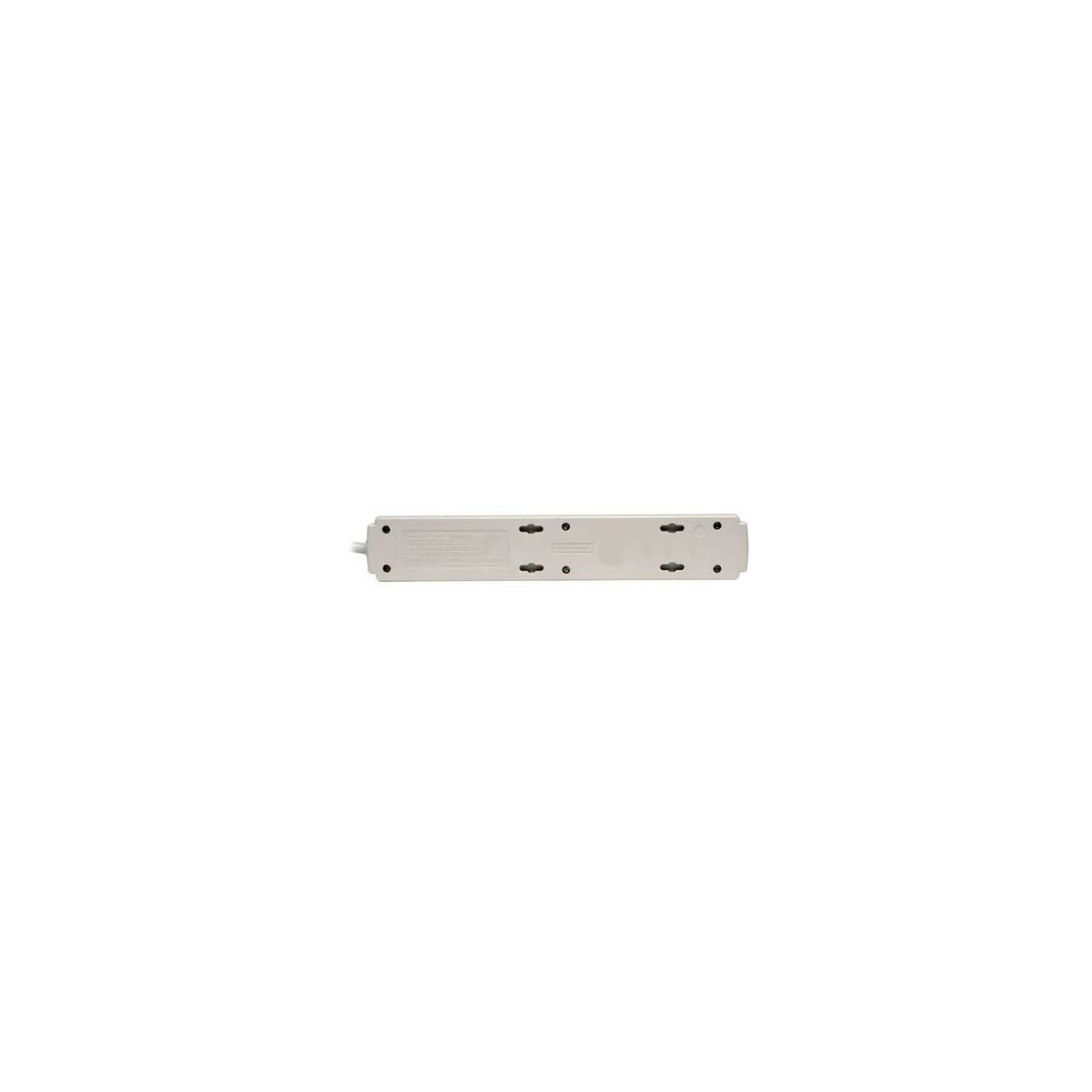

  • Integrated Keyhole Mounting Tabs: Keyhole mounting tabs enable wall mounting
  • Housing Color: Light Gray
  • Receptacle Color: Light Gray
  • Color (AC Line Cord): Light Gray
  • Outlets Measurement (Center to Center): 28.5mm
  • Keyhole Slot Mounting Measurement (Center to Center): Distance between slots = 101mm; Distance between slot height = 28mm


• GTIN:

  0037332095442
